First 40 mm tuning cylinder kit suitable for the manually shifted Cilo 502 mopeds.
This 40 mm racing kit is visually indistinguishable from the original cylinder when fitted.
Augmented by the larger displacement and slightly improved timing, an increase in performance was tested in all speed ranges.

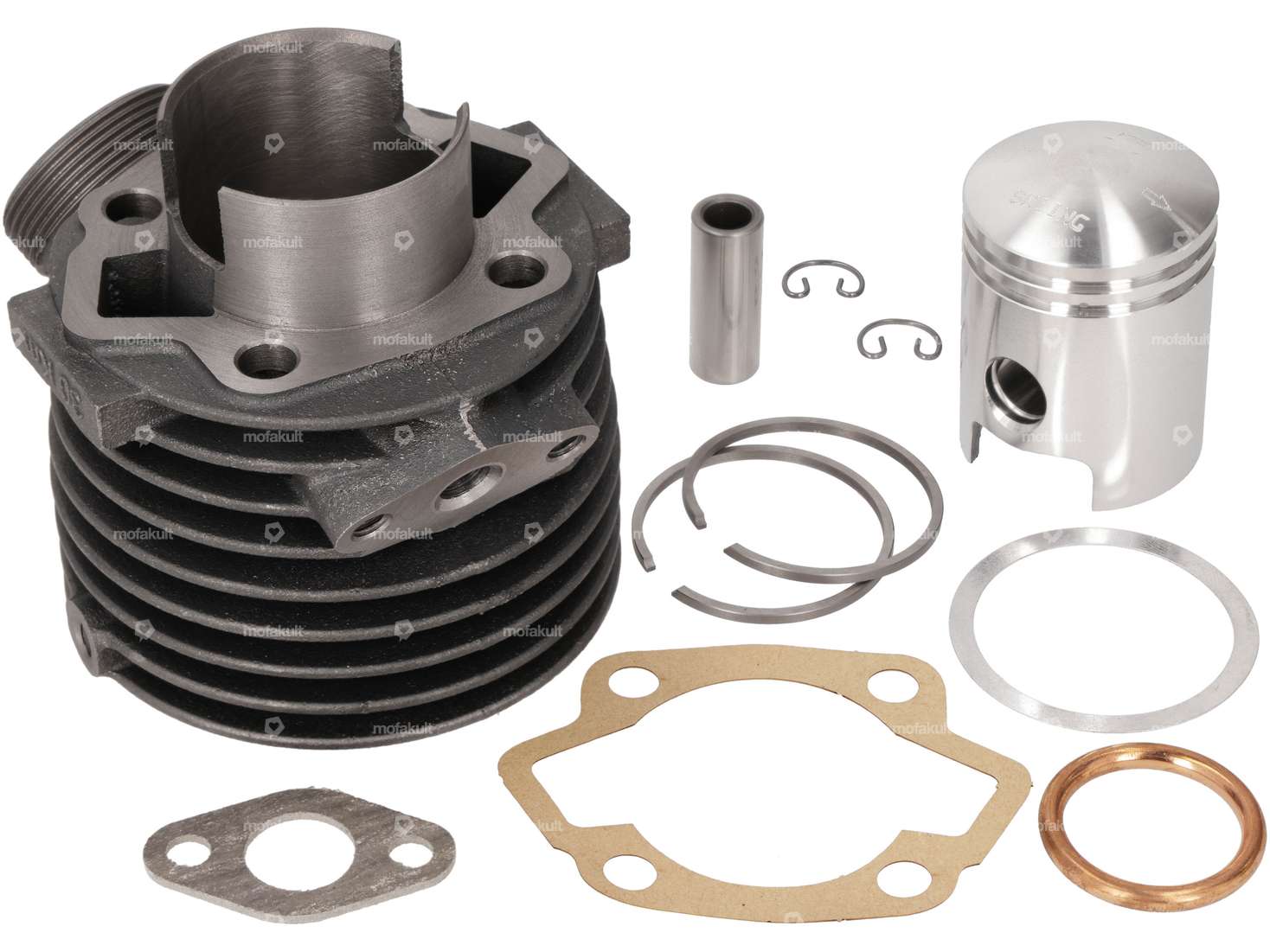

The set includes cylinder, piston kit and gasket set. The matching stud bolts are listed under accessories.
The cylinder is manufactured by the quality brand swiing – swiss ingenious.
The Meteor piston manufactured for swiing is characterized by its high-quality and precise workmanship.

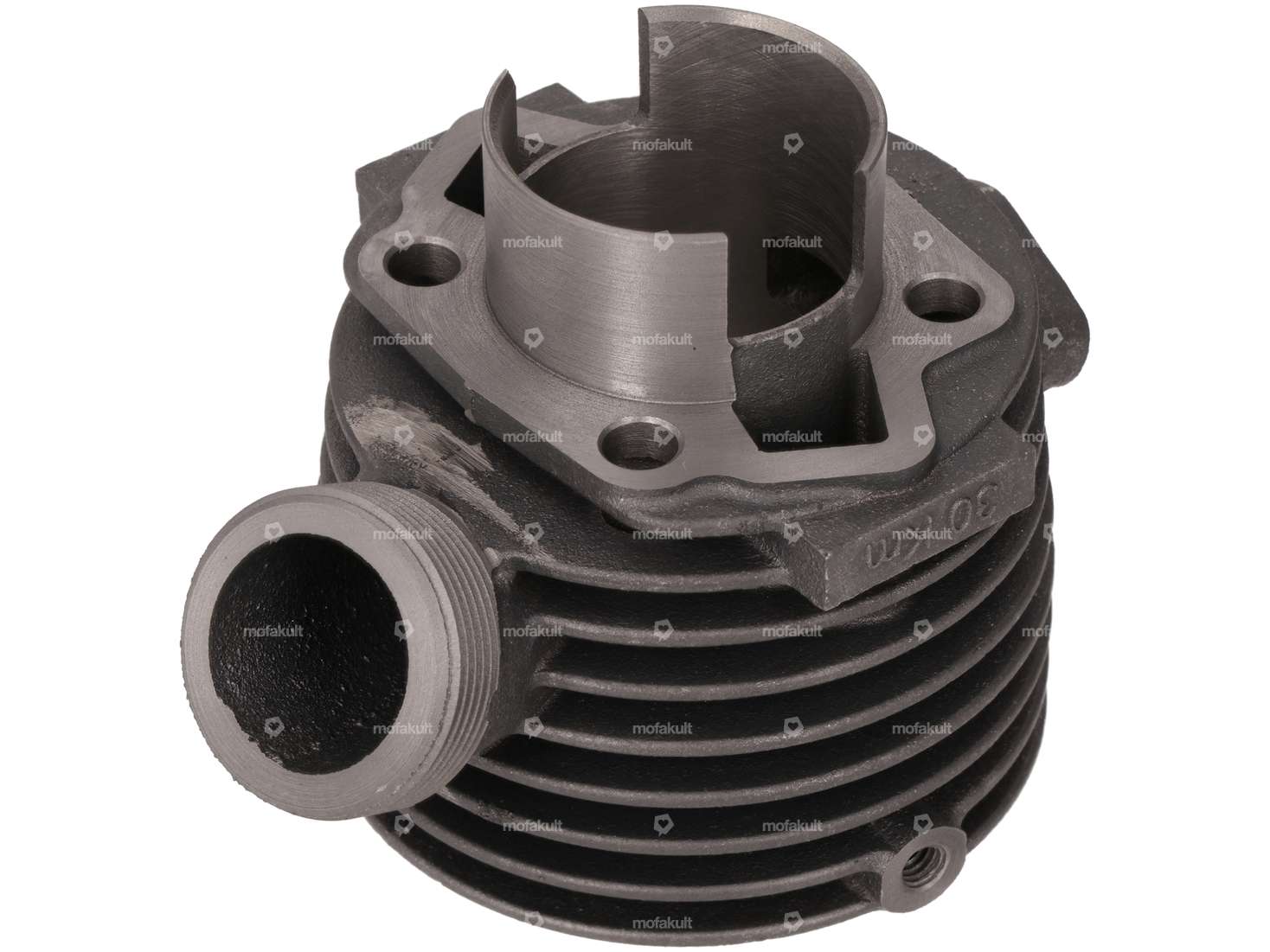

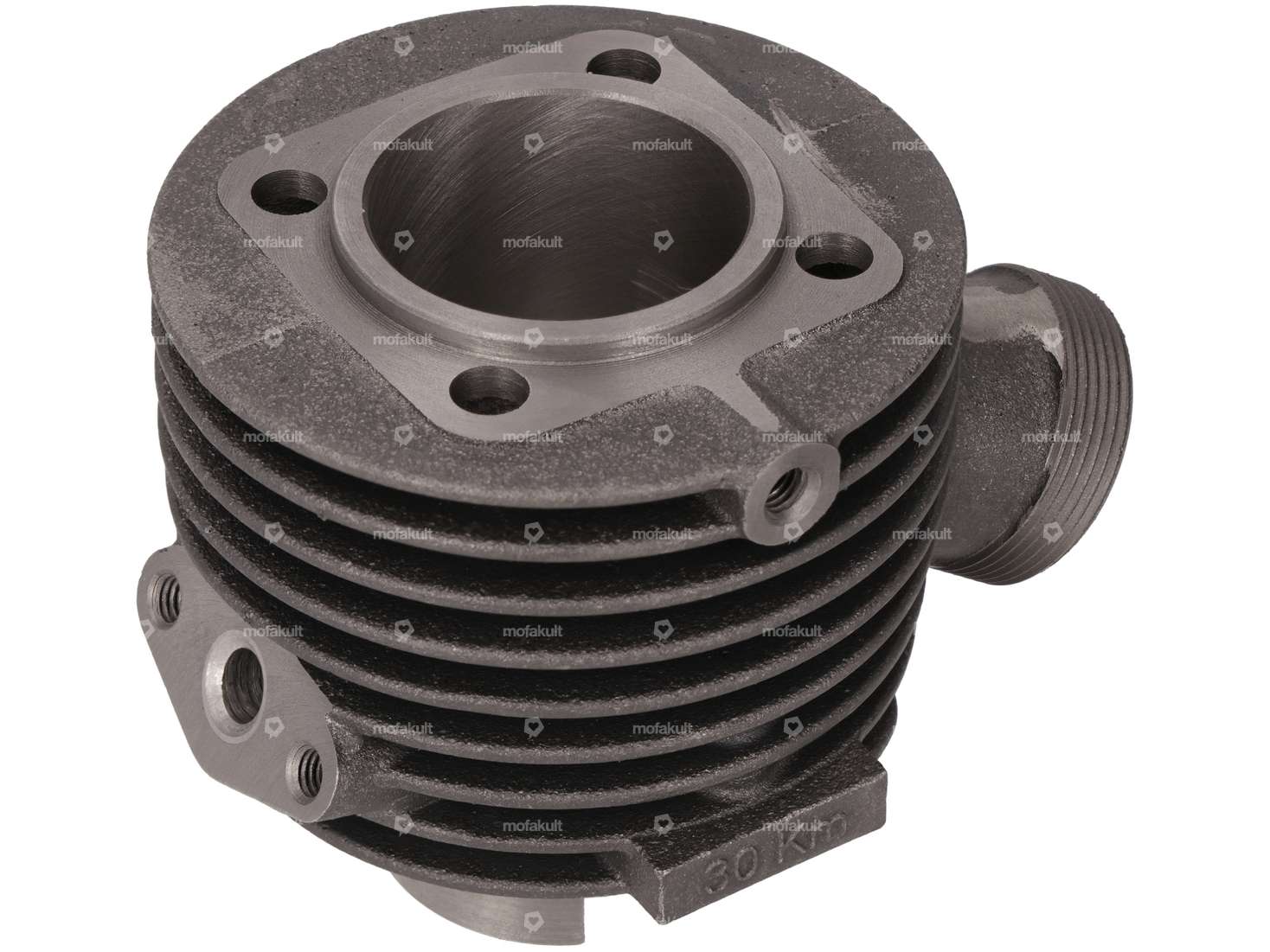

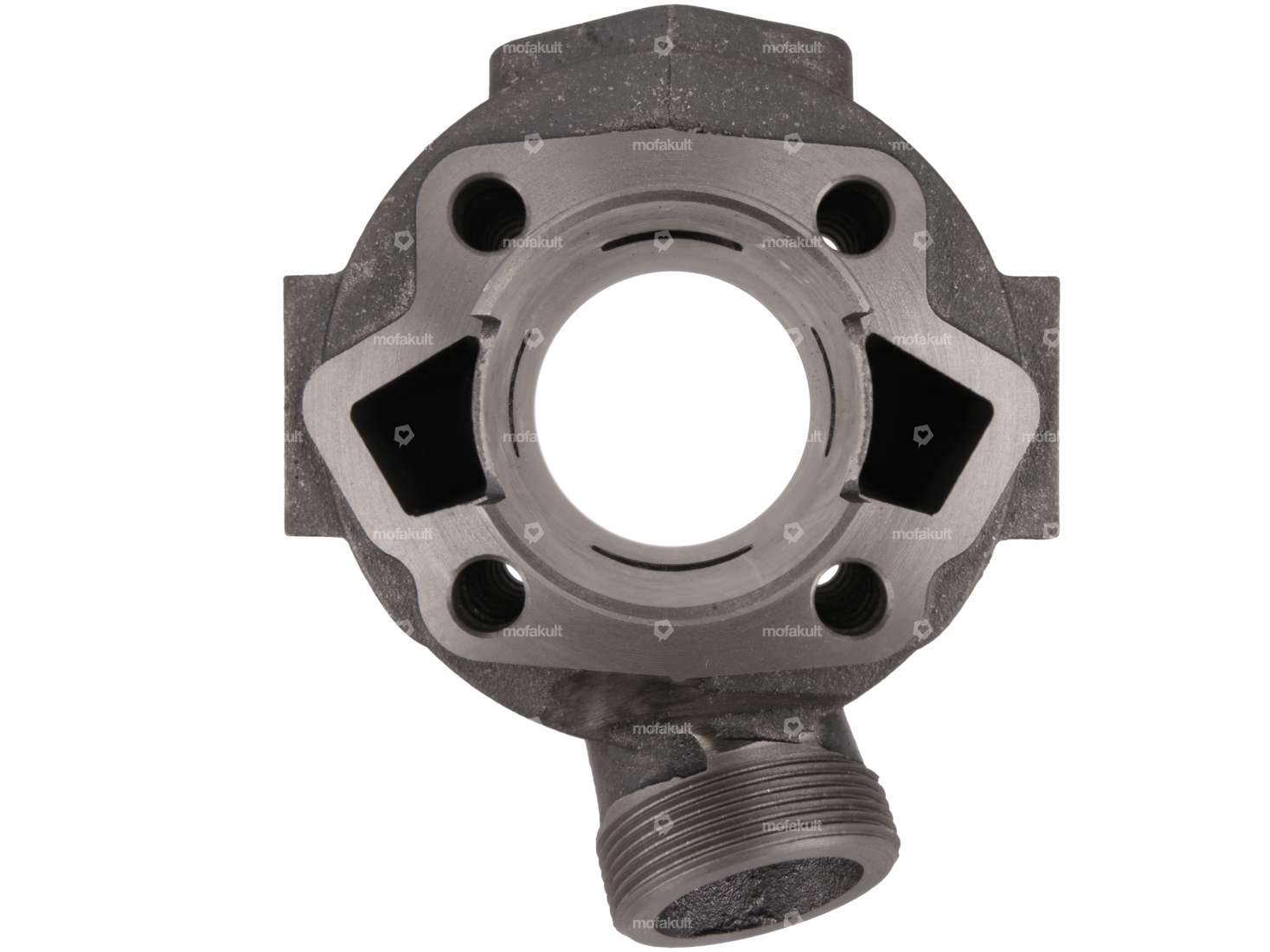

- Cast iron reproduction cylinder with 40 mm bore
- sealed inlet (as original, can be drilled out)
- molded "30 Km" lettering (as original)
Matching attachments can be found in the accessories section.
Manufacturer: swiing® revival parts · Number of components: 4 pcs · Ø cylinder: 40 mm · Hole spacing inlet: 32 mm · Ø outlet inside: 28 mm · Area of application: Tuning
Manufacturer: swiing · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Nominal diameter: 40 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Outlet type: Union nut · Number of fixing points: 4 pcs · Camouflaged: No · Area of application: Tuning
Manufacturer: swiing® ingenious parts · Nominal diameter: 40 mm · Ø outside piston (A): 39.93 mm · Ø piston pin (B): 12 mm · Compression height (C): 27.9 mm · Curvature (D): 5.1 mm · Total piston height (E): 54 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.65 mm · Piston weight: 93 g
| Material | Gray cast iron |
| Surface | sandblasted |
| Nominal diameter | 40 mm |
| Manufacturer | swiing |
| Number of fixing points | 4 pcs |
| Camouflaged | Yes |
| Area of application | Tuning |
| Ø piston pin (B) | 12 mm |
| Thread inlet | M6x1 (standard thread) |
| Outlet type | Union nut |
| Cilo | 502 / 502t |
