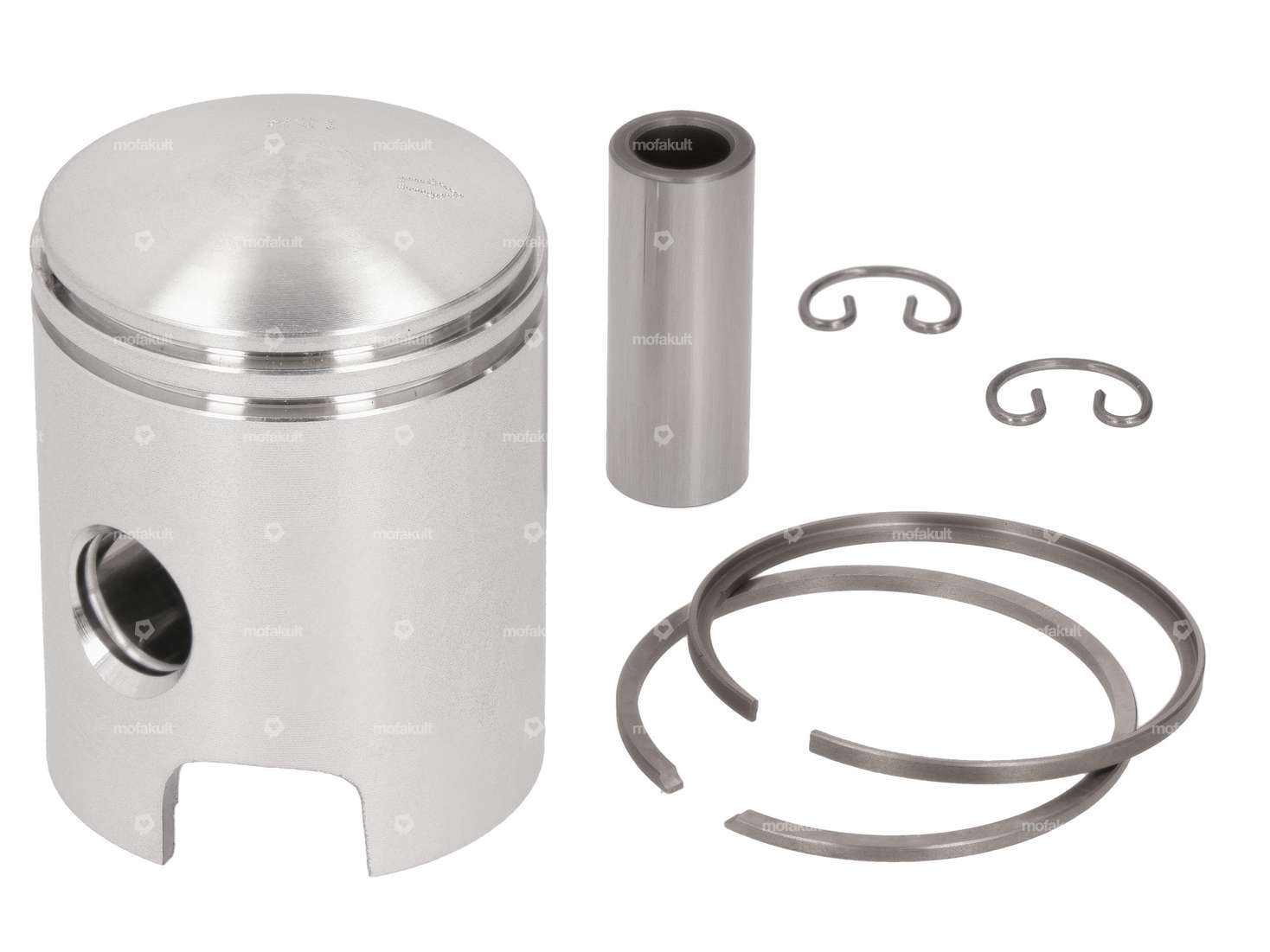

Piston kit with 1.5 mm rectangular piston rings with flank lock (FS) and 2 mm L-ring piston ring with internal lock (IS) for your Piaggio Ciao, Si, Bravo and Boxer moped / moped without catalytic converter.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
| Manufacturer | Meteor |
| Ø outside piston (A) | 38.17 mm, 38.33 mm, 38.54 mm, 38.76 mm, 38.94 mm, 39.15 mm, 39.34 mm, 39.53 mm |
| Compression height (C) | 26.5 mm |
| Curvature (D) | 3.5 mm |
| Total piston height (E) | 52 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38 mm, 38.4 mm, 38.6 mm, 38.8 mm, 39 mm, 39.2 mm, 39.4 mm, 39.6 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Piston ring height | 2 mm, 1.5 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Ø outside: 15 mm · Width: 16.2 mm · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548
EUR 15.70
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 22.40
Meteor piston pin Ø 12 mm (length: 31 - 40 mm)
Manufacturer: Meteor · Material: Steel · Surface: Hardened · Total length: 31 mm · Total length: 31.5 mm · Total length: 33 mm · Total length: 35.5 mm · Total length: 37 mm · Total length: 38 mm · Total length: 40 mm · Ø piston pin (B): 12 mm · Pony OEM number: A1112 · Sachs OEM no.: 0216 003 105
EUR 7.75

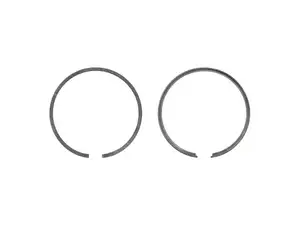

Meteor piston rings 38.2 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer
