Carburetor sump cover / air filter box «Venturi» from VMC suitable for your Vespa Largeframe scooter. You can find a list of the exact models below in the drop-down menu under «suitable for the following models».

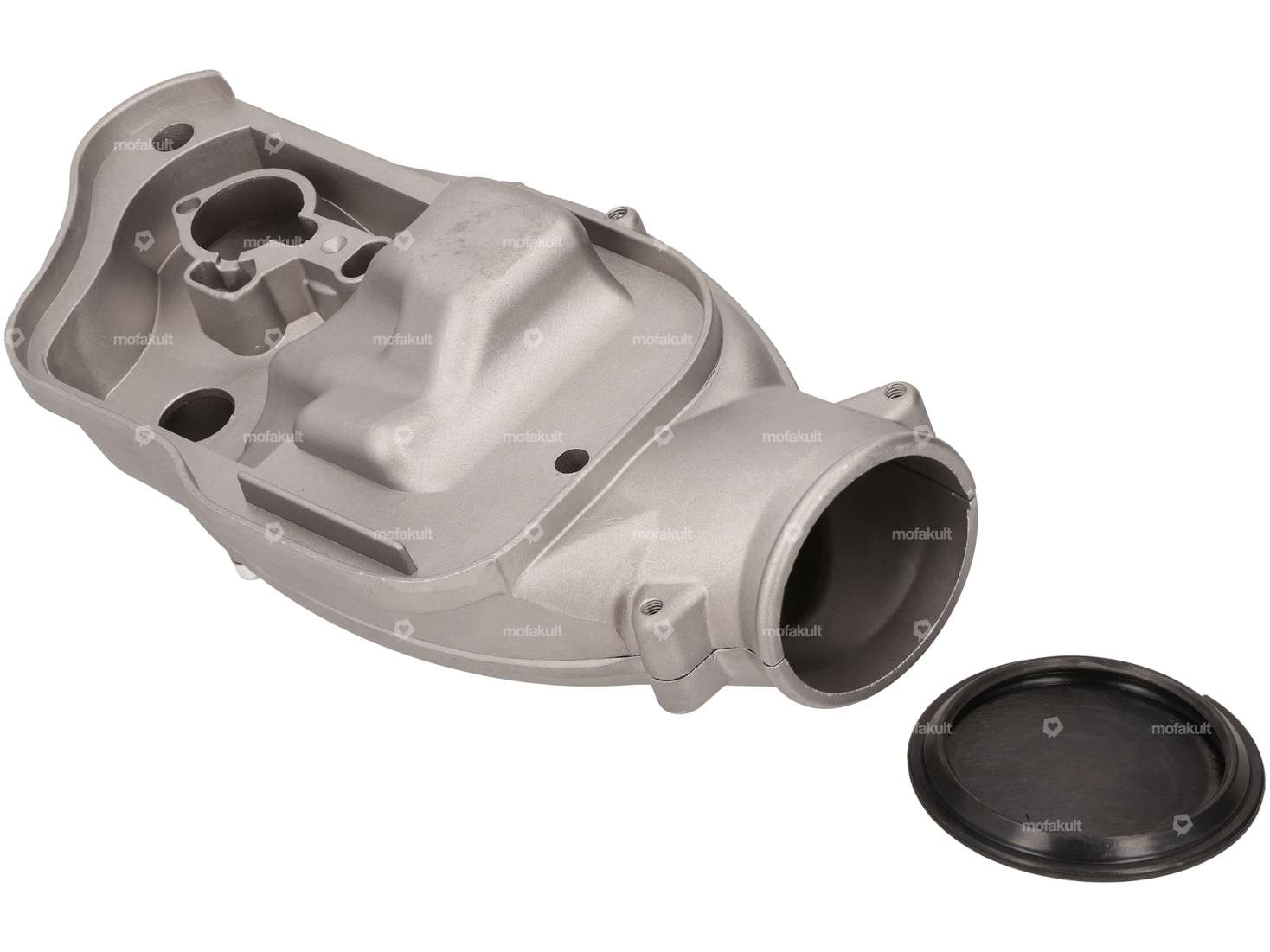

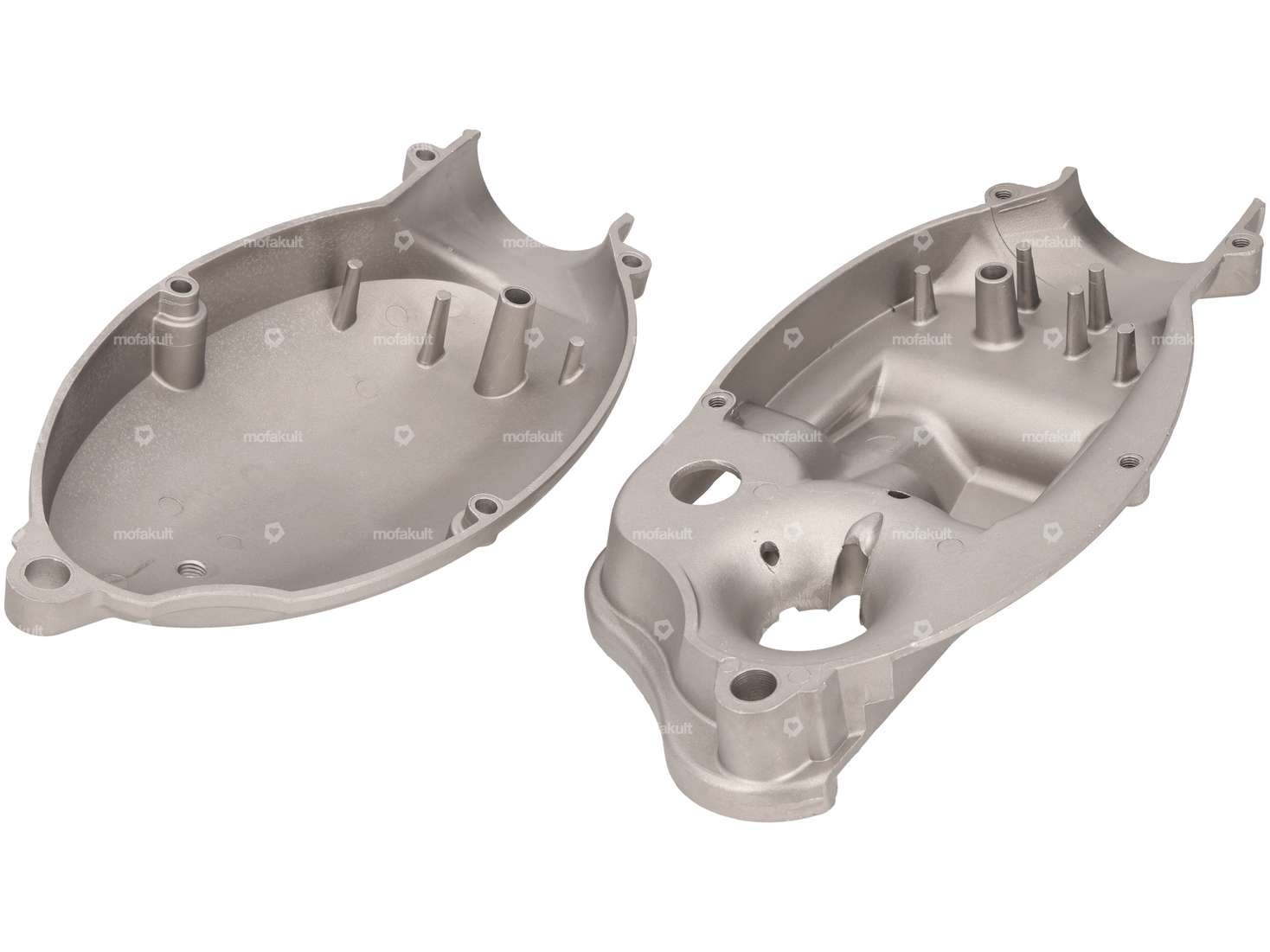

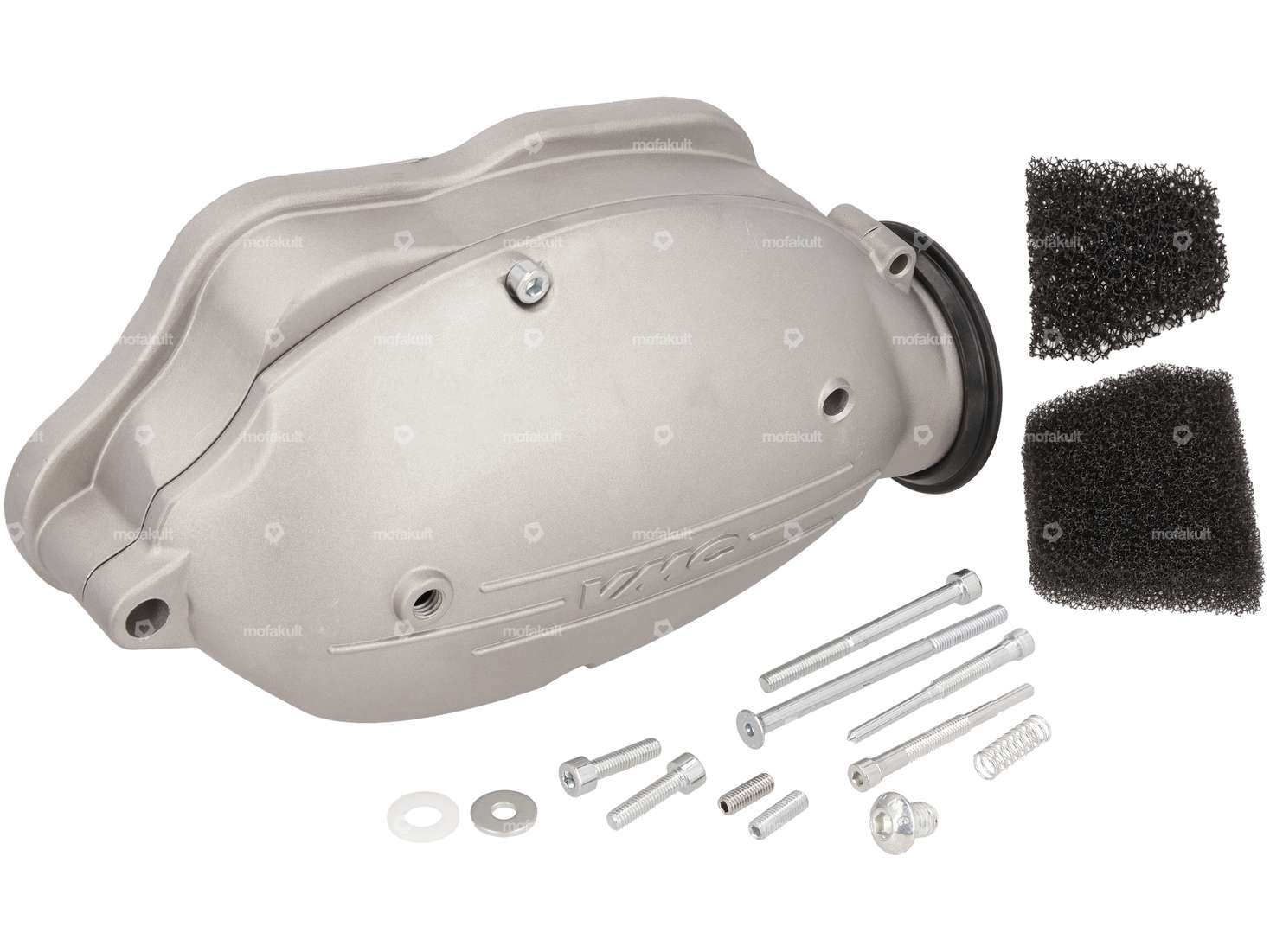

The VMC airbox replaces the original carburettor sump cover on the carburettor sump and relies on a cast aluminum housing with integrated venturi and air filter. The reduced volume and the rounded venturi surround allow the air to enter the intake area more easily, which facilitates the air flow to the SI carburetor. The airbox fits on the original carburettor sump and can be combined with carburettors with and without separate lubrication.
| Manufacturer | VMC |
| Camouflaged | No |
| Material | Cast aluminum |
| Area of application | Tuning |
| Ø outside | 55 mm |
| Filter type | Foam |
| Total length | 232 mm |
| Mounting type | Screws |
| Height | 87 mm |
| Width | 125 mm |
| Suzuki | Vespa PX, T5, Cosa - P125X · VNX1T · 1977 - 1982 (PX alt) Aussenverschluss , P125X · VNX2T · 1981 - 1984 (PX alt) Innenverschluss , PX125 E · VNX2T · 1982 - 1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993 - 1996 Classic , PX125 · VNX2T · 1997 - 1999 (Disc) , PX125 · ZAPM471 · 2001 MY Katalysator (Millenium) , P150X · VLX1T · 1978 - 1993 , P150S · VBX1T · 1978 - 1990 , PX150 · ZAPM742 · 2001 MY Katalysator (Millenium) , P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , Cosa 125 · VNR1T · I 1988 - 1992 II 1992 - 1998 , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 150 · VLR1T · I 1988 - 1991 II 1992 - 1995 , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998 |
Ratings
Accessories & related products

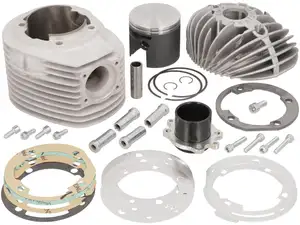

VMC Ø 72 mm cylinder kit "244 Explorer" | Vespa P, PX, Cosa, Rally
