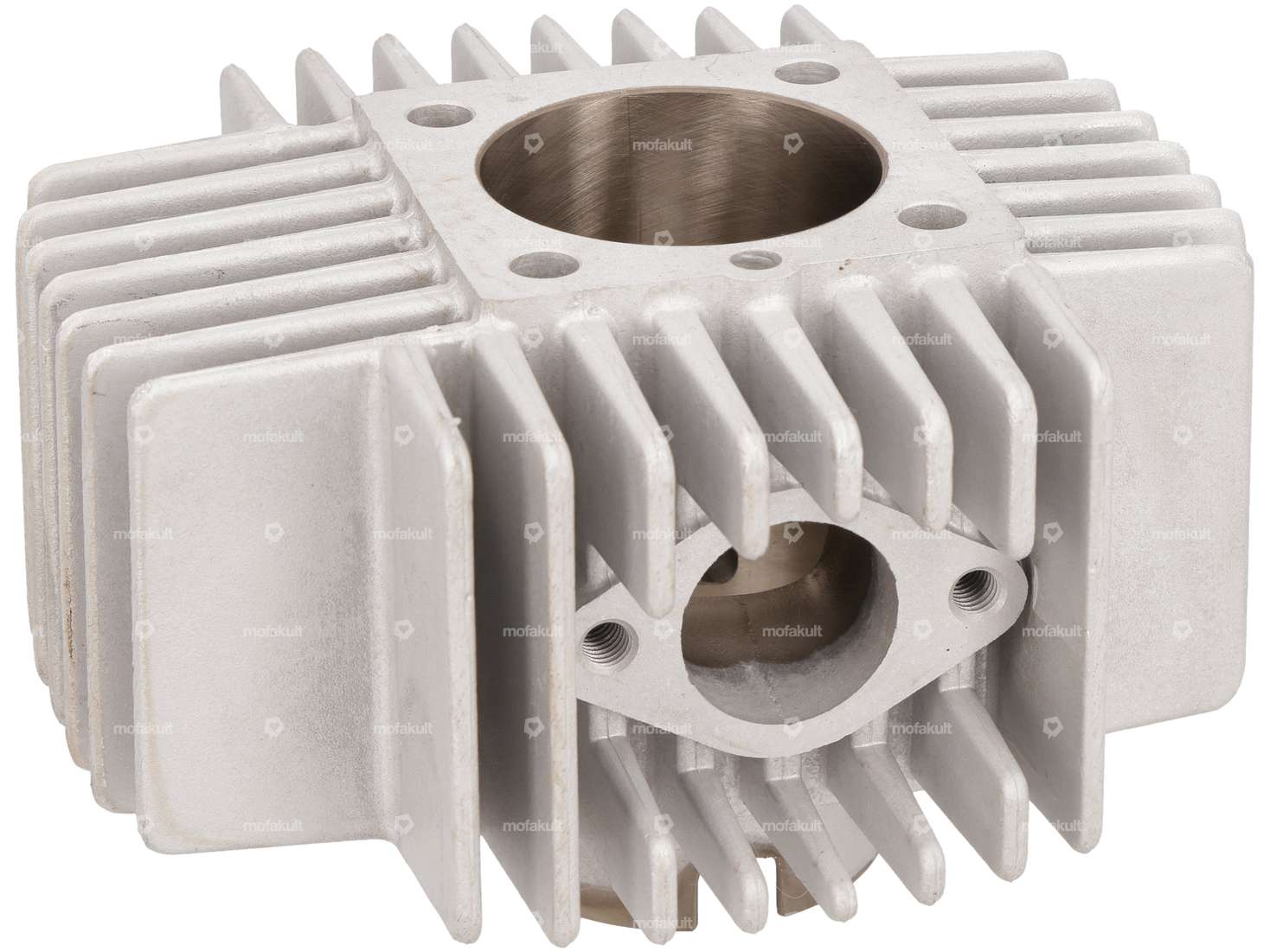

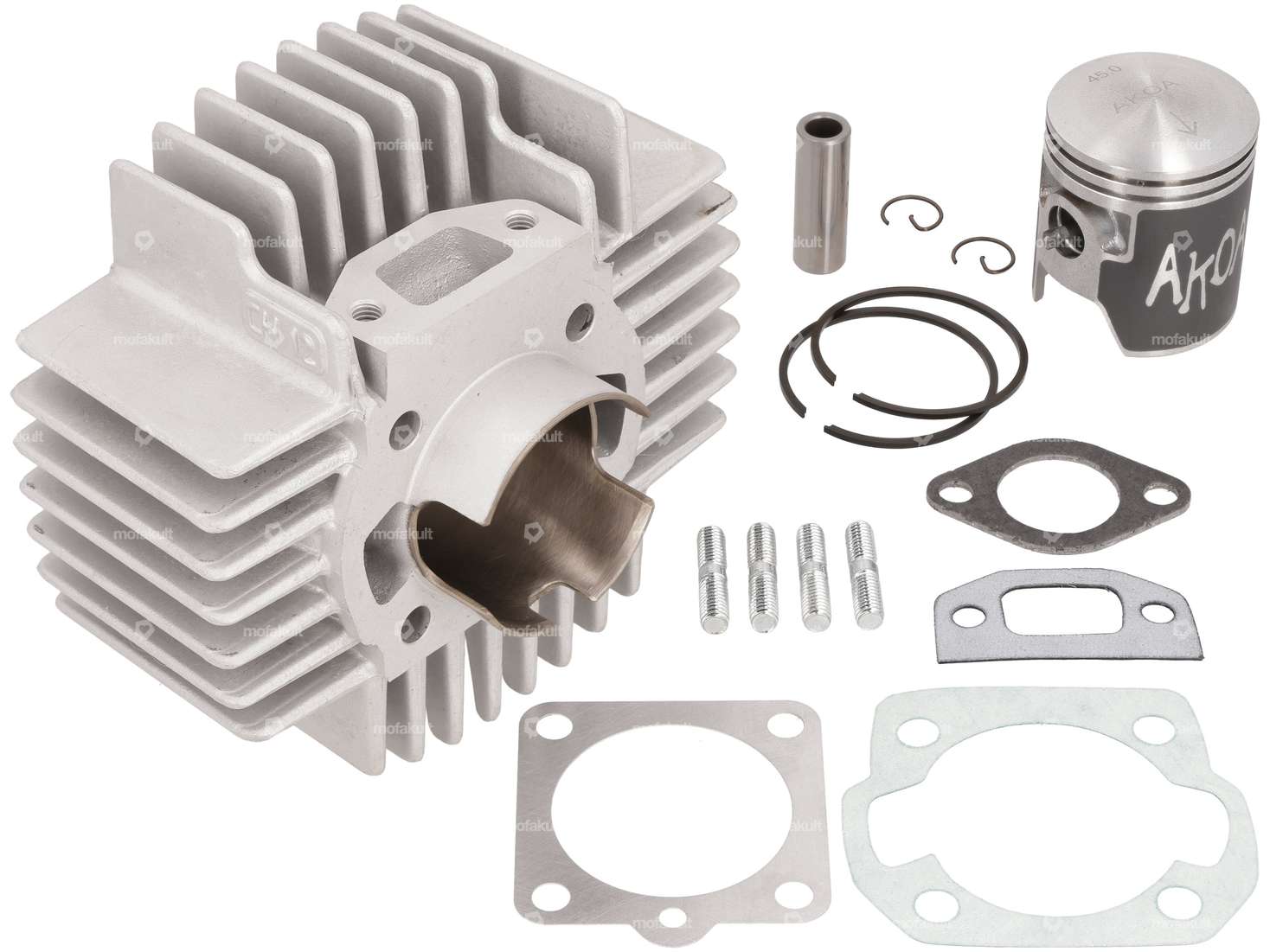

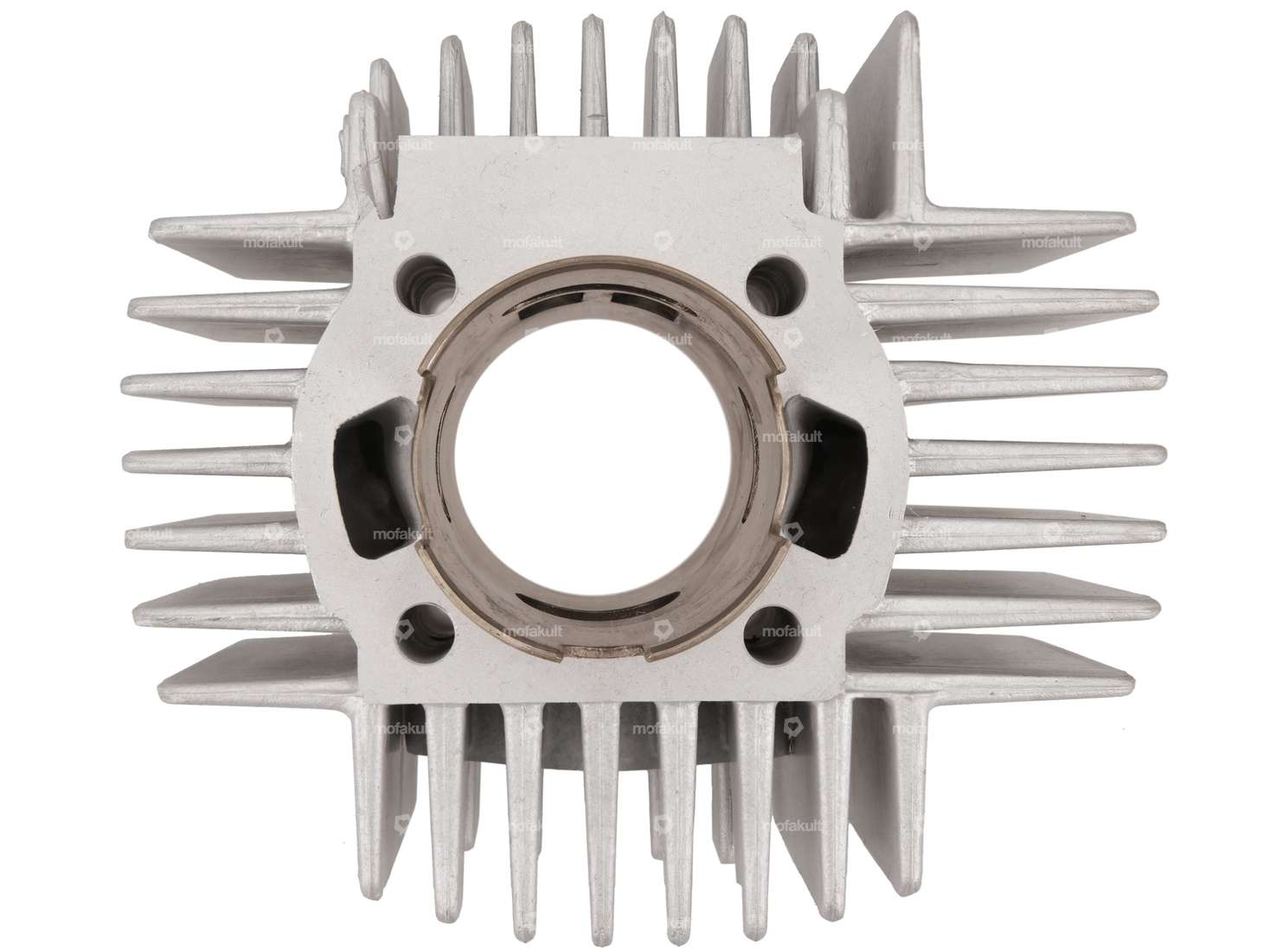

Grey racing cylinder in the 45 mm version, suitable for your Puch S / N, Supermaxi LG1 / LG2 and your X30 Sport NS / NL moped / moped with E50 / ZA50 (Fahrtwindgekühlt) / ZA50 (catalytic converter) or Z50 engine.

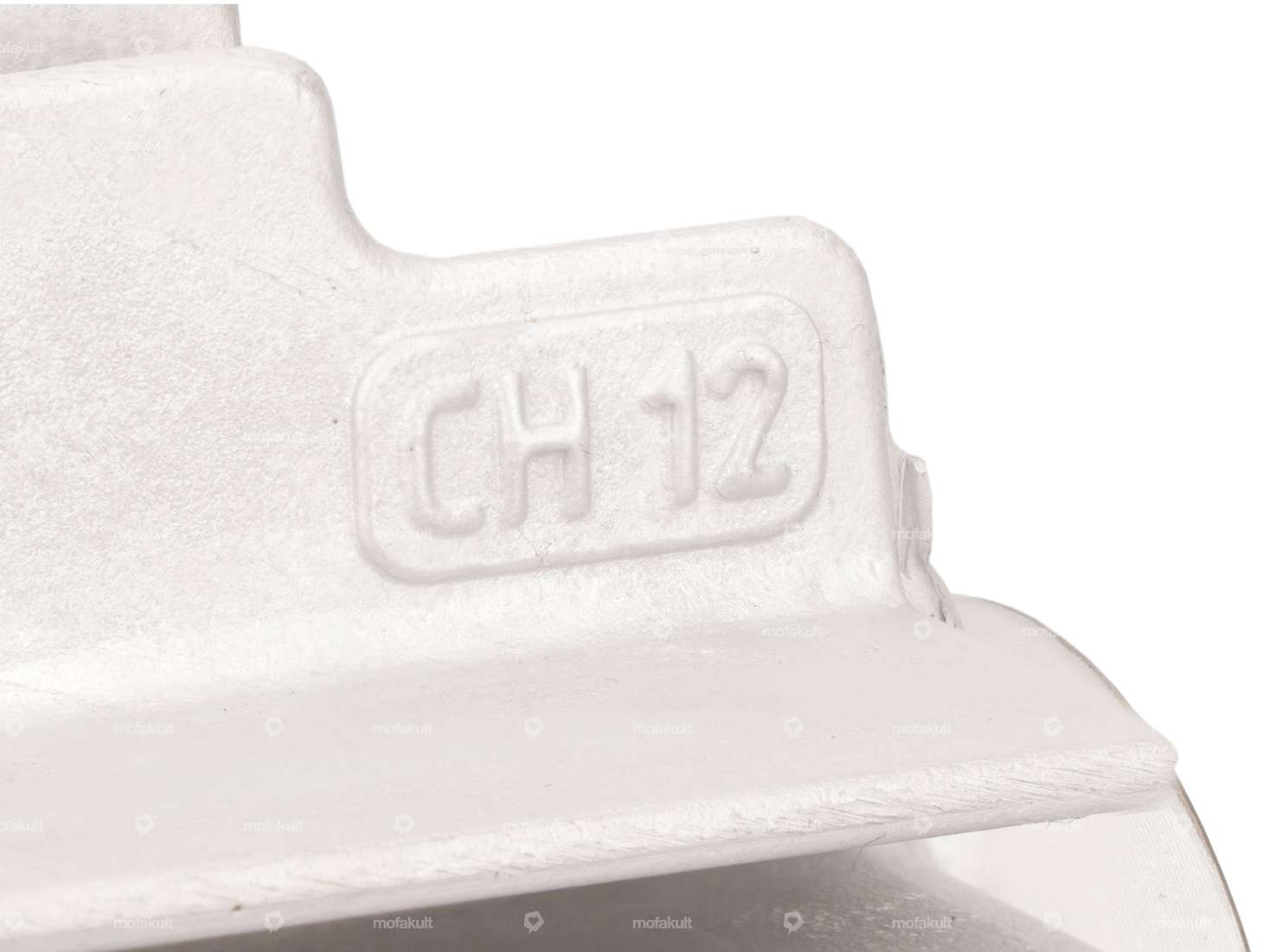

The camouflaged 70 cc tuning cylinder is kept true to the original. The cooling fins and CH12 injection match the standard look. It is important to note that there is no decompressor bracket.
Manufacturer: AKOA · Camouflaged: No
| Manufacturer | AKOA |
| Material | Aluminum |
| Camouflaged | No |
| Displacement | 68 ccm |
| Surface | Nickel silicon carbide (colloquially known as Nikasil) |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Ø cylinder neck | 47.9 mm |
| Ø Outlet outside | 24.8 mm |
| Area of application | Tuning |
| Inlet window | 22.5 x 14.8 |
| Number of fixing points | 4 pcs |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing outlet | 42 mm |
| Hole pattern [mm] | 44 x 44 |
| Outlet type | straight |
| Thread outlet | M6x1 (standard thread) |
| Decompressor | No |
| Hole spacing inlet | 38 mm |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
