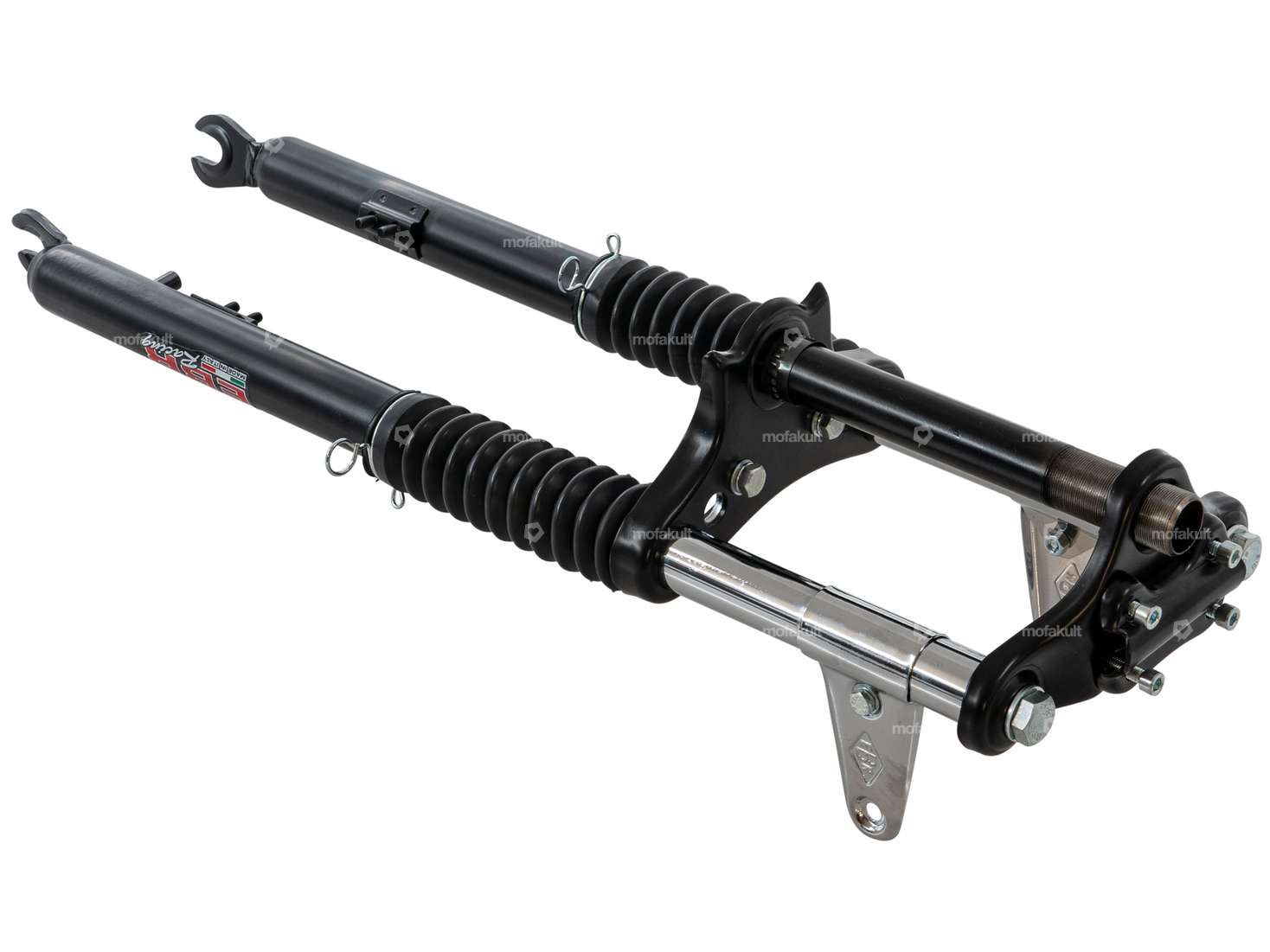

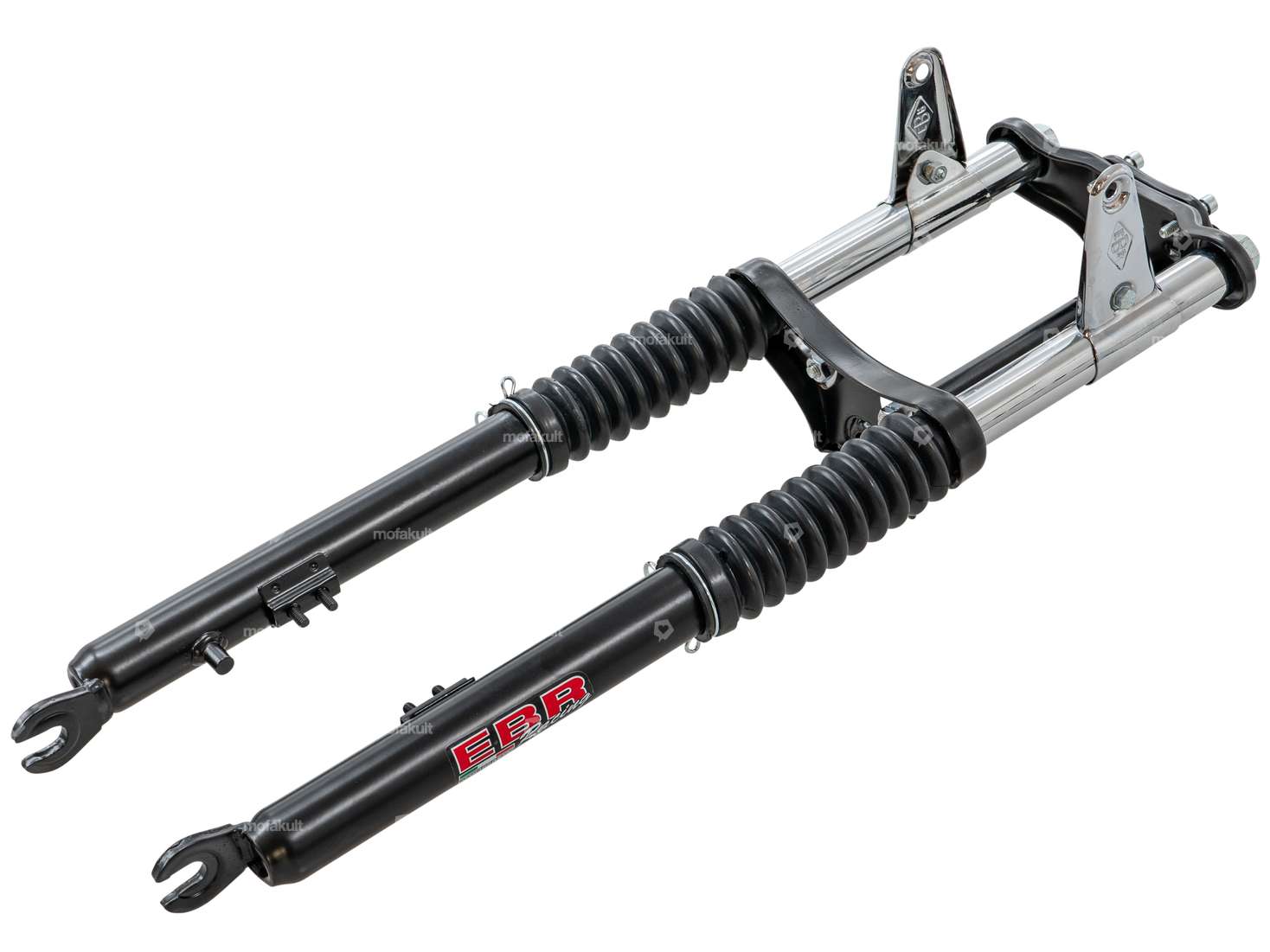

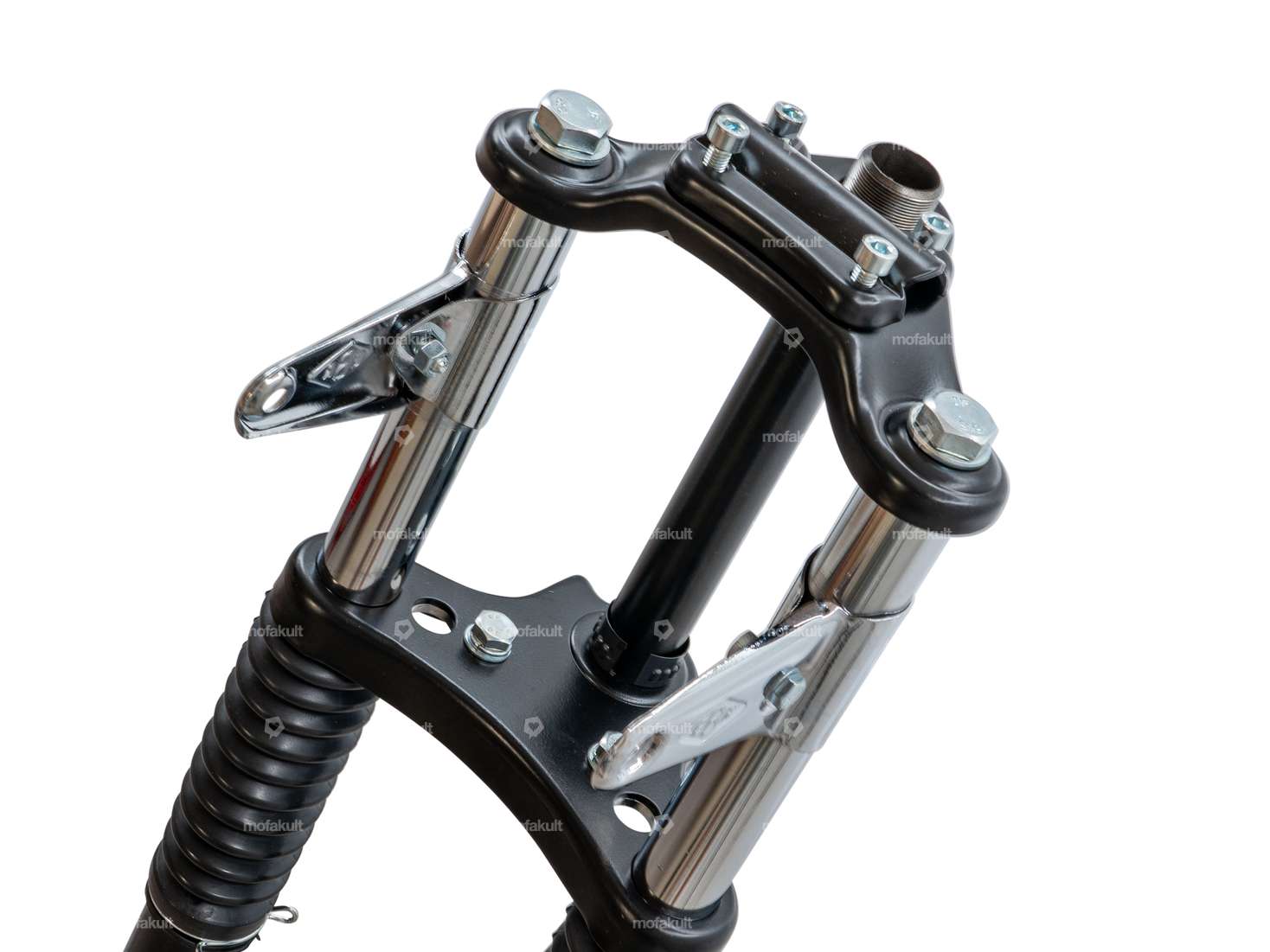

Black telescopic fork suitable for your Hercules Prima M, 2, 3, 4, 5 and Optima moped / moped with clamp for attaching the handlebars to the fork plate.

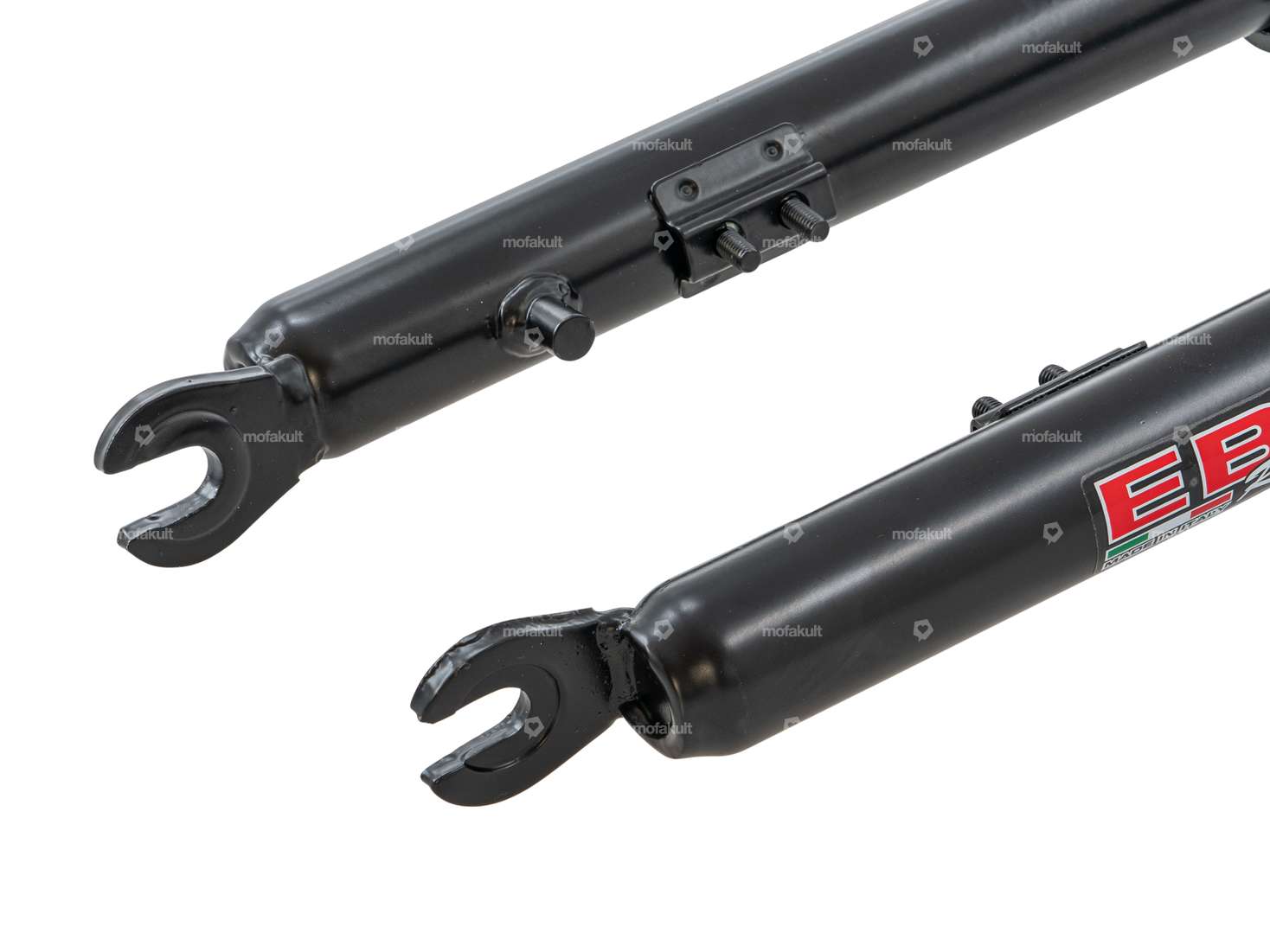

The bolt for fastening the brake anchor plate is located on the right-hand side, 8 cm above the center of the wheel axle. The bolt has a length of 1.5 cm.
There are two fixed M6 threaded bolts per fork leg to attach the mudguard.
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated, varnished |
| Color | black, Chrome |
| Adjustable | No |
| Spar end distance (center-center) | 140 mm |
| Ø outer head tube | 26 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Ø spars | 28 mm |
| Ø head tube inside | 22 mm |
| Head tube length | 205 mm |
| Thread length | 58 mm |
| Total length | 645 mm |
| Fork bridge - center wheel axle | 405 mm |
| Distance brake cam to wheel axle center-center | 80 mm |
| Hercules | Great - 2 , 3 , 4 , 5 , Optima |
