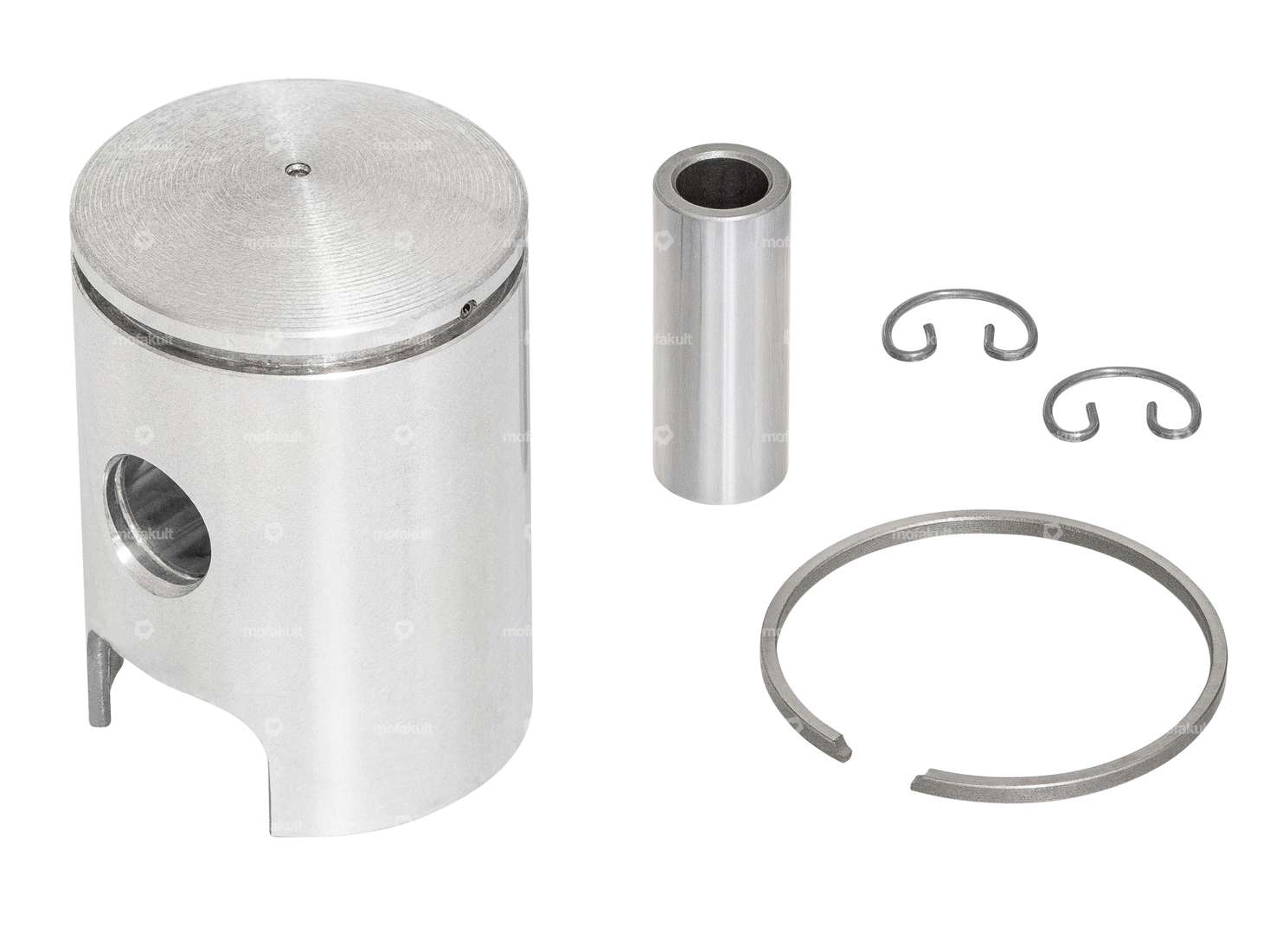

38.00 mm ELKO piston with a 2 mm rectangular piston ring with flank lock (FS) suitable for Puch Maxi S / N, Puch X30 Sport NS / NL, as well as Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
NOS – New from old stock.
Quality product from the Austrian manufacturer König under the ELKO brand.
| Manufacturer | ELKO (König) |
| Ø outside piston (A) | 37.965 mm |
| Compression height (C) | 22.5 mm |
| Curvature (D) | 3.3 mm |
| Total piston height (E) | 55 mm |
| Number of piston rings (F) | 1 pcs |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Weight piston kit | 81 g |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Ratings
Accessories & related products
Meteor piston 38 mm #1 | Puch
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Tolerance group: 1 · Weight piston kit: 79 g · Puch OEM number: 349.1.10.106.0/21
EUR 57.30
Meteor piston 38 mm #2 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 2 · Weight piston kit: 79 g
EUR 57.30
Meteor piston 38 mm #3 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.97 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 3 · Weight piston kit: 79 g
EUR 57.30
Meteor piston 38 mm #4 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.98 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 4 · Weight piston kit: 80 g
EUR 57.30
GPO piston pin extractor Ø 10, 12, 14 mm
Total length: 130 mm · Manufacturer: GPO · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Width across flats: 10 mm · Width across flats: 17 mm
EUR 22.80
Explore categories from Piston
Moped fans also bought

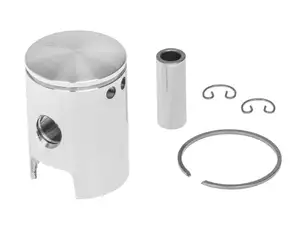

Meteor piston 38 mm #1 | Puch Supermaxi Cat.
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.955 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: 1 · Weight piston kit: 78 g
EUR 63.00
GPO piston 38 mm 6-channel | Puch
Nominal diameter: 38 mm · Manufacturer: GPO · Ø outside piston (A): 37.95 mm · Compression height (C): 22.4 mm · Curvature (D): 4.9 mm · Total piston height (E): 53.85 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.45 mm · Ø piston pin (B): 12 mm · Weight piston kit: 66 g
EUR 44.60

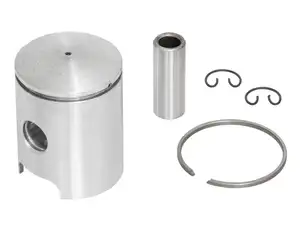

ELKO piston 38 mm type D (short shirt) NOS | Puch
