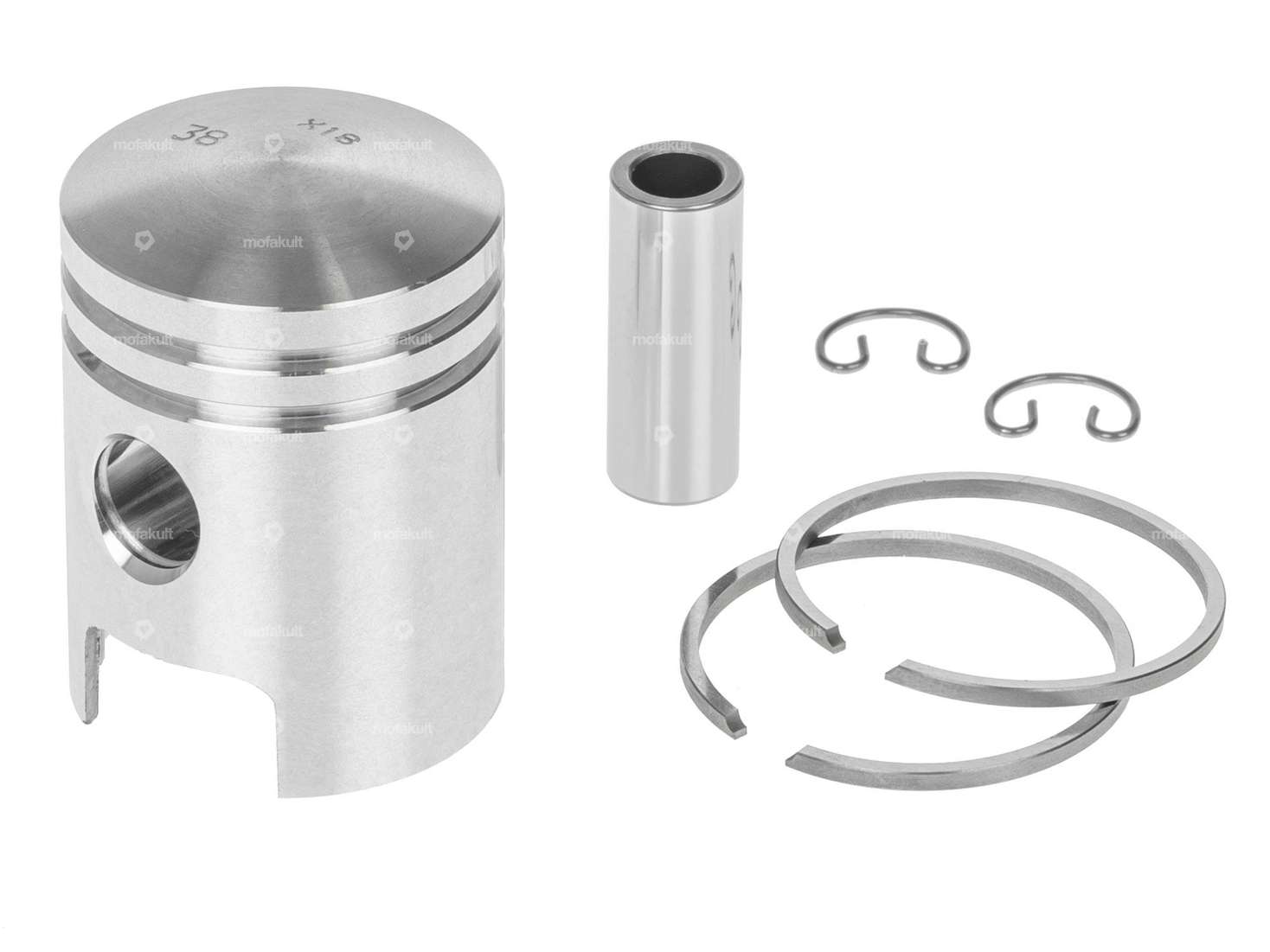

Meteor piston 38 mm #2 | Puch

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Material: Steel · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Material: Aluminum · Material: Sealing paper · Manufacturer: GPO · Thickness: 0.39 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 1.7 mm · Ø cylinder: 38 mm · Hole spacing inlet: 32 - 38 mm · Ø outlet inside: 20 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Standard · Number of components: 4 pcs · Decompressor: Yes

GPO sprocket 13 teeth (wide) | Puch

Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Number of teeth: 13 pcs · Recording type: Interlocking · Chain pitch: 1/2" x 3/16" · Total thickness: 4.5 mm · Ø inside: 13.7 mm · Ø inside: 16.9 mm

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Number of components: 11 pcs · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard

GPO Gasket Set for E50 Engine | Puch Maxi S, N

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 19.9 mm · Number of components: 7 pcs · Hole spacing outlet: 42 mm · Area of application: Standard · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Hole spacing inlet: 32 - 38 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Surflex pressure plate clutch | Puch E50

Manufacturer: Surflex · Material: Steel · Surface: galvanized (blue) · Ø outside: 94.5 mm · Ø outside: 100 mm · Area of application: Original

Meteor piston 38 mm #1 | Puch

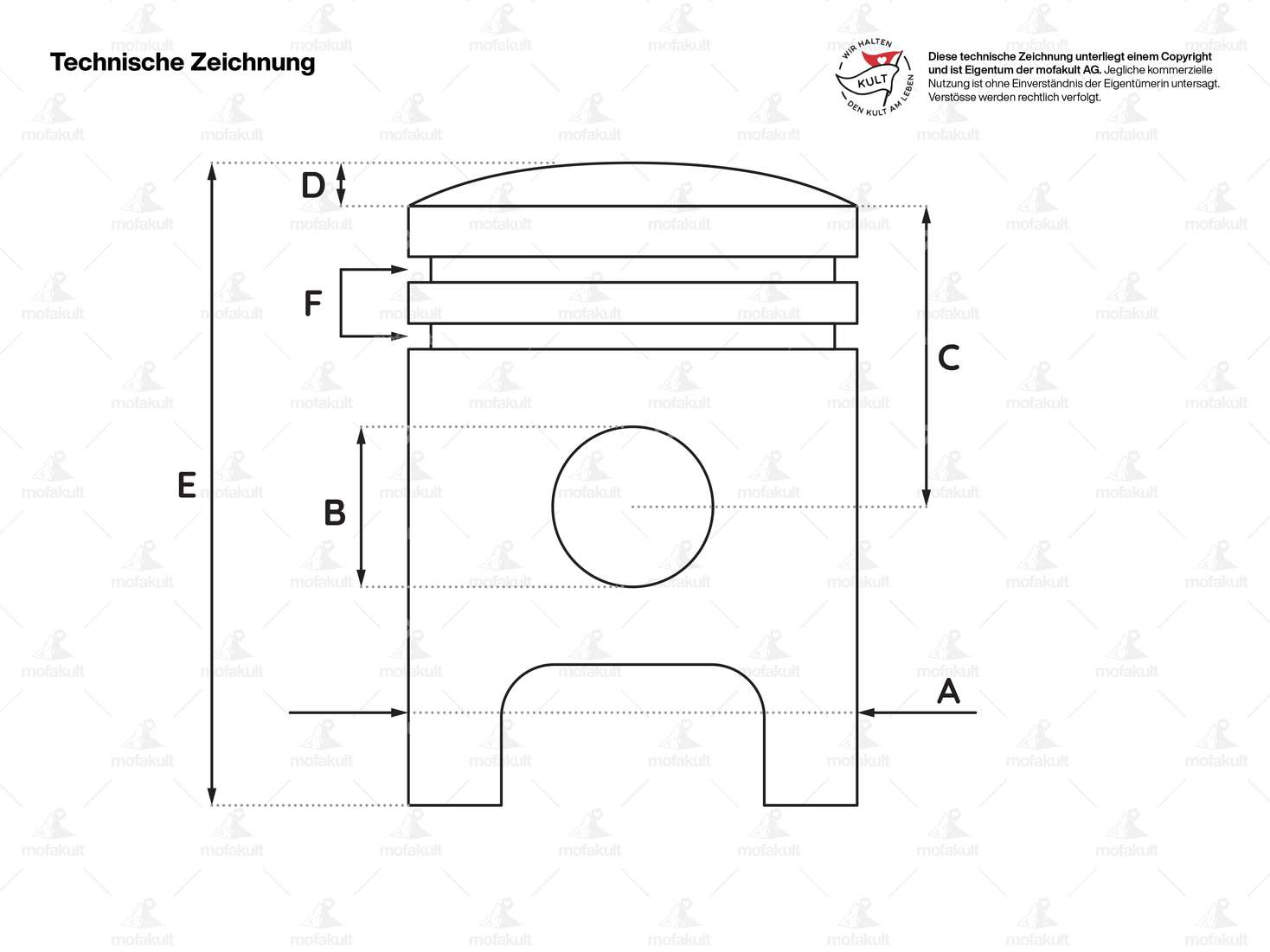

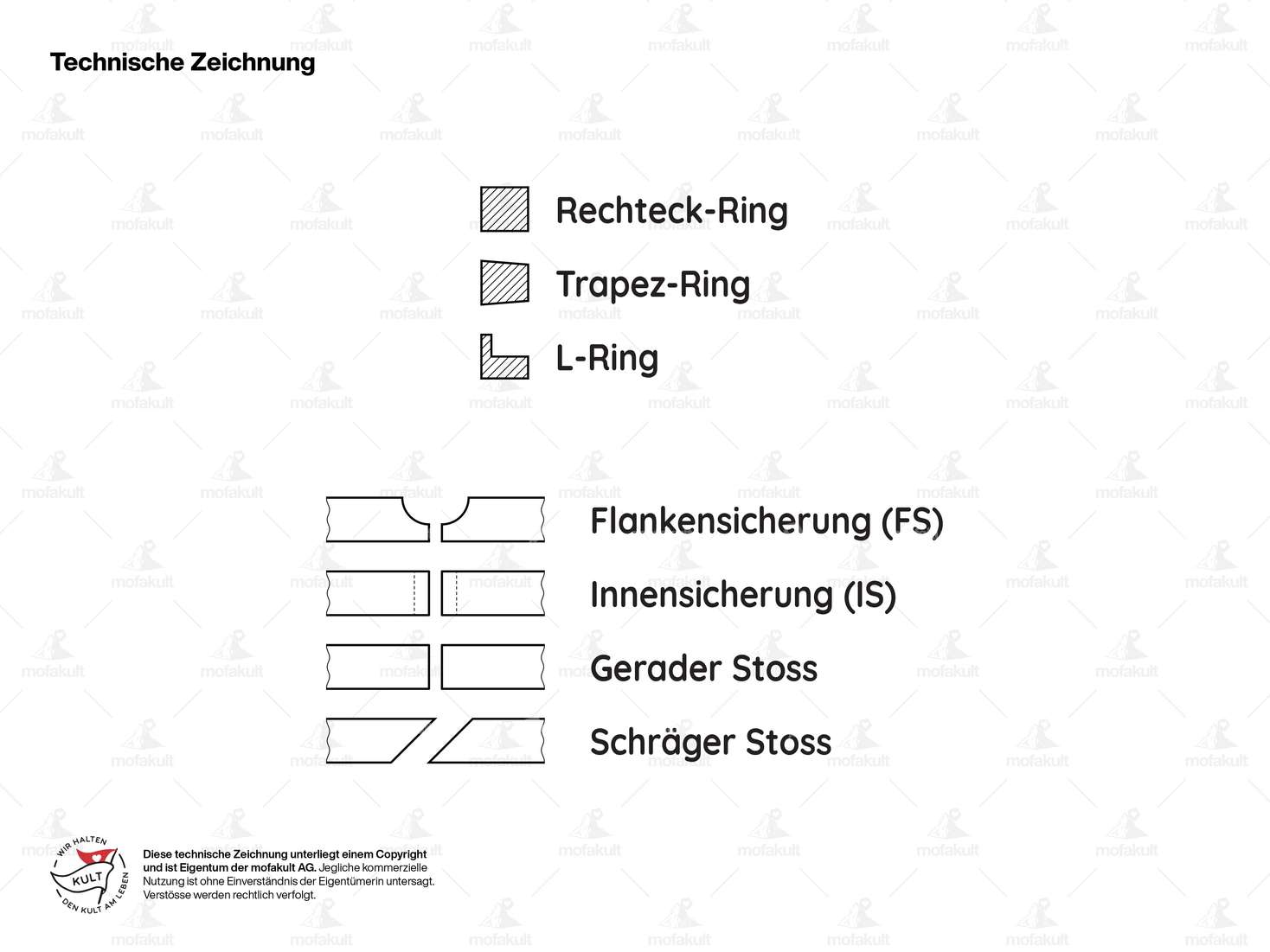

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Tolerance group: 1 · Weight piston kit: 79 g · Puch OEM number: 349.1.10.106.0/21

Meteor piston 38 mm #3 | Puch

Manufacturer: Meteor · Ø outside piston (A): 37.97 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 3 · Weight piston kit: 79 g

swiing® revival Stud Bolt Set M6x106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Nominal diameter (thread): 6 mm · Total length: 106 mm · Width across flats: 10 mm · Thread length: 13 mm · Thread length: 18.5 mm · Drive: External hexagon · Thread type: M6x1 (standard thread) · Alternative version of the Puch OEM number: 360.1.10.034.1

GPO gasket set carburetor Bing SRE

Manufacturer: GPO · Camouflaged: No · Component group Carburetor: Sealing, revising · Material: Sealing paper · Carburetor type: SRE · Thickness: 0.5 mm · Thickness: 0.9 mm · Thickness: 1.5 mm · Ø inside: 7.8 mm · Ø inside: 41 mm · Ø outside: 12.2 mm · Ø outside: 45 mm

swiing® revival 12 mm carburetor "original" | Puch

Nominal diameter: 12 mm · Manufacturer: swiing® revival parts · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Choke control: Hand choke · Color: gray · Height: 108 mm · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 6 mm · Nozzle size: 52 · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Mixed oil connection: No · Width: 50 mm · Vacuum connection: No · Mounting type: Plug connection clamped · Total length: 65 mm · Area of application: Standard · Nozzle block: 2.15 · Clamping screw torque (max.): 4 N/m · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0
