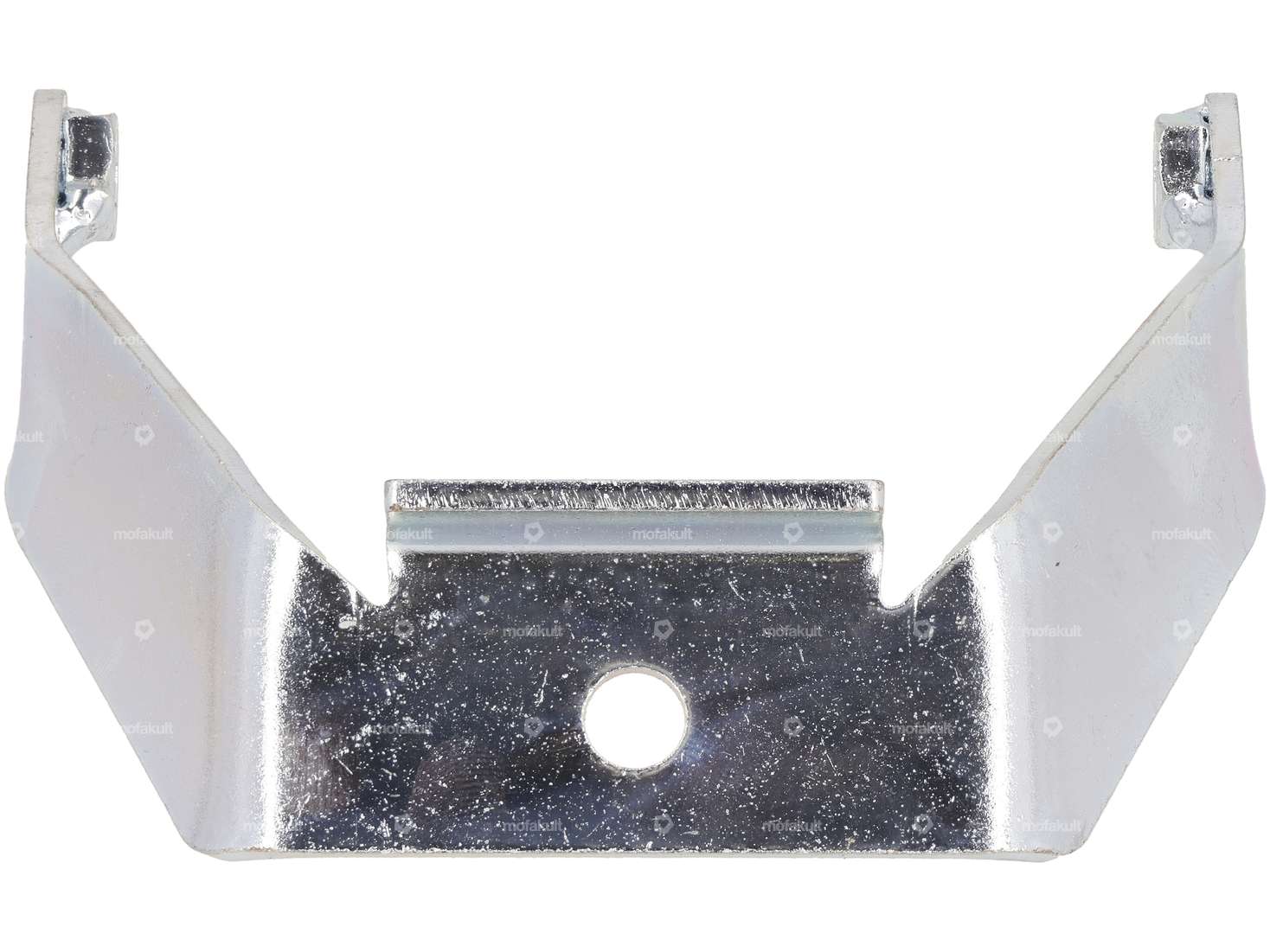

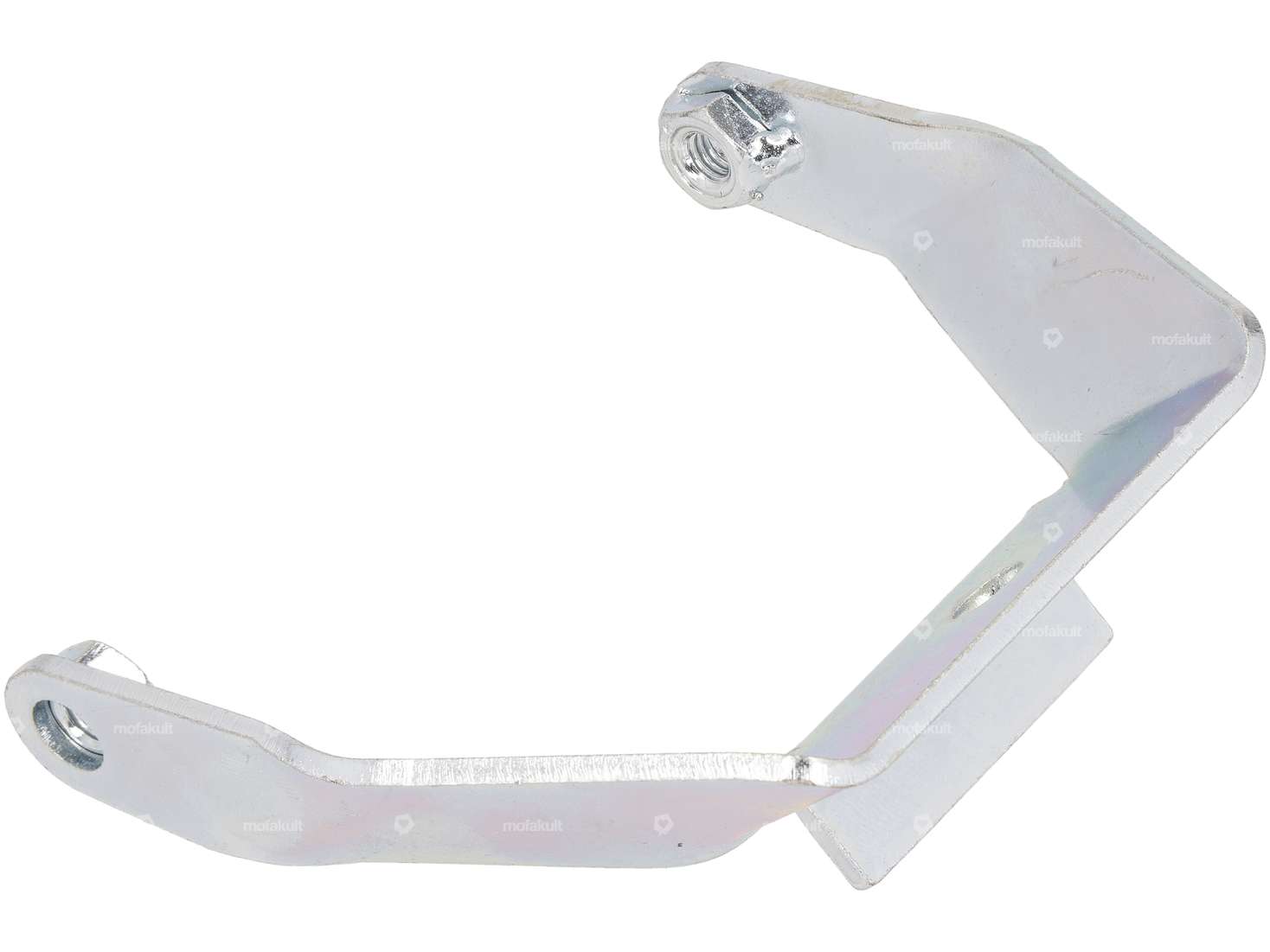

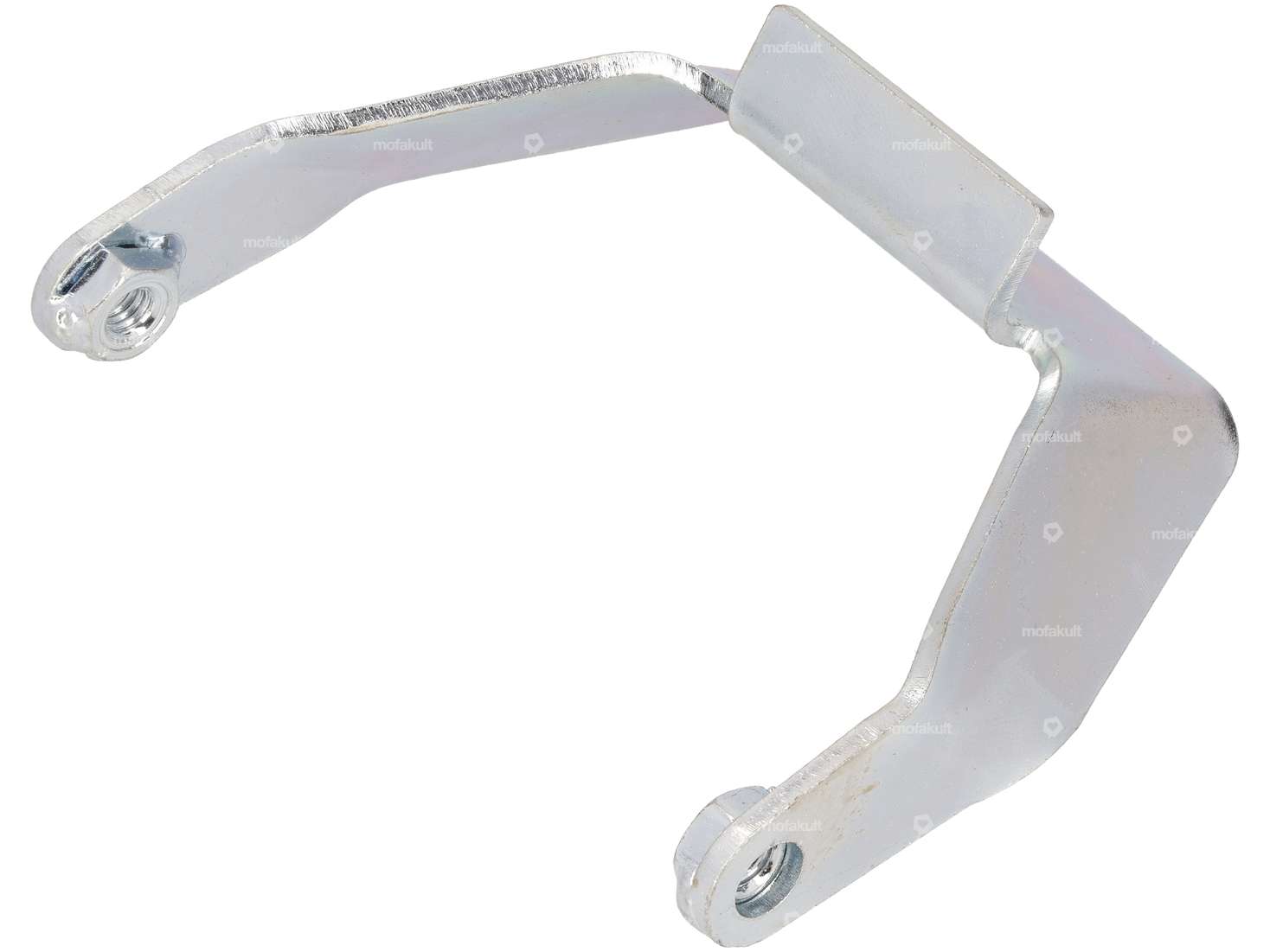

Galvanized lamp holder | Piaggio SI Europe

Headlight black | Piaggio SI

Manufacturer: Made in Italy · Test mark: none · Bulb holder: P26s · Housing material: Plastic · Switch included: Yes · Color: black · Color: white · Mounting type: Screws · Number of fixing points: 2 pcs · Speedometer recording: 48 mm · Battery operated: No

Headlight angular gray (3 switch positions) | Piaggio SI

Manufacturer: Made in Italy · Test mark: none · Bulb holder: P26s · Housing material: Plastic · Switch included: Yes · Tension: 6 V · Tension: 12 V · Lens material: Plastic · Ø outside: 132 mm · Width: 150 mm · Color: gray · Mounting type: Screws · Number of fixing points: 2 pcs · Ø External connection: 6.3 mm · Speedometer recording: 48 mm · Height: 140 mm · Battery operated: No · Depth: 145 mm · Area of application: Original · Area of application: Standard

Headlight black (3 switch positions) | Piaggio SI FL 2

Manufacturer: Made in Italy · Test mark: none · Bulb holder: P26s · Housing material: Plastic · Switch included: Yes · Ø outside: 135 mm · Color: black · Color: white · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs · Speedometer recording: 48 mm · Battery operated: No

Headlight black NOS | Piaggio SI

Manufacturer: Piaggio · Test mark: none · Bulb holder: P26s · Housing material: Plastic · Bulb holder: Soffit pear · Switch included: Yes · Tension: 6 V · Performance: 15 W · Color: black · Color: white · Mounting type: Screws · Number of fixing points: 2 pcs · Speedometer recording: 48 mm · Battery operated: No · Area of application: Original

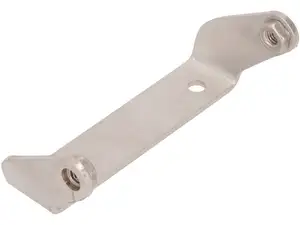

Lamp holder Inox | Piaggio SI Montecarlo

Material: Chrome steel (known as Nirosta®) · Thread size: M6 · Width: 103 mm · Wide intake: 103 mm · Height: 38 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Piaggio OEM number: 188313

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Area of application: Standard · Ø cylinder: 38 mm · Total length: 135 mm · Width: 125 mm · Hole pattern [mm]: 44 x 44 · Candle thread: short · Height: 55 mm · Number of fixing points: 4 pcs · Decompressor: No

Ignition cable Ø 7 x 400 mm black

Manufacturer: Made in Italy · Material: Copper · Material: Plastic · Color: black · Suppressed: No · Subcategory: Ignition cable · Ø cable: 7 mm · Total length: 400 mm · Pony OEM number: A3939 · Sachs OEM no.: 0665 016 101

swiing® revival crankshaft "Original" with mounted bearings | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Area of application: Standard · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 873 g · Number of gears: 1 pcs · Puch OEM number: 349.1.10.115.0 · Puch OEM number: 900.6203 · Puch OEM number: 900.6233 · Puch OEM number: 901.3801 · Puch OEM number: 902.3835

Handlebar fork plate 13 cm Cross black

Material: Steel · Surface: varnished · Color: black · Clamping diameter: 22 mm · Ø outside: 22 mm · Fork plate holder length: 100 mm · Width: 665 mm · Height: 130 mm · Length handlebar ends: 180 mm · Crossbar: Yes · Ø Strut: 12.5 mm · Mounting type: Fork plate · Strut length: 230 mm

Pedals square | Piaggio Ciao, SI, Bravo

Material: Plastic · Surface: ribbed · Color: black · Thread type: FG14.3 (9/16" 20G) · Total length: 118 mm · Drive: Outer edge · Width: 51 mm · Height: 29 mm · Reflectors: Yes · Width across flats: 15 mm

Stand set | Piaggio SI, Grillo

Manufacturer: Made in Italy · Material: Steel · Surface: varnished · Stand base - center mount (A): 225 mm · Total width of stand base (B): 220 mm · Wide receptacle (C): 89 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Color: black · Total height: 265 mm

Side protectors Mono / Vario black | Piaggio SI

Manufacturer: Made in Italy · Material: Plastic · Total length: 640 mm · Height: 130 mm · Color: black · Number of fixing points: 6 pcs · Piaggio OEM number: 918200 · Piaggio OEM number: 918300

Headlight black | Piaggio SI

Manufacturer: Made in Italy · Test mark: none · Bulb holder: P26s · Housing material: Plastic · Switch included: Yes · Color: black · Color: white · Mounting type: Screws · Number of fixing points: 2 pcs · Speedometer recording: 48 mm · Battery operated: No

Handlebar stem 30 cm | Piaggio SI Europe

Manufacturer: Made in Italy · Material: Steel · Surface: chrome-plated · Ø outside: 22.1 mm · Width: 620 mm · Color: Chrome · Mounting type: Front boom mounting · Ø Stem: 22 mm · Stem height: 120 mm · Length handlebar ends: 160 mm · Height: 300 mm · Crossbar: No
