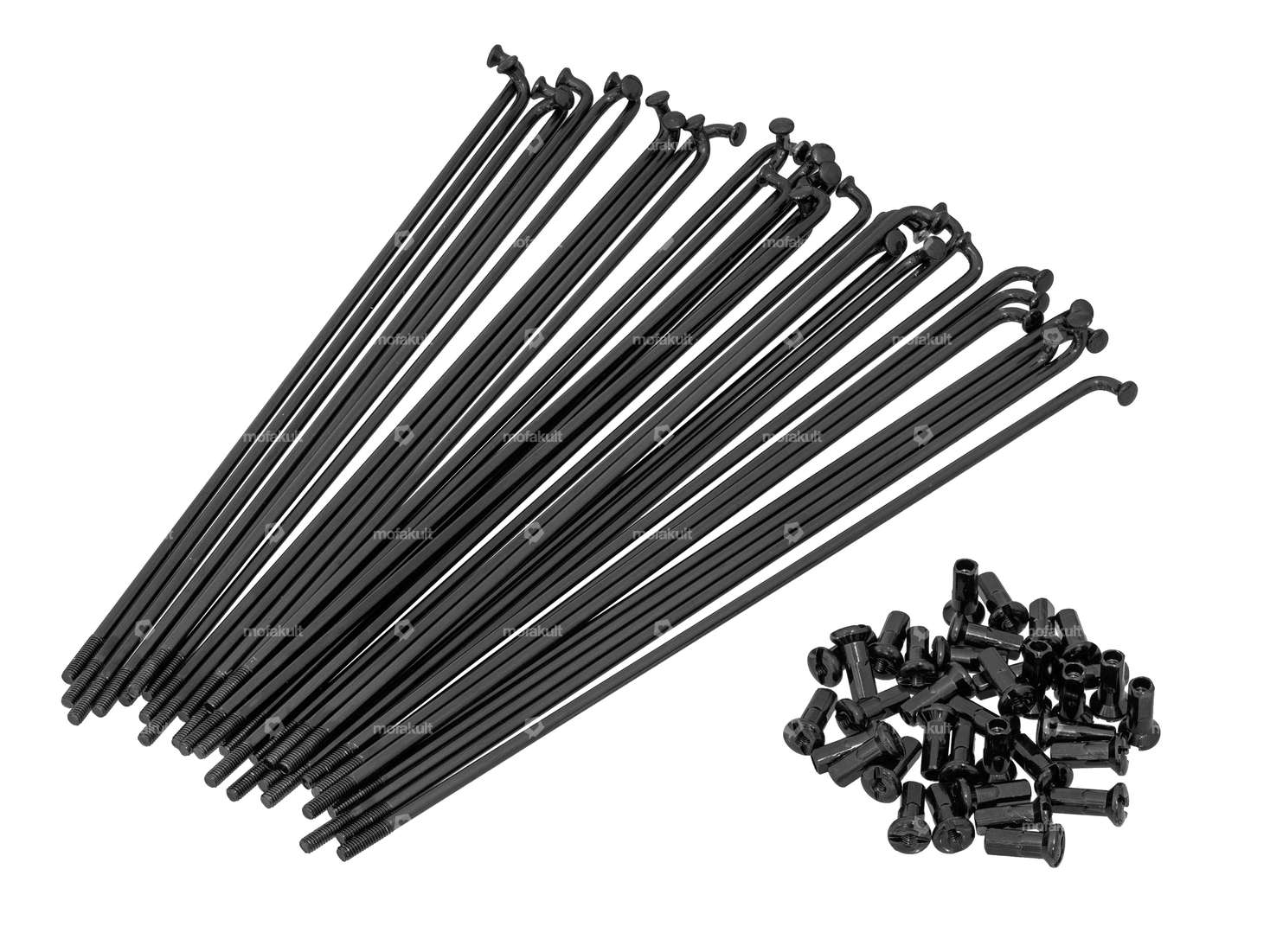

Complete spoke set for 17 inch rims of various mopeds, mopeds and small motorcycles.
The kit consists of 36 spokes and 36 nipples. nipples. The black, hard coating is an electrochemical dip coating that serves to protect against corrosion and stone chipping.

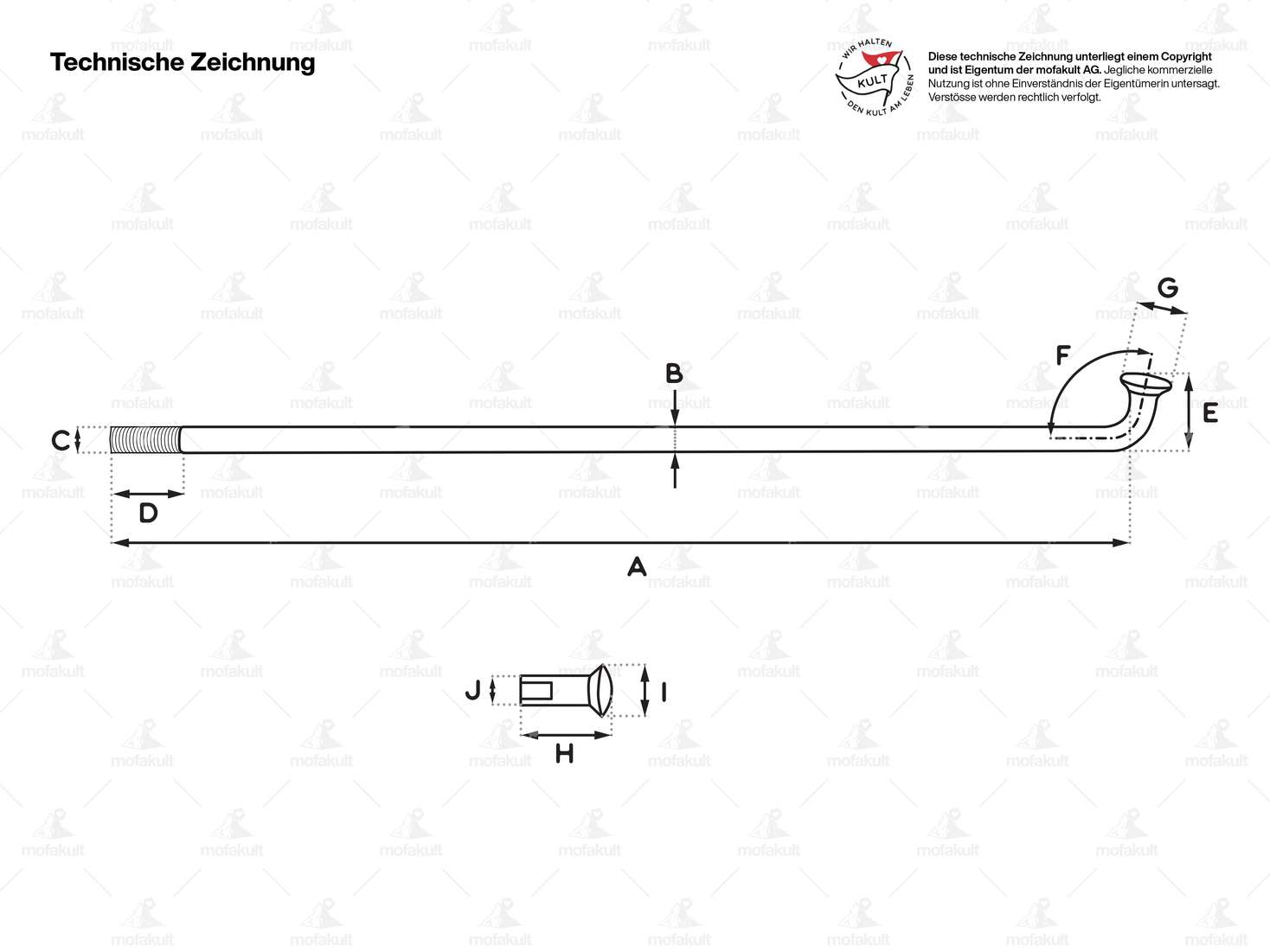

Spoke dimensions:
Length from hook inside (A): 188 mm
Ø spoke (B): 2.9 mm
Ø thread (C): 3.15 mm
Hook length (D): 9 mm
Thread length (E): 11 mm
Hook angle (F): 95°
Ø spoke head (G): 5.35 mm
Material: Steel, coated
Dimension spoke nipple:
Total length (H): 14 mm
Ø nipple head (I): 7.9 mm
Ø nipple neck (J): 5.0 mm
Material: Steel, coated
You can find suitable fitting tools, rim tapes, etc. in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Nipple length | 14 mm |
| Manufacturer | GPO |
| Material | Steel |
| Surface | varnished |
| Quantity | 36 pcs |
| Length from hook | 188 mm |
| Nominal diameter (thread) | 3.15 mm |
| Ø spoke head | 5.35 mm |
| Color | black |
| Ø spoke | 2.9 mm |
| Thread length | 11 mm |
| Ø nipple head | 7.9 mm |
| Ø Nipple neck | 5 mm |
| Hook length | 9 mm |
| Hook angle | 95 ° |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Zündapp Belmondo |
