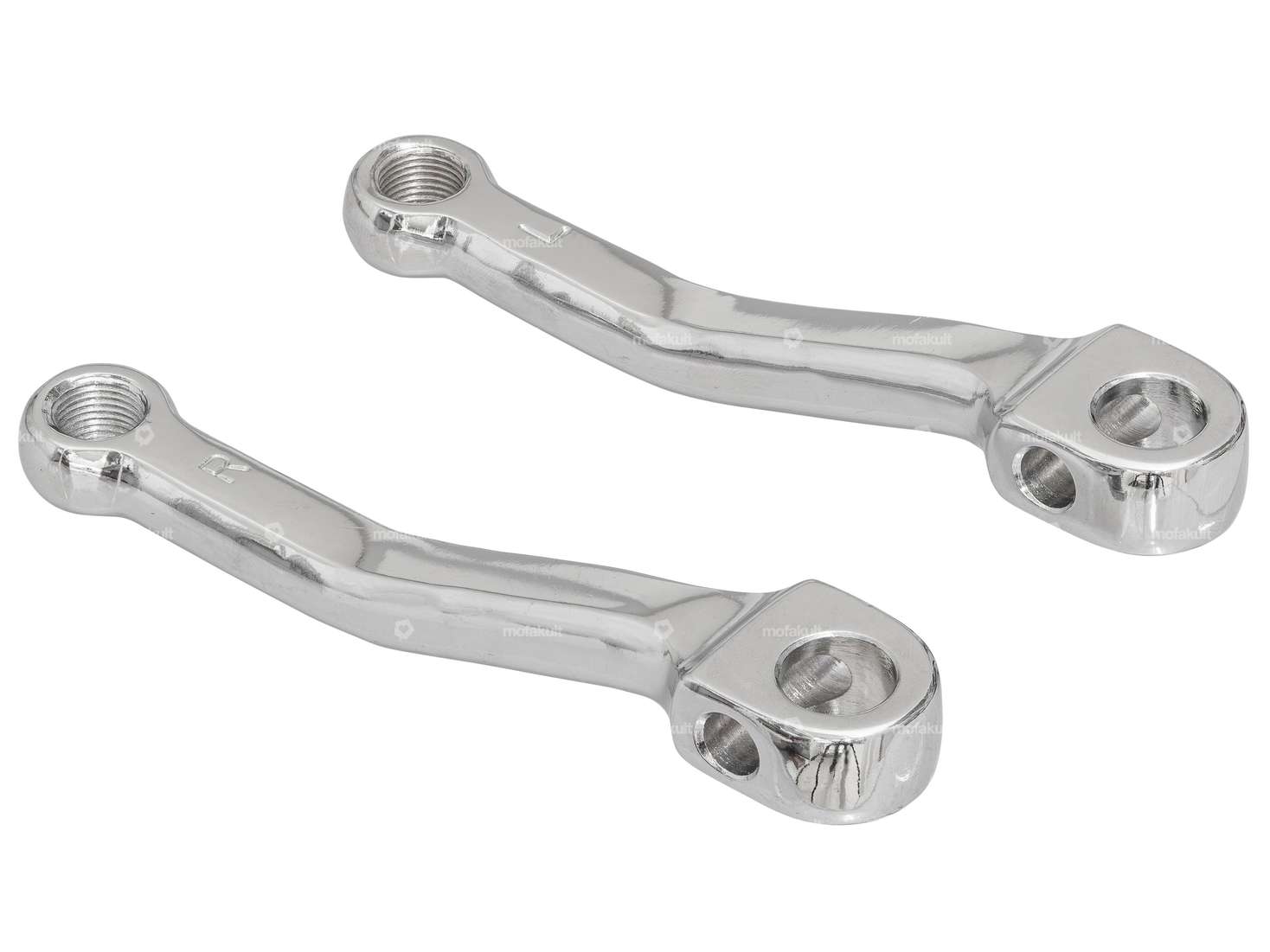

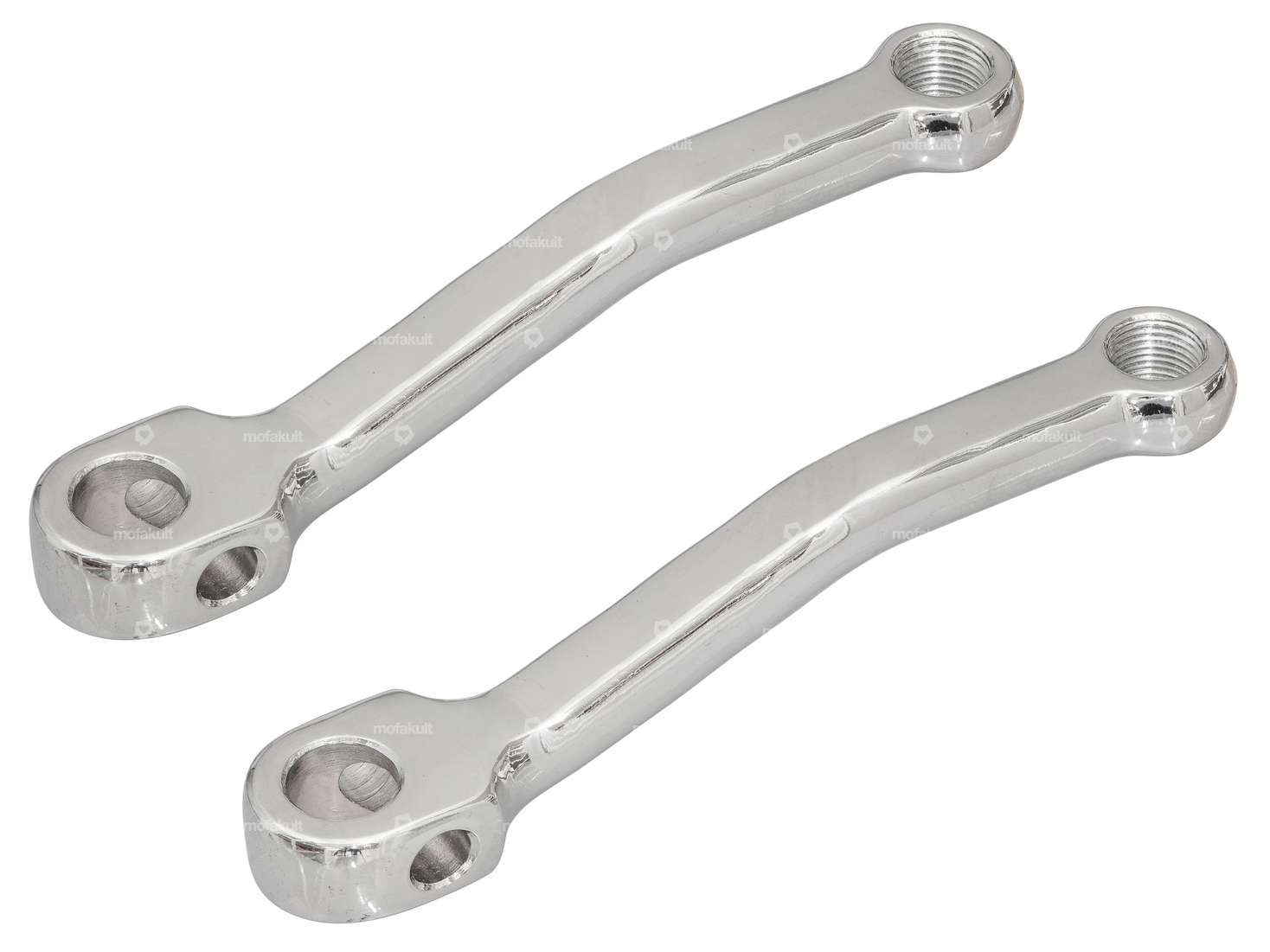

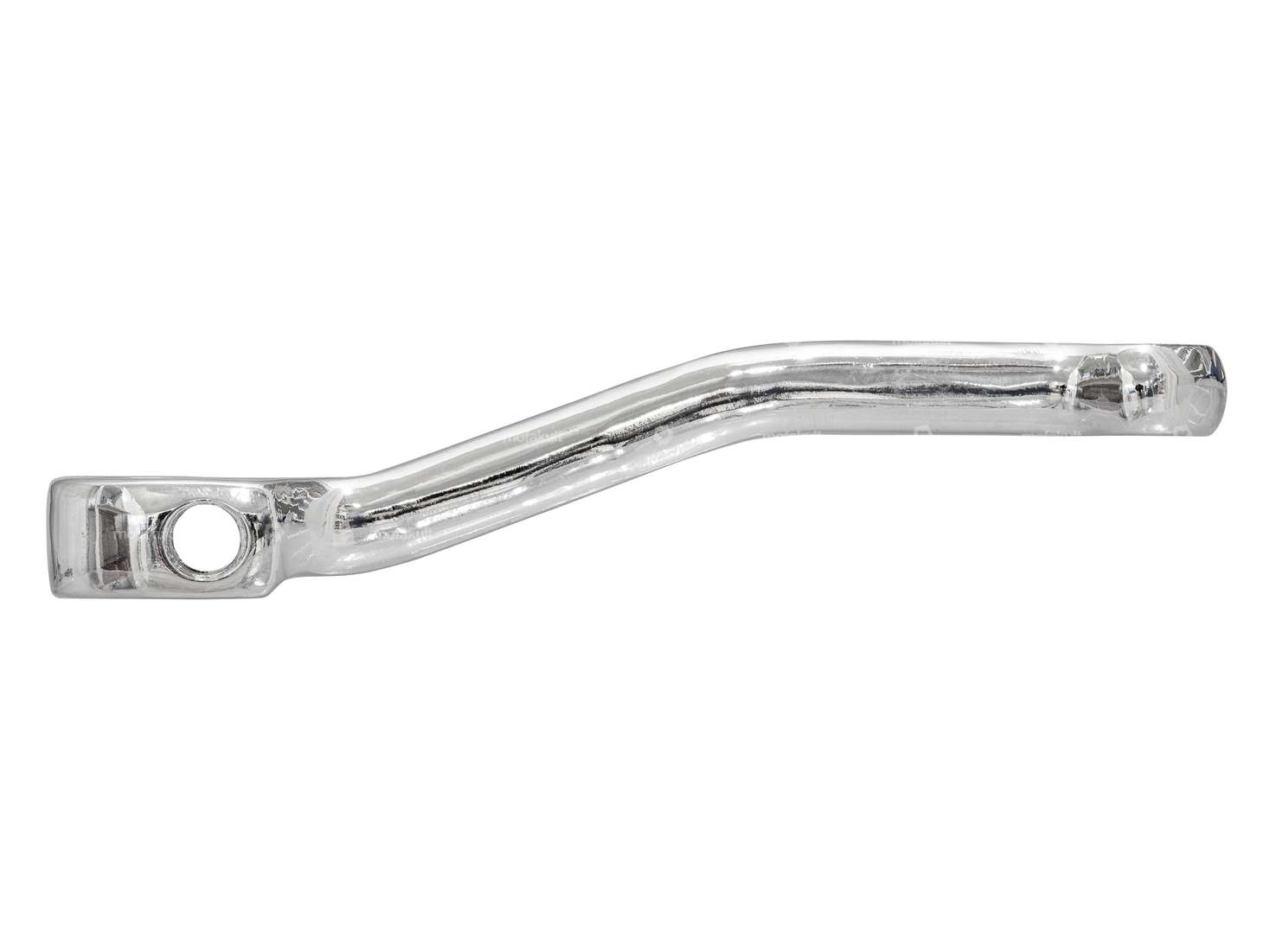

A pair of chrome-plated pedal arms for your moped / moped.

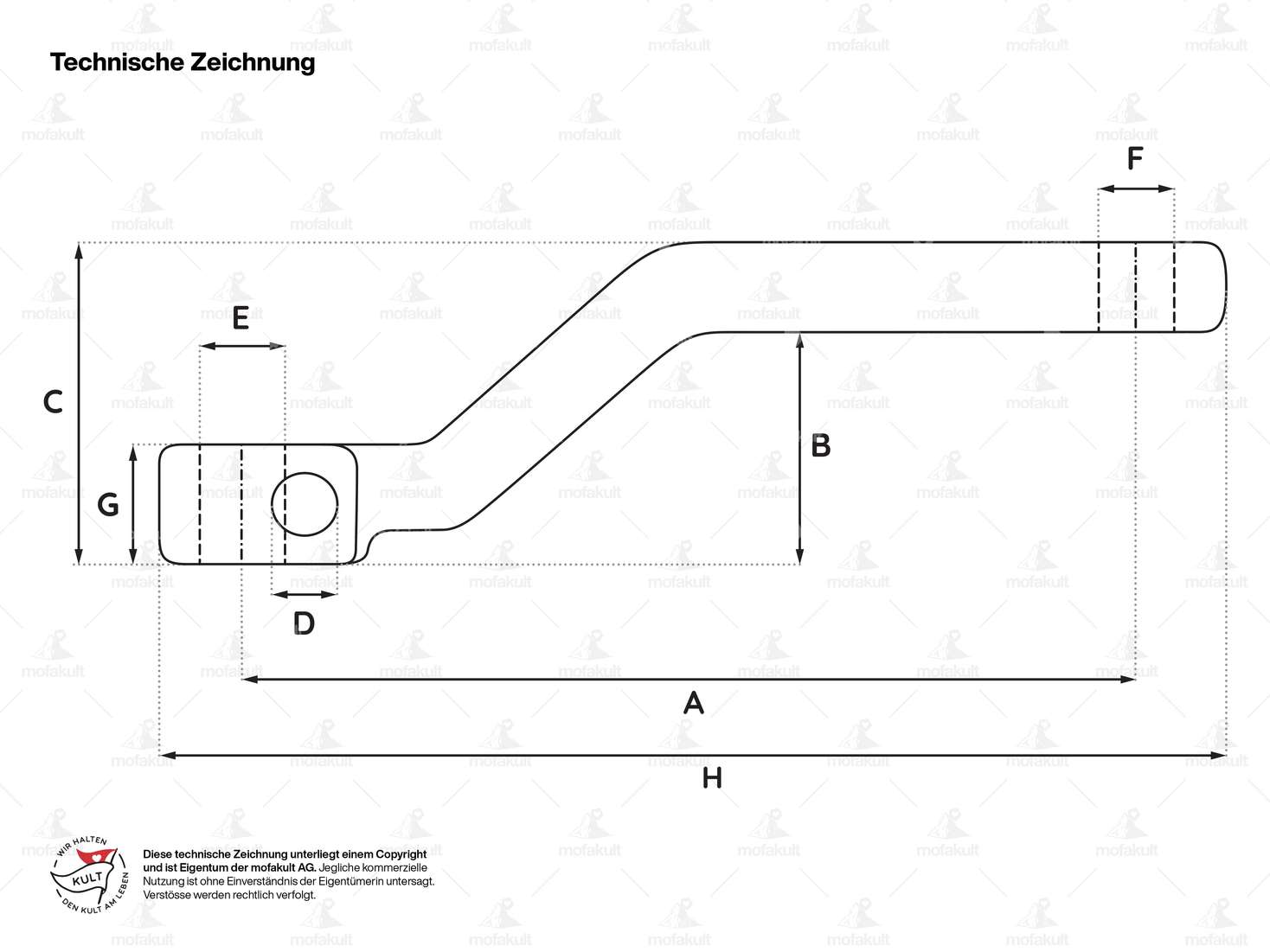

Crank arm length (center axle – center thread): 137 mm
Total length: 163 mm
Size: 24 mm
Material: Steel, chrome-plated
These crank arms must be used with 9.5 mm crank keys.
Good, inexpensive standard replacement part. GPO – GOOD PARTS ONLY.
Details
| Manufacturer | GPO |
| Material | Steel |
| Surface | chrome-plated |
| Thread type | FG14.3 (9/16" 20G) |
| Crank length (center-center) | 137 mm |
| Total length | 163 mm |
| Ø Pedal wedge | 9.5 mm |
| Color | Chrome |
| Cranking (offset) | 24 mm |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Piaggio | Si |
| Zündapp Belmondo | |
| Tomos |
