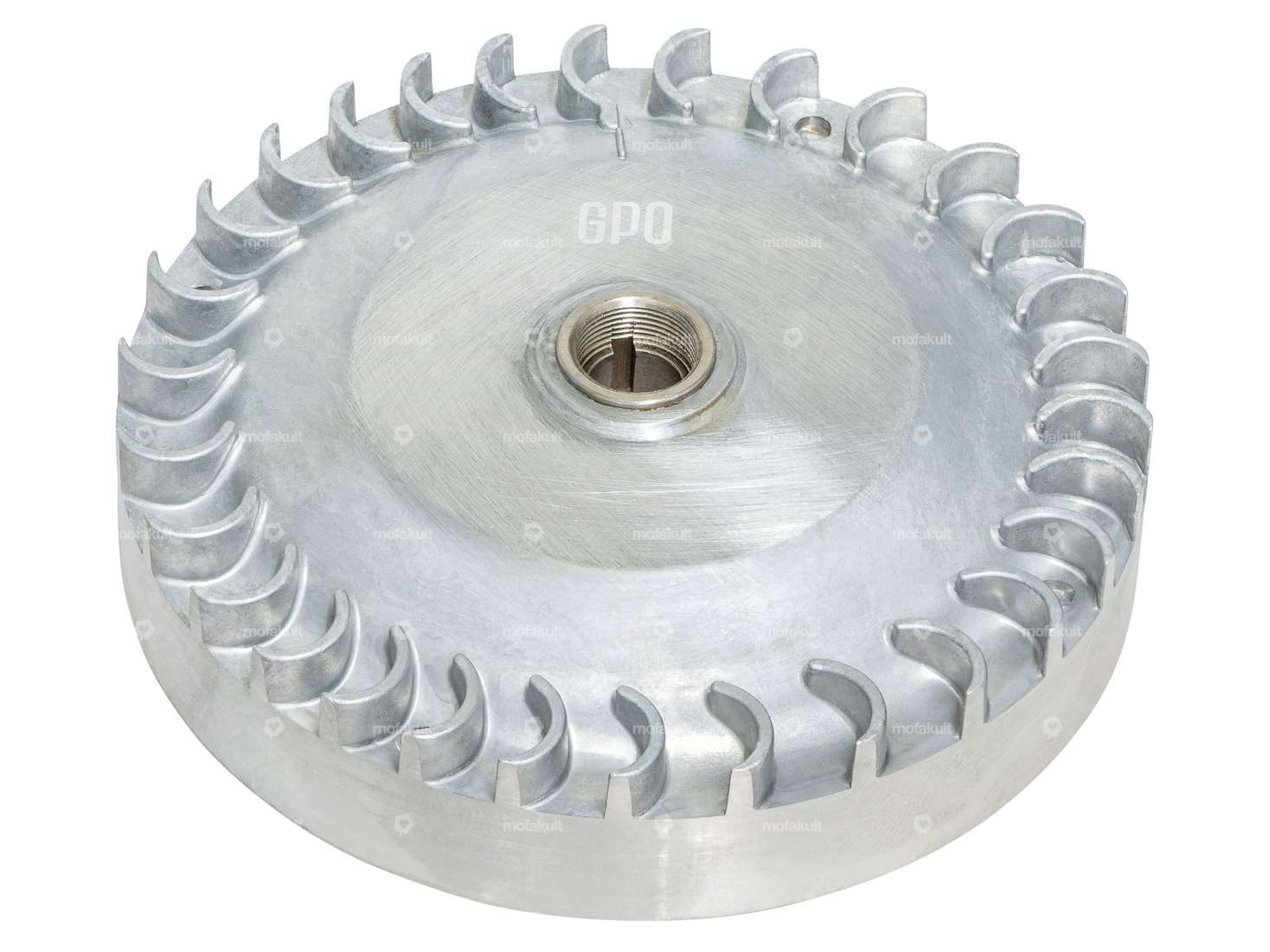

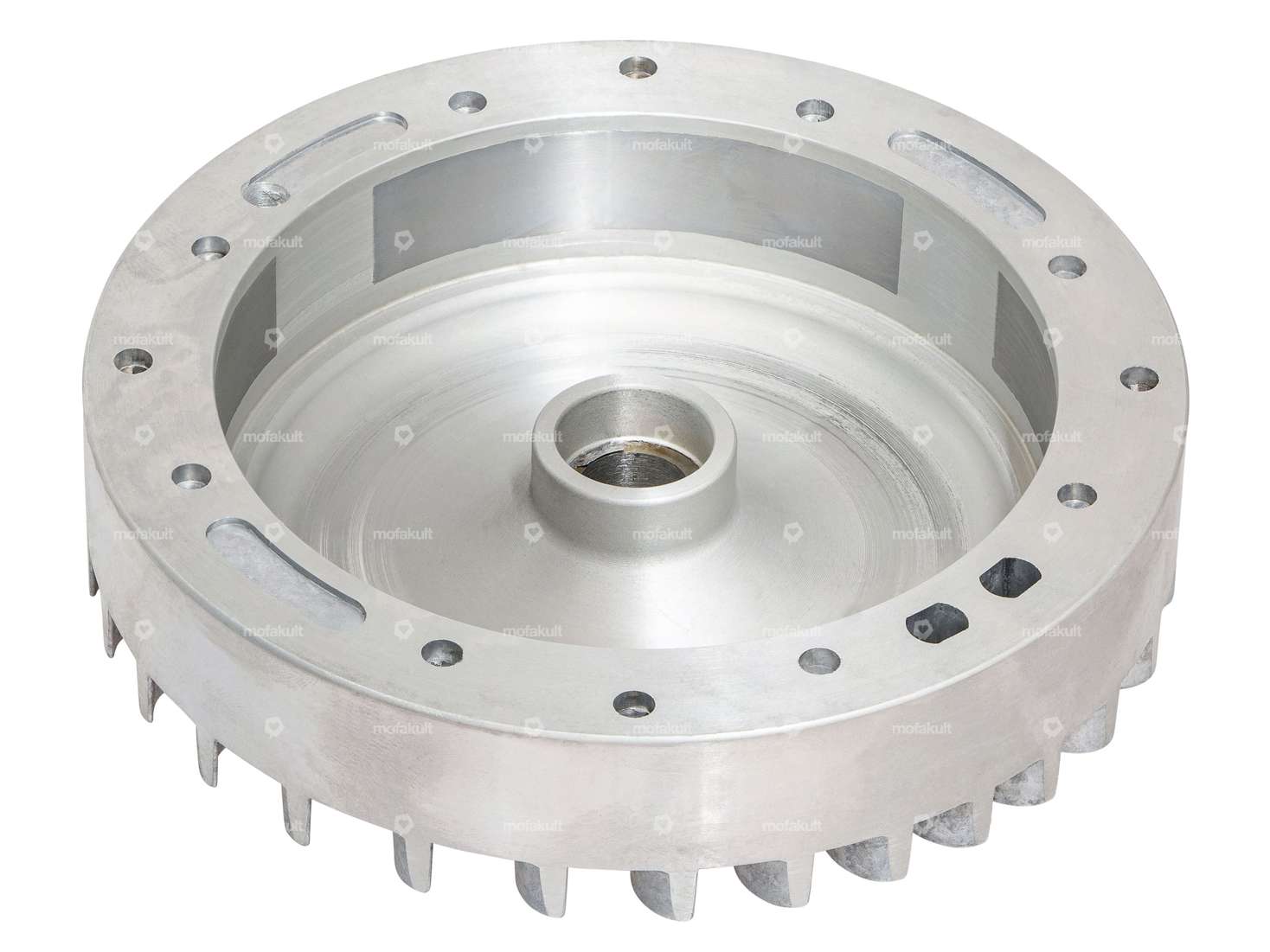

GPO flywheel 1300 g full cheek shaft electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Leonelli 12V voltage regulator (1A quality)

Manufacturer: Leonelli · Material: Aluminum · Material: Plastic · Type of current: Alternating current (AC) · Tension: 12 V · Performance: 100 W · Total length: 50 mm · Mounting type: Screws · Width: 27 mm · Ø mounting hole: 6 mm · Height: 15 mm

swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer

Diameter: 12 mm · Diameter: 24 mm · Width across flats (trigger): 10 mm · Width across flats (trigger): 17 mm · Width across flats Screw: 19 mm · Manufacturer: swiing® ingenious parts · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Number of components: 2 pcs · Total length: 100 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread)

Fan cover | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Plastic · Ø inside: 120 mm · Color: black · Number of fixing points: 4 pcs · Total length: 230 mm · Width: 182 mm · Height: 20 mm

GPO ignition coil CDI | Piaggio Ciao, SI, Bravo, Boxer

Place of use: External (outside the ignition) · Manufacturer: GPO · Ø cable holder: 7.9 mm · Color: black · Number of fixing points: 2 pcs · Cable length: 192 mm · Hole spacing: 33 mm · Total length: 95 mm · Mounting type: Screws · Ø mounting hole: 5.7 mm · Height: 35.5 mm · Area of application: Original · Area of application: Performance · Area of application: Standard

Wedge 12.1x4.9x3 mm

Material: Steel · Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm

GPO stator electronic ignition with light (three outputs) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Number of cables: 6 pcs · Tension: 12 V · Performance: 90 W · Cable length: 100 mm · Cable length: 400 mm · Ø inside: 29.5 mm · Ø outside: 105 mm · Hole spacing: 34.5 mm · Number of fixing points: 3 pcs · Piaggio OEM number: 219965

GPO Electronic ignition 12V | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Light coil voltage: 12 V · Performance: 90 W · Direction of rotation: right · Number of fixing points: 3 pcs · Mounting type: Screws · Area of application: Original · Area of application: Standard · Piaggio OEM number: 181103 · Piaggio OEM number: 219965 · Piaggio OEM number: 244127

GPO flywheel 800 g full cheek shaft electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Material: Aluminum · Ø Internal flywheel: 106 mm · Direction of rotation: right · Ø Flywheel outside: 139.5 mm · Thread type: MF17x1 (fine pitch thread) · Weight: 800 g · Alternative version of the Piaggio OEM number: 181103 · Alternative version of the Piaggio OEM number: 2238183

GPO flywheel 800 g rotary valve shaft electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Material: Aluminum · Direction of rotation: right · Ø Internal flywheel: 106 mm · Ø Flywheel outside: 139.5 mm · Thread type: MF17x1 (fine pitch thread) · Weight: 800 g · Piaggio OEM number: 181103 · Piaggio OEM number: 2238183

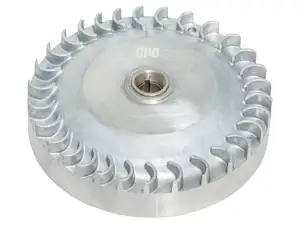

GPO flywheel 1300 g rotary valve shaft electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Material: Aluminum · Ø Internal flywheel: 106 mm · Direction of rotation: right · Ø Flywheel outside: 139.5 mm · Thread type: MF17x1 (fine pitch thread) · Weight: 1300 g · Piaggio OEM number: 181103 · Piaggio OEM number: 2238183

GPO voltage regulator 12V with cooling fins

Manufacturer: GPO · Material: Aluminum · Type of current: Alternating current (AC) · Tension: 12 V · Total length: 58 mm · Width: 36 mm · Ø mounting hole: 6.2 mm · Height: 23 mm

Malossi gasket set 46.5 mm cylinder kit | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Number of components: 2 pcs · Ø cylinder: 46.5 mm · Area of application: Tuning · Decompressor: Yes

Malossi MP-One engine case electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Width: 104 mm · Material: Aluminum · Surface: sandblasted · Ø outside: 140 mm · Ø inside: 24 mm · Ignition type: Electronic · Total length: 220 mm · Height: 174 mm · Color: silver

Malossi crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Area of application: Racing · Material: Steel · Cheek type: Full cheeks · Thread type: M10x1.5 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.95 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.4 mm · Length 1st paragraph: 21.3 mm · Length 2nd paragraph: 43.7 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 813 g · Number of gears: 1 pcs

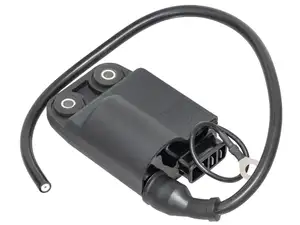

Ignition coil CDI | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Quenching · Place of use: External (outside the ignition) · Color: black · Cable length: 145 mm · Cable length: 380 mm · Height: 36.3 mm · Total length: 90 mm · Mounting type: Nuts & bolts · Hole spacing: 32 mm · Ø mounting hole: 5.9 mm · Number of fixing points: 2 pcs · Area of application: Standard

Rubber grommet ignition cable engine (electronic ignition) | Piaggio Ciao, SI, Bravo, Boxer

Waistband height: 5 mm · Color: black · Material: Rubber · Ø Cable bushing: 6 mm · Ø Bundle: 15 mm · Ø Bundle: 16.5 mm · Ø mounting hole: 12.5 mm · Ø inside: 6 mm · Ø outside: 10.5 mm · Total length: 33 mm · Material thickness: 1.7 mm · Total height: 27 mm · Piaggio OEM number: 000/073943

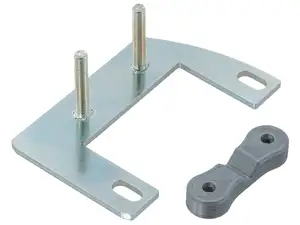

Retaining plate for CDI | Piaggio Ciao

Material: Plastic · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø mounting hole: 6.3 mm · Total length: 90 mm · Number of fixing points: 2 pcs · Width: 57 mm · Hole spacing: 73 mm · Height: 33 mm · Area of application: Standard · Area of application: Tuning

GPO Electronic ignition 12V | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Light coil voltage: 12 V · Performance: 90 W · Direction of rotation: right · Number of fixing points: 3 pcs · Mounting type: Screws · Area of application: Original · Area of application: Standard · Piaggio OEM number: 181103 · Piaggio OEM number: 219965 · Piaggio OEM number: 244127

DMP sprocket 45 teeth galvanized | Puch Maxi, X30 NG-2AH

Chain type: 415H · Chain pitch: 1/2" x 3/16" · Manufacturer: DMP · Material: Steel · Surface: galvanized (blue) · Color: silver · Number of teeth: 45 pcs · Hole spacing: 37 mm · Thickness: 4.5 mm · Ø mounting hole: 7 mm · Ø inside: 94 mm · Number of fixing points: 6 pcs · Hole spacing 2: 68.5 mm · Cranking (offset): 6.5 mm · Ø bolt circle: 106 mm

Polini bearing & oil seal set engine | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Polini · Number of components: 5 pcs · Area of application: Tuning

GPO stator electronic ignition with light (one output) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Number of cables: 4 pcs · Ø outside: 105 mm · Number of fixing points: 3 pcs · Tension: 12 V · Cable length: 100 mm · Cable length: 400 mm · Hole spacing: 34.5 mm · Performance: 90 W
