For: Sachs

22680

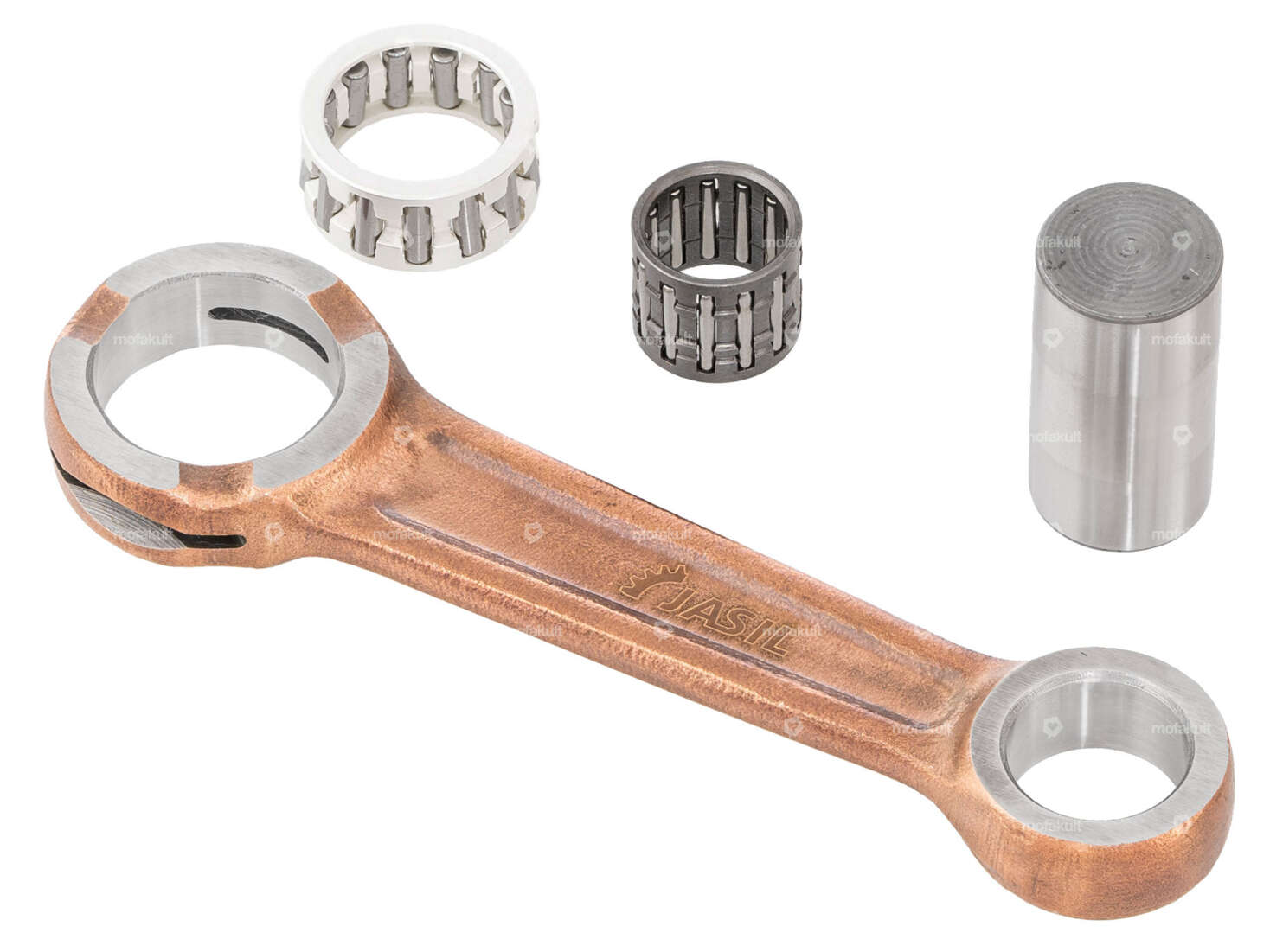

Jasil connecting rod axe 16 mm | Sachs

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 76.80

Incl. 17% VAT.

Description

Complete connecting rod suitable for crankshafts of various mopeds, mopeds and small motorcycles with Sachs engines.
The connecting rod pin at the bottom is conical. In addition, this connecting rod requires a 16 mm piston pin.

  • Dimension connecting rod pin 1: Ø16 x 30 mm
  • Connecting rod length (center - center): 85 mm
  • Total connecting rod length: 107.4 mm
  • Thickness: 10 mm
  • Outer diameter of lower connecting rod eye: 24.75 mm
  • Outer diameter of upper connecting rod eye: 20.85 mm
  • Lower needle bearing (silver ball): Ø21/16 x 9.75 mm
  • Upper needle bearing: Ø15/12 x 12.7 mm
  • Ø für piston pin: 12 mm

Branded product from Portuguese manufacturer Jasil under the Top Racing brand.

ManufacturerJasil
MaterialSteel
Surfacecopper-coated
Connecting rod length center-center85 mm
Ø Connecting rod bolt16 mm
Ø lower connecting rod eye outside24.75 mm
Ø upper connecting rod eye outside20.85 mm
Thickness10 mm
Ø lower bearing inside21 mm
Ø inside upper bearing15 mm
Dimension lower bearing16/21 x 9.75 mm
Dimension upper bearing12/15 x 12.7 mm
Ø piston pin (B)12 mm
Connecting rod pin length30 mm
Total length107.4 mm
Area of applicationStandard, Tuning
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

Explore categories from Engine block

S-10-30-010_Dichtungen_Simmeringe
Seals & gaskets
S-10-30-020_Getriebe_Gehaeuse_Motor
Gearbox & housing (motor)
S-10-30-030_Kupplung
Clutch
S-10-30-040_Kurbelwelle
Crankshaft
S-10-30-050_Lager
Warehouse
S-10-30-060_Geblaese_Verschalung
Blower & shuttering
S-10-30-070_Schrauben_Muttern
Nuts & bolts
S-10-10-090_Werkzeug_Schmierstoffe
Tools & Lubricants & Accessories

Moped fans also bought

Shaft seal NBR 12.96/31.5/3.5 Pinion shaft | Sachs 50/2 (A1137)
undefined

For: Sachs

12127

Shaft seal NBR 12.96/31.5/3.5 Pinion shaft | Sachs 50/2 (A1137)

Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Ø inside: 12.96 mm · Ø outside: 31.5 mm · Width: 3.5 mm · Manufacturer: Sachs · Material: NBR · Pony OEM number: A1137 · Sachs OEM no.: 0230 014 100

EUR 9.75

ESJOT sprocket 37 teeth coaster brake galvanized
undefined

For: Puch · Sachs · Zündapp Belmondo · Cilo

18341

ESJOT sprocket 37 teeth coaster brake galvanized

Manufacturer: ESJOT · Material: Steel · Surface: galvanized (blue) · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Number of teeth: 37 pcs · Ø bolt circle: 105.5 mm · Ø inside: 94 mm · Ø mounting hole: 6.5 mm · Thickness: 4.1 mm · Hole spacing: 74 mm · Number of fixing points: 4 pcs · Color: silver

EUR 55.00

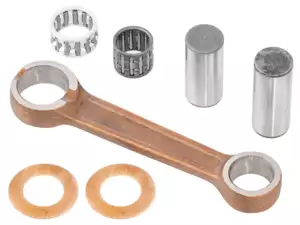

Jasil connecting rod axe 14 mm | Sachs
