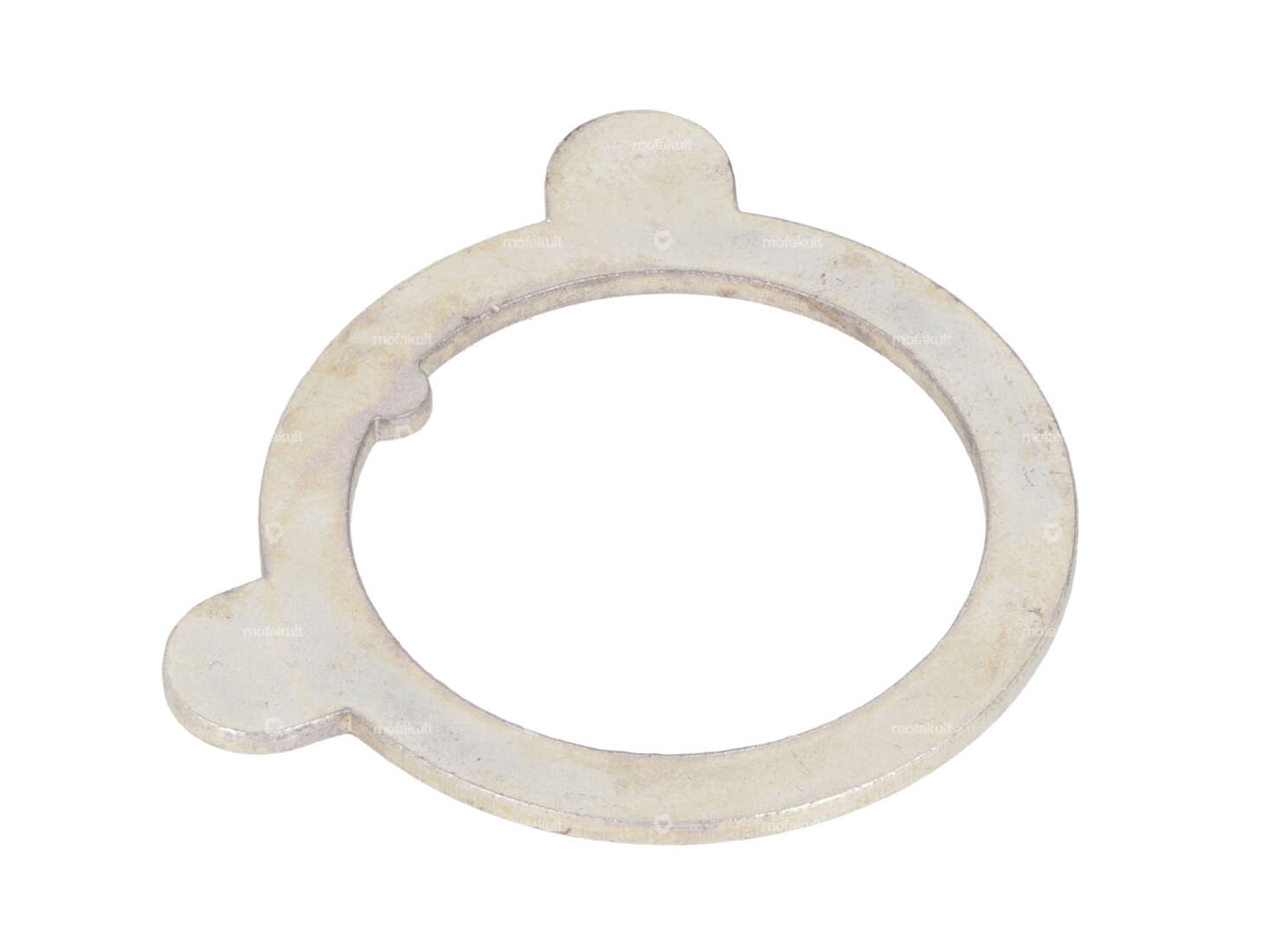

Original lock washer with lug for Piaggio Ciao mopeds / mopeds with original fork.
The intermediate washer is required to secure the end nut of the control bearing. After adjusting the bearing clearance, the tabs are folded over so that the nut can no longer loosen.
Ø inner: 25.5 mm
Ø outer: 32.8 mm
You can find a complete headset set, a matching end nut and other parts in the accessories section.
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Details
| Manufacturer | Piaggio |
| Area of application | Standard |
| Material | Steel |
| Ø outside | 32.8 mm |
| Ø inside | 25.5 mm |
| Surface | galvanized (yellow) |
| Number of lobes | 3 pcs |
| Thickness | 1.5 mm |
| Color | silver |
| Piaggio OEM number | 189305 |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 |
Accessories & related products
EBR standard fork chrome | Piaggio Ciao
Manufacturer: EWC · Material: Steel · Color: Chrome · Surface: chrome-plated · Thread type: FG25.4 (1" 24G) · Adjustable: No · Thread length: 58 mm · Spar end distance (center-center): 106 mm · Ø outer head tube: 25.4 mm · Total length: 585 mm · Ø head tube inside: 21.5 mm · Head tube length: 195 mm · Fork bridge - center wheel axle: 325 mm
EUR 129.20
EBR standard fork black | Piaggio Ciao
Manufacturer: EWC · Material: Steel · Surface: varnished · Color: black · Thread type: FG25.4 (1" 24G) · Adjustable: No · Thread length: 58 mm · Ø outer head tube: 25.5 mm · Total length: 580 mm · Ø head tube inside: 21 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 355 mm
EUR 124.70
GPO control bearing set | Piaggio Ciao
Ø inside: 27 mm · Ø outside: 41.4 mm · Ø outside: 42 mm · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Thread type: FG25.4 (1" 24G) · Ø mounting frame: 30.05 mm · Height: 10.5 mm · Height: 17 mm · Ø ball [inch] / [mm]: 5/32" (4.00 mm)
EUR 21.60

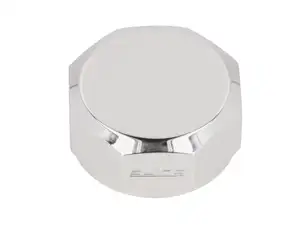

swiing® revival steerer tube nut 1" / 24G closed | Piaggio Ciao
