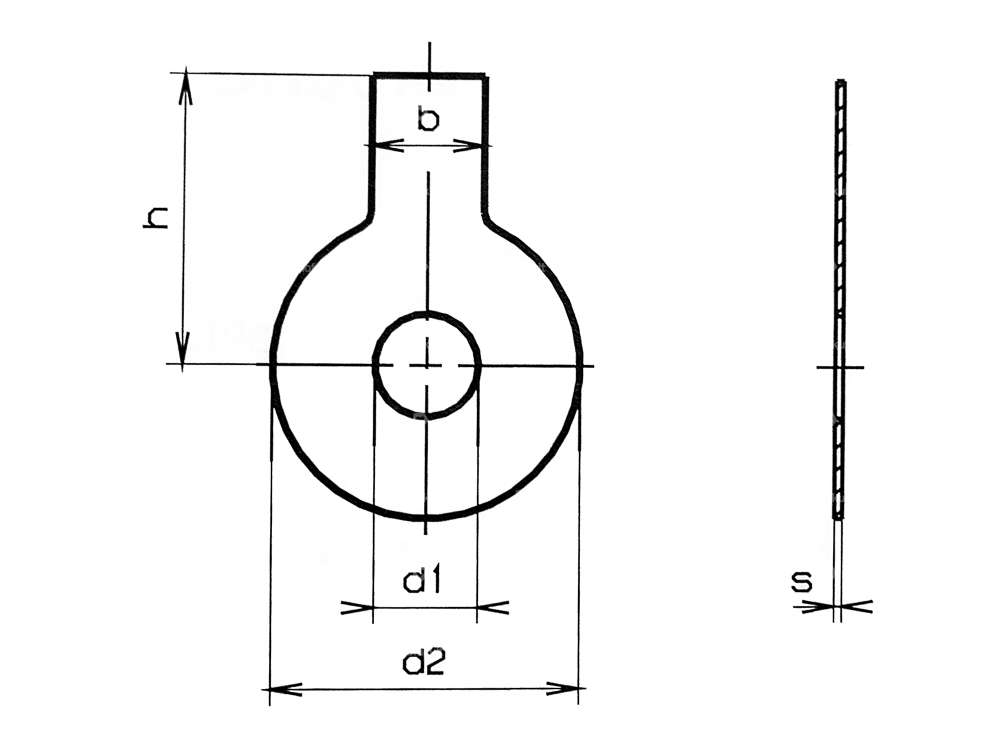

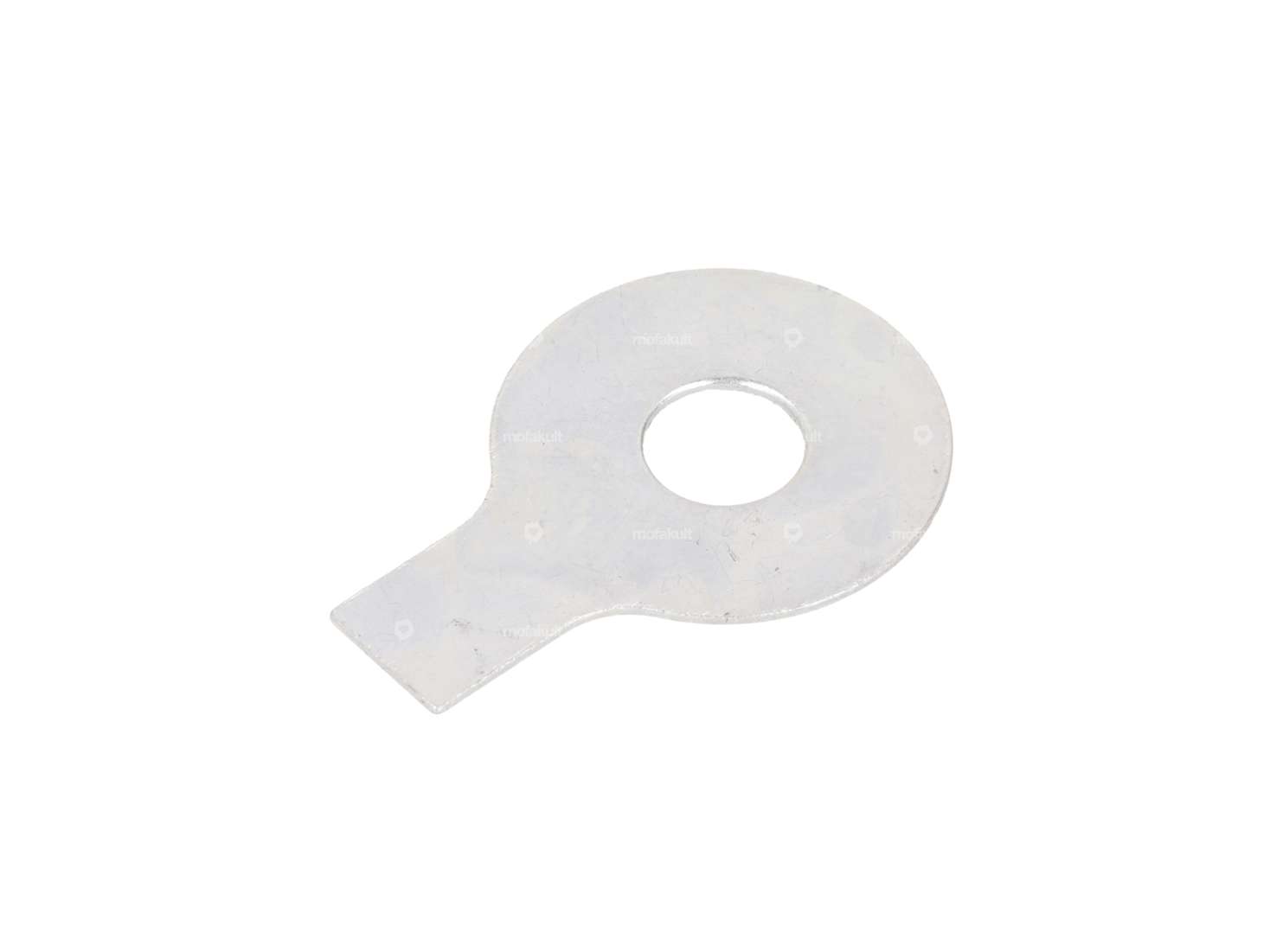

M6 lock washer 1 tab

GPO clutch plates (pair) | Puch X30

Manufacturer: GPO · Number of slats: 2 pcs · Area of application: Standard

GPO 15 mm carburetor tuning | Puch

Manufacturer: GPO · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Nozzle size: 62 · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning

GPO control bearing set M26x1 | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Ø outside: 41 mm · Ø inside: 26.8 mm · Thread type: MF26x1 (fine pitch thread)

swiing® ingenious clutch springs reinforced (+20%) | Puch E50

Spring design: Pressure spring · Ø wire: 1.7 mm · Ø inside: 4.8 mm · Ø outside: 8.3 mm · Total length: 28 mm · Color: blue · Manufacturer: swiing® ingenious parts · Number of components: 3 pcs · Material: Spring steel · Surface: coated · Area of application: Tuning

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Number of components: 11 pcs · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard

Nut flywheel M10x1 SW15 serrated

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Flange nut · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 10 mm · Ø outside: 19.8 mm · Height: 10.5 mm · Width across flats: 15 mm

Ignition rubber | Puch E50

Material: Rubber · Ø inside: 2.5 mm · Ø inside 2: 5 mm · Waistband height: 2.5 mm · Total length: 30.3 mm · Width: 15 mm · Height: 11 mm · Total height: 15 mm · Color: black

M6 lock washer 2 tabs

Thickness: 0.5 mm · Material: Steel · Surface: galvanized (blue) · Thread size: M6 · Width: 7 mm · Number of lobes: 2 pcs · Total length: 9 mm · Nominal diameter (thread): 6 mm · Ø inside: 6.4 mm · Ø outside: 12.5 mm · Length 2: 18 mm · Width 2: 7 mm
