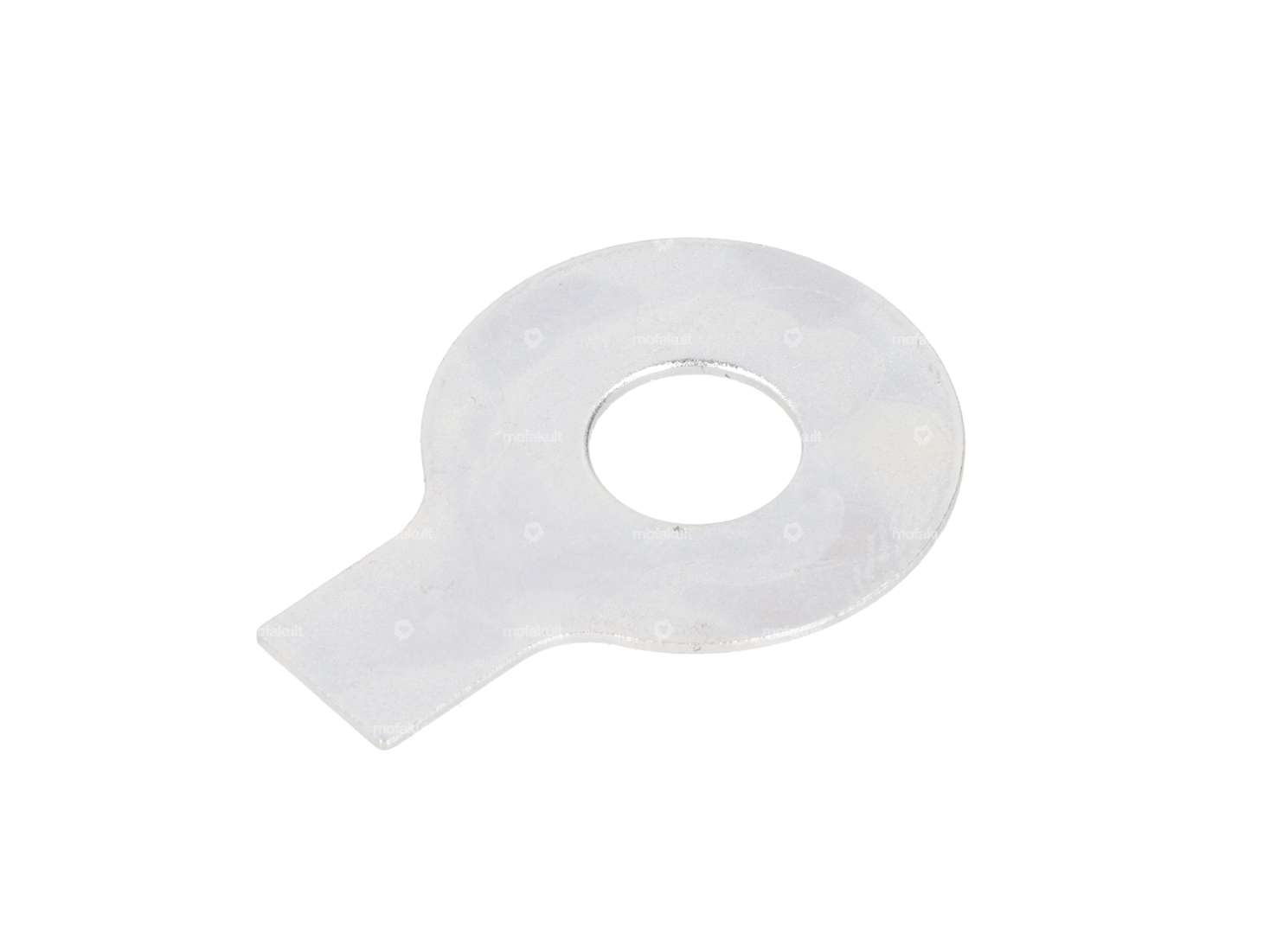

Galvanized lock washer with 1 tab for securing nuts and bolts.

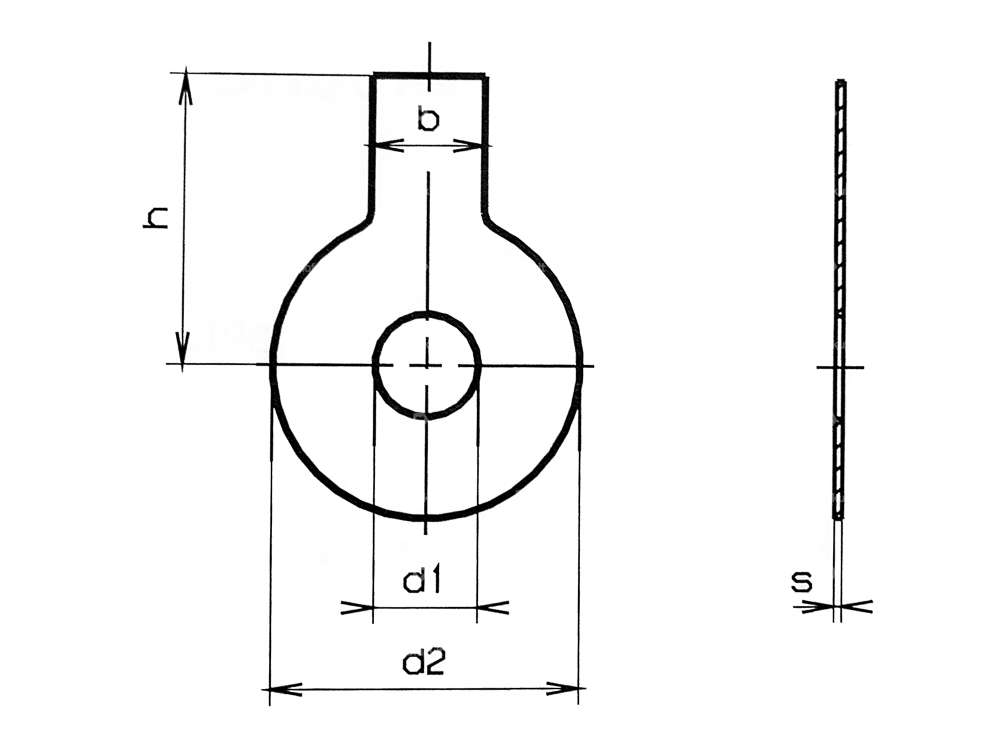

Take the following measurements from figure 2:

d1: 8.4 mm
d2: 22 mm
h: 20 mm
b: 8 mm
s: 0.75 mm

Details

Thickness	0.75 mm
Ø inside	8.4 mm
Ø outside	22 mm
Total length	20 mm
Material	Steel
Surface	galvanized (blue)
Width	8 mm
Thread size	M8
Number of lobes	1 pcs
