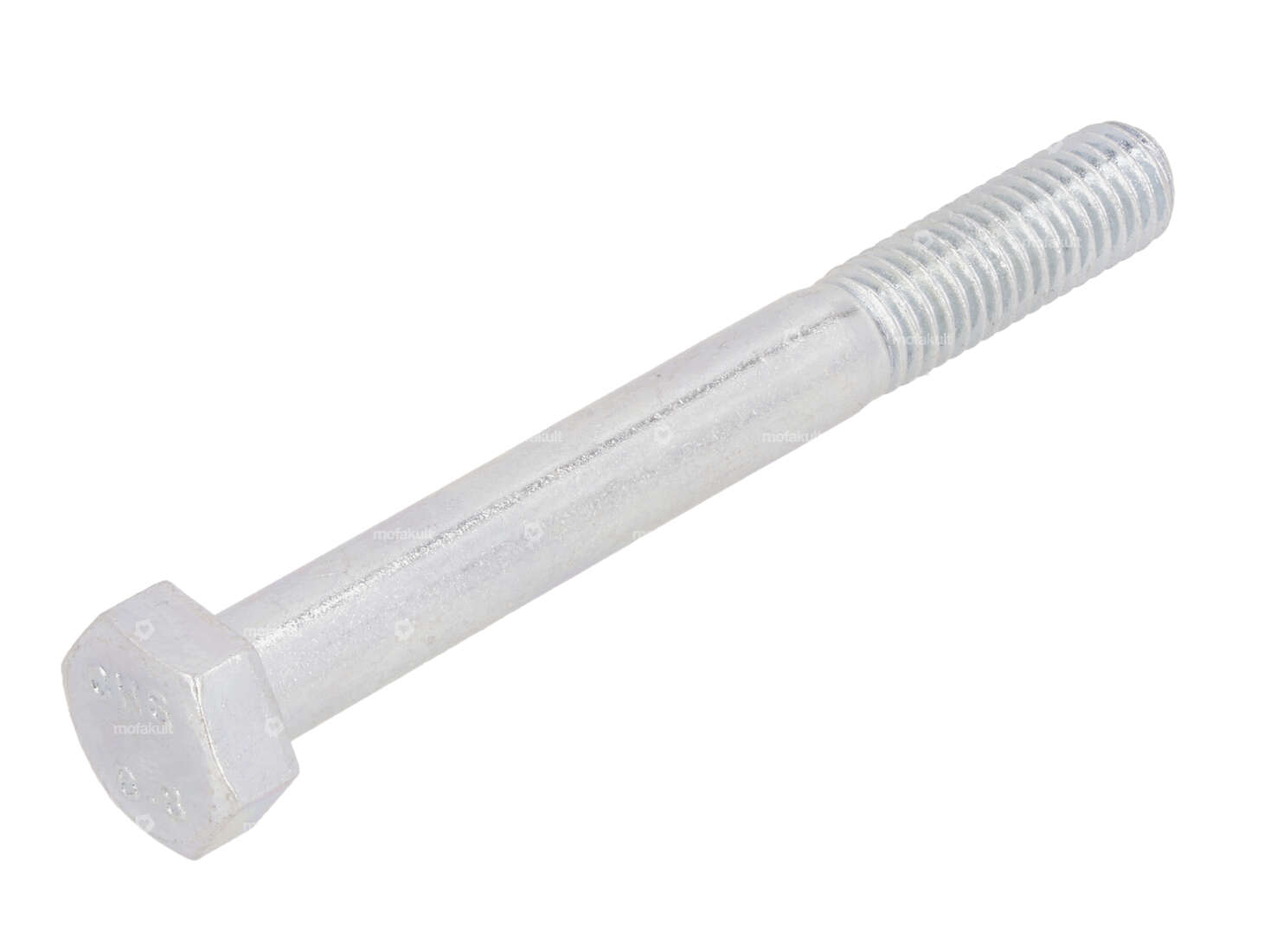

M8x70 hexagon head screw, galvanized shank

Washer M8 large 8.4/20/1.5 Inox

Thickness: 1.5 mm · Material: Chrome steel (colloquially known as stainless steel) · Ø inside: 8.4 mm · Nominal diameter inside: 8 mm · Ø outside: 20 mm · Thread size: M8 · Nominal diameter (thread): 8 mm

M8 medium-height flange nut (1.5D), galvanized (Grade 10)

Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 8 mm · Height: 12 mm · Width across flats: 13 mm · Strength class: 10

Washer M8 8.4/16/1.6 galvanized

Thickness: 1.6 mm · Material: Steel · Surface: galvanized (blue) · Ø inside: 8.4 mm · Nominal diameter inside: 8 mm · Ø outside: 16 mm · Hardness [HV]: 140 HV · Nominal diameter (thread): 8 mm

Nut M8 galvanized

Material: Steel · Nut type: Hexagon nut · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Surface: galvanized (blue) · Height: 6.5 mm · Width across flats: 13 mm · Nominal diameter (thread): 8 mm · Strength class: 8

Stop nut M8 galvanized

Material: Steel · Nut type: Self-securing nut · Thread type: M8x1.25 (standard thread) · Height: 8 mm · Drive: External hexagon · Surface: galvanized (blue) · Width across flats: 13 mm · Nominal diameter (thread): 8 mm · Strength class: 8

Karcoma fuel tap M12x1 vertical (with union nut) plastic connection

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Reserve level: 50 mm

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Tomos, Beta 521

Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Width across flats trigger: 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Total length: 55 mm · Total length: 75 mm · Strength class: 8.8 · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Number of components: 1 pcs

5 mm nickel-plated cable lug (1A quality)

Ø outside: 5.5 mm · Material: Brass · Surface: nickel-plated · Color: silver · Ø inside: 5 mm · Ø Cable bushing: 2.5 mm · Total length: 12 mm · Area of application: Standard

Ø 9.5 mm Wedge 4.5° Pedal crank galvanized

Ø outside: 9.5 mm · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M6x1 (standard thread) · Angle crank wedge: 4.5° · Total length: 43 mm

Nut M11x1 x 10 SW19 Wheel nut galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 1D · Height: 10 mm · Nominal diameter (thread): 11 mm · Drive: External hexagon · Width across flats: 19 mm · Thread type: MF11x1 (fine pitch thread) · Strength class: 8 · Area of application: Standard

Alligator terminal for indoor cables, aluminum

Ø outside: 3.1 - 4 mm · Manufacturer: Alligator · Number of components: 1 pcs · Material: Aluminum · Number of connections: 1 pcs · Surface: raw · Color: silver · Ø inside: 2.2 mm · Total length: 12 mm · Area of application: Standard

Manual indoor cable set

Manufacturer: Made in Germany · Material: Steel · Ø Stranded wire: 1.2 mm · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Quantity: 4 pcs · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Total length: 2200 mm

M8 medium-height flange nut (1.5D), galvanized (Grade 10)

Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 8 mm · Height: 12 mm · Width across flats: 13 mm · Strength class: 10

Nut M8 galvanized

Material: Steel · Nut type: Hexagon nut · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Surface: galvanized (blue) · Height: 6.5 mm · Width across flats: 13 mm · Nominal diameter (thread): 8 mm · Strength class: 8

Washer M8 large 8.4/20/2 galvanized

Thickness: 2 mm · Material: Steel · Surface: galvanized (blue) · Ø inside: 8.4 mm · Nominal diameter inside: 8 mm · Ø outside: 20 mm · Hardness [HV]: 140 HV · Number of components: 1 pcs · Thread size: M8 · Nominal diameter (thread): 8 mm
