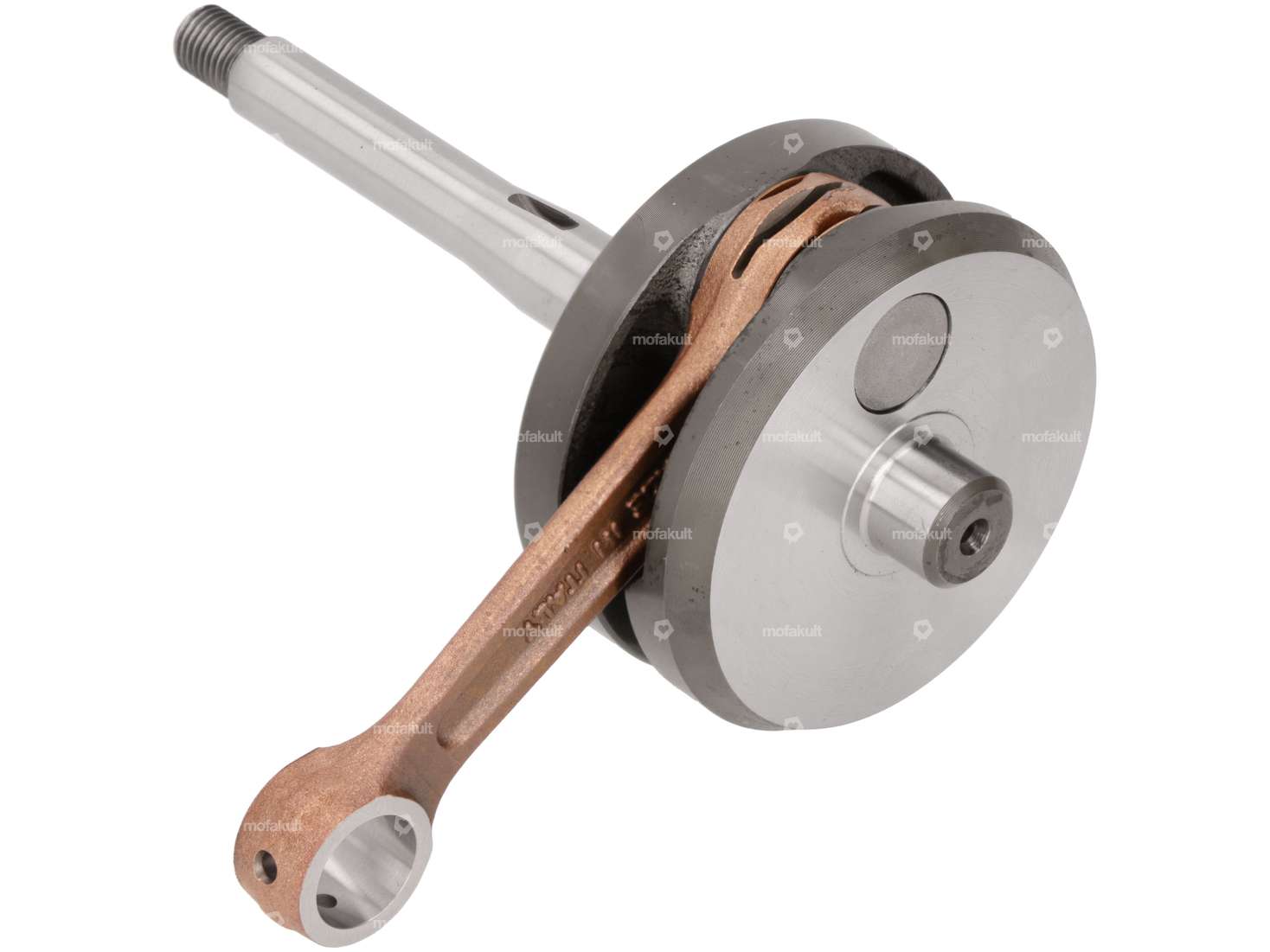

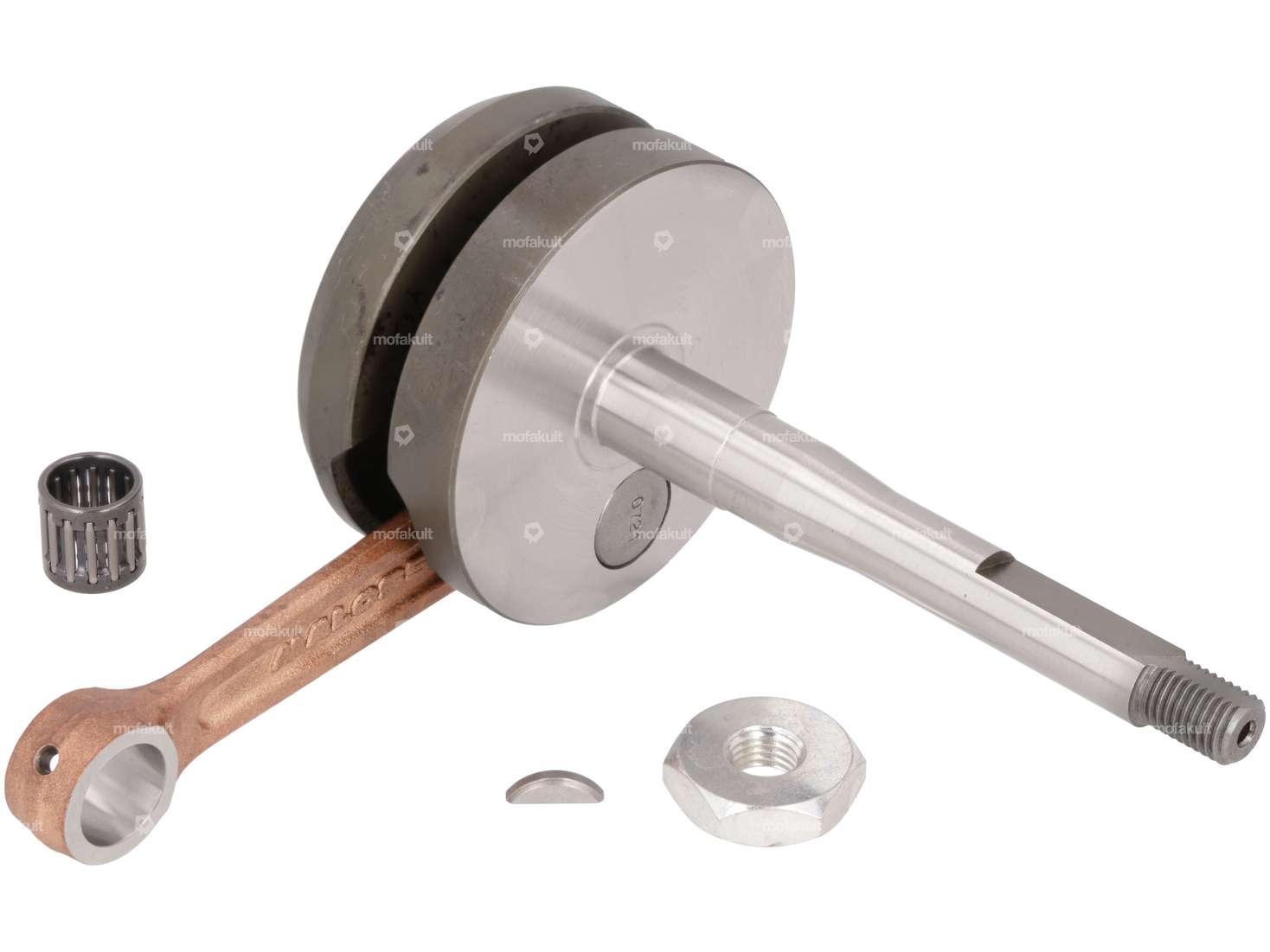

Racing crankshaft suitable for your Piaggio Ciao, SI, Bravo and Boxer moped / moped.
The finely balanced tuning crankshaft has been tested up to 16,000 rpm and fits all cylinders with 12 mm piston pins. The quality of the workmanship and the steel used is exceptionally high, which ensures impressive durability.
Note: This crankshaft can only be used in conjunction with a Malossi engine case.
No shim needs to be inserted between the racing crankshaft and its main bearings for installation.
Quality product from the Italian manufacturer Malossi.
| Manufacturer | Malossi |
| Weight | 813 g |
| Material | Steel |
| Cheek type | Full cheeks |
| Thread type | M10x1.5 (standard thread) |

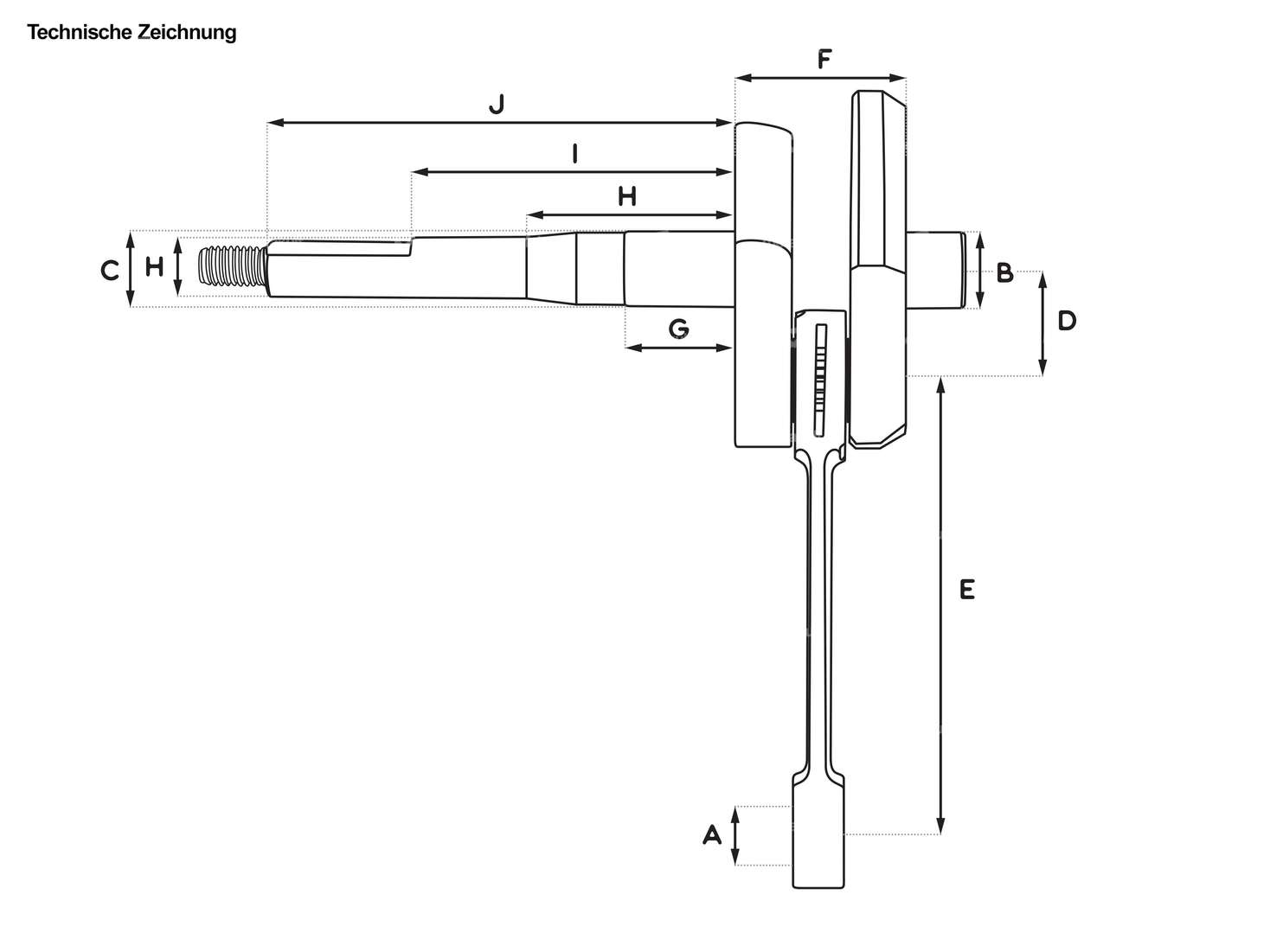

| Crankshaft stroke | 43 mm |
| Ø coupling pin / vario pin | 12 mm |
| Connecting rod length center-center | 87 mm |
| Total length crankpin ignition side | 91 mm, 106 mm |
| Area of application | Racing |
| Ø crank webs | 69.95 mm |
| Thread length | 15 mm |
| Ø Connecting rod eye | 15 mm |
| Bearing seat right | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Wide crank webs | 32.4 mm |
| Length 1st paragraph | 21.3 mm |
| Length 2nd paragraph | 43.7 mm |
| Length 3rd paragraph | 63 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14.4 mm |
| Ø 3rd step (on the clutch side) | 12 mm |
| Number of gears | 1 pcs |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Ø outside: 15 mm · Ø inside: 12 mm · Width: 16.2 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548
EUR 15.90
Not in stock
swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer
Width across flats trigger: 10 mm · Width across flats trigger: 17 mm · Width across flats Screw: 19 mm · Number of components: 2 pcs · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Diameter: 12 mm · Diameter: 24 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Total length: 100 mm · Area of application: (Dis)assembly tool
EUR 20.50
Moped fans also bought
Dell'Orto 19 mm PHBG CS carburetor hand choke
Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Carburetor type: PHBG CS · Color: black · Nominal diameter: 19 mm · Ø Internal connection: 24 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Total length: 82 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Mounting type: Plug connection clamped · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: Yes · Width: 70 mm · Vacuum connection: Yes · Height: 124 mm · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 75 · Size of secondary nozzle: 45 · Area of application: Racing · Area of application: Tuning
EUR 137.40
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Thread type: MF12x1 (fine pitch thread) · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 70 mm
EUR 11.40
Hot
Malossi 47 mm cylinder kit BIG DEPS incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer
Nominal diameter: 47 mm · Manufacturer: Malossi · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 75 ccm · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Ø outlet inside: 18 mm · Ø outlet inside: 24 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Hole pattern [mm]: 55 x 34 · Hole spacing outlet: 23 mm · Hole spacing outlet: 38.5 mm · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Area of application: Tuning
EUR 383.70
Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Steel · Ø Internal flywheel: 80.5 mm · Light coil voltage: 12 V · Performance: 90 W · Direction of rotation: right · Mounting type: Screws · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Number of fixing points: 2 pcs · Ø cable: 7 mm · Weight: 804 g · Weight: 890 g · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning
EUR 458.20
SKF 6202 C3 ball bearing 15/35/11
Bearing type: Deep groove ball bearing · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Ø outside: 35 mm · Ø inside: 15 mm · Width: 11 mm · Puch OEM number: 900.4.6202
EUR 11.40
Hot

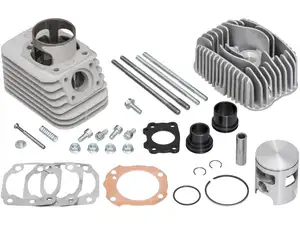

Malossi 47 mm cylinder kit BIG DEPS 4 MHR incl. head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
