Piaggio gearbox

Spacer 15/28/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 28 mm · Nominal diameter inside: 28 mm · Ø outside: 15 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Washer 18/29/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 18 mm · Nominal diameter inside: 8 mm · Ø outside: 29 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Spacer 20/33/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 20 mm · Nominal diameter inside: 20 mm · Ø outside: 33 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Piaggio OEM number: 131513

Spacer 23/34/0.5 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 23 mm · Nominal diameter inside: 23 mm · Ø outside: 34 mm · Thickness: 0.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

CIF revision set gearbox variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Vario · Area of application: Original · Area of application: Standard

CIF transmission 11:1 Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 10.73 / 1 · Gearbox type: Vario · Area of application: Racing · Area of application: Tuning

CIF transmission 9.5:1 Vario (long ratio) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Toothing type: helical toothed · Translation: 9.49 / 1 · Gearbox type: Vario · Area of application: Tuning

Malossi gearbox 8.92:1 (long ratio) Vario | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Manufacturer: Malossi · Material: Steel · Toothing type: straight toothed · Translation: 8.92 / 1 · Gearbox type: Vario · Area of application: Tuning

Olympia freewheel hub galvanized | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Thread type: MF14x1.5 (fine pitch thread) · Drive: External hexagon

CIF gear wheel 36 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Number of teeth: 36 pcs · Toothing type: straight toothed · Translation: 8.92 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Gearbox type: Vario

CIF gearwheel 29/10 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Number of teeth: 10 pcs · Number of teeth: 29 pcs · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 10.44 / 1 · Translation: 10.73 / 1 · Translation: 13.05 / 1 · Gearbox type: Mono · Gearbox type: Vario

Spacer washer 14/24/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 14 mm · Nominal diameter inside: 14 mm · Ø outside: 24 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Spacer 10/18/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 10 mm · Nominal diameter inside: 10 mm · Ø outside: 18 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

CIF gearwheel 29/11 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Number of teeth: 11 pcs · Number of teeth: 29 pcs · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Ø outside: 23 mm · Ø outside: 39 mm · Gearbox type: Vario

CIF gearwheel 23 teeth Mono / Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Number of teeth: 23 pcs · Toothing type: helical toothed · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Translation: 10.63 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Translation: 12.24 / 1 · Translation: 13.05 / 1 · Translation: 14.82 / 1 · Ø outside: 32 mm · Gearbox type: Mono · Gearbox type: Vario

Koyo HK1712 Needle roller bearing 17/23/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1712 · Dimension needle bearing: 17/23 x 12 · Ø inside: 17 mm · Ø outside: 23 mm · Manufacturer: Koyo · Width: 12 mm · Piaggio OEM number: 103696

Pin gearbox axle shaft original | Piaggio Ciao, SI, Bravo, Boxer

Ø outside: 6.98 mm · Total length: 30 mm · Manufacturer: Piaggio

CIF gear wheel 37 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Material: Steel · Manufacturer: CIF · Number of teeth: 37 pcs · Toothing type: straight toothed · Translation: 8.41 / 1 · Translation: 9.17 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Gearbox type: Mono · Gearbox type: Vario

Gear wheel 74 teeth mono gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Manufacturer: Piaggio · Material: Steel · Number of teeth: 74 pcs · Toothing type: straight toothed · Gearbox type: Mono

swiing® ingenious rear wheel nut M14 x 1.5 SW19 Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® ingenious parts · Material: Chrome steel (colloquially known as stainless steel) · Thread type: MF14x1.5 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 14 mm · Height: 24 mm · Width across flats: 19 mm

CIF gear shaft 10 teeth variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Number of teeth: 10 pcs · Ø shaft: 13 mm · Toothing type: helical toothed · Total length: 137 mm

CIF gasket set engine / gearbox with shaft seals Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Place of use: Gear hub · Gearbox type: Vario · Area of application: Standard · Piaggio OEM number: 008766 · Piaggio OEM number: 008771 · Piaggio OEM number: 112967 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 240222 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

CIF gasket set engine / gearbox with oil seals Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Place of use: Gear hub · Gearbox type: Mono · Area of application: Standard · Piaggio OEM number: 112967 · Piaggio OEM number: 114469 · Piaggio OEM number: 124571 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

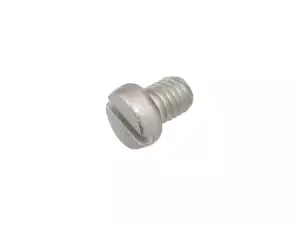

Oil filler plug M8x10 Inox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Drive: Slot · Thread length: 10 mm · Piaggio OEM number: 030280

O-ring shift fork (Velogang) original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 6 mm · Ø outside: 9.4 mm · Cord thickness: 1.7 mm · Manufacturer: Piaggio

GPO oil seal set engine & gearbox (mono) | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Clutch · Place of use: Crankshaft · Place of use: Gear hub · Place of use: Gearbox cover · Temperature resistance (min.): -30 - 120 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Shaft seal type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 20 mm · Ø outside: 22 mm · Ø outside: 24 mm · Ø outside: 25 mm · Ø outside: 30 mm · Width: 3 mm · Width: 4 mm · Width: 5 mm · Manufacturer: GPO · Material: NBR · Area of application: Original · Area of application: Standard

Spacer 16.4/24/0.6 clutch mono / gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 16.4 mm · Nominal diameter inside: 16 mm · Ø outside: 24 mm · Thickness: 0.6 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Rear brake pad fuse | Piaggio Ciao, SI, Bravo, Boxer

Fuse type: Inside · Place of use: Brake · Material: Steel · Surface: galvanized (blue) · Piaggio OEM number: 103112

swiing® revival screw set engine / gearbox Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel)

CUBE 6202 2RS ball bearing 15/35/11 triangular bearing plate | Piaggio Ciao, SI, Bravo, Grillo

Bearing type: Deep groove ball bearing · Stock number: 6202 · Width: 11 mm · Manufacturer: CUBE · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Ø inside: 15 mm · Ø outside: 35 mm

Polini Vario 11.5:1 gear ratio 3rd & 4th gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Number of teeth: 11 pcs · Number of teeth: 30 pcs · Number of teeth: 46 pcs · Toothing type: straight toothed · Translation: 11.40 / 1 · Gearbox type: Vario

Polini Vario input shaft & 1st gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Number of teeth: 11 pcs · Number of teeth: 23 pcs · Toothing type: straight toothed · Translation: 11.40 / 1 · Translation: 12.82 / 1 · Gearbox type: Vario

Polini gearbox housing Evolution Variomatic | Piaggio Ciao, SI, Bravo, Boxer

Material: Aluminum · Manufacturer: Polini · Surface: varnished · Gearbox type: Vario · Area of application: High End · Area of application: Racing · Area of application: Tuning

Polini Vario 13:1 gear ratio 3rd & 4th gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Number of teeth: 10 pcs · Number of teeth: 30 pcs · Number of teeth: 47 pcs · Toothing type: straight toothed · Translation: 12.82 / 1 · Gearbox type: Vario

Malossi variator gearbox housing | Piaggio SI, Boxer

Material: Aluminum · Manufacturer: Malossi · Surface: varnished · Gearbox type: Vario · Area of application: High End · Area of application: Racing

INA needle roller bearing 9/13/12 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Stock number: BK0912 · Dimension needle bearing: 9/13 x 12 · Ø inside: 9 mm · Ø outside: 13 mm · Manufacturer: INA · Width: 12 mm

Bolt M10x14 Gearbox frame mounting | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: galvanized (blue) · Thread type: M10x1.5 (standard thread) · Nominal diameter (thread): 10 mm · Drive: External hexagon · Screw head: Hexagon · Width across flats: 17 mm · Shank: No · Total length: 22.3 mm · Thread length: 14.5 mm · Strength class: 8.8 · Piaggio OEM number: 031150

swiing® revival spacer set MG2 & MG3 Mono transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 103058 · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514

SKF Needle roller bearing 20/26/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK2012 · Dimension needle bearing: 20/26 x 12 · Ø inside: 20 mm · Ø outside: 26 mm · Manufacturer: SKF · Width: 12 mm · Piaggio OEM number: 131509

INA needle roller bearing set MG2 Mono gearbox (1A quality) | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: INA · Manufacturer: SKF

INA needle roller bearing set MG3 & MG4 Mono gearbox (1A quality) | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: INA

INA needle roller bearing 17/23/12 Mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1712 · Dimension needle bearing: 17/23 x 12 · Ø inside: 17 mm · Ø outside: 23 mm · Manufacturer: INA · Width: 12 mm · Piaggio OEM number: 103696

swiing® revival gasket & shaft seals Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Material: NBR · Material: Oiled paper · Manufacturer: swiing® revival parts · Gearbox type: Vario

INA needle bearing set Vario gearbox (1A quality) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: INA · Manufacturer: SKF · Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1312 · Stock number: HK2012 · Piaggio OEM number: 103613 · Piaggio OEM number: 103614 · Piaggio OEM number: 103689 · Piaggio OEM number: 131509

Nut Polini Vario input shaft | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: MF10x1.25 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 10 mm · Height: 13 mm · Width across flats: 15 mm

SKF needle roller bearing 13/19/12 Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: SKF · Width: 12 mm · Piaggio OEM number: 103614

Koyo needle bearing 13/19/12 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: Koyo · Width: 12 mm · Piaggio OEM number: 103614

swiing® revival spacer set VG3 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514 · Piaggio OEM number: 175747

swiing® revival spacer set VG4 & VG5 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514 · Piaggio OEM number: 175747 · Piaggio OEM number: 175751

Polini gearbox 13:1 / 11.5:1 Vario (selection) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Toothing type: straight toothed · Translation: 11.40 / 1 · Translation: 12.82 / 1 · Gearbox type: Vario
