logo_meteor-piston-mk

For: Kreidler

22313

Meteor piston 39.975 mm (14mm KoBo) F | Kreidler Florett RS

Home
| Motor
| Cylinder
| Piston
EUR 68.60

Incl. 17% VAT.

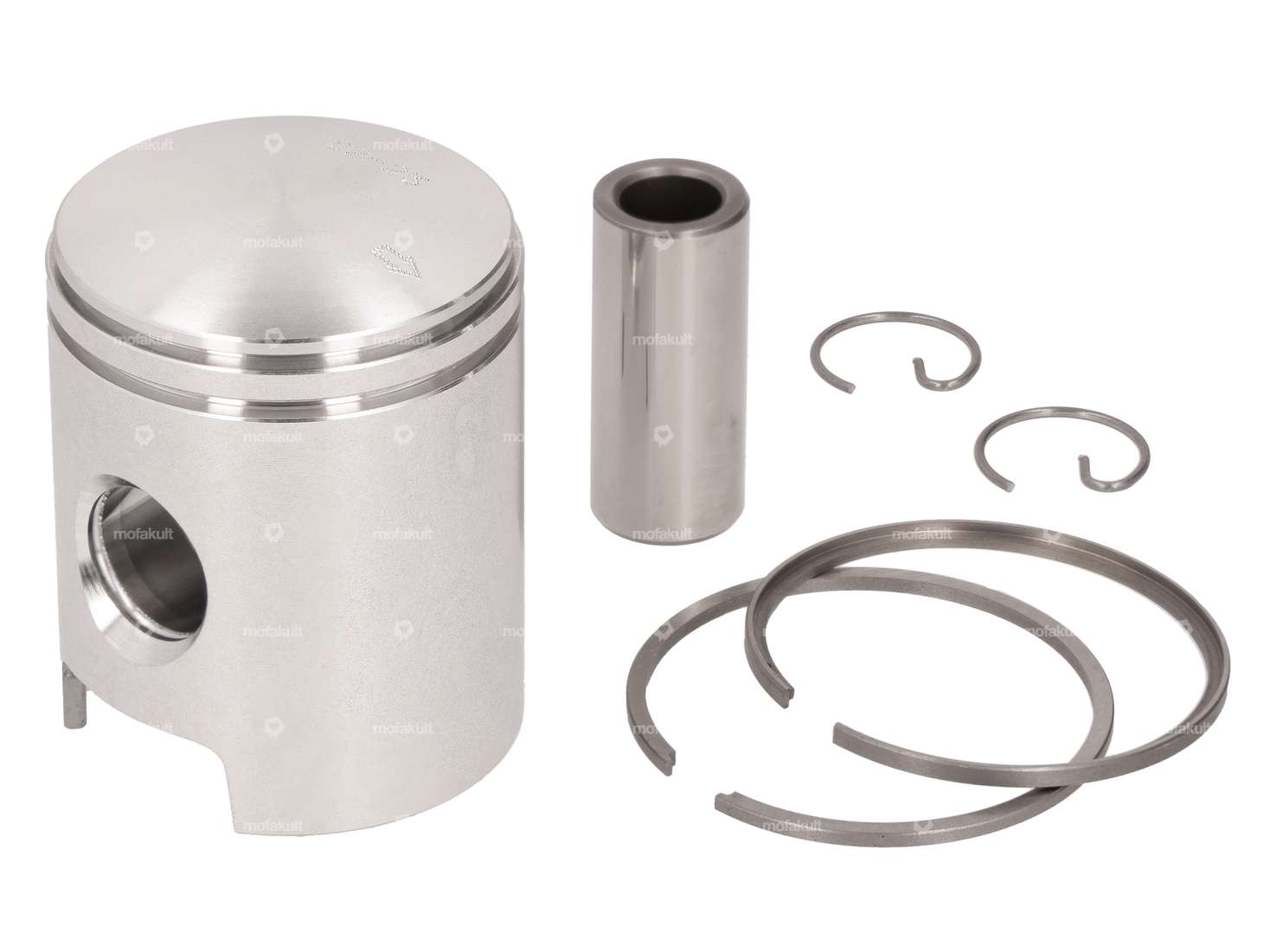

40.0 mm replacement piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Kreidler Florett RS small engine bikes with 40 mm cylinder.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the piston rings used, their dimensions and locking types on the legend in the images.

Tolerance type: F

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.

Quality product from the Italian manufacturer Meteor.

Details

Nominal diameter40 mm
ManufacturerMeteor
Ø outside piston (A)39.975 mm
Compression height (C)27 mm
Curvature (D)3 mm
Total piston height (E)51 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring, L-ring
Ø piston pin (B)14 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm, 2 mm
Tolerance groupF
Piston weight99 g

Suitable for the following models

Kreidler
