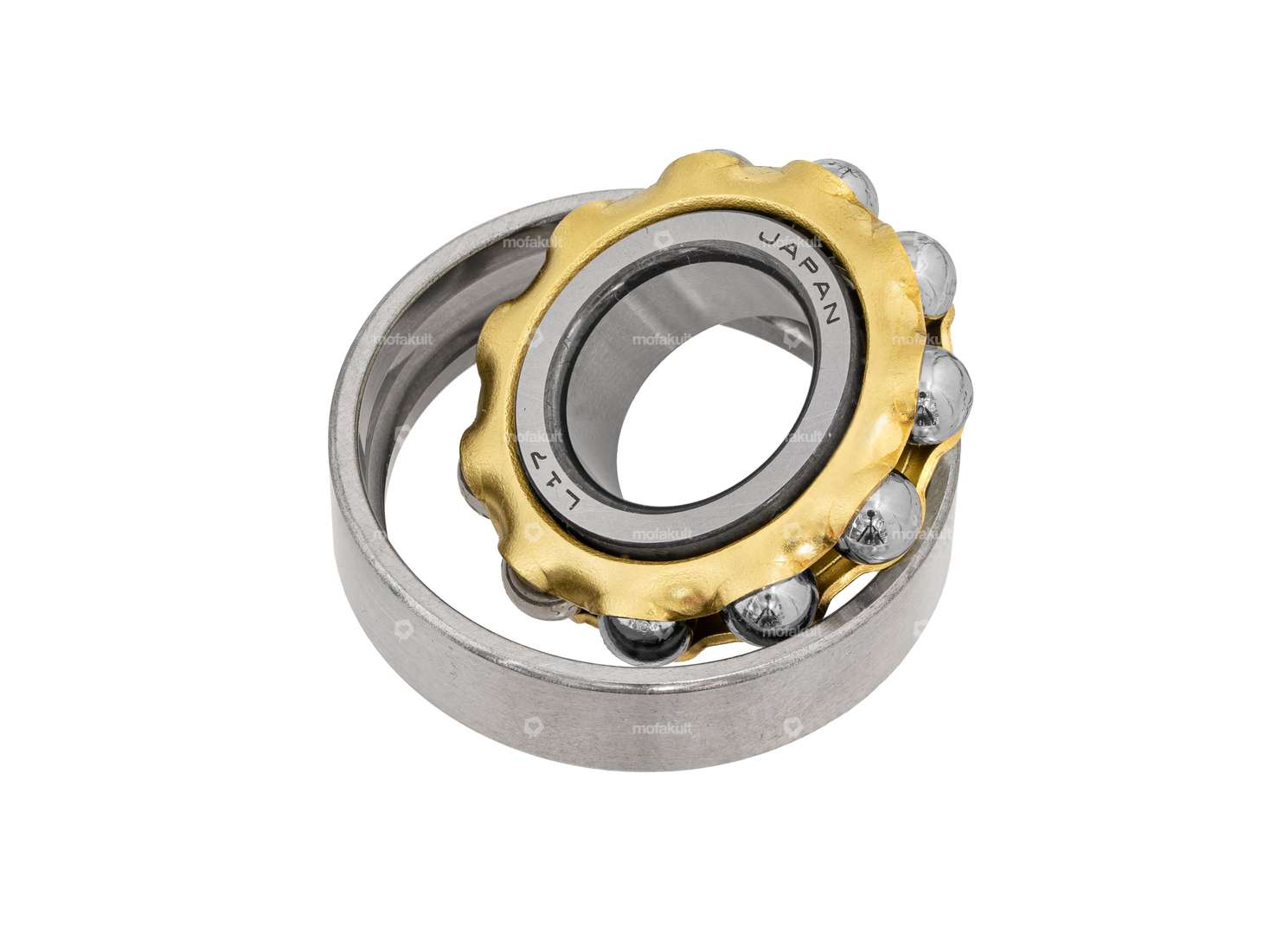

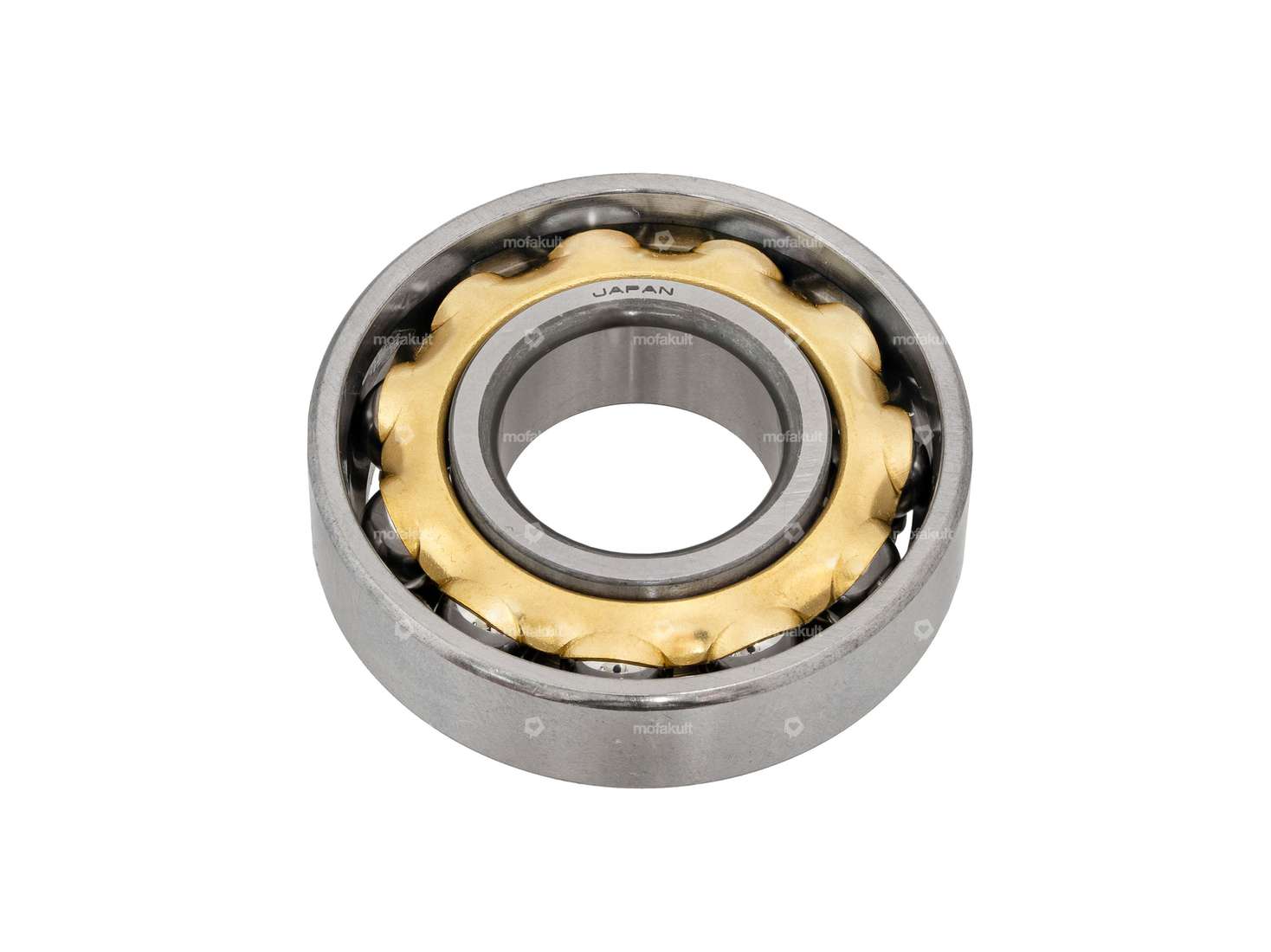

L17 shoulder bearing for Sachs 50/3 and 50/4 three- and four-speed engines.
Fits the crankshaft with the 17 mm journals.
Outer diameter: 40 mm
Inner diameter: 17 mm
Width: 10 mm
Quality product from the Japanese manufacturer NSK.
The set includes the following fixed parts:
Manufacturer: NSK · Material: Steel, Brass · Surface: blank / oiled · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: L17 · Bearing clearance: CN (standard) · Ø inside: 17 mm · Ø outside: 40 mm · Width: 10 mm · Inner ring width: 10 mm · Ball bearing closed: No · Bearing cage: Brass cage ball-guided
Details
| Width | 10 mm |
| Manufacturer | NSK |
| Stock number | L17 |
| Bearing type | Shoulder bearing |
| Ø inside | 17 mm |
| Ø outside | 40 mm |
Suitable for the following models
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
