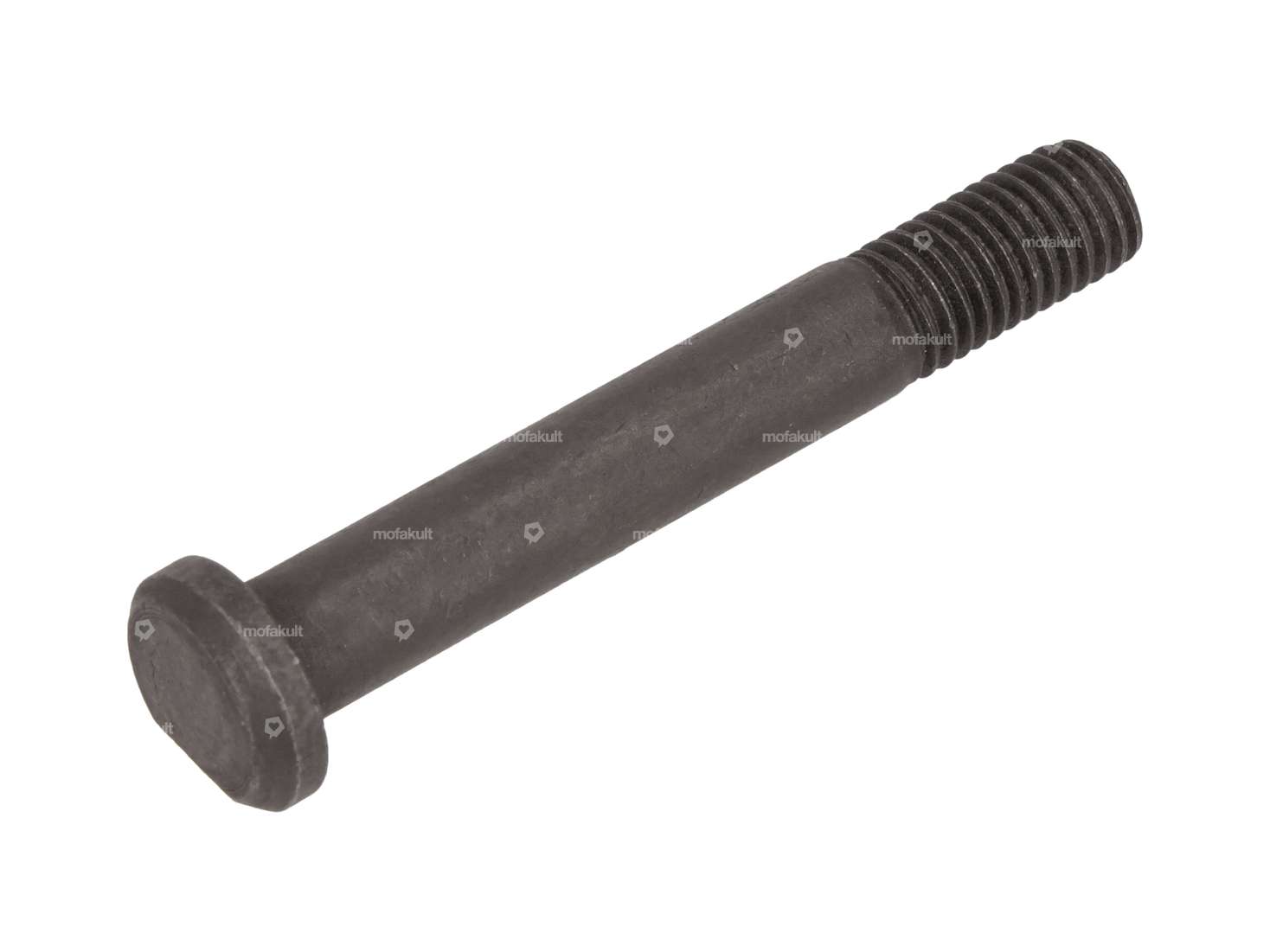

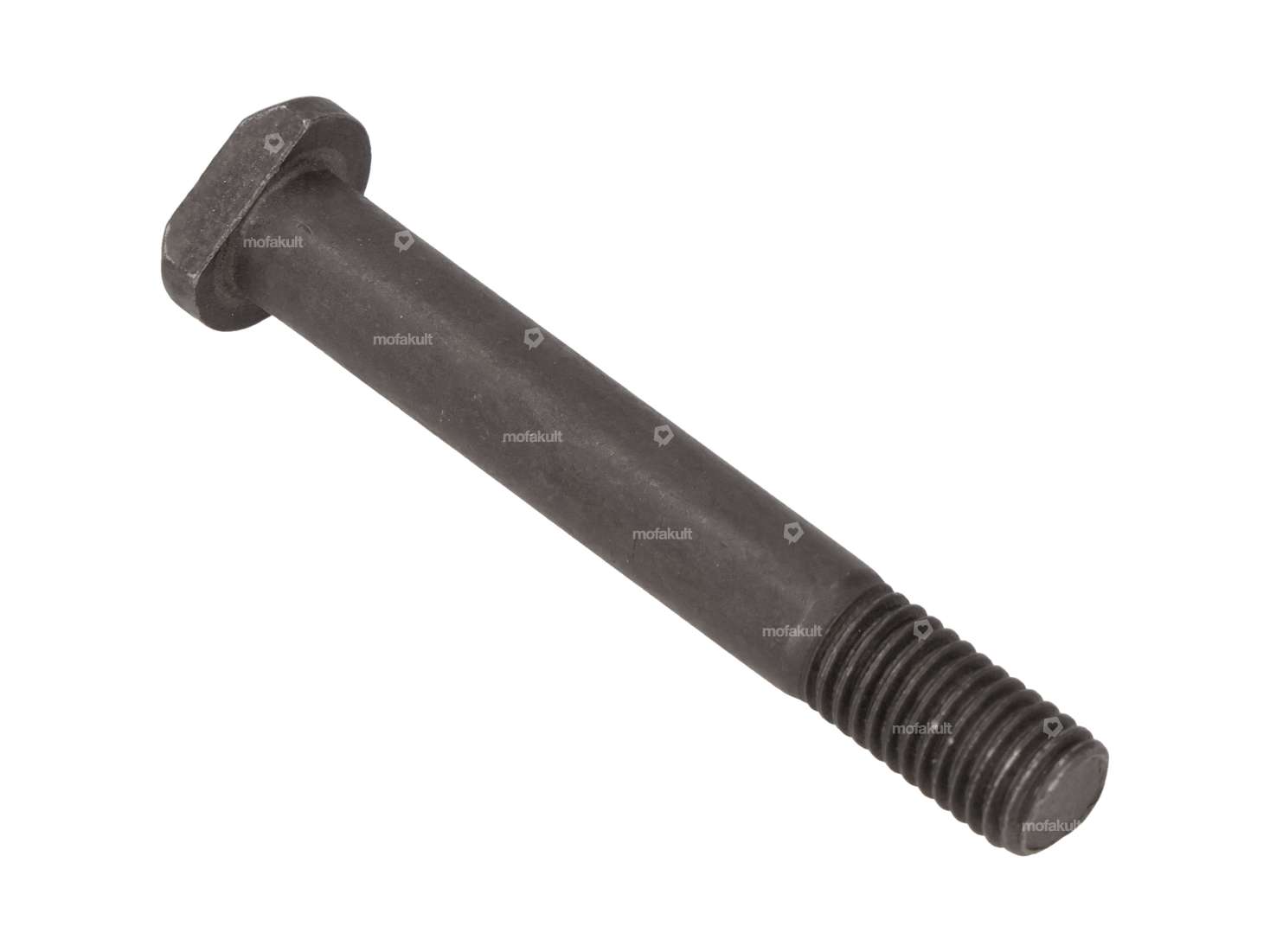

Piaggio M7 x 50 mm screw for the engine casing, compatible with your Vespa Largeframe and Wideframe scooters. You can find a list of the exact models below in the drop-down menu under “Compatible with the following models.”
This housing screw, or tie rod, is used for the standard fastening of the two halves of your scooter’s engine housing. Unlike stud bolts, this housing bolt is not screwed into the engine housing itself, but is instead passed through the through-hole in both housing halves and then secured on one side. The opposite end features a head without a keyway and is designed with an anti-rotation feature. This allows the engine housing to be properly clamped, as intended for numerous classic Vespa engines.
You can find matching hex nuts, additional bolts, and bolt sets in the accessories section.
A high-quality product from the Italian manufacturer Piaggio, meeting original equipment manufacturer (OEM) standards.
Original Piaggio part numbers: 012485, 239146, 239149
| Manufacturer | Piaggio |
| Material | Steel |
| Ø shaft | 6.9 mm |
| Surface | burnished |
| Ø External head | 11.8 mm |
| Total length | 53 mm |
| Shank | Yes |
| Thread type | M7x1 (standard thread) |
| Shank length | 28 mm |
| Thread length | 20 mm |
| Piaggio OEM number | 012485, 239146, 239149 |
| Vespa | Vespa PX, T5, Cosa - PX80 E Lusso · V8X1T · 1983–1993 Lusso / Arcobaleno , PX100E · VIX1T · India , P125X · VNX1T · 1977–1982 (Old PX) External Lock , P125X · VNX2T · 1981–1984 (Old PX) Internal Lock , PX125 E · VNX2T · 1982–1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993–1996 Classic , PX125 · VNX2T · 1997–1999 (Disc) , T5 125 · VNX5T · 1985–1993 , PX125 · ZAPM471 · 2001 Model Year Catalytic Converter , P150X · VLX1T · 1978–1993 , P150S · VBX1T · 1978–1990 , PX150 · ZAPM742 · 2001 Model Year Catalytic Converter , P200E · VSX1T · 1977–1984 (Ignition Switch on Steering Head) , PX200 · VSX1T · 1984–1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993–1996 Classic , PX200 · VSX1T · 1997–1999 (Disc) , P80X · V8X1T · old (ignition switch on steering head) Vespa Rally, Sprint, GT, GTR, TS, SS180, GS160 - 125 GTR · VNL2T · 1968–1978 , 125 Sprint · VNL2T · 1965–1974 , 150 Tours/ T4 · VGLA1T · 1959–1963 / Type 202 Augsburg , 150 T4 · VGLA1T · 1959–1963 / Type 332 Augsburg , 150 GL · VLA1T · 1963–1965 , 150 Sprint · VLB1T · 1965–1974 , 150 Sprint Veloce · VLB1T · 1969–1979 , 160 GS · VSB1T · 1962–1964 , 160 GS/4 · VSB1T · 1962–1963 / Type 382 Augsburg , 180 SS · VSC1T · 1964–1968 , 175 Rally · VRD · 1968–1973 CH , 180 Rally · VSD1T · 1968–1973 , 200 Rally · VSE1T · 1973–1979 , 125 GT · VNL2T · 1966–1973 , 125 TS · VNL3T · 1975–1978 , 150 Tours/ T4 · VGLB1T · 1959–1963 / Type 332 Augsburg Vespa VNA, VNB, VBA, VBB, Super, GT - 125 · VNA2T · 1959 , 125 · VNB1T · 1960 , 125 · VNB2T · 1961 , 125 · VNB3T · 1962 , 125 · VNB4T · 1963 , 125 · VNB6T · 1965 , 125 · VNB5T · 1964 , 125 Popolino · VNS1T – VNS6T · 1959–1965 (Sweden) , 125 T · VNT1T · 1961 Export CH , 150 · VBA1T · 1958–1960 , 125 GT · VNT2 · 1962 (CH-F) , 150 · VBB1T · 1961–1962 , 150 · VBB2T · 1963–1967 , 125 GT · VNL1T · 1963–1964 CH & F , 150 Super · VBC1T · 1965–1979 , 125 Super · VNC1T · 1965–1969 |
