For: Victoria

22698

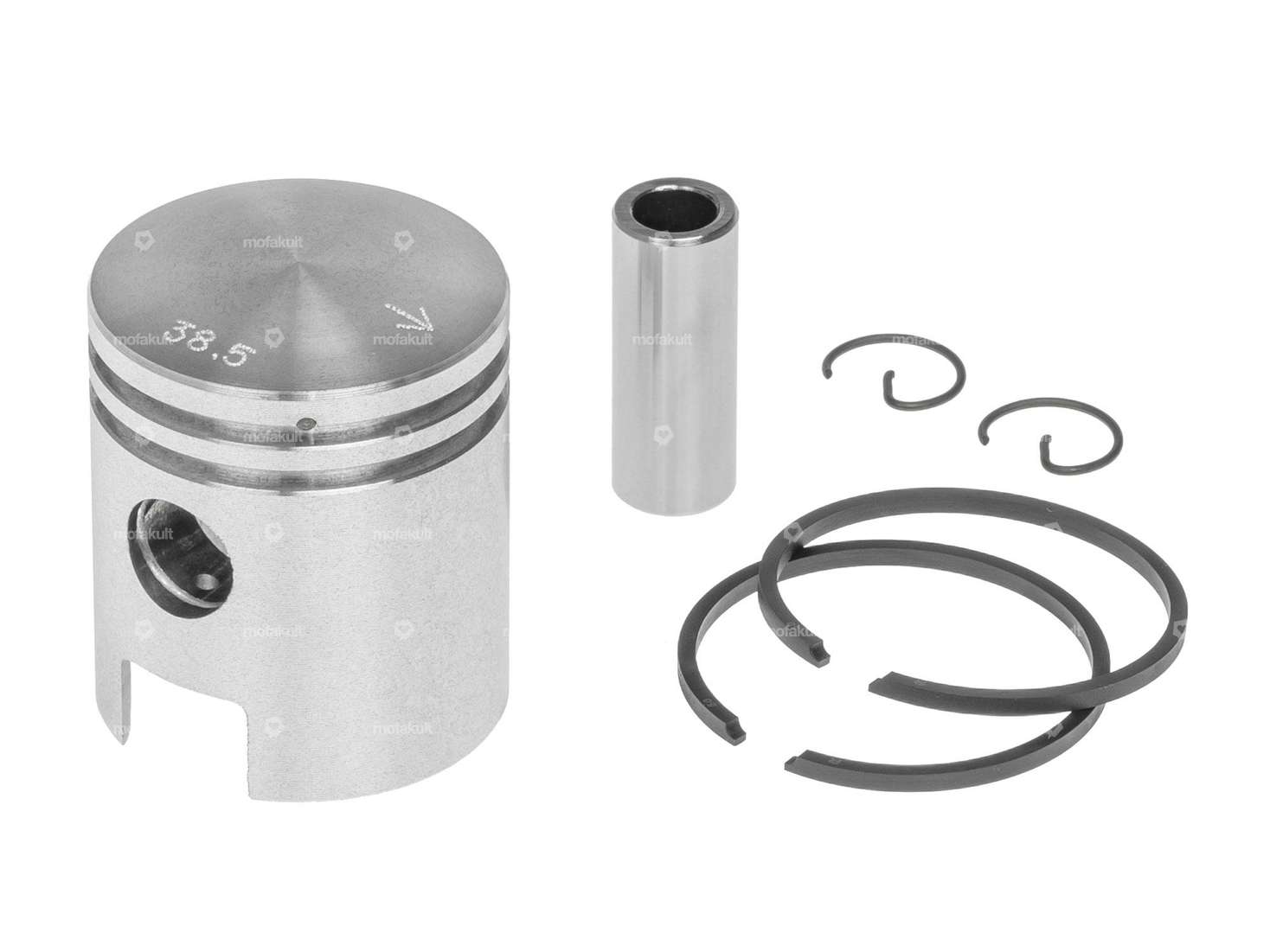

Piston 39 mm | Victoria MS50 / MS51

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 64.10

Incl. 17% VAT.

Description

Piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Victoria MS50 / MS51 small engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Ø outside piston (A)38.95 mm
Compression height (C)19.8 mm
Curvature (D)2.15 mm
Total piston height (E)46.05 mm
Number of piston rings (F)2 pcs
Nominal diameter39 mm
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Weight piston kit74 g
Victoria
