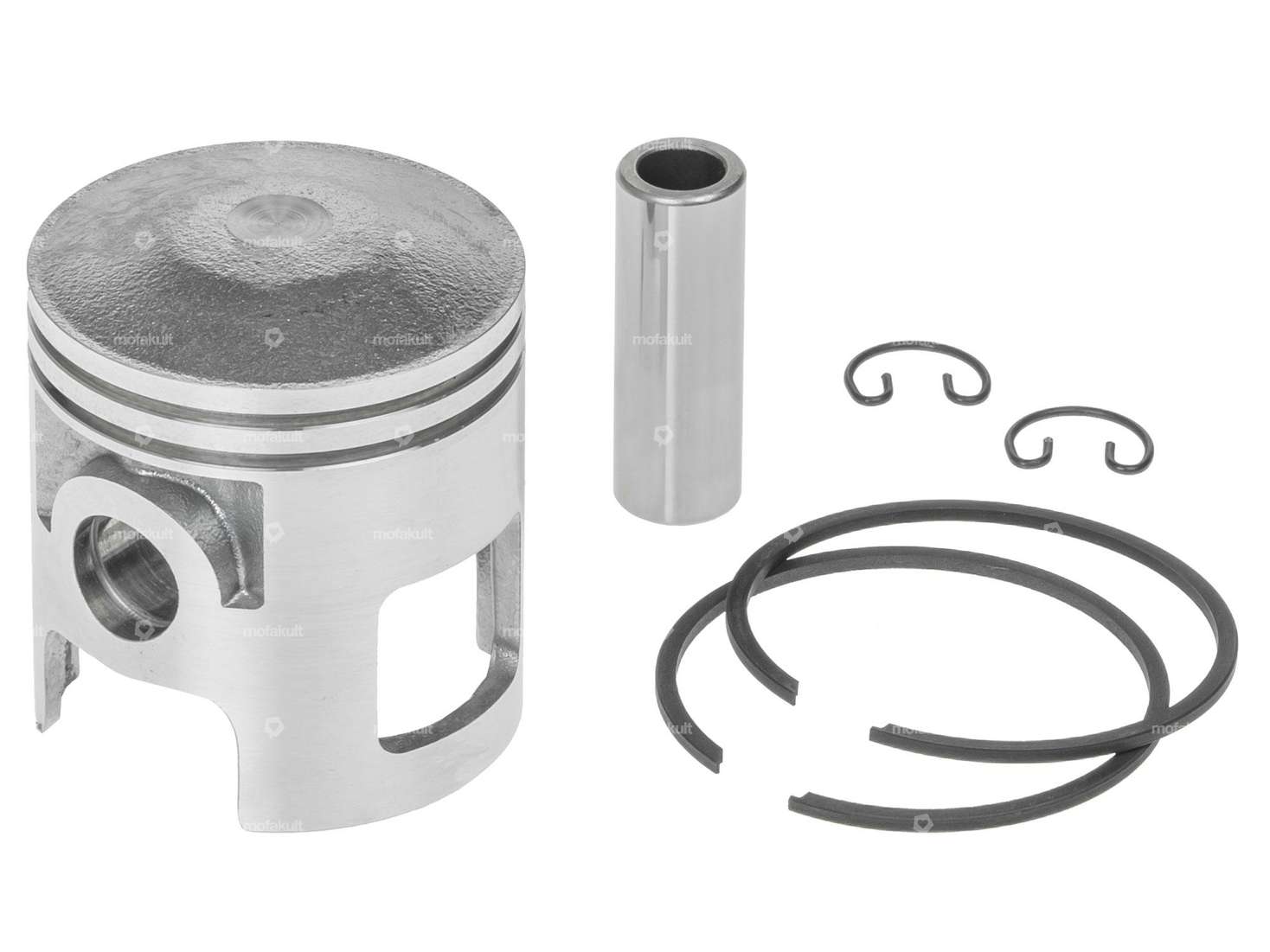

45.0 mm piston kit with two 1.5 mm rectangular piston rings with internal fuse (IS) to fit the 45.00 mm cylinder kit for Tomos A3 / A35 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
| Ø outside piston (A) | 44.94 mm |
| Compression height (C) | 22 mm |
| Curvature (D) | 4 mm |
| Total piston height (E) | 49.55 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 45 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 91 g |
| Tomos |
