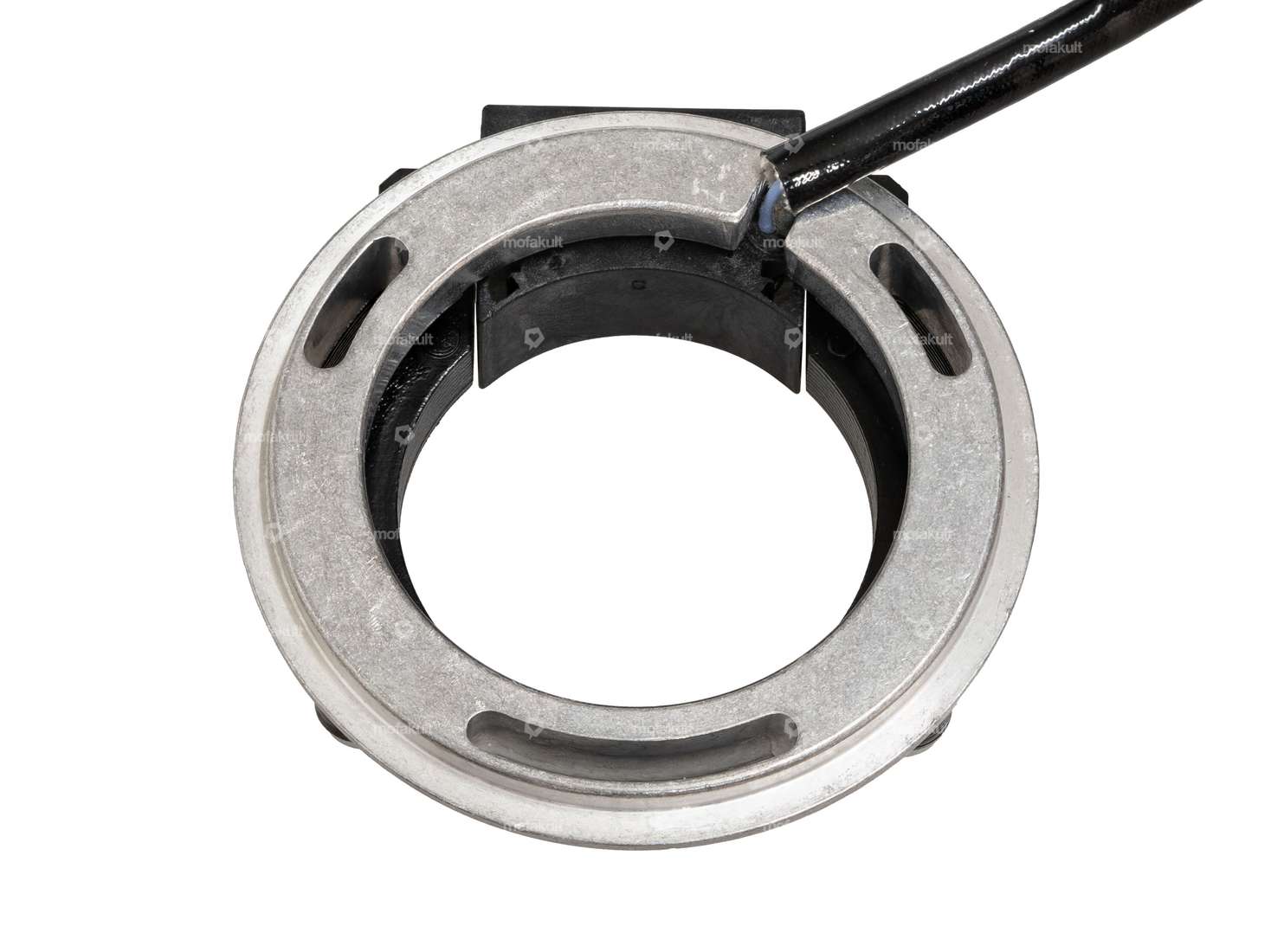

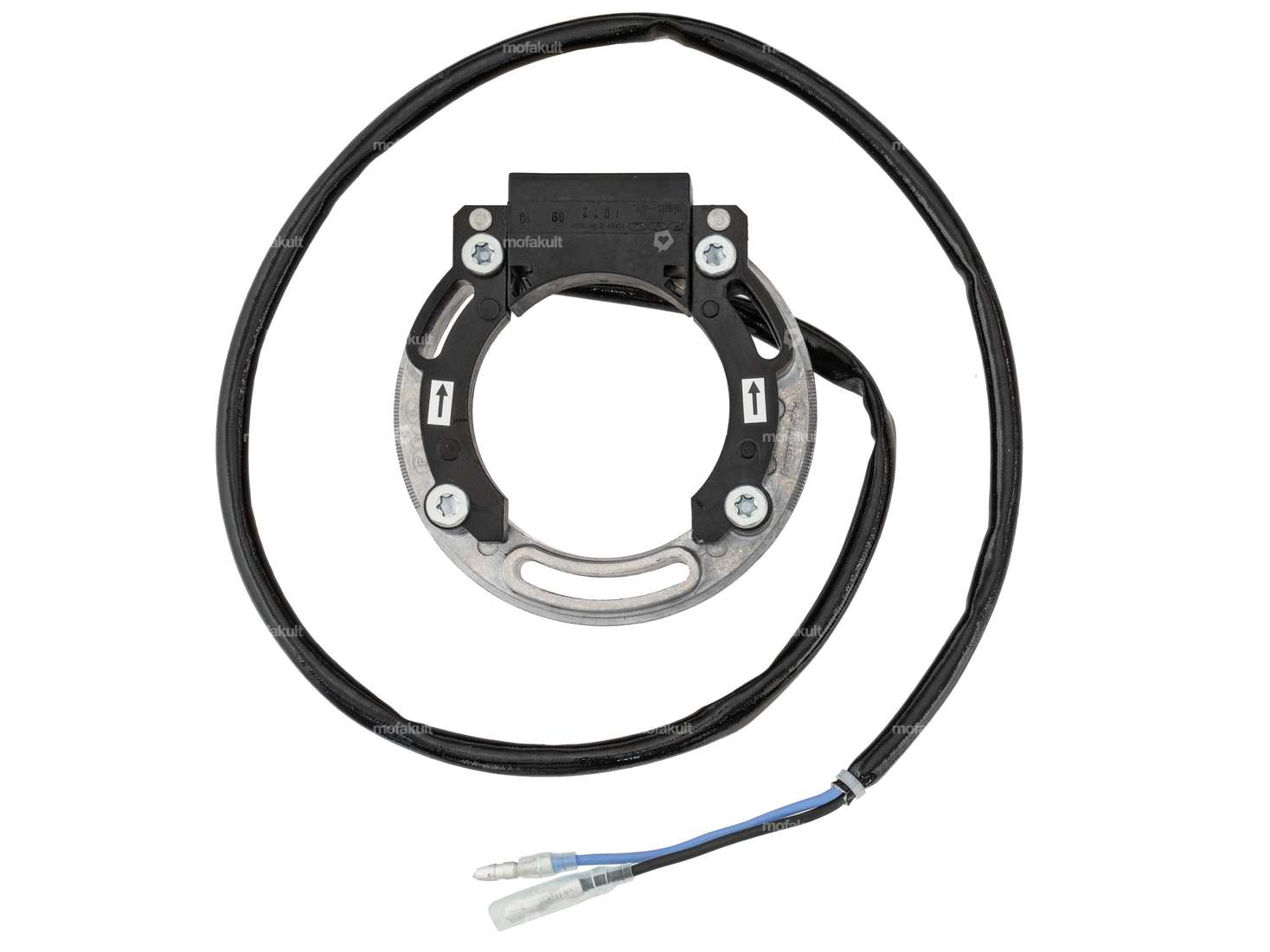

Stator plate for left-hand and right-hand PVL ignitions.
With 3000 windings for improved starting behavior, e.g. when using a pull-wire starter.
Number on the stator: 1072
We recommend using this stator in combination with the CDI unit 479 100 and the rotor 951 or 923 to achieve an advance of 22 turns.
Further attachments such as the rotor, ignition coil, etc. can be found under accessories.
Quality product from the German manufacturer PVL.
| Manufacturer | PVL |
| Area of application | Performance, Racing, High End, Tuning, MX |
| Material | Aluminum |
| Number of cables | 2 pcs |
| Color | black |
| Ø outside | 90 mm |
| Number of fixing points | 3 pcs |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 50/5 503 - AAL , ABL , 2AL / 2BL , AB , AC , ADV 505 (with pedal shaft) - 1A (AT) , 2A (HG) 535 |
| Zündapp Belmondo |
