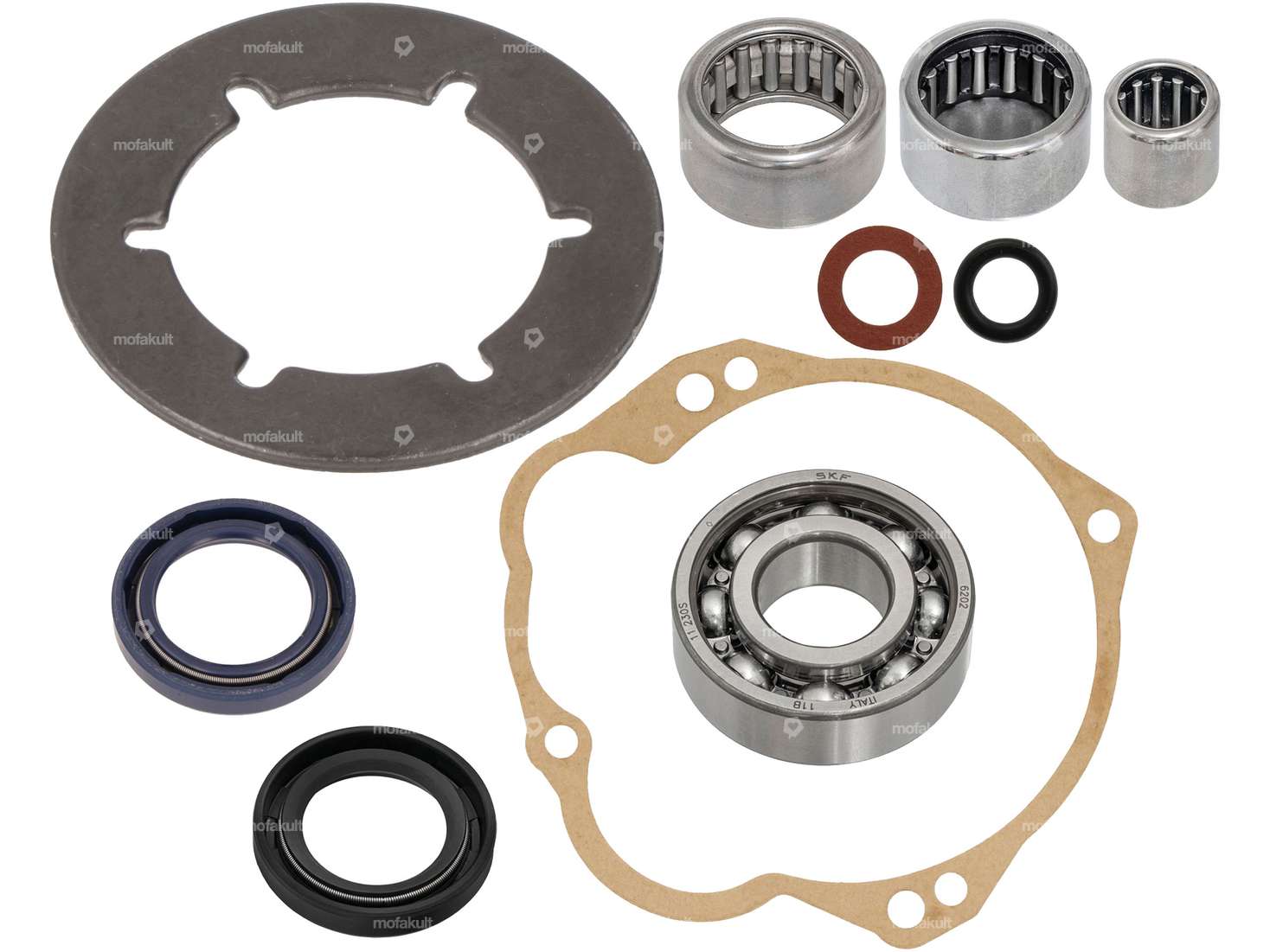

Revision set consisting of seal, bearings and oil seals (colloquially known as oil seals) for the mono splined gearbox on your Piaggio Ciao moped / moped with mono drive and corresponding splined spoke wheel.
The revision set consists of:
1x gearbox seal
1x shaft seal ring input shaft NBR 17/25/4 A
1x shaft seal ring output shaft NBR 20/30/5 A
1x ball bearing
3x needle bearing
1x washer
1x seal Öleinfüllschraube
1x O-ring shift fork
Optionally, you can select the required gearbox oil directly
.Other suitable parts for the gearbox revision can be found in the accessories section.
Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 18 mm · Ø outside: 29 mm · Thickness: 1 mm · Nominal diameter inside: 8 mm
Material: Fiber · Surface: raw · Area of application: Standard · Place of use: Carburetor, Motor housing · Ø inside: 8.3 mm · Ø outside: 13.7 mm · Thickness: 1 mm · Puch OEM number: 26482
Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.3 mm · Gearbox type: Mono, Vario · Place of use: Gearbox cover · Piaggio OEM number: 482552
Manufacturer: Piaggio · Ø inside: 6 mm · Ø outside: 9.4 mm · Cord thickness: 1.7 mm
Manufacturer: Corteco · Piaggio OEM number: 114469 · Material: NBR · Surface: rubberized · Place of use: Gearbox cover · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 17 mm · Ø outside: 25 mm · Width: 4 mm
Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 22 mm · Ø outside: 35 mm · Width: 6 mm
Dimension needle bearing: 9/13 x 12 · Manufacturer: Piaggio · Bearing type: Needle box · Ø inside: 9 mm · Ø outside: 13 mm · Width: 12 mm
Dimension needle bearing: 17/23 x 12 · Manufacturer: Koyo · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1712 · Ø inside: 17 mm · Ø outside: 23 mm · Width: 12 mm · Piaggio OEM number: 103696
Dimension needle bearing: 15/21 x 12 · Manufacturer: Piaggio · Bearing type: Needle box · Ø inside: 15 mm · Ø outside: 21 mm · Width: 12 mm · Piaggio OEM number: 103689
Manufacturer: SKF · Bearing type: Deep groove ball bearing · Stock number: 6202 · Bearing clearance: CN (standard) · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Inner ring width: 11 mm · Bearing cage: Sheet steel cage ball-guided · Piaggio OEM number: 102258
| Gearbox type | Mono |
| Piaggio | Ciao - P |
