Inox
Hot

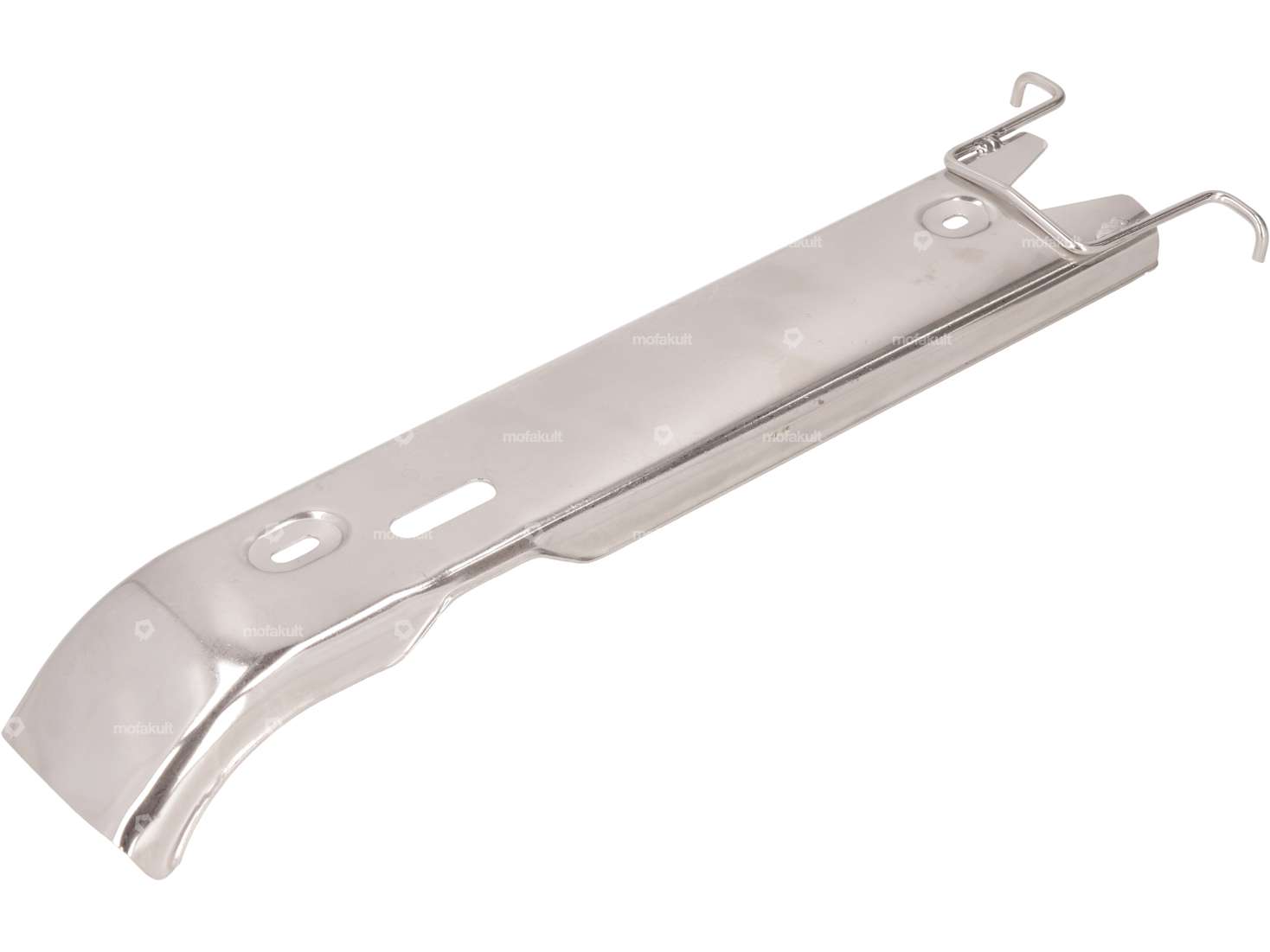

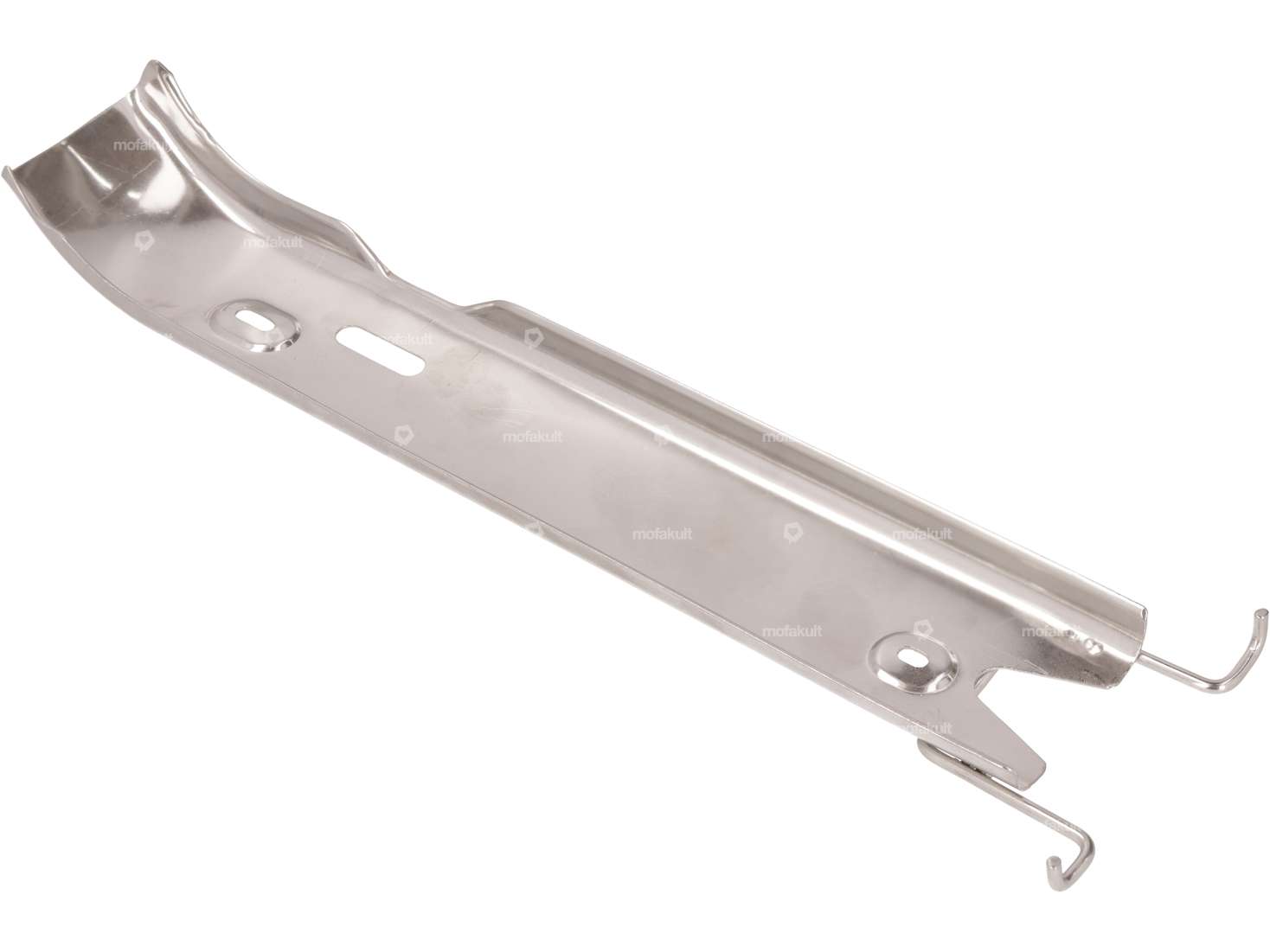

Polished stainless steel cable duct for your Piaggio Ciao moped / moped.
The cable tunnel with moustache was fitted ex works on the PX model from 1992 and the C24 from 1999, but also fits earlier P and SC spoke wheel models without any problems.
The additionally attached clamps ensure smooth cable routing and prevent the cable sleeves from getting jammed between the steering stop and fork.
The fit is excellent and the workmanship is of a very high quality. All edges and corners are rounded so that your cables are not damaged.
Details
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (known as Nirosta®) |
| Surface | polished |
| Total length | 305 mm, 285 mm |
| Color | Chrome |
| Width | 53 mm, 80 mm |
| Number of fixing points | 2 pcs |
| Ø mounting hole | 4 mm |
| Piaggio OEM number | 813377 |
| Alternative version of the Piaggio OEM number | 8133775, 148419 |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 |
