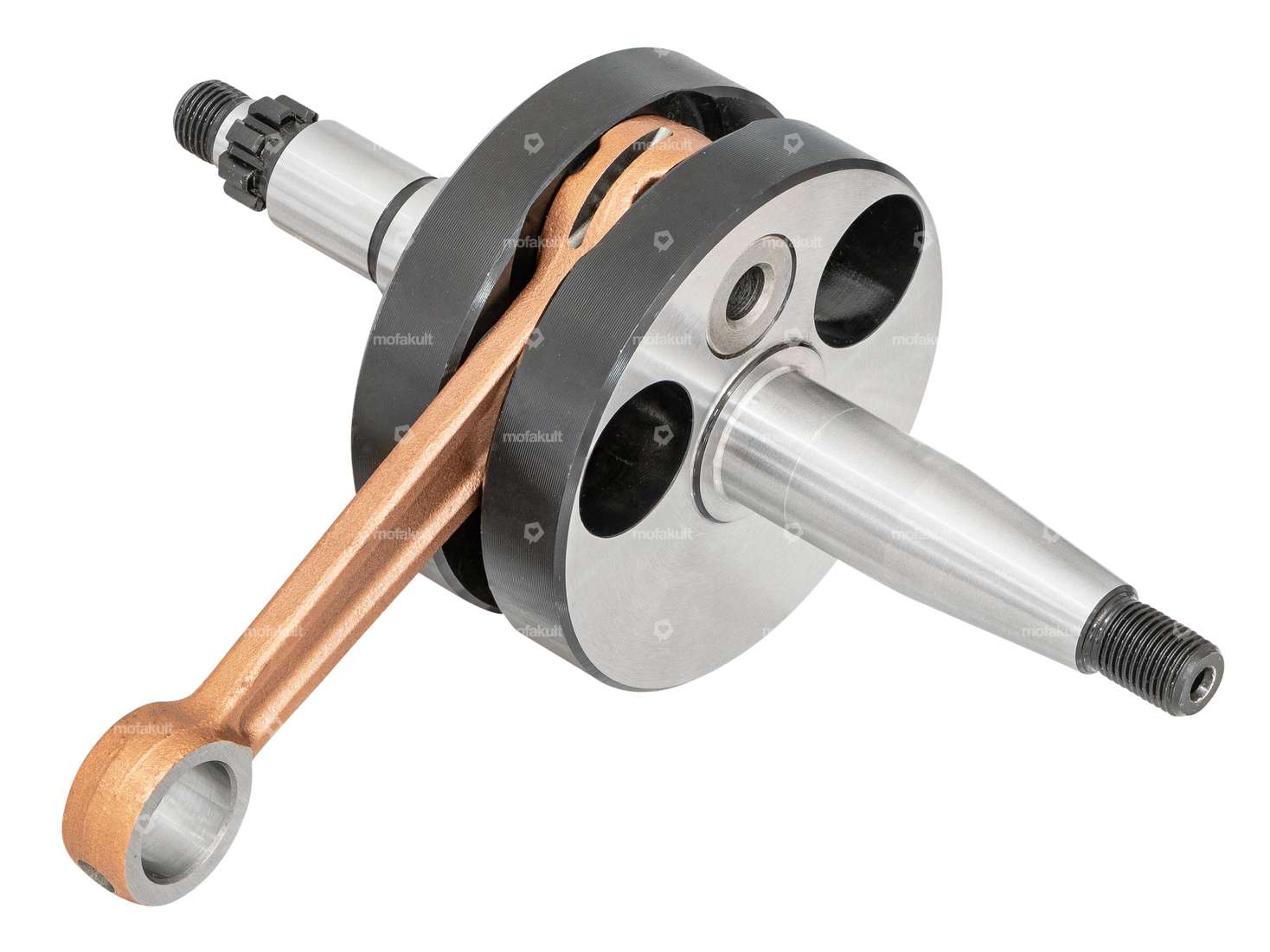

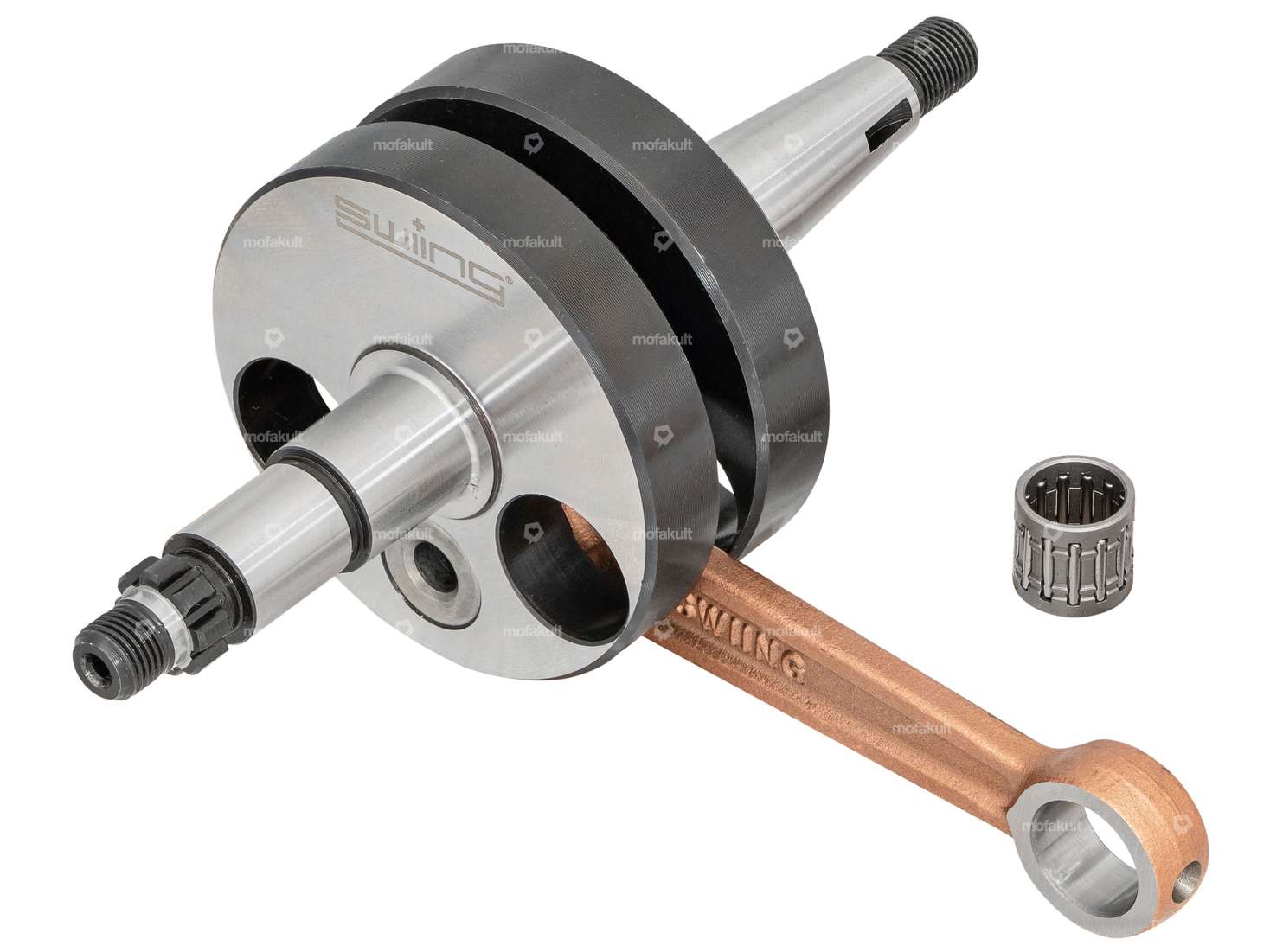

Original crankshaft suitable for your Puch X30 Sport NS/NL and Puch Maxi S2 mopeds / mopeds with manually shifted and windage-cooled Z50 engine.
High-quality and precisely fitting crankshaft, which has proven itself in various load tests.
The standard shaft was designed for use in original engines.
Revised version of the previously offered crankshaft with improved balance ratio and therefore smoother running characteristics.
The needle bearing is included in the scope of delivery.
Note: This crankshaft is not suitable for blown Z50 engines on Puch X30 Velux models.
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 57 mm |
| Number of gears | 2 pcs |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.9 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Thread length | 7 mm, 13 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Weight | 892 g |
| Ø Bearing seat (ignition side) | 17 mm |
| Area of application | Standard |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 20 mm |
| Length 2nd paragraph | 19 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Puch | Z50 (X30 Sport) |
Ratings
Accessories & related products
Motorex engine oil (gear oil) manual 450 ml
Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Area of application: Gearbox lubrication with clutch
EUR 11.40
EUR 25.33/l
swiing® revival shim set crankshaft L17 | Puch Z50
Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 17 mm · Ø inside: 17.1 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Ø outside: 23.8 mm
EUR 10.30

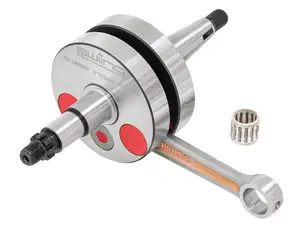

swiing® ingenious crankshaft "High End" | Puch X30 NS / NL (Z50)
Manufacturer: swiing® ingenious parts · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 954 g · Number of gears: 2 pcs · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Thread length: 10 mm · Thread length: 13 mm · Ø crank webs: 70 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
EUR 190.00
Serrated lock washer M10 galvanized
Material: Steel · Surface: galvanized (blue) · Thread size: M10 · Thread size: M12 · Thread size: M4 · Thread size: M5 · Thread size: M6 · Thread size: M7 · Thread size: M8 · Ø inside: 4.5 mm · Ø inside: 5.5 mm · Ø inside: 6.35 mm · Ø inside: 7.4 mm · Ø inside: 10.8 mm · Ø inside: 12.8 mm
EUR 0.35

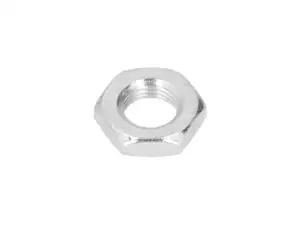

Nut M10x1 low
