For: Cilo

17841

swiing® revival piston 38.5 mm | Cilo 502

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 62.90

Incl. 17% VAT.

Description

38.5 mm ¨oum dimension piston with two 2 mm rectangular piston rings with flange lock (FS), suitable for the old Cilo 502 mopeds / mopeds.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.

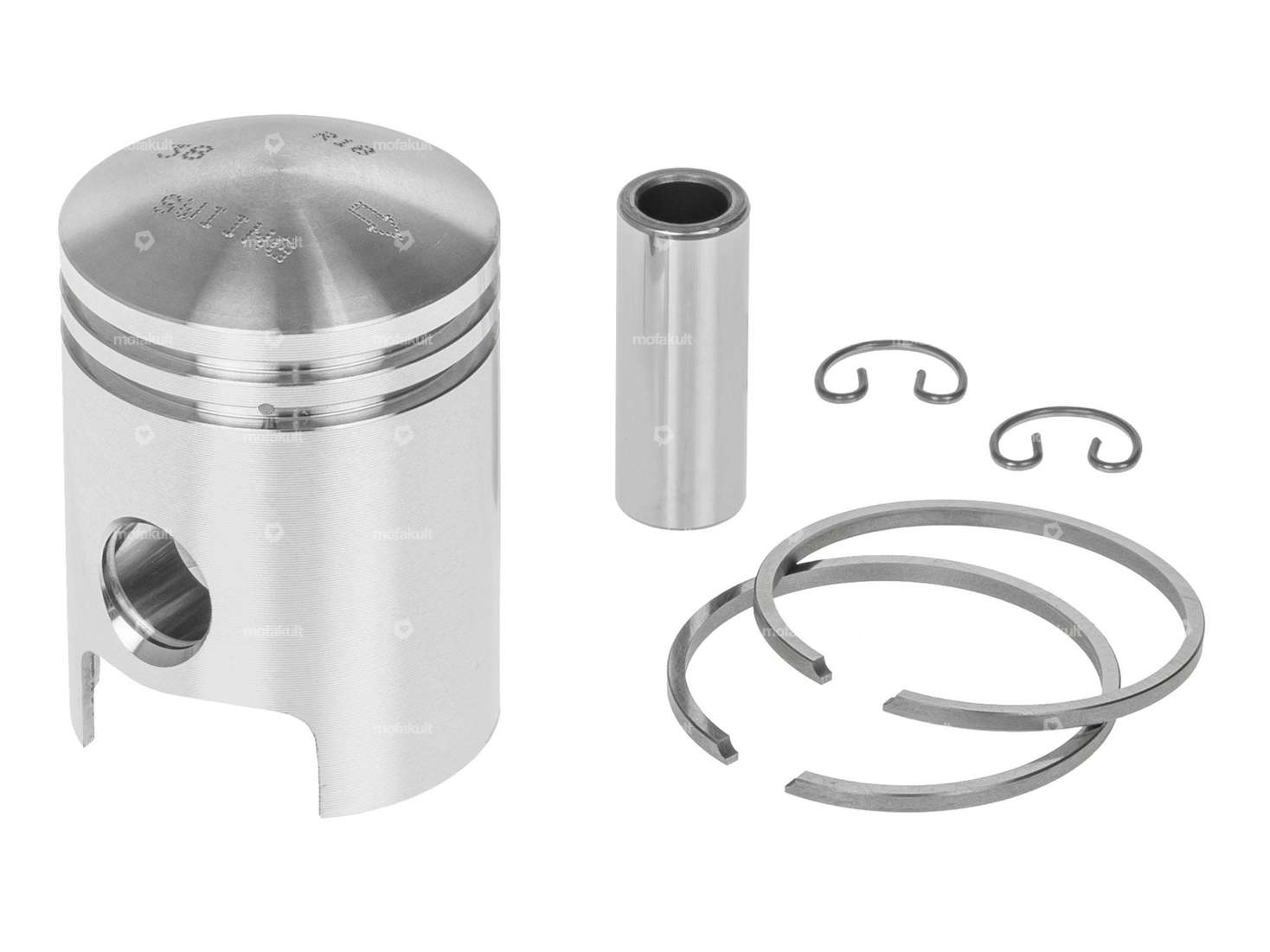

The piston kit contains piston pins, piston clips and piston rings.

Corresponding assembly tools, piston rings, piston pin retainers etc. can be found under accessories.

Nostalgic product for the highest demands of the quality brand swiing®.

Nominal diameter38 mm
Manufacturerswiing® revival parts
Ø outside piston (A)38.44 mm
Compression height (C)28 mm
Curvature (D)5.05 mm
Total piston height (E)54 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Weight piston kit80 g
Cilo

502 / 502t
