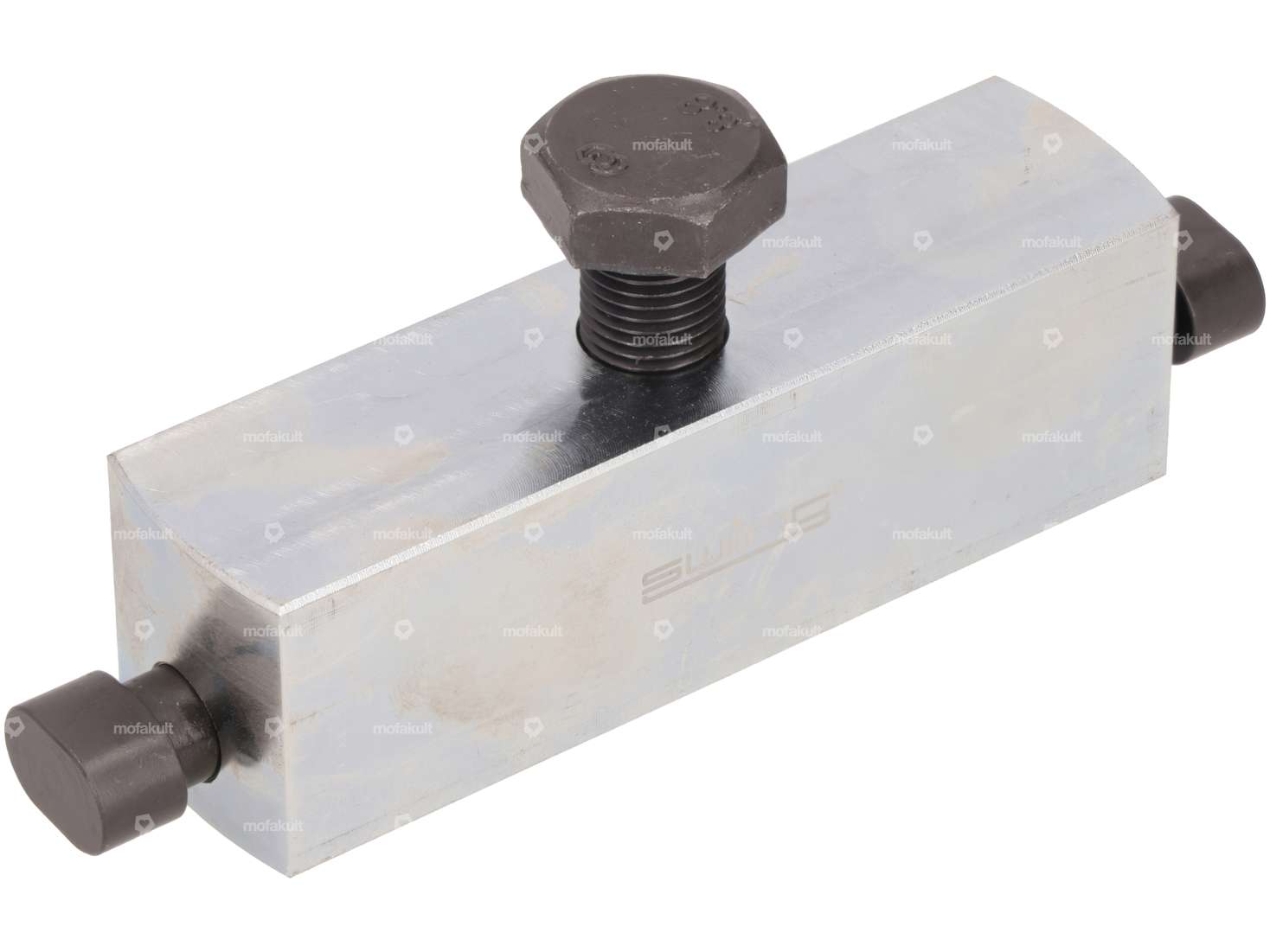

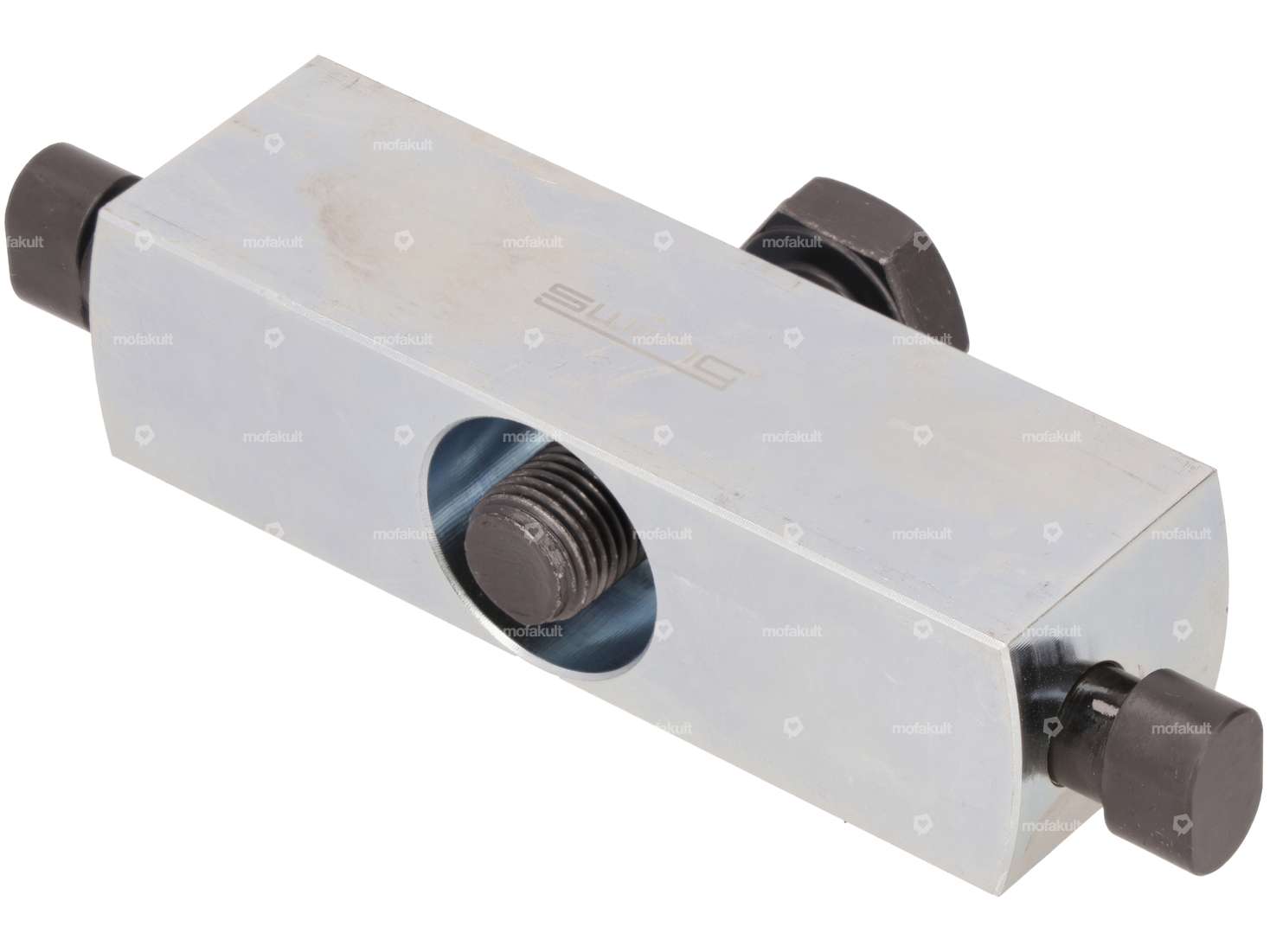

A very helpful tool for removing the clutch basket from standard gearbox mopeds / mopeds with Sachs engines.
The dowel pins are pushed laterally through the oval openings of the clutch basket into the trigger block.
This can then be easily removed.
Further special tools can be found under accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
Original Sachs spare part number: 0276 117 000
| Width across flats Screw | 19 mm |
| Thickness | 25 mm |
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | galvanized (blue), blackened |
| Total length | 106 mm |
| Number of components | 4 pcs |
| Thread type | MF12x1.25 (fine pitch thread) |
| Area of application | (Dis)assembly tool |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 503 - 2AL / 2BL |
Accessories & related products
GPO clutch trigger M27x1.25, M20x1 | Sachs 503, 50/2, 50/3, 50/4
Total length: 57 mm · Width across flats trigger: 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Strength class: 8.8 · Material: Steel · Surface: blackened · Thread type: MF20x1 (fine pitch thread) · Thread type: MF27x1.25 (fine pitch thread) · Area of application: (Dis)assembly tool
EUR 22.80
M12x1.25 x 40 Hex Head Screw, Black
Strength class: 8.8 · Material: Steel · Color: black · Surface: blackened · Nominal diameter (thread): 12 mm · Drive: External hexagon · Width across flats: 19 mm · Thread length: 40 mm · Shank: No · Total length: 47.5 mm · Thread type: MF12x1.25 (fine pitch thread)
EUR 5.60

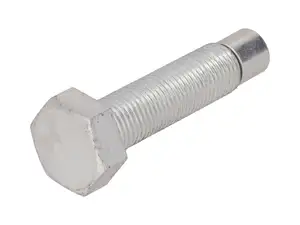

swiing® ingenious screw M12x1.25 x 51 hexagonal ball end & cap
