The use of the wear-free wire thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Application:
1. Drill out the defective thread with the enclosed drill
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special tap.
4. Turn the thread insert into the holding thread.
5. Remove the tang with the tang breaker.

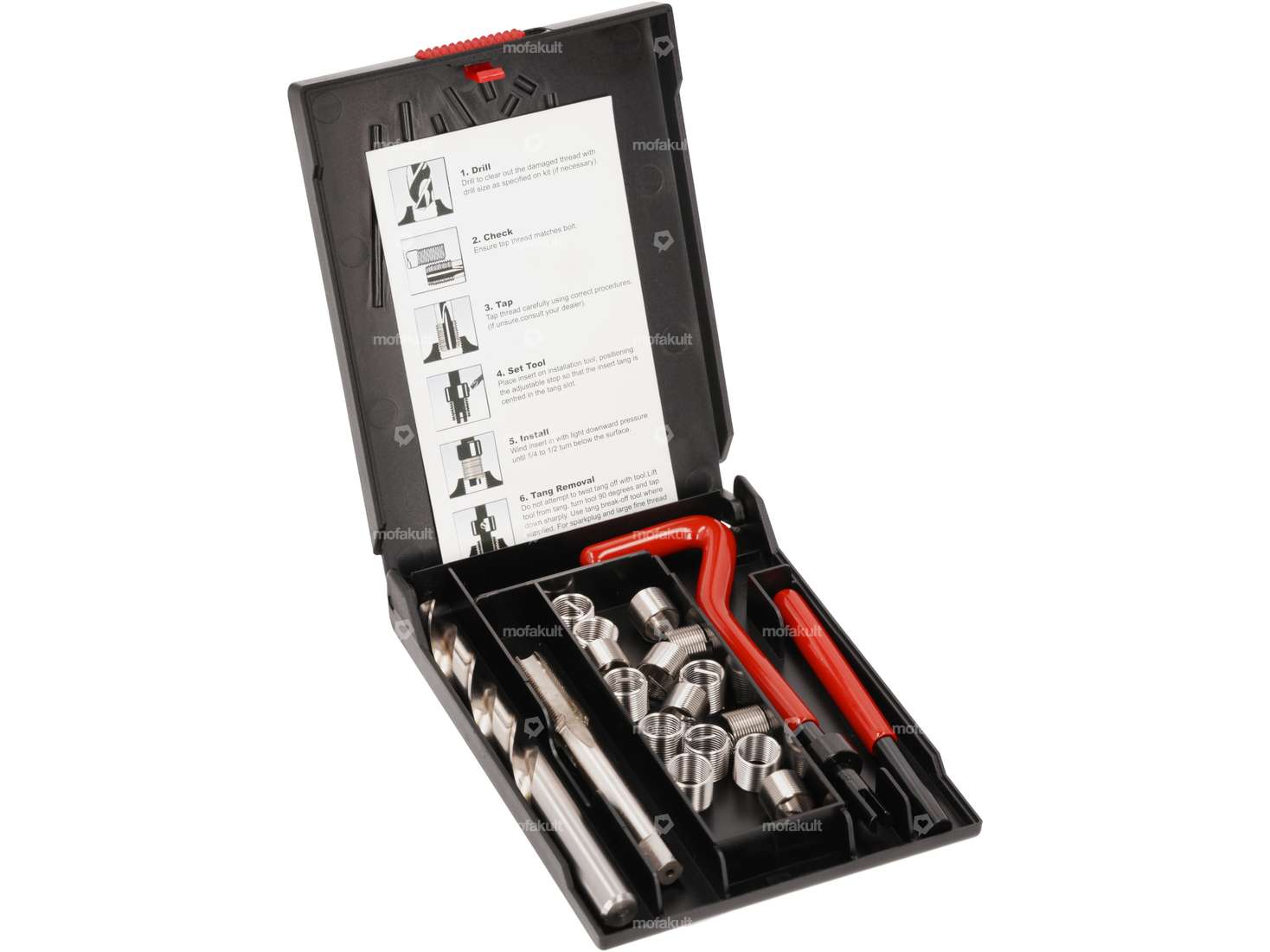

An illustrated instruction with English explanation is included in the set.

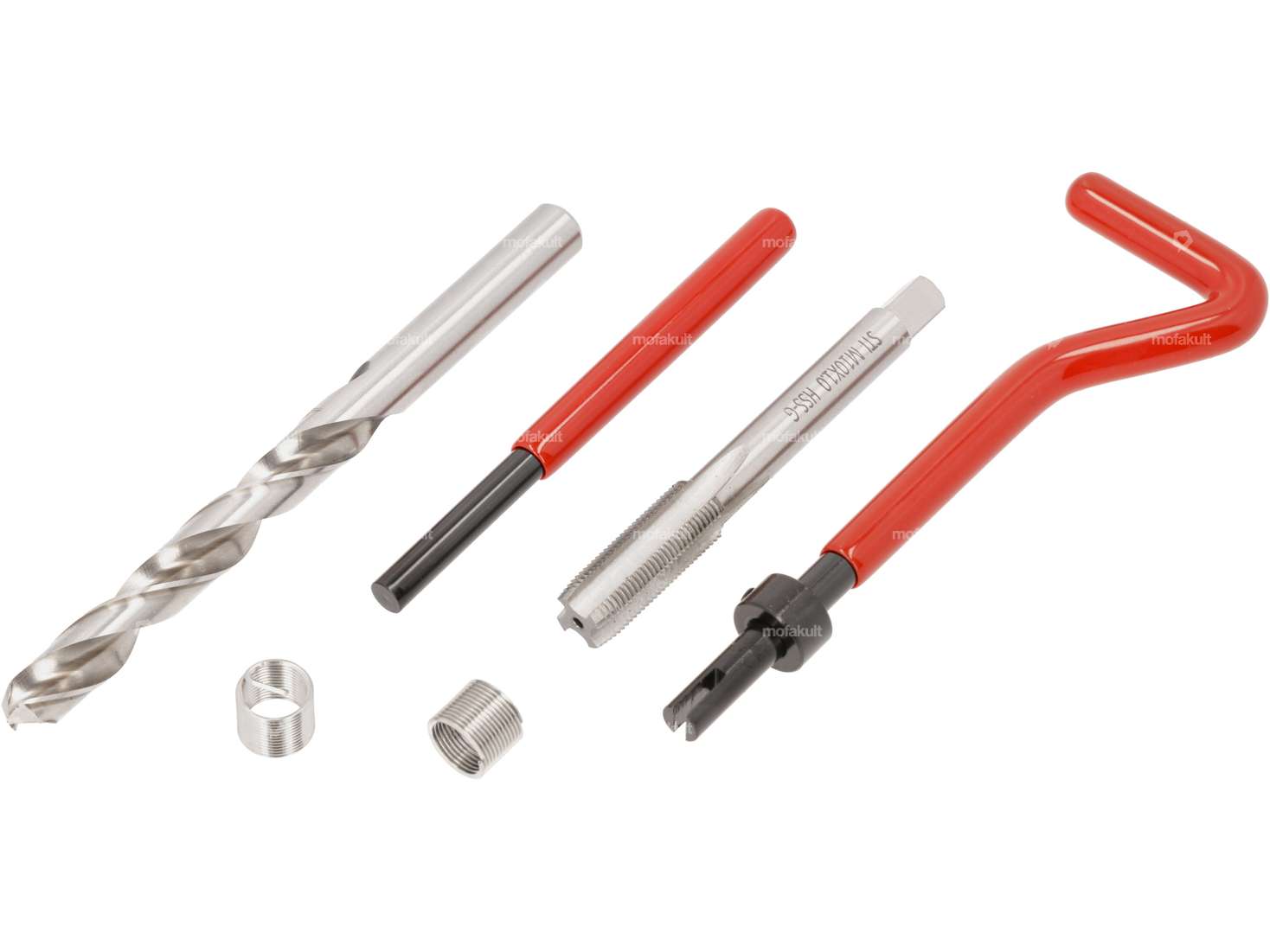

Scope of delivery:
- 1 pc. twist drill
- 1 pc. Thread tap
- 1 pc. Installation tool
- 1 pc. Tang breaker
- 15 pcs. Wire thread inserts (1.5D)
Other useful tools for thread repair or as a helicoil replacement can be found in the accessories section.
Details
| Storage method | Plastic box |
| Area of application | Workshop accessories |
| Material | Steel |
| Thread type | MF10x1 (fine pitch thread) |
| Total length | 15 mm |
| Number of components | 20 pcs |
| Dimension thread insert | 1.5D |
| Nominal diameter (thread) | 10 mm |
