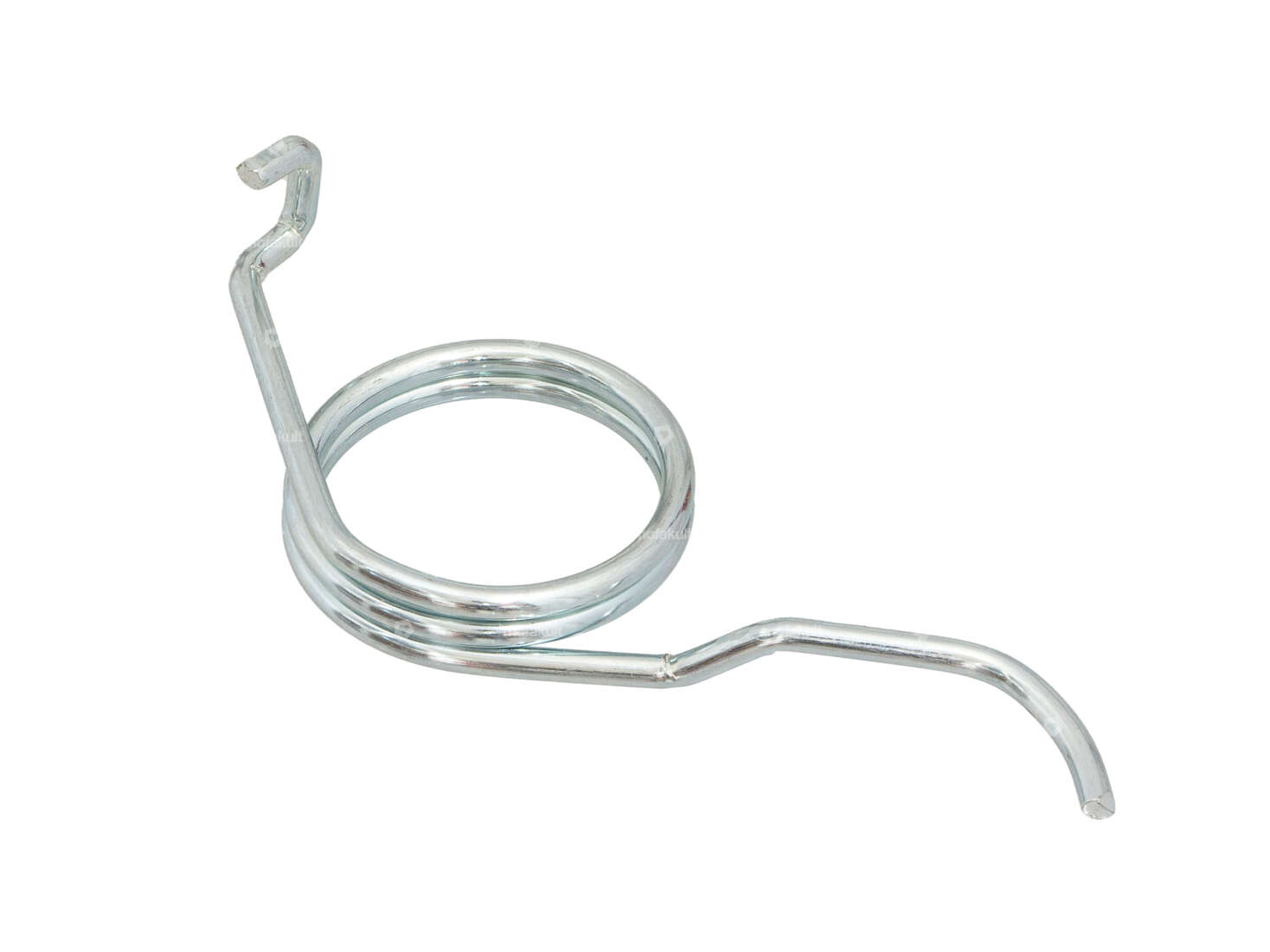

Torsion spring brake plate front & rear Puch DS50, VZ50, VS50, MV50

Guide times | Steyr - Daimler - Puch AG

Material: Paper · DIN format: A5 · Number of pages: 23 pcs · Language: German

Engine gasket set | Puch MS, VS, DS, MV, M

Area of application: Standard · Number of components: 8 pcs

Thrust Washer 12.5/25/1.5 | Puch M50, DSV, VZV

Material: Steel · Surface: hardened & ground · Thickness: 1.5 mm · Ø inside: 12.5 mm · Ø outside: 25 mm · Puch OEM number: 329.1.13.006.1

Intake rubber (1A quality) | Puch MS, VS, MV, DS, X50 (small motorcycle)

Manufacturer: Made in Italy · Material: Rubber · Color: black

Air filter | Puch X50-4 / Duett / MK II

Area of application: Security · Material: Plastic · Color: black · Filter type: Standard sieve · Mounting type: Plug connection · Camouflaged: Yes · Puch OEM number: 349.1.15.270.0

Crankshaft full cheeks | Puch MV, VS, MS, DS, Monza, X50 (3 & 4 speed)

Area of application: Tuning · Cheek type: Full cheeks · Total length of crankpin on clutch side: 73 mm · Total length crankpin ignition side: 66 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 3 pcs · Number of gears: 4 pcs

40 mm Aluminum Cylinder Kit | Puch Supermaxi LG1 / LG2, Monza, X50-4

Nominal diameter: 40 mm · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

Silentblock 10/22/33 mm

Material: Rubber · Material: Steel · Ø inside: 10 mm · Ø outside: 22 mm · Total length: 33 mm

Return spring brake plate | Puch Maxi

Spring design: Nose feather · Spring design: Torsion spring · Length spring hook: 50 mm · Leg length: 45 mm · Ø wire: 2.4 mm · Area of application: Original · Area of application: Standard · Material: Spring steel · Surface: galvanized (blue) · Ø inside: 25.5 mm · Ø outside: 30 mm · Total length: 125 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm

GPO sprocket 45 teeth black | Puch Maxi, Puch X30 NG-2AH

Manufacturer: GPO · Material: Steel · Surface: powder-coated · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Number of teeth: 45 pcs · Ø bolt circle: 105.5 mm · Ø inside: 94 mm · Ø mounting hole: 6.7 mm · Thickness: 4.5 mm · Hole spacing: 36.5 mm · Hole spacing 2: 68 mm · Cranking (offset): 8 mm · Number of fixing points: 6 pcs · Color: black

Magura adjusting screw brake long

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Color: silver · Drive: Knurled screw · Ø External head: 9.1 mm · Ø shaft: 6 mm · Shank length: 11 mm · Thread type: MF6x0.75 (fine pitch thread) · Total length: 47 mm · Total length: 65 mm · Thread length: 24 mm

Circlip A16 x 1

Nominal diameter: 16 mm · Fuse type: Outside · Material: Spring steel · Place of use: Universal

ESJOT drive chain 415H (reinforced) 114L (1A quality)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 114 pcs · Rolling circumference: 1448 mm · Chain lock type: Spring lock · Ø bore: 4.05 mm · Ø Pin: 4 mm

swiing® revival screw set sprocket mounting galvanized | Puch Maxi

Manufacturer: swiing® revival parts · Strength class: 8.8 · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Drive: External hexagon · Screw head: Hexagon · Width across flats: 10 mm · Shank: No · Thread length: 22 mm · Number of components: 24 pcs

swiing® revival return spring brake plate Inox | Puch Maxi

Spring design: Torsion spring · Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel)

Brake return spring rear wheel Inox | Pony GTX Beta 521 (P8926)

Spring design: Torsion spring · Manufacturer: Pony

ESJOT chain kit | Puch Maxi
