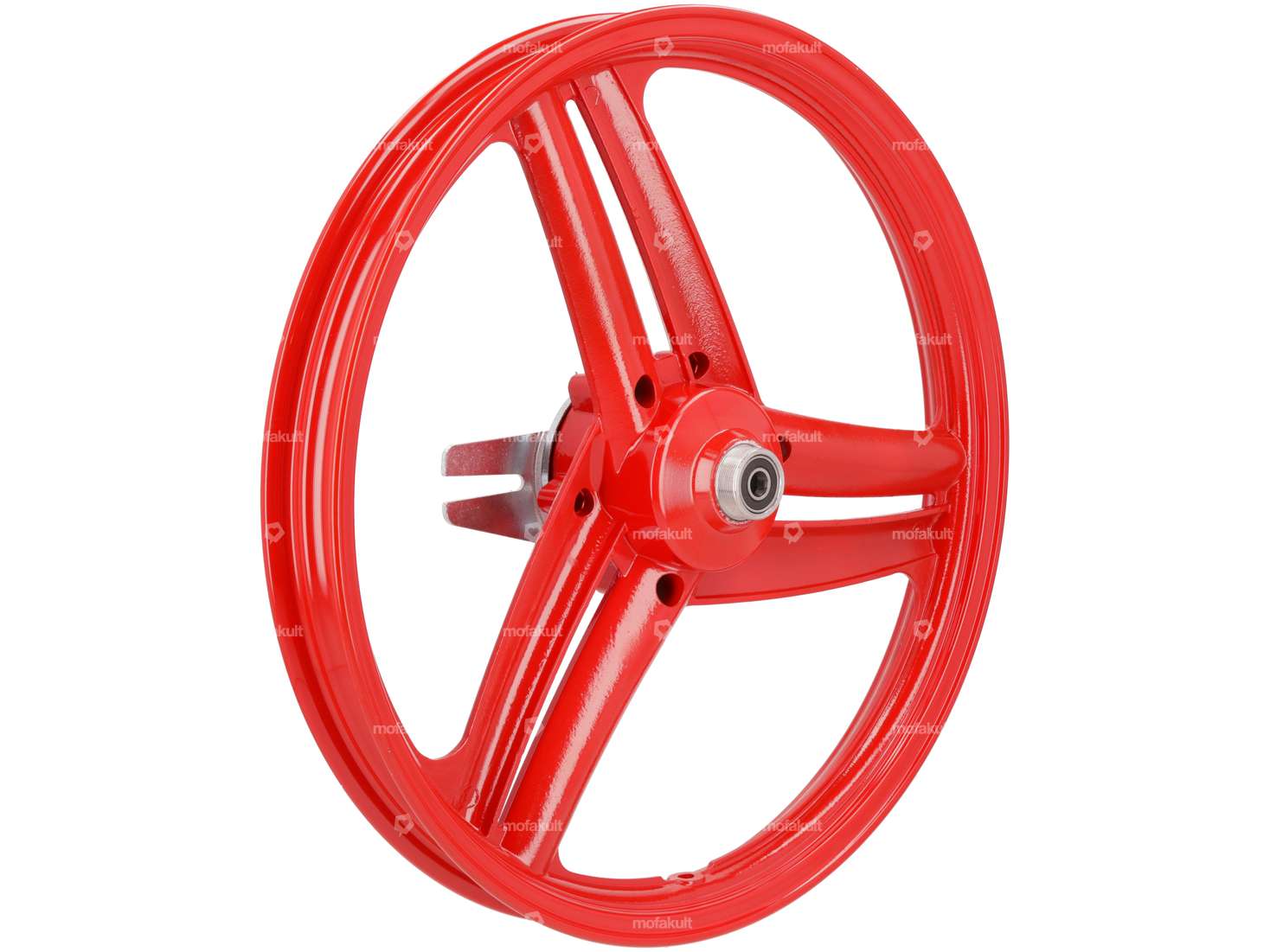

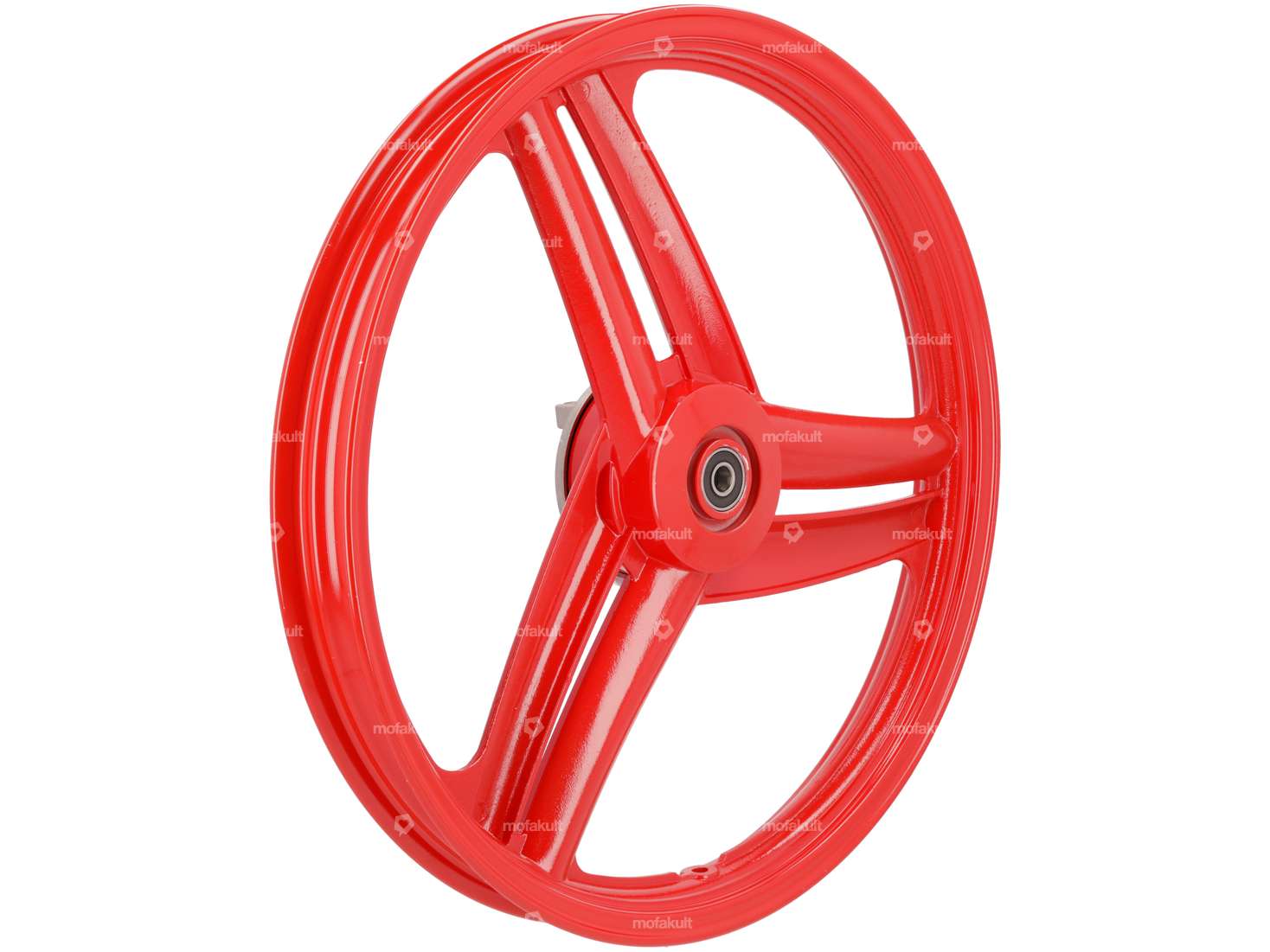

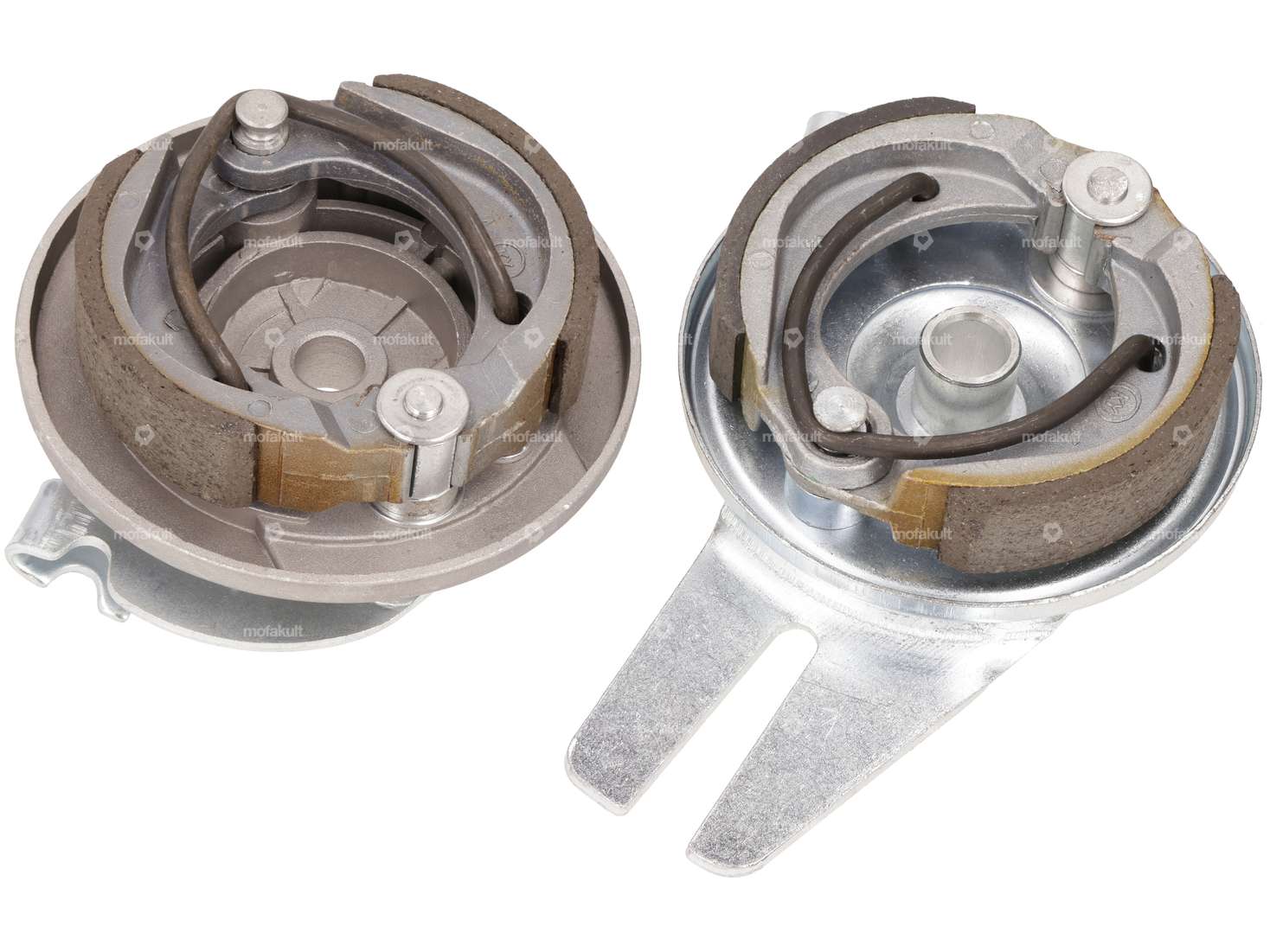

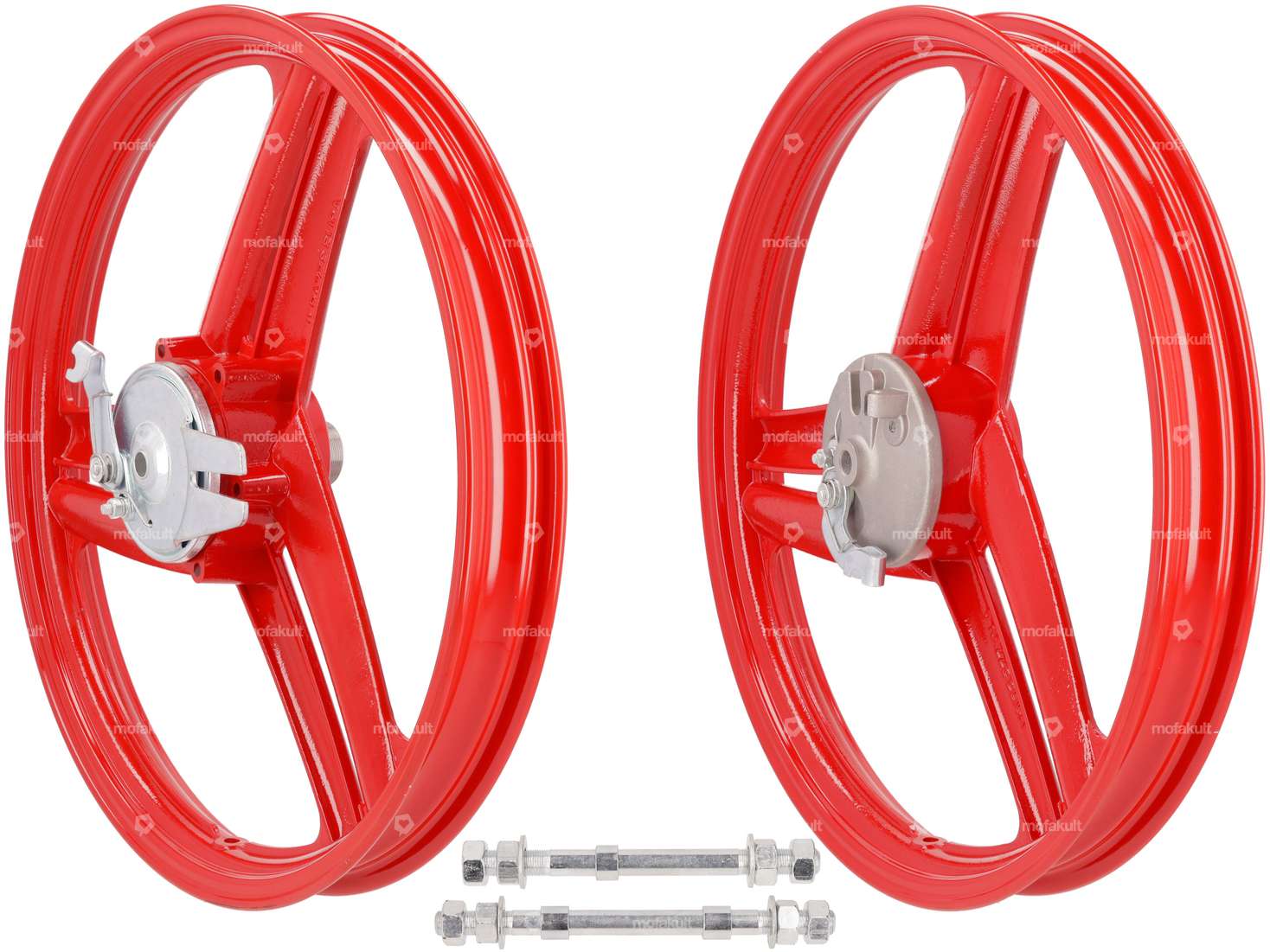

Red 17 inch cast wheels front and rear with 3/6 spokes including brake anchor plate for your Peugeot 103 moped / moped.
Compare the dimensions listed below.
Ø outer: 457 mm
Rim width outer: 56 mm
Rim width inner: 40.64 mm (1.6”)
Ø inner bearing: 12 mm
Pitch circle sprocket mounting: 115 mm
Ø thread for freewheel: 34.75 mm
Ø Sprocket mount: 97.2 mm
Width of slot for brake cam: 8.25 mm
Ø Brake drum front / rear: 90 mm
Length of front wheel axle: 155 mm
Length of rear wheel axle: 185 mm
The wheel axle is also included in the scope of delivery and the ball bearings are already pressed in
| Material | Cast aluminum |
| Surface | varnished |
| Color | red |
| Wheel size | 17 " |
| Rim well depth | 11.5 mm |
| Nominal diameter | 457 mm |
| Overall width outside | 56 mm |
| Axle length | 155 mm, 185 mm |
| Ø Brake drum | 90 mm |
| Ø axle | 11.8 mm |
| Thread type | MF12x1 (fine pitch thread) |
| Peugeot |
