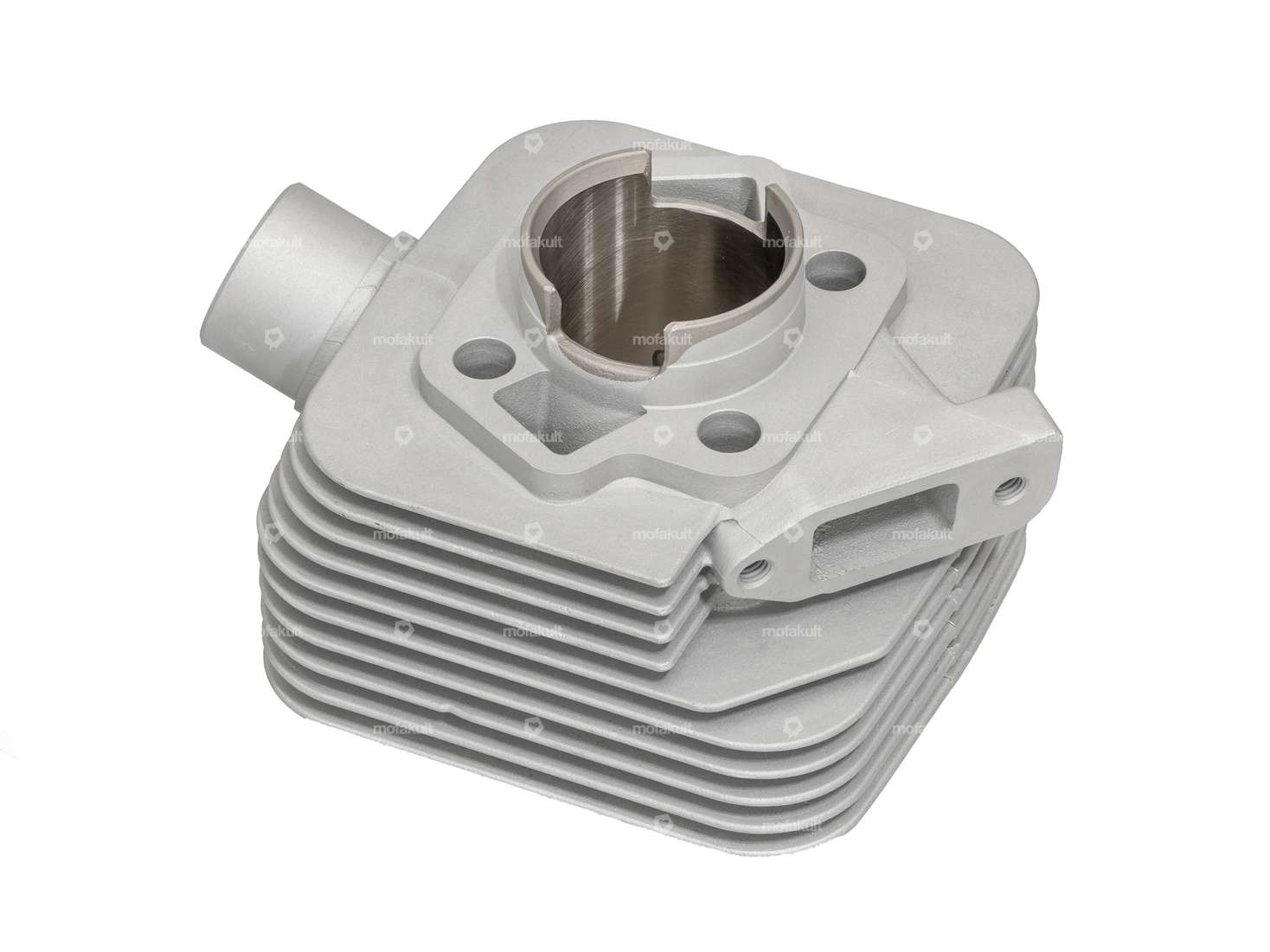

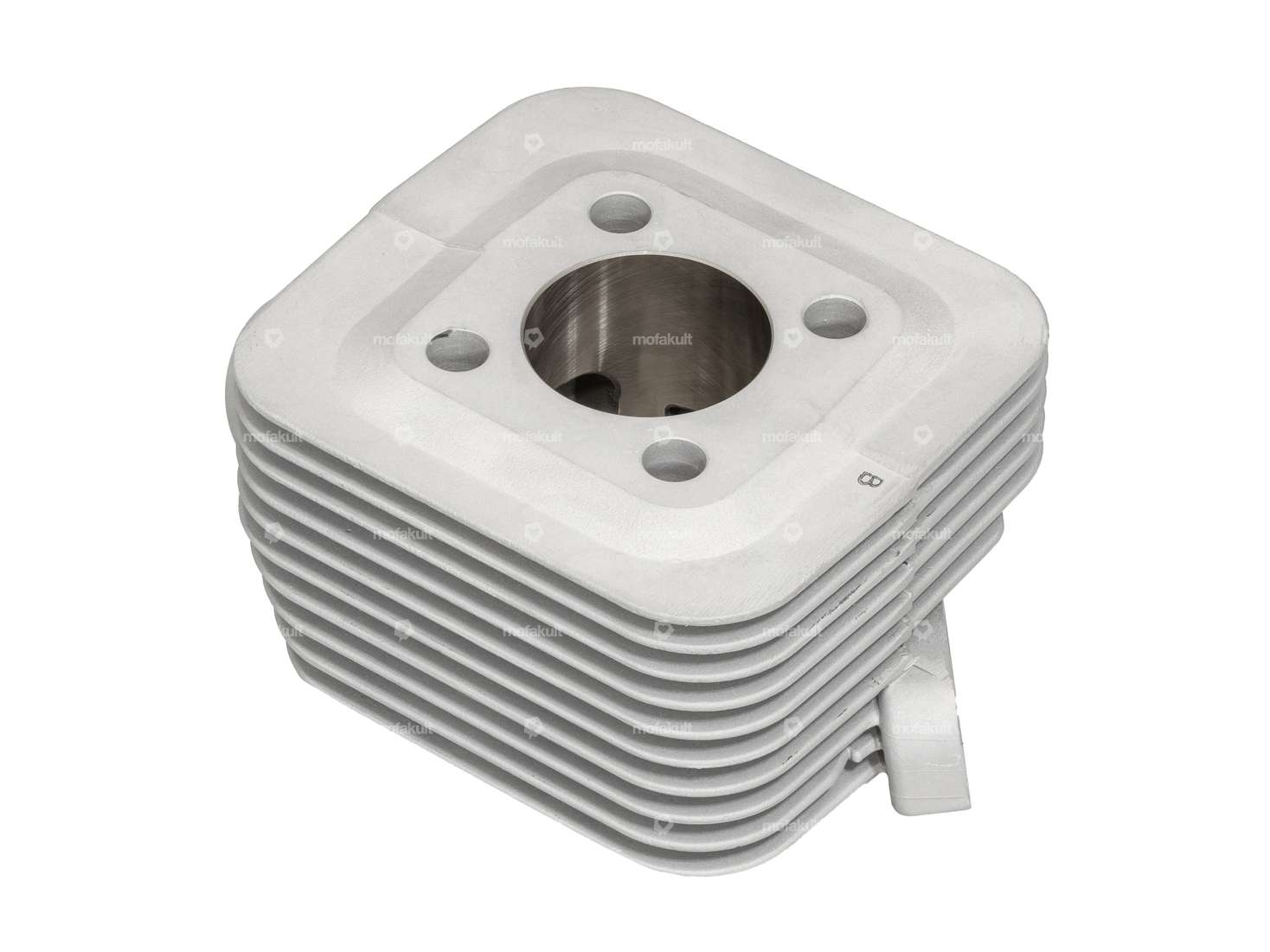

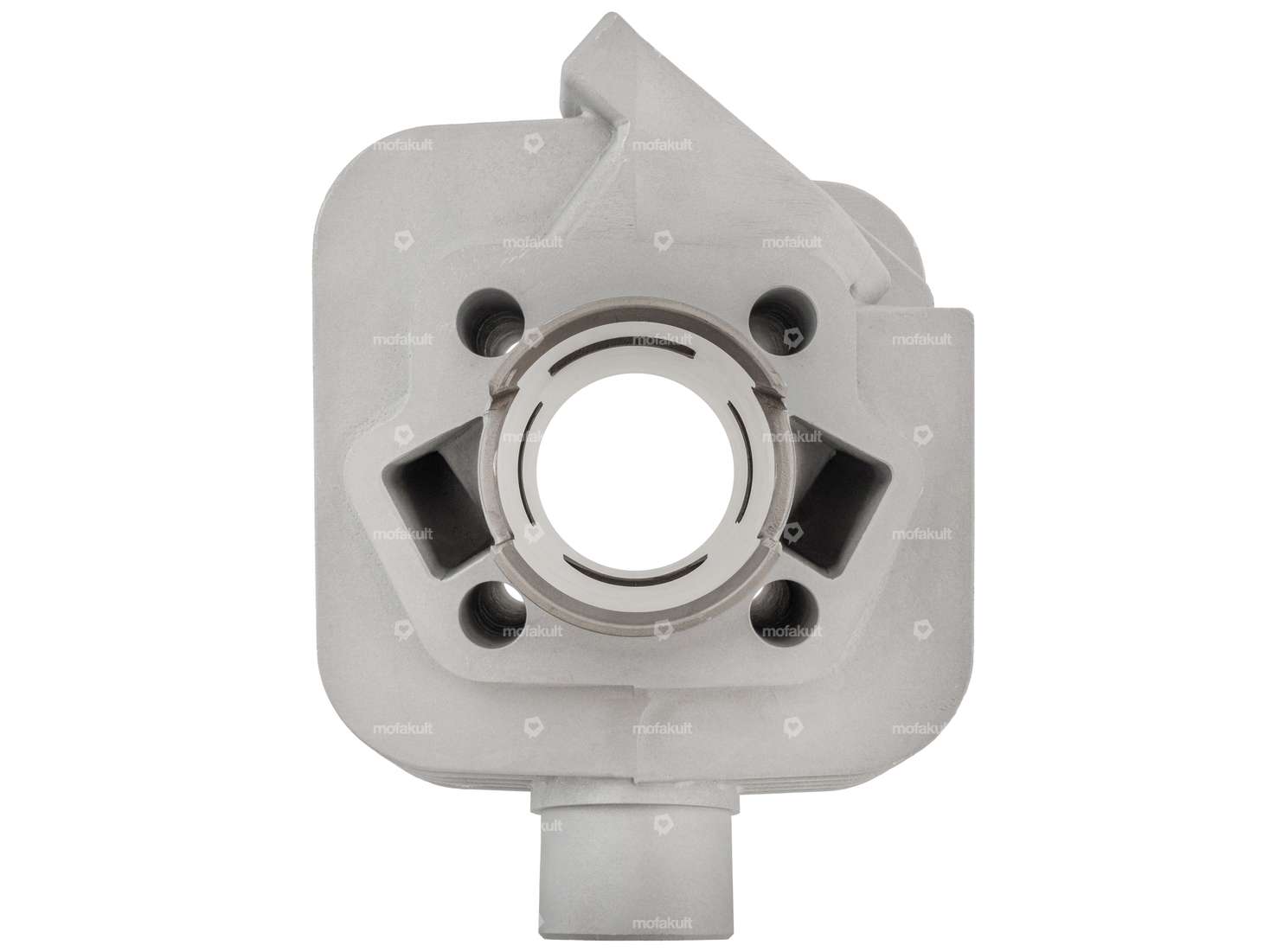

High-quality 40 mm aluminum cylinder with Nikasil coating for blown Kreidler Florett Super TS, Mustang (1965 - 1969), Kreidler Florett GT - TM etc. Small engine bikes.
The cylinder kit can also be installed as a tuning cylinder on Kreidler models such as K 54, K54 0, K54 0M, K 54/2A, LF - LF, LH K 54/32 etc.
The cylinder was modeled almost identically on the original Zeta cylinder with 5.8 hp. The durable cylinder delivers high torque and decent power even at high engine speeds.

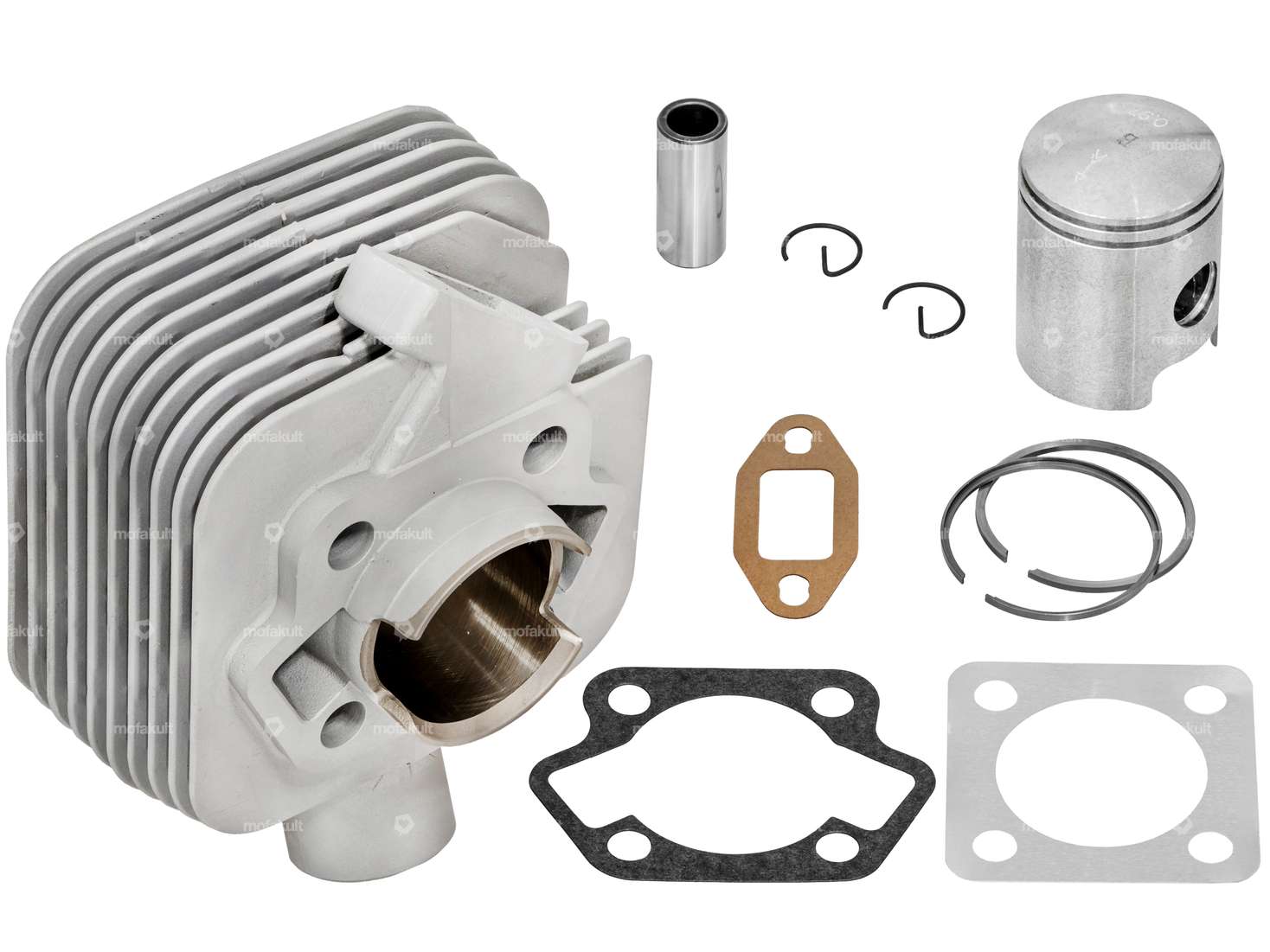

Delivery according to figure 1 incl. cylinder, piston kit and gasket set.
Ø exhaust flange: 32 mm
Inlet window: 15 x 25 mm
Inlet stud spacing: 32 mm
Ø piston pin: 14 mm
Hole pattern: 43.5 x 43.5 mm
| Material | Aluminum |
| Surface | sandblasted |
| Nominal diameter | 40 mm |
| Area of application | Tuning |
| Ø piston pin (B) | 14 mm |
| Hole spacing inlet | 32 mm |
| Ø Outlet outside | 32 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Outlet type | clamped |
| Number of fixing points | 4 pcs |
| Camouflaged | No |
| Kreidler |
