Racing cylinder of the Airsal brand for your moped / moped with Sachs 504 (with adaptations), 505, 508 and 535 engines.
This cylinder kit is suitable for Hercules Prima M, 2, 3, 4, 5 and Optima models, among others.
Thanks to the large intake, overflow and exhaust, this tuning cylinder provides a significant increase in performance.
Technical data cylinder:
- Ø internal intake manifold: 14 mm
- Connection diameter of intake manifold: 20 mm
- Ø inside exhaust flange: 20 mm
- Ø connection exhaust flange: 26 mm
- Ø cylinder neck: 50.0 mm
- Stroke: 44 mm
- Bore: 43.5 mm
- Thread for decompressor: M10 x 1.5 mm
The intake manifold is included in the scope of delivery
Notes:
Plugs with a long thread must be used.
The following modifications must be made to the cylinder on Swiss 504 engines (42 mm stroke):
- Adjust the cylinder base and gasket as shown in Figure 6 .
- The cylinder base must be turned off so that the compression is adjusted again due to the shorter stroke, we recommend setting a crushing edge of 0.8 - 1.0 mm.
- On models with an external clutch lever, the intake must be extended, otherwise the carburetor may come into contact with the clutch lever.
Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
Other parts such as the required spark plug with long thread can be found in the accessories.
Quality product from the Spanish manufacturer Airsal.
| Manufacturer | Airsal |
| Material | Aluminum |
| Surface | sandblasted |
| Area of application | Tuning |
| Crankshaft stroke | 44 mm |
| Nominal diameter | 43.5 mm |
| Ø cylinder neck | 50 mm |
| Ø Outlet outside | 26 mm |
| Ø Inlet inside | 14 mm |
| Hole spacing inlet | 31 mm |
| Inlet window | 23.8 x 14.8 |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 56 (61) x 56 |
| Thread inlet | M6x1 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Outlet type | clamped |
| Decompressor | M10x1.5 |
| Camouflaged | No |
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 |
| Hercules | Great - 2 , 3 , 4 , 5 , Optima |
Ratings
Accessories & related products
NGK B8ES spark plug long thread
Manufacturer: NGK · Candle designation: B8ES · Candle thread type: long · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm
EUR 7.45
Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508
Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 19.5 mm · Ø Inlet inside: 14.3 mm · Inlet window: 23.4 x 12.6 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
EUR 344.10
Athena 48 mm cylinder kit without mounting parts | Sachs (504), 505, 508
Nominal diameter: 48 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.6 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
EUR 321.10
Airsal 14 mm intake manifold angled | Sachs 504, 505
Manufacturer: Airsal · Material: Aluminum · Ø inside: 13.6 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 31 mm · Number of fixing points: 2 pcs · Height flange center hole: 56 mm · Area of application: Tuning
EUR 42.30

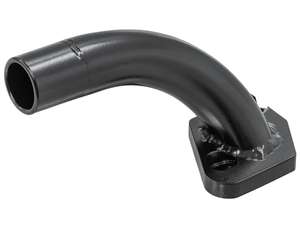

MLM 15 mm intake manifold Dell'Orto SHA | Sachs 504, 505
