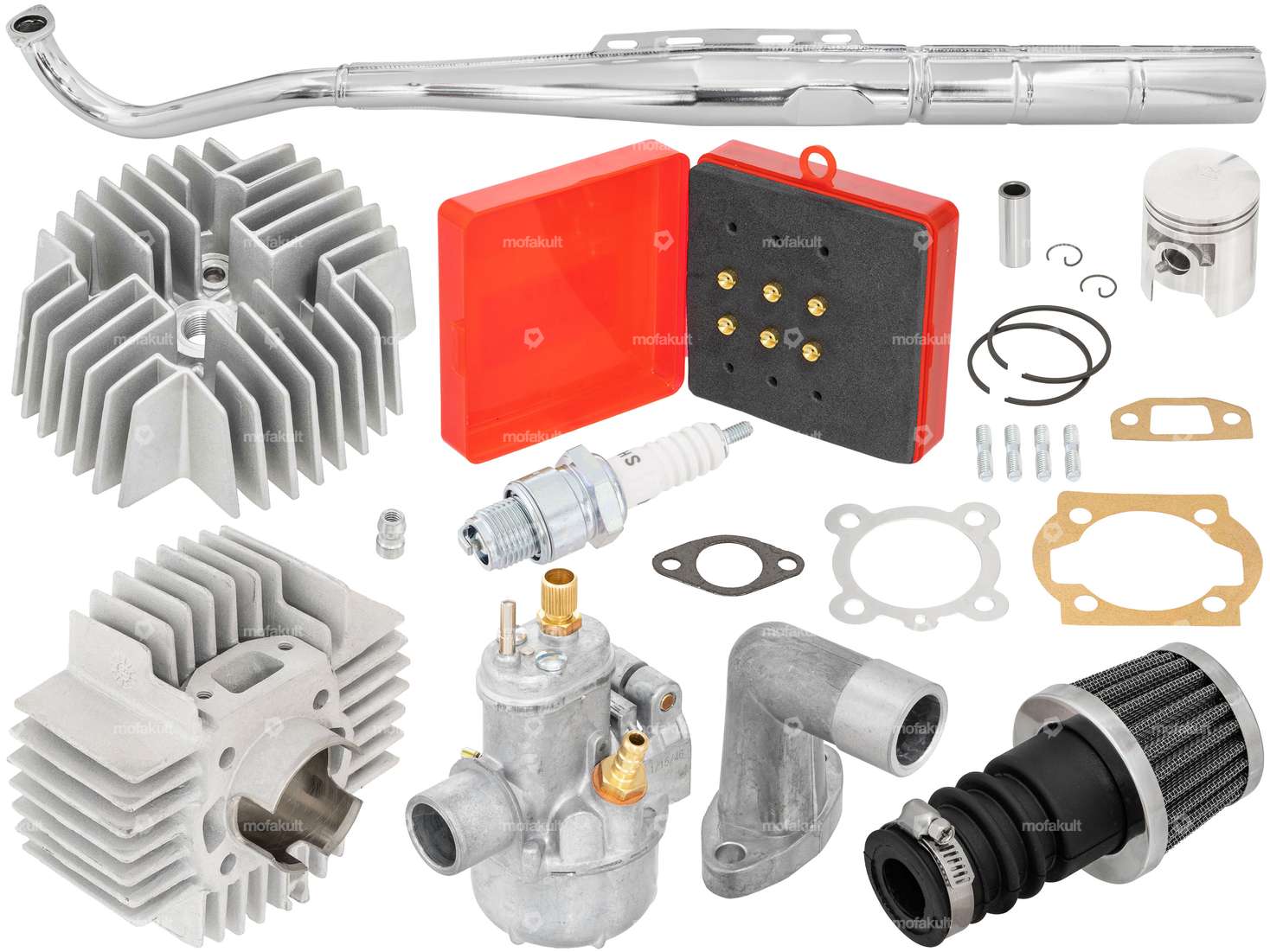

Tuning kit compatible with all Puch Maxi mopeds equipped with an E50 engine or an air-cooled ZA50 engine.
This tuning kit is ideal for beginners and those who don’t want to spend a lot of money on tuning parts.
The individual components are finely tuned to work together and guarantee optimal power delivery. In addition, the selected parts are relatively unobtrusive. Note, however, that both the air filter and the exhaust are noticeably louder than stock components.
Please select the desired intake manifold from the drop-down menu.
Notes:
The stud bolts supplied for the exhaust have a strength rating of 5.6. We recommend replacing these with the swiing® stud bolts, which have a higher strength rating.
Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
With this complete set, you’ll save money compared to buying the items separately.
A quality product from the Spanish manufacturer Airsal.

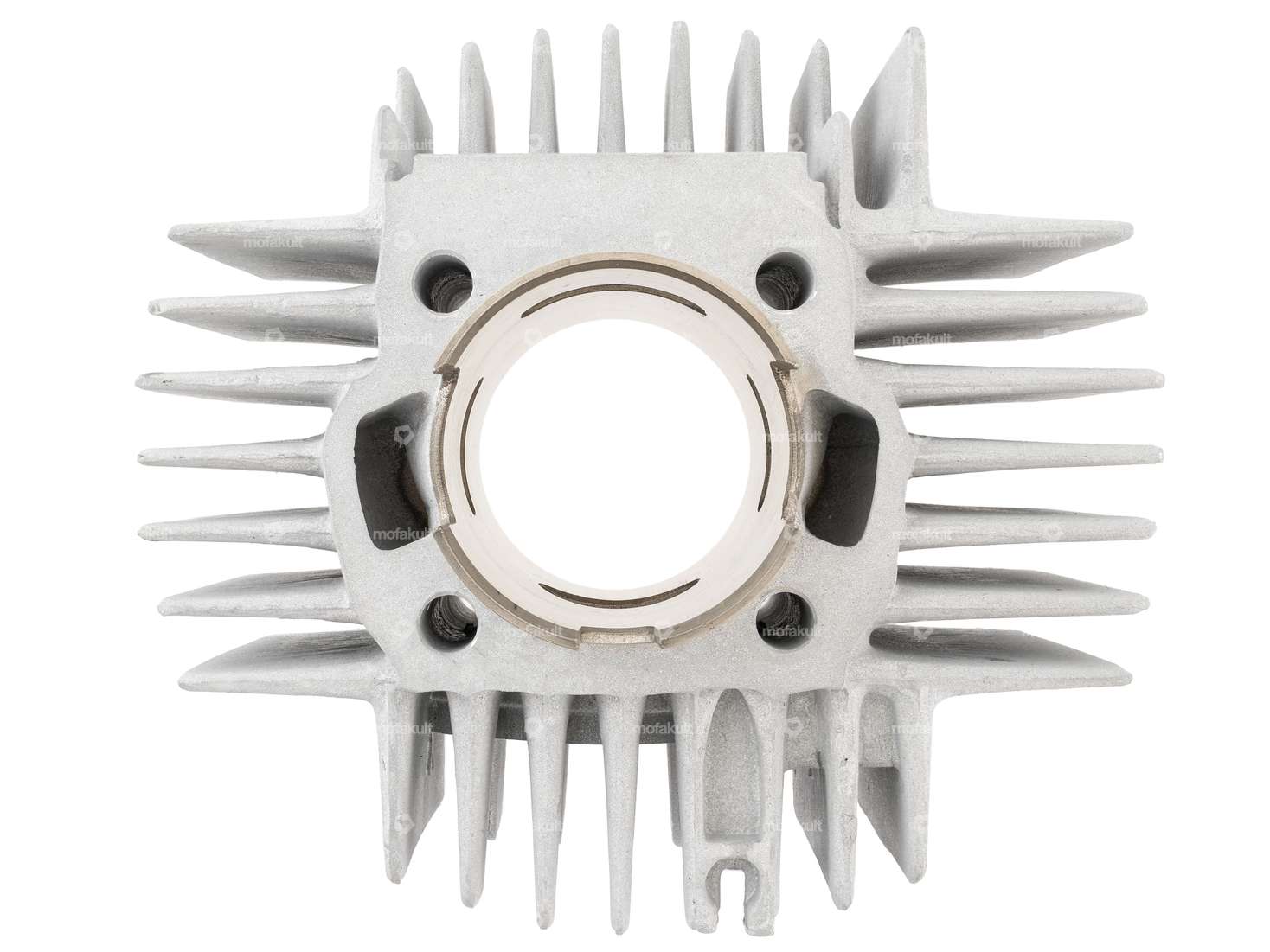

Hole pattern [mm]: 44 x 44 · Inlet window: 24 / 20 x 15 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 44 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: Yes · Camouflaged: Yes · Area of application: Tuning
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 44 mm · Camouflaged: Yes · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Tuning

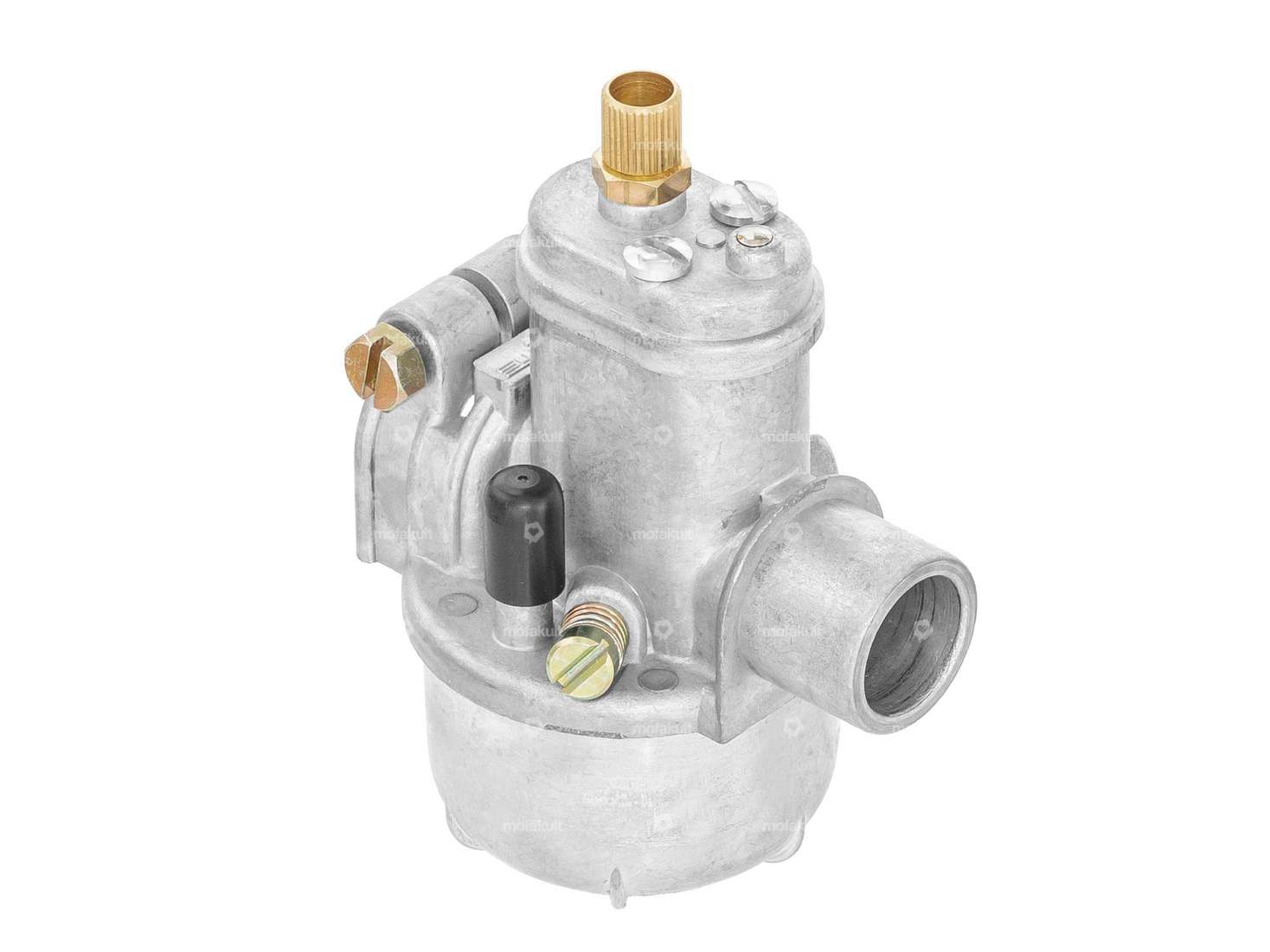

Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: GPO · Camouflaged: No · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete
Manufacturer: GPO · Camouflaged: No · Color: Chrome, black · Material: Metal, Rubber · Filter type: Grille · Total length: 113 mm · Length rubber part: 63.5 mm · Length of filter section: 49 mm · Ø Internal connection: 20 mm · Ø outside: 61 mm · Mounting type: Plug connection clamped, Bride · Area of application: Tuning
Nozzle size: 64, 66, 68, 70, 72, 74 · Manufacturer: swiing® revival parts · Material: Brass · Quantity: 6 pcs · Carburetor type: SRE, SRF, SRA (1/11/35) Velux, SRA (1/11/31) Velux, SRC · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Drive: Slot · Component group Carburetor: Spraying

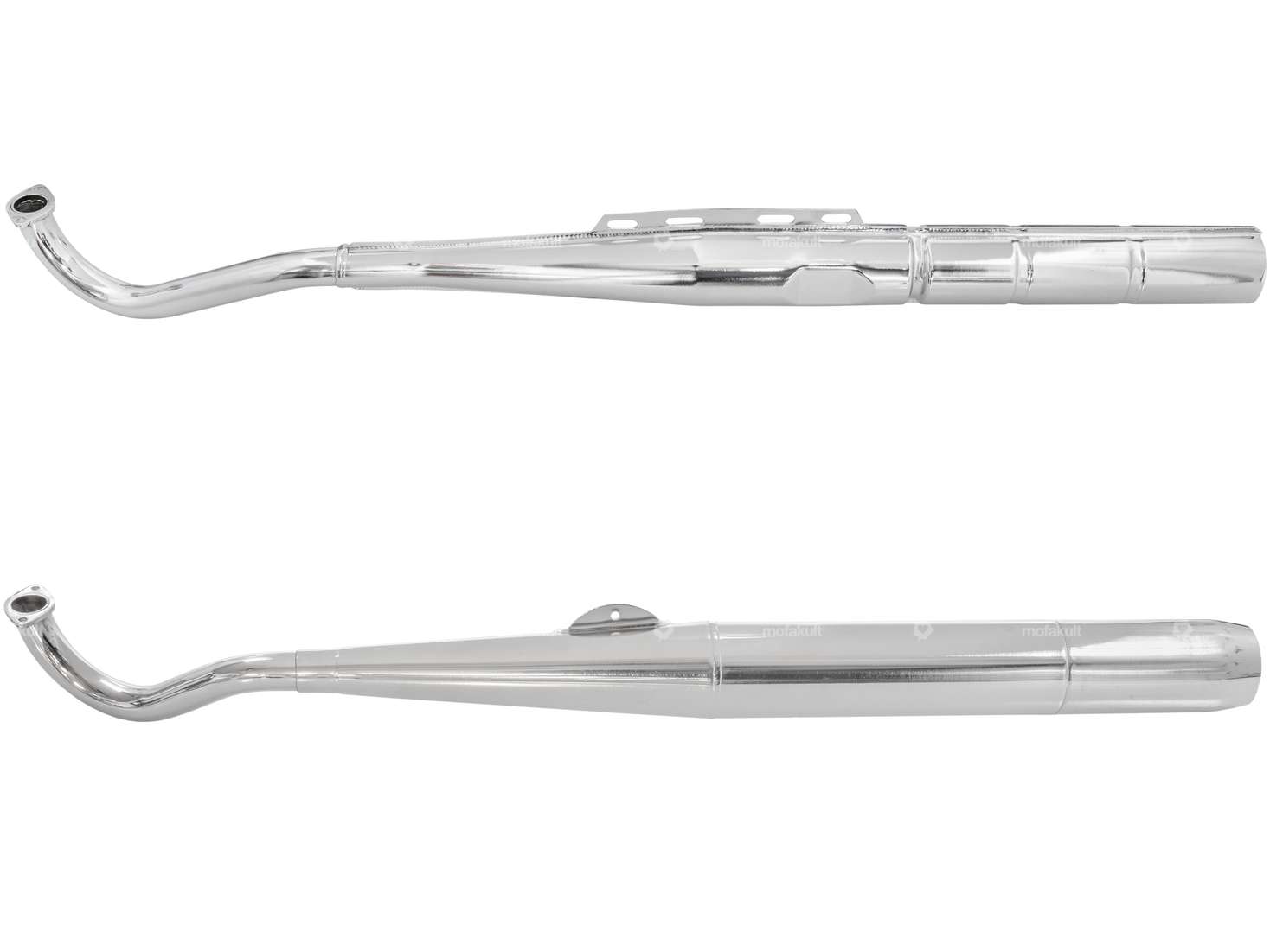

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 58 mm · Total length: 920 mm · Ø Flame tube outside: 28 mm · Exhaust type: Flute · Mounting type: Welded lug, Stud bolts & nuts · Number of fixing points: 4 pcs · Flame tube attachment: Flange
| Puch | E50 ZA50 (air-cooled) |
