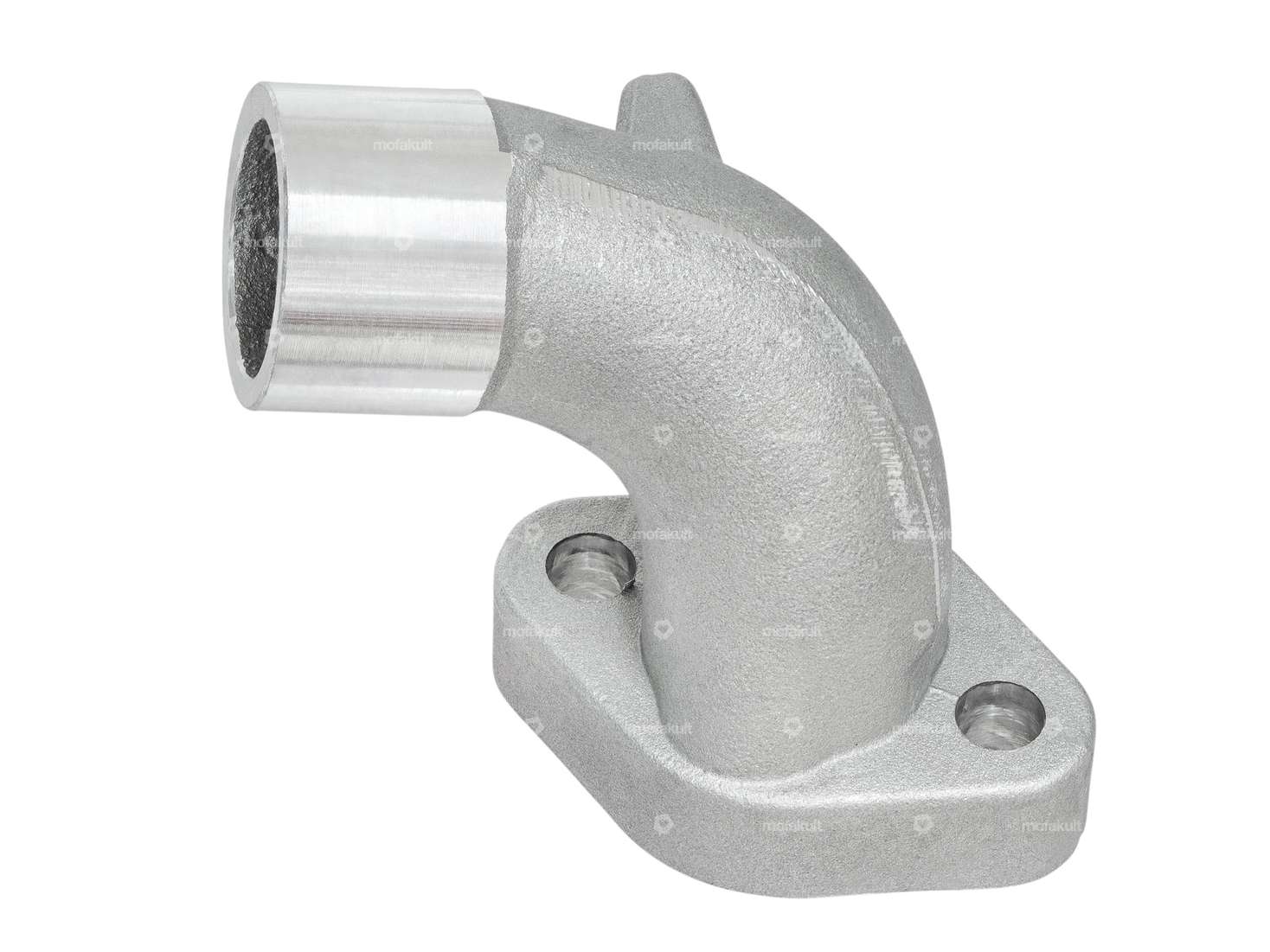

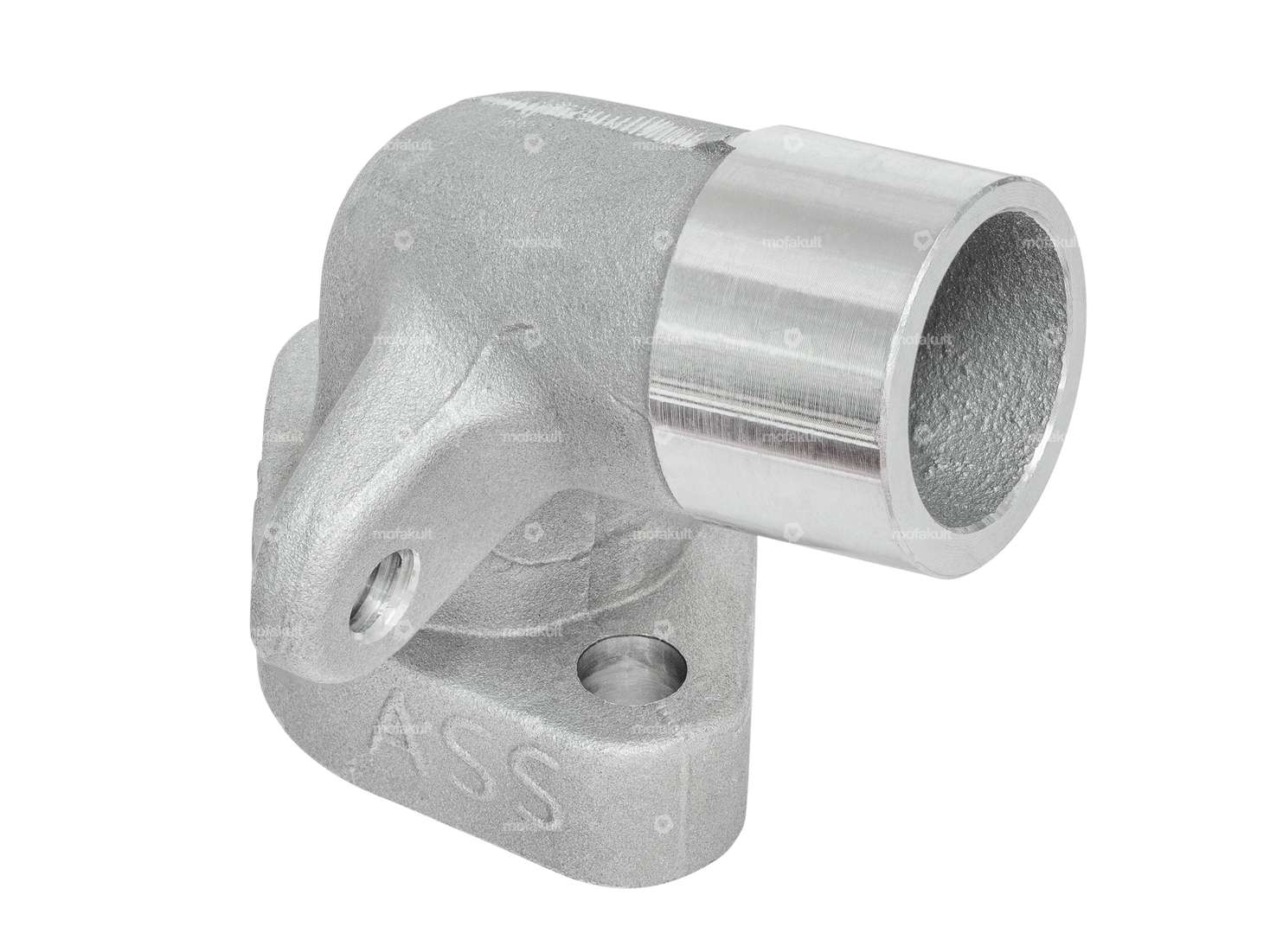

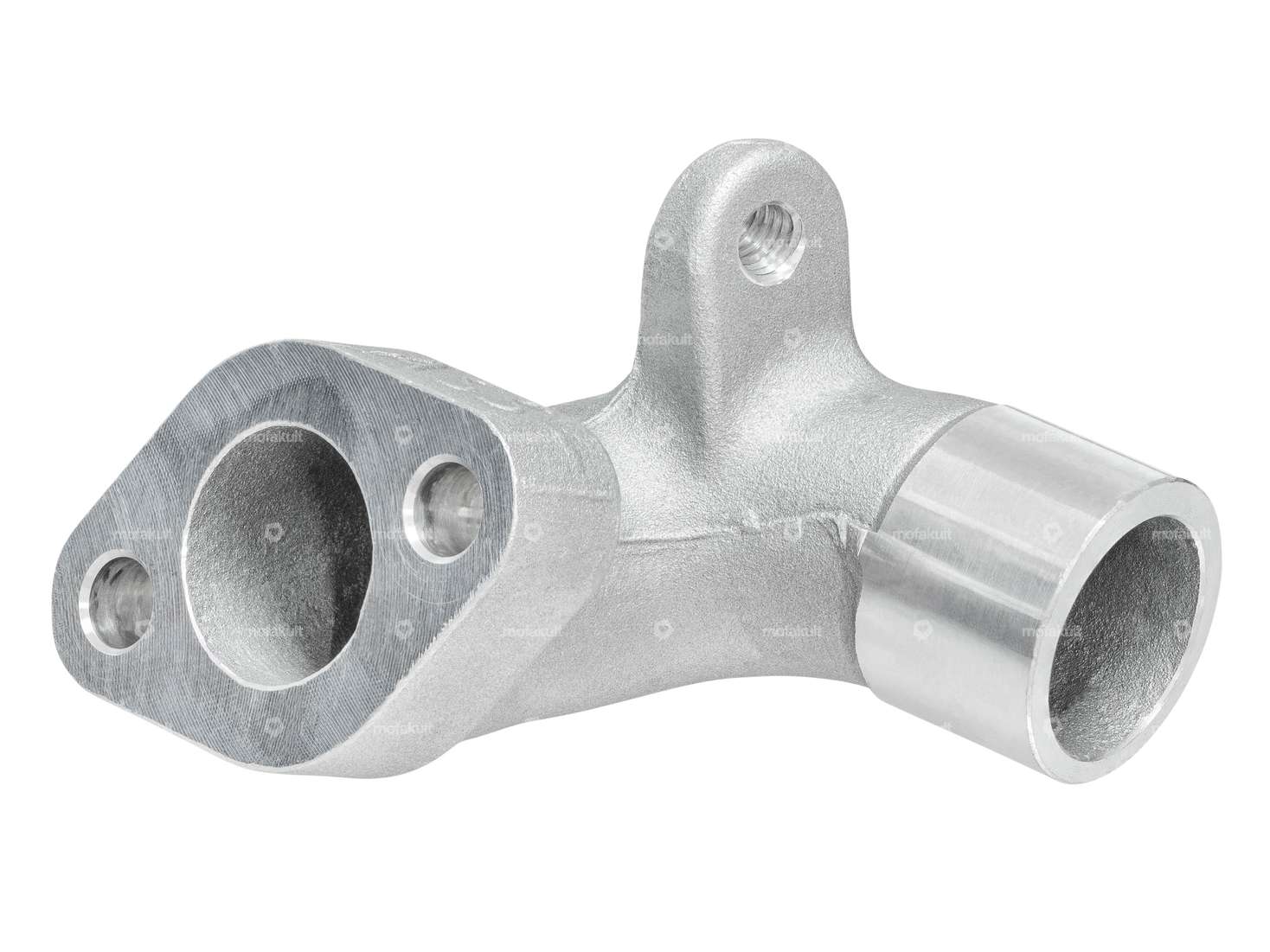

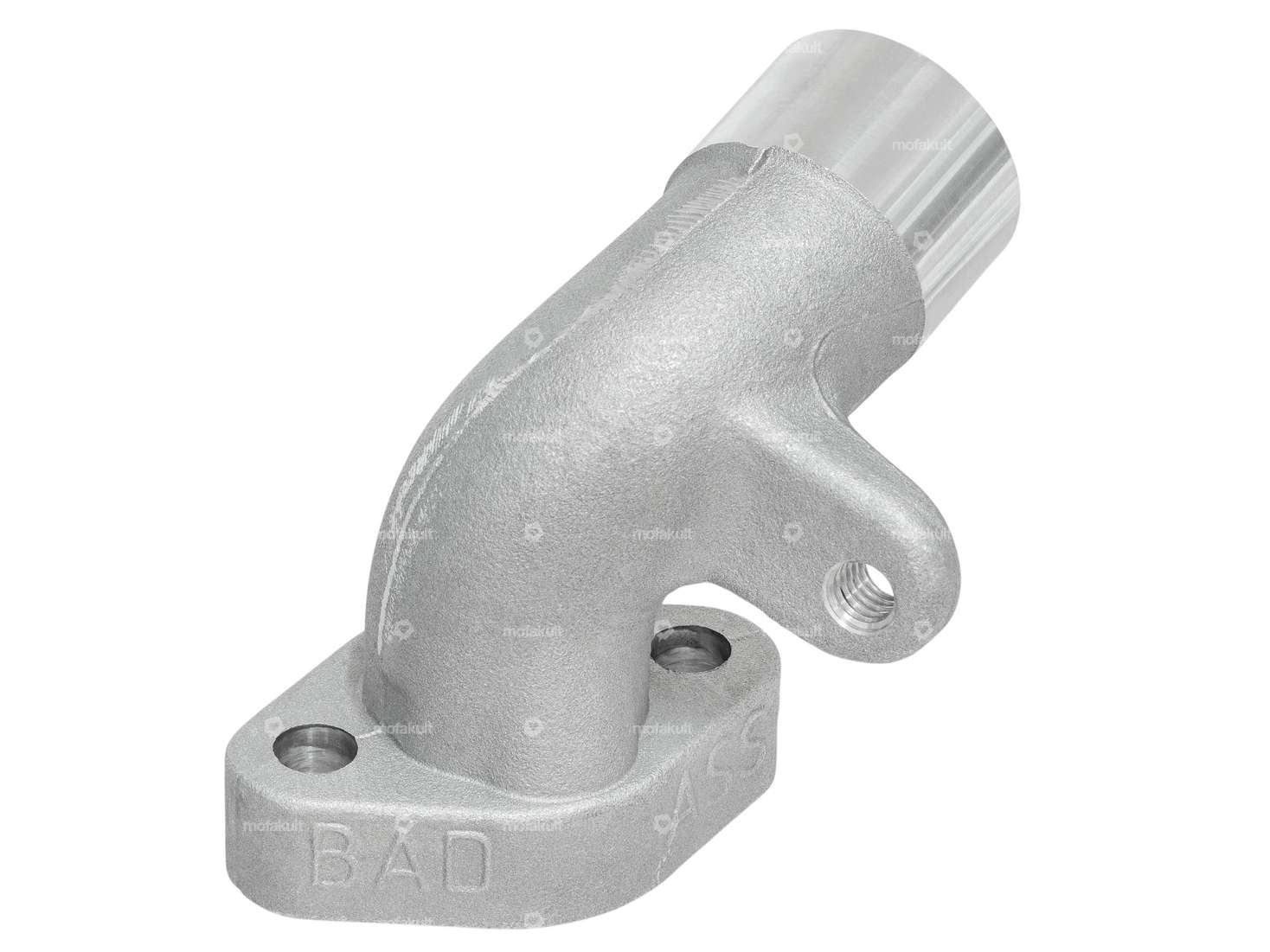

Short 50 mm intake manifold for hand-shifted Sachs 503 2AL and 2BL mopeds / mopeds.
This manifold is recommended in combination with the 41 mm BAD ASS Pandora tuning cylinder and makes it possible to fit a 17 mm Bing SRF or a Dell'Orto or GPO PHBG carburettor with the corresponding sleeve.
- Carburetor connection diameter: 23 mm
- Internal diameter: 17 mm throughout
- Hole spacing: 32 mm
- Threaded bracket: M6
To simplify installation, we recommend using M6 nuts with reduced key width. You can find these special nuts as well as the long 70 mm intake manifold or the sleeve for mounting PHBG carburetors in the accessories section.
This is the tuning version of the original Sachs spare part with the number A2177.
Made by the BADASS brand.
| Manufacturer | BAD ASS |
| Camouflaged | No |
| Material | Aluminum |
| Total length | 54 mm |
| Ø inside | 17 mm |
| Ø External connection | 23 mm |
| Mounting type | Screws |
| Hole spacing inlet | 32 mm |
| Number of fixing points | 3 pcs |
| Total height | 56.5 mm |
| Height flange center hole | 45 mm |
| Thread type | M6x1 (standard thread) |
| Area of application | Tuning |
| Sachs | 503 - AAL , ABL , 2AL / 2BL |
Accessories & related products
Magura set screw M6 x 34 lock nut SW8
Width across flats Screw: 8 mm · Manufacturer: Magura · Width across flats nut: 8 mm · Material: Brass · Material: Steel · Ø cable holder: 3.05 mm · Total length: 34 mm · Slotted: No · Surface: galvanized (blue) · Surface: nickel-plated · Ø Receptacle: 7.05 mm · Thread type: M6x1 (standard thread) · Thread length: 24 mm
EUR 2.85
GPO 17.5 mm PHBG AS carburetor hand choke (Dell'Orto replica)
Manufacturer: GPO · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Mounting type: Bride · Mounting type: Plug connection clamped · Carburetor type: PHBG AS · Nominal diameter: 17.5 mm · Ø Internal connection: 24 mm · Ø without reducing sleeve: 26 mm · Height: 130 mm · Ø Air filter connection: 32 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Width: 63 mm · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 55 · Nozzle thread: M5x0.8 (standard thread) · Nozzle block: 262AU · Camouflaged: No · Nozzle size: 80 · Size of secondary nozzle: 50 · Total length: 71.5 mm · Area of application: Tuning
EUR 91.70
17 mm Bing SRF carburetor (replica)
Material: Aluminum · Component group Carburetor: Carburetor complete · Mounting type: Plug connection clamped · Carburetor type: SRF · Nominal diameter: 17 mm · Ø Internal connection: 23 mm · Height: 117 mm · Ø Air filter connection: 60 mm · Ø Air filter connection: 64 mm · Width: 64 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M4x0.7 (standard thread) · Nozzle block: 2.xx · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m · Total length: 78 mm · Area of application: Tuning
EUR 74.50
swiing® revival special nut M6 SW8 (sprocket ref. back pedal / intake manifold)
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Drive: External hexagon · Width across flats: 8 mm · Height: 6 mm
EUR 3.30
Bing "19 mm" SRF carburetor (reproduction)
Component group Carburetor: Carburetor complete · Mounting type: Plug connection clamped · Carburetor type: SRF · Nominal diameter: 17 mm · Ø Internal connection: 23 mm · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Ø Air filter connection: 60.2 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M4x0.7 (standard thread) · Area of application: Tuning
EUR 97.40
swiing® ingenious 15 mm intake manifold long version | Sachs 503 2AL, 2BL
Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Total length: 70 mm · Ø inside: 15 mm · Ø External connection: 20 mm · Number of fixing points: 2 pcs · Hole spacing inlet: 32 mm · Height flange center hole: 70 mm · Total height: 80 mm · Thread type: M6x1 (standard thread) · Mounting type: Screws · Pony OEM number: A2176
EUR 68.70

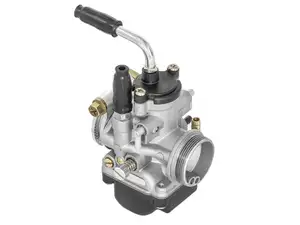

GPO 17.5 mm PHBG AD carburetor cable choke (Dell'Orto replica)
