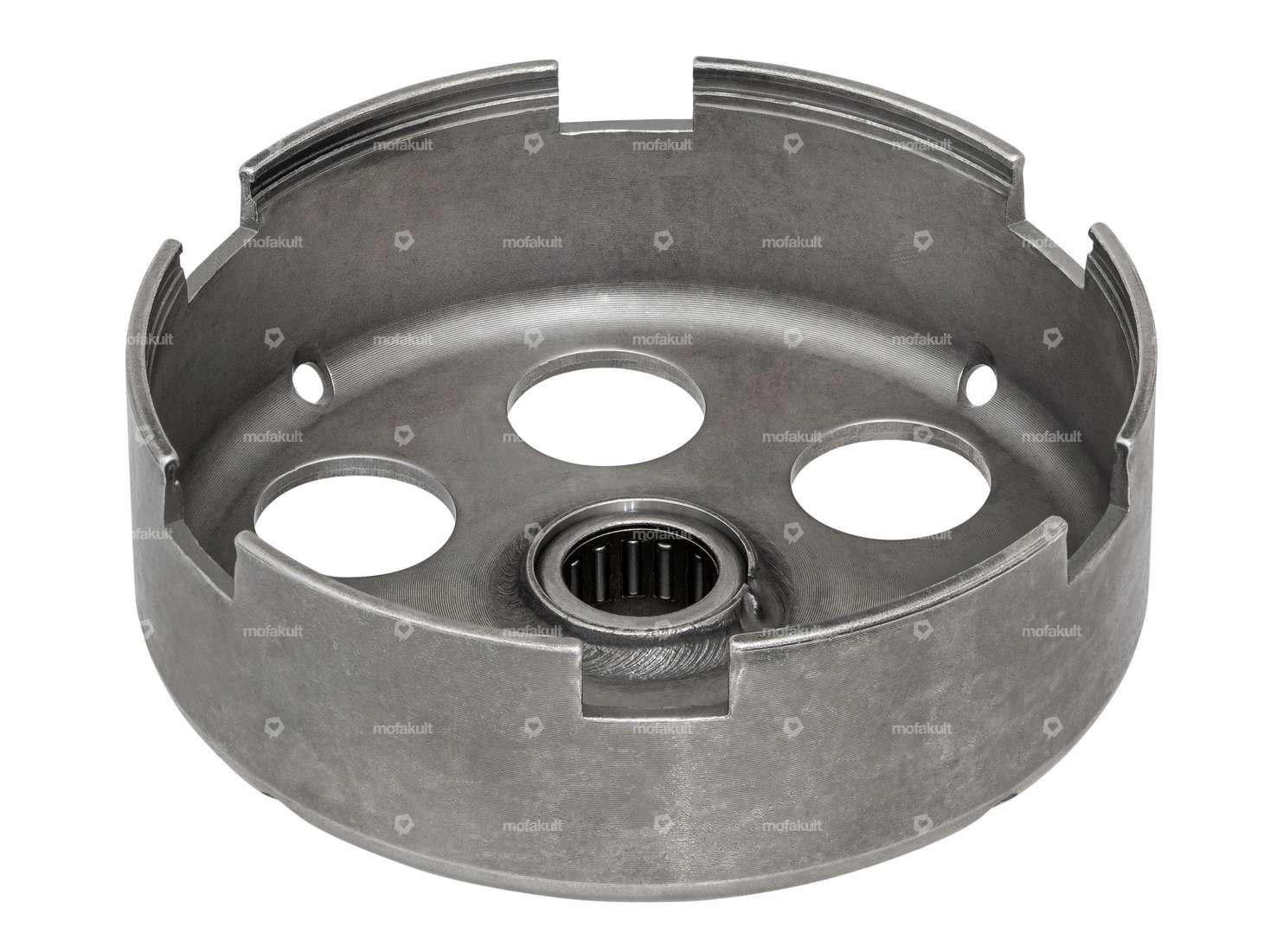

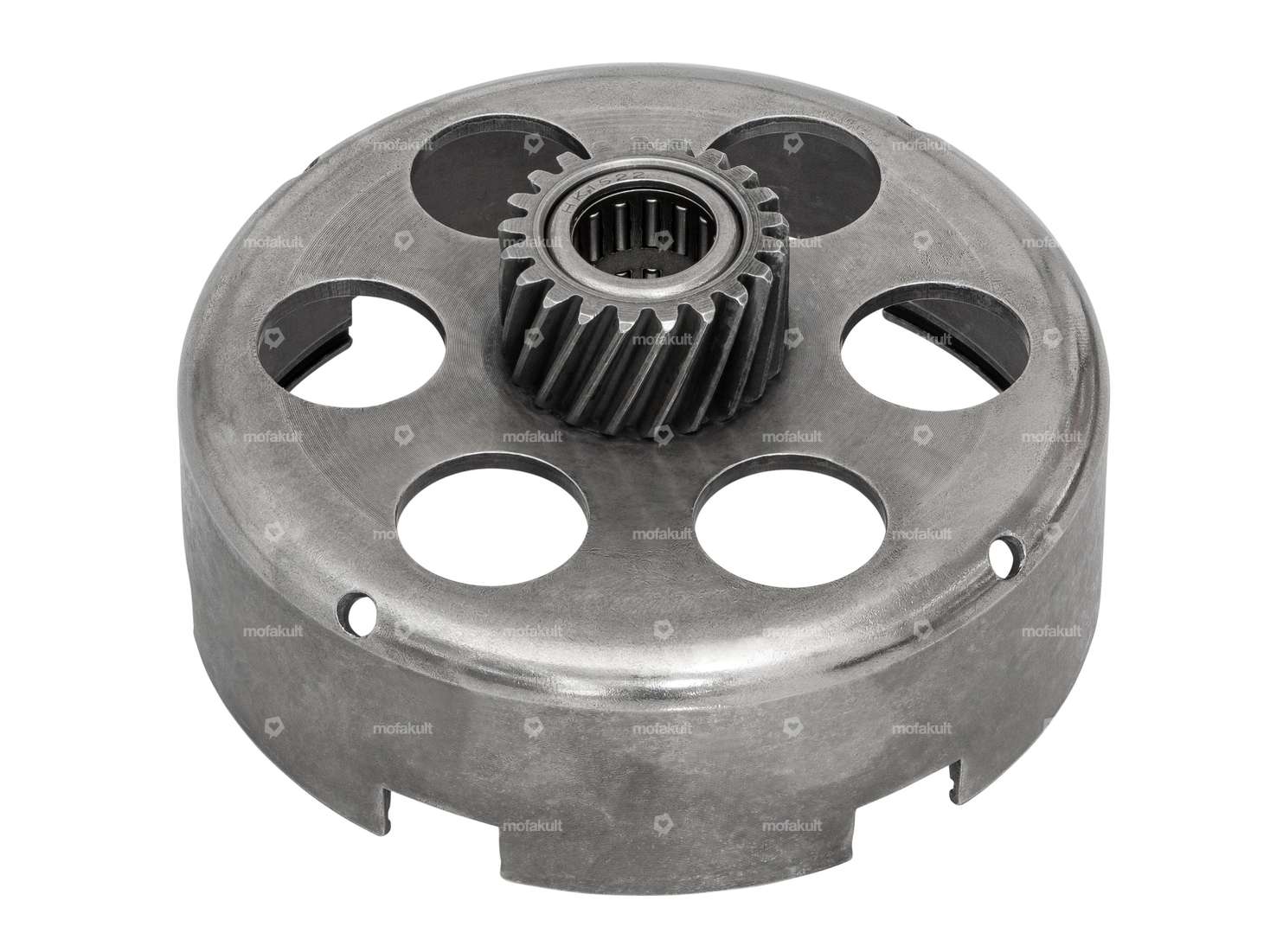

Lightened clutch basket with 21 teeth suitable for Puch Maxi mopeds with 1-speed e50 engine.
Special design with needle bearing. This clutch basket was developed for heavily souped-up engines where the brass bushing bearing reaches its limits.
Advantages of the needle bearing:
- Higher speeds possible
- Smooth, even running
- Optimal lubrication
- Better heat dissipation
Optimal adjustment of the clutch basket clearance is essential. Inadequate adjustment can destroy the bearing in a very short time.

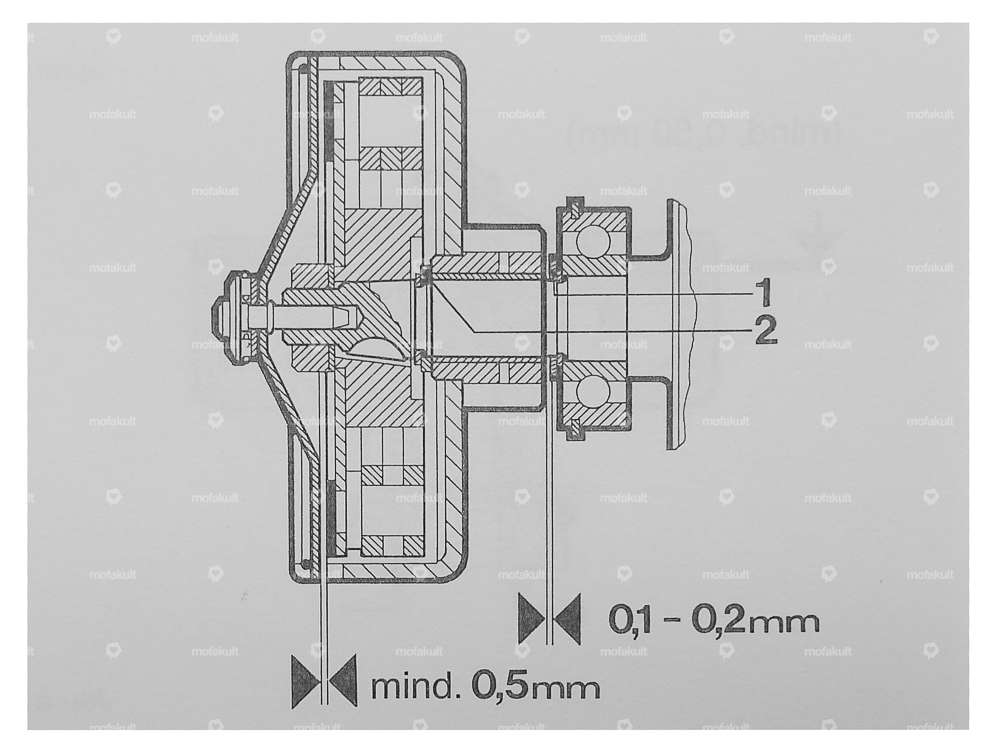

Note the corresponding dimensions in Figure 3.
You will find suitable thrust washers in the accessories, which are fitted in front of and behind the clutch basket.
| Material | Steel |
| Number of teeth | 21 pcs |
| Color | graphite colors |
| Recording type | Interlocking |
| Toothing type | helical toothed |
| Ø outside | 99.6 mm |
| Ø inside | 15 mm |
| Ø Receptacle | 30.5 mm |
| Height | 49.5 mm |
| Area of application | Tuning |
| Puch | E50 |
