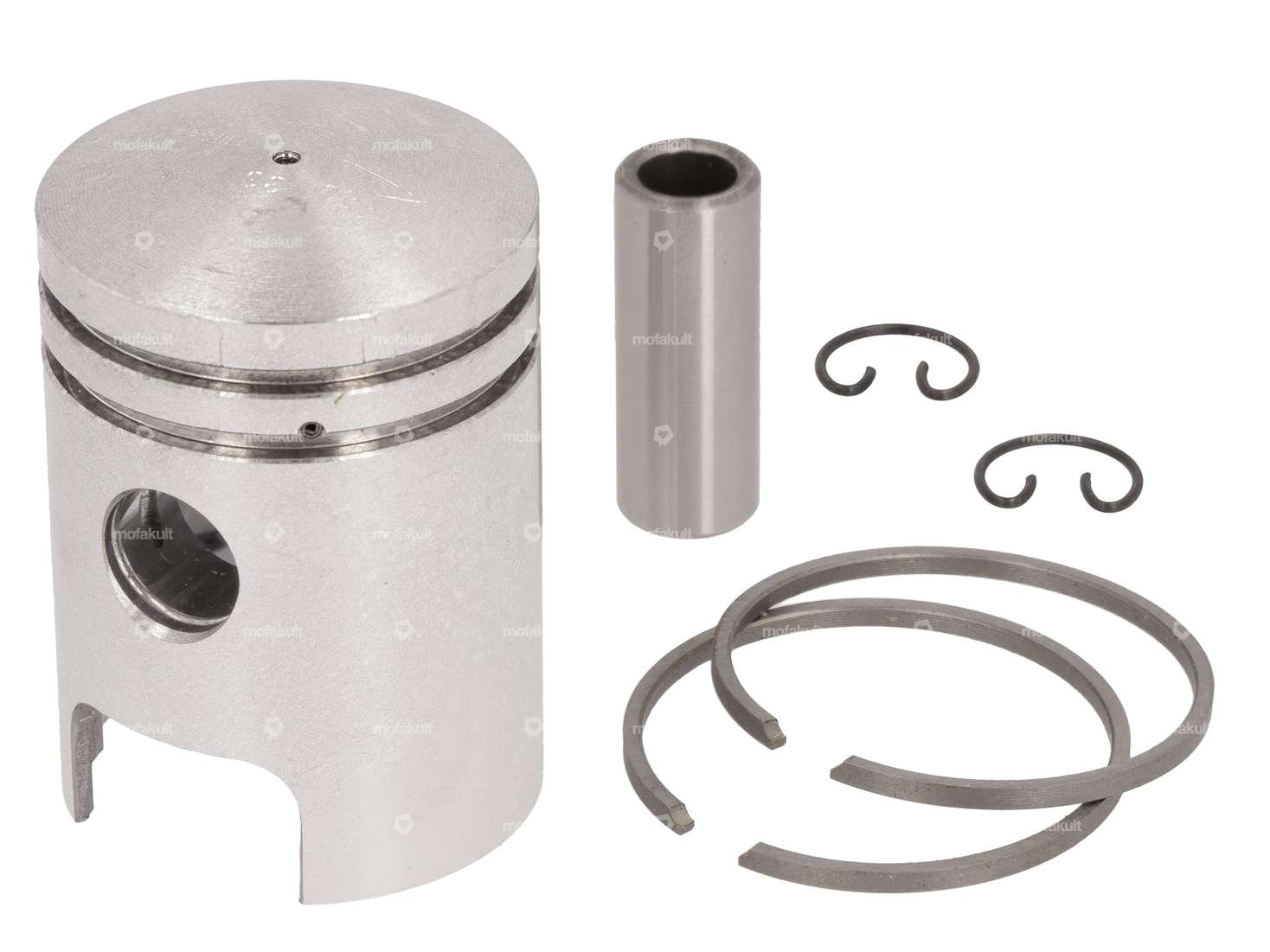

ELKO piston 37.98 mm No. 3 NOS | Puch

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

Meteor piston 38 mm #2 | Puch

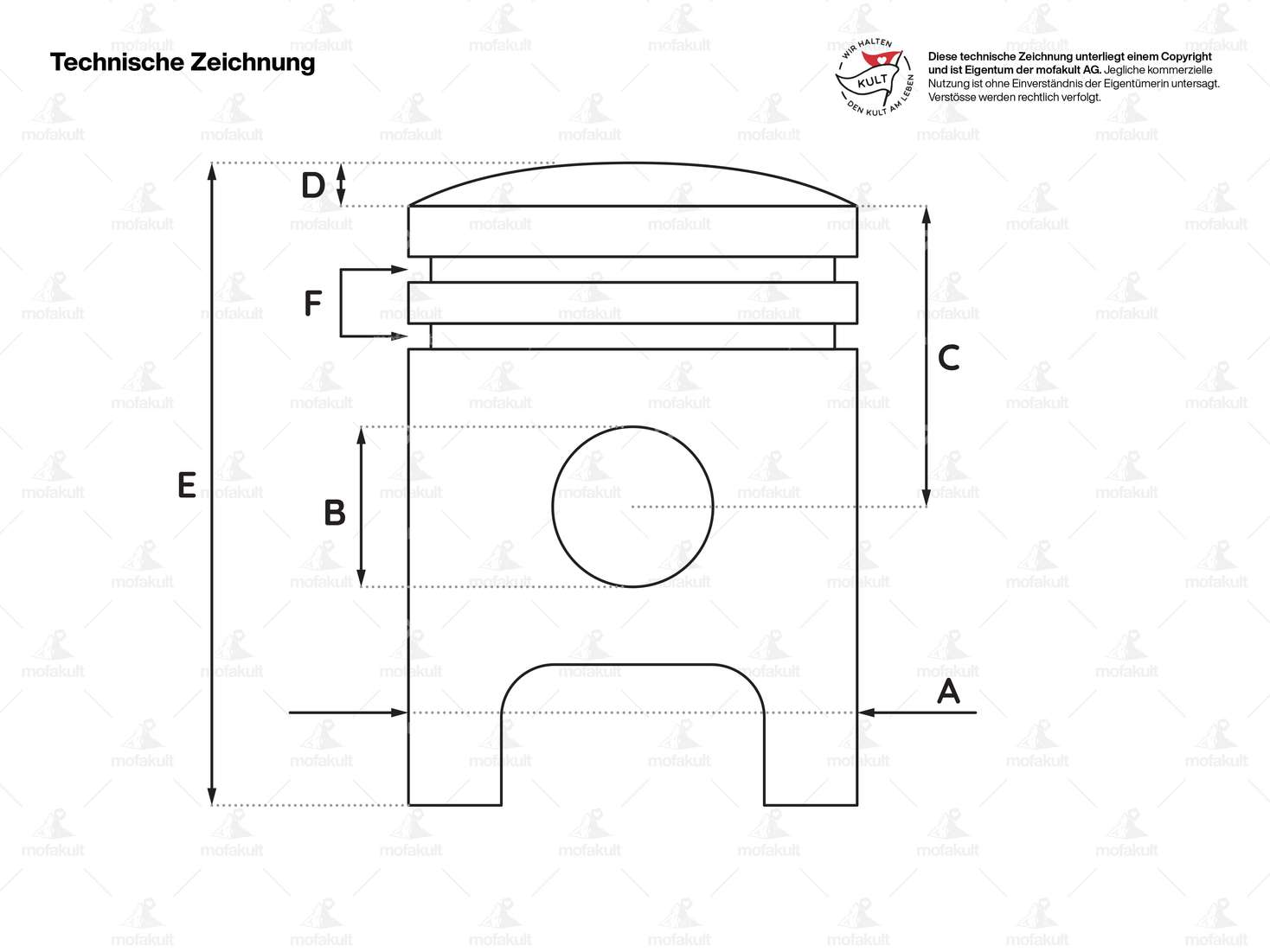

Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Tolerance group: 2 · Piston weight: 79 g

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Color: red · Contents [ml]: 1000 ml

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Sachs OEM no.: 0245 000 000 · Tomos OEM number: 032039

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 38 mm · Number of components: 4 pcs · Ø outlet inside: 22 mm · Hole pattern [mm]: 44 x 44 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Hole spacing outlet: 42 mm · Decompressor: Yes · Hole spacing inlet: 32 - 38 mm · Area of application: Standard

Gilardoni italkit piston 38 mm no. 1 | Puch Maxi

Manufacturer: Gilardoni italkit · Ø outside piston (A): 37.94 mm · Compression height (C): 22.7 mm · Curvature (D): 3.9 mm · Total piston height (E): 52.6 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Piston weight: 80 g

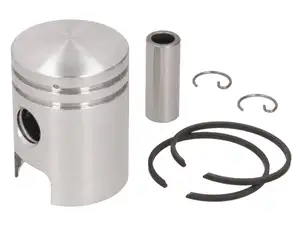

Gilardoni italkit piston 38 mm No. 3 | Puch Maxi

Manufacturer: Gilardoni italkit · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.9 mm · Total piston height (E): 52.6 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Piston weight: 81 g

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 50 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Total length: 30 mm · Diameter: 5.95 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread length: 12 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9

Woodruff key 3 x 3.7 mm

Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm · Material: Steel

swiing nozzle set M3.5 (64 - 74) Bing SRE, SRA, SRC, SRF

Total length: 6 mm · Manufacturer: swiing · Component group Carburetor: Spraying · Material: Brass · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Drive: Slot · Quantity: 6 pcs · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 74

GPO 45 mm cylinder head tuning Puch Maxi S, N / X30 NS, NL, N-2AH

Total length: 135 mm · Width: 125 mm · Height: 55 mm · Manufacturer: GPO · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Candle thread: short · Decompressor: No · Camouflaged: Yes

NewFren brake shoes Ø 90 x 17

Width: 17 mm · Slotted: No · Manufacturer: NewFren · Area of application: Standard · Color: silver · Springs included: Yes · Ø locating bolt: 10 mm · Number of springs: 1 pcs · Ø drum: 90 mm

swiing® revival stud bolt M6 x 106 mm (10.9 strength)

Total length: 106 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread length: 12 mm · Thread length: 20 mm · Thread type: M6x1 (standard thread) · Puch OEM number: 360.1.10.034.1

GPO air filter screen Ø 52 mm "Racing"

Manufacturer: GPO · Camouflaged: No · Material: Steel · Surface: galvanized (yellow) · Color: yellow · Ø outside: 52 mm · Height: 9.7 mm · Area of application: Tuning

swiing® ingenious 38mm tuning cylinder Vertex-Edition CH12 | Puch

Manufacturer: Vertex · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Number of fixing points: 4 pcs · Inlet window: 24 / 21 x 15 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Hole spacing inlet: 38 mm · Area of application: Tuning · Alternative version of the Puch OEM number: 349.7.10.105.0

swiing® ingenious plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Manufacturer: swiing® ingenious parts · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm
