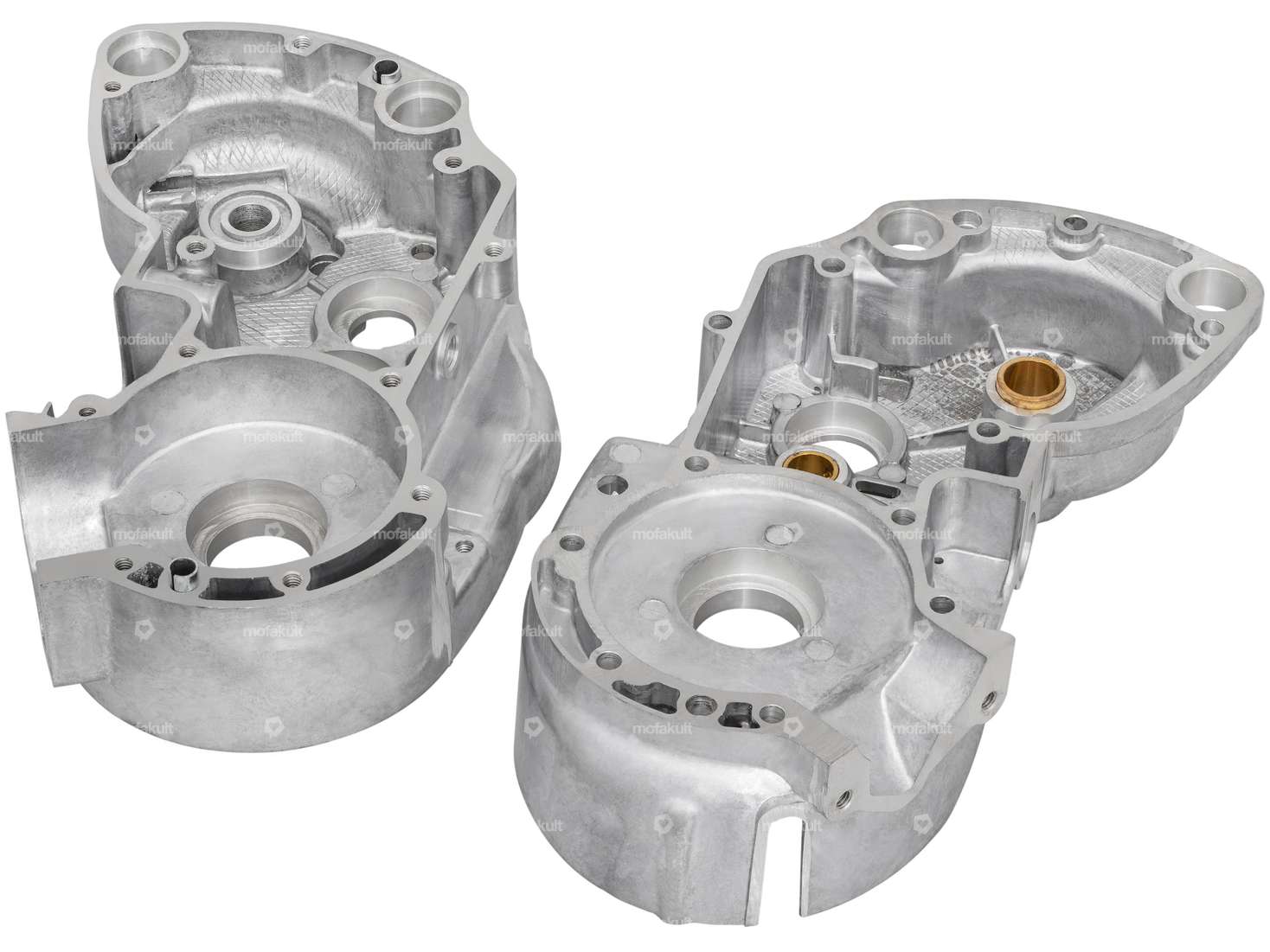

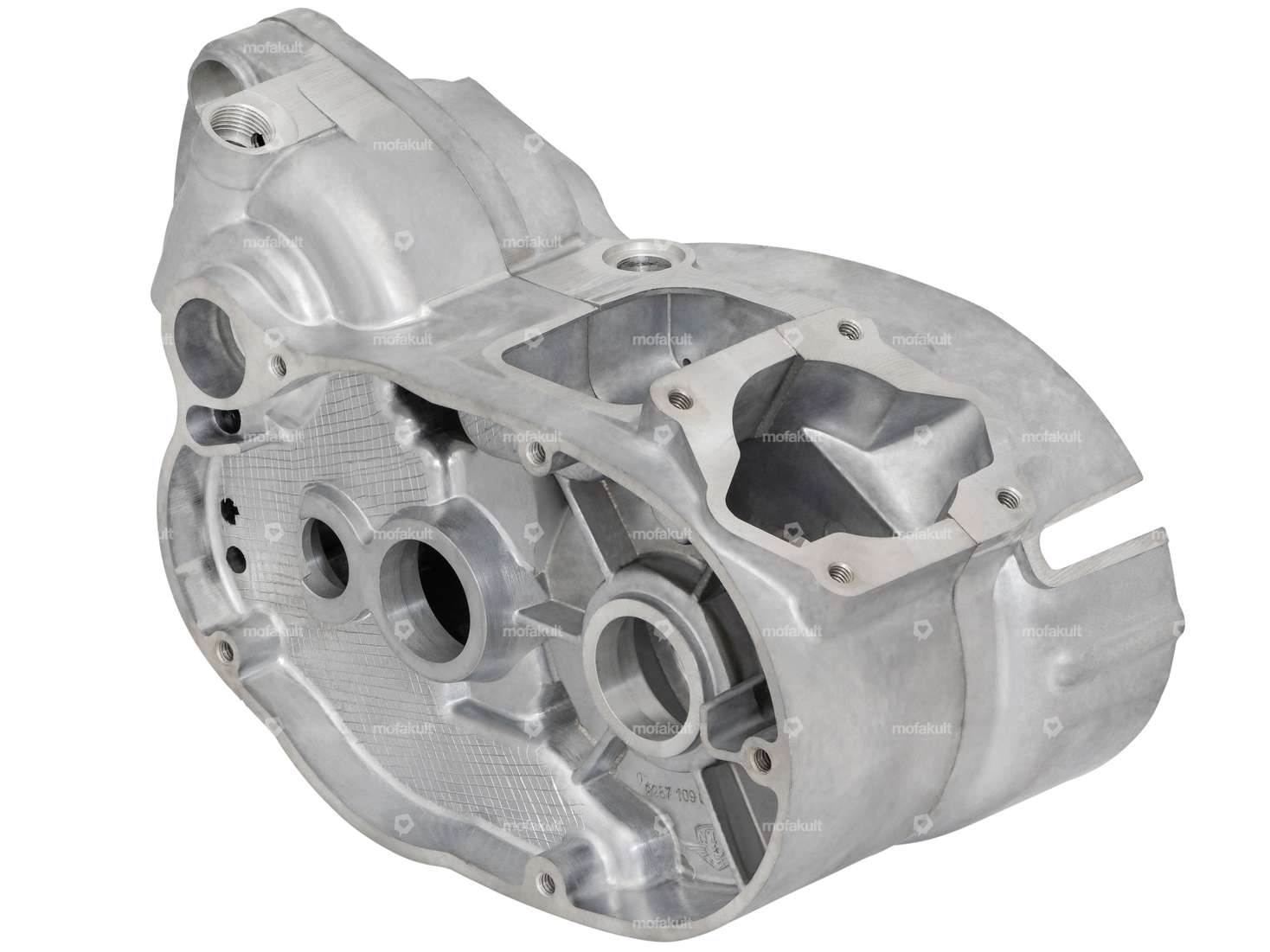

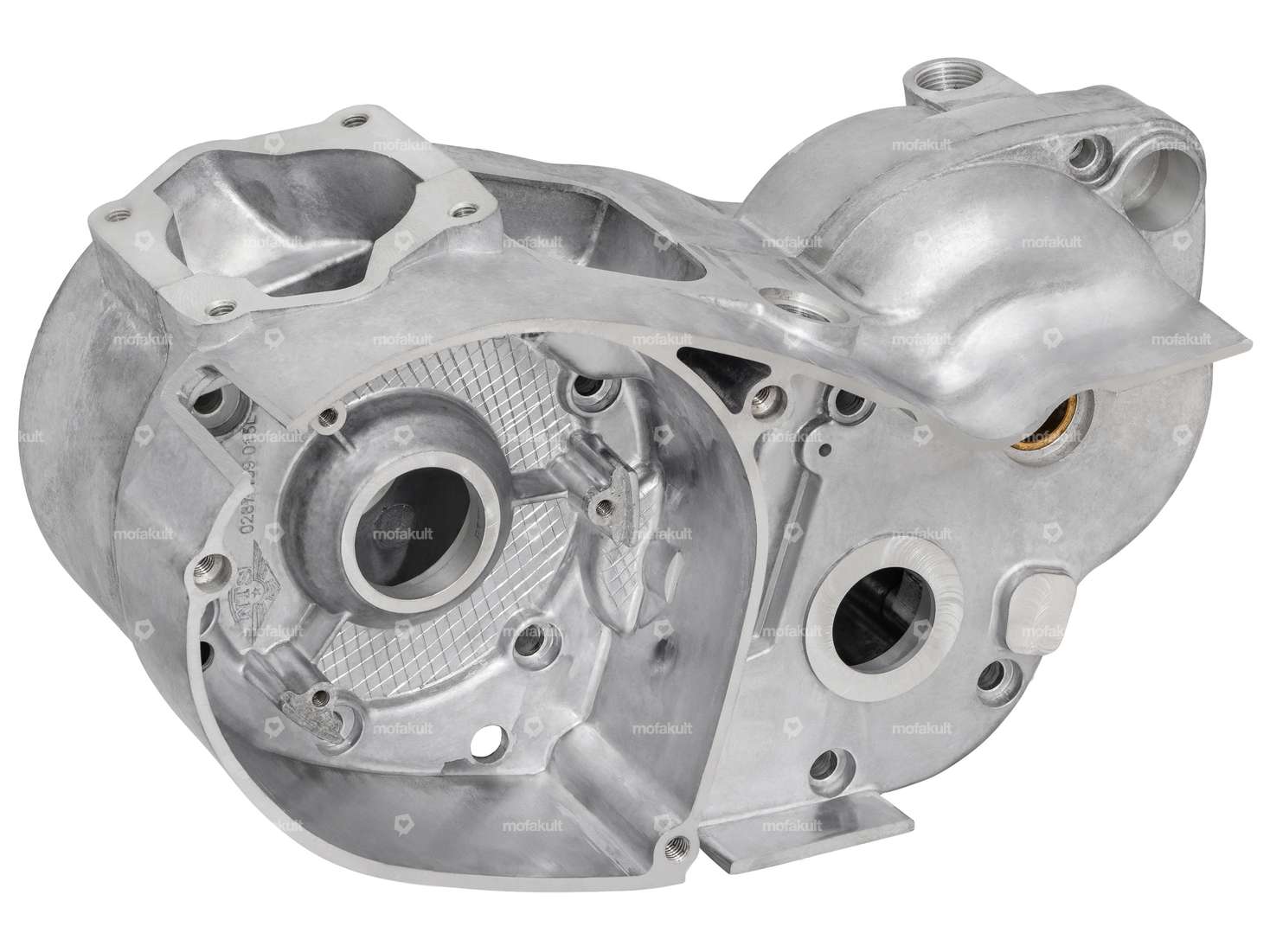

Reproduction engine case for Sachs 50/4 EKF engines with foot shift & kick starter.
The large, angular, windage-cooled cylinder was installed on the case.
L17 shoulder ball bearings, 17-30-7 mm oil seals and the crankshaft with 17 mm cheek journal diameter are installed in this housing.
Perforation of the cylinder studs: 56 x 56 mm
Can also be converted to a Sachs 50/2 with a great deal of effort. However, this is only something for a skilled mechanic
.
| Material | Aluminum |
| Sachs | 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
