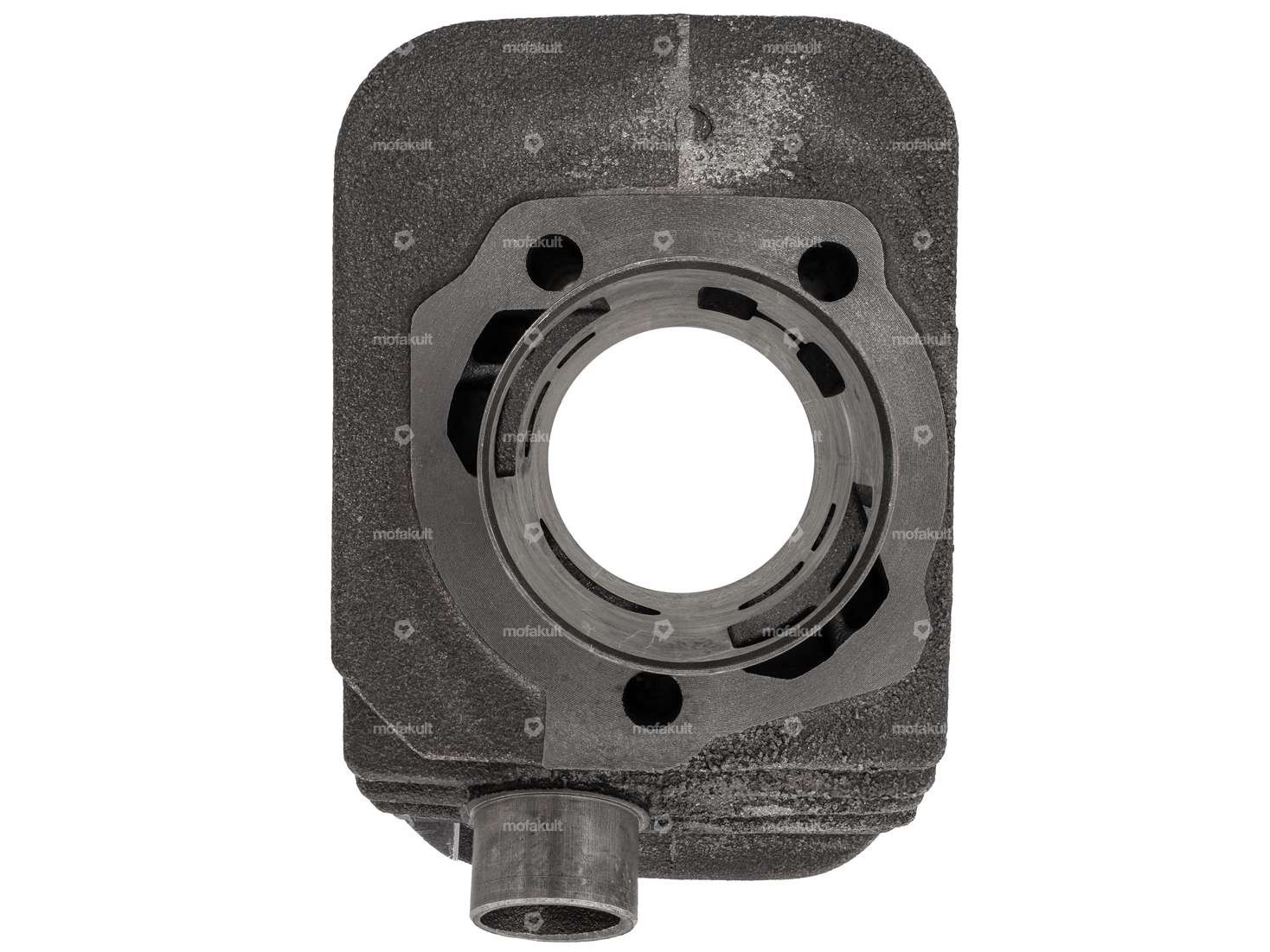

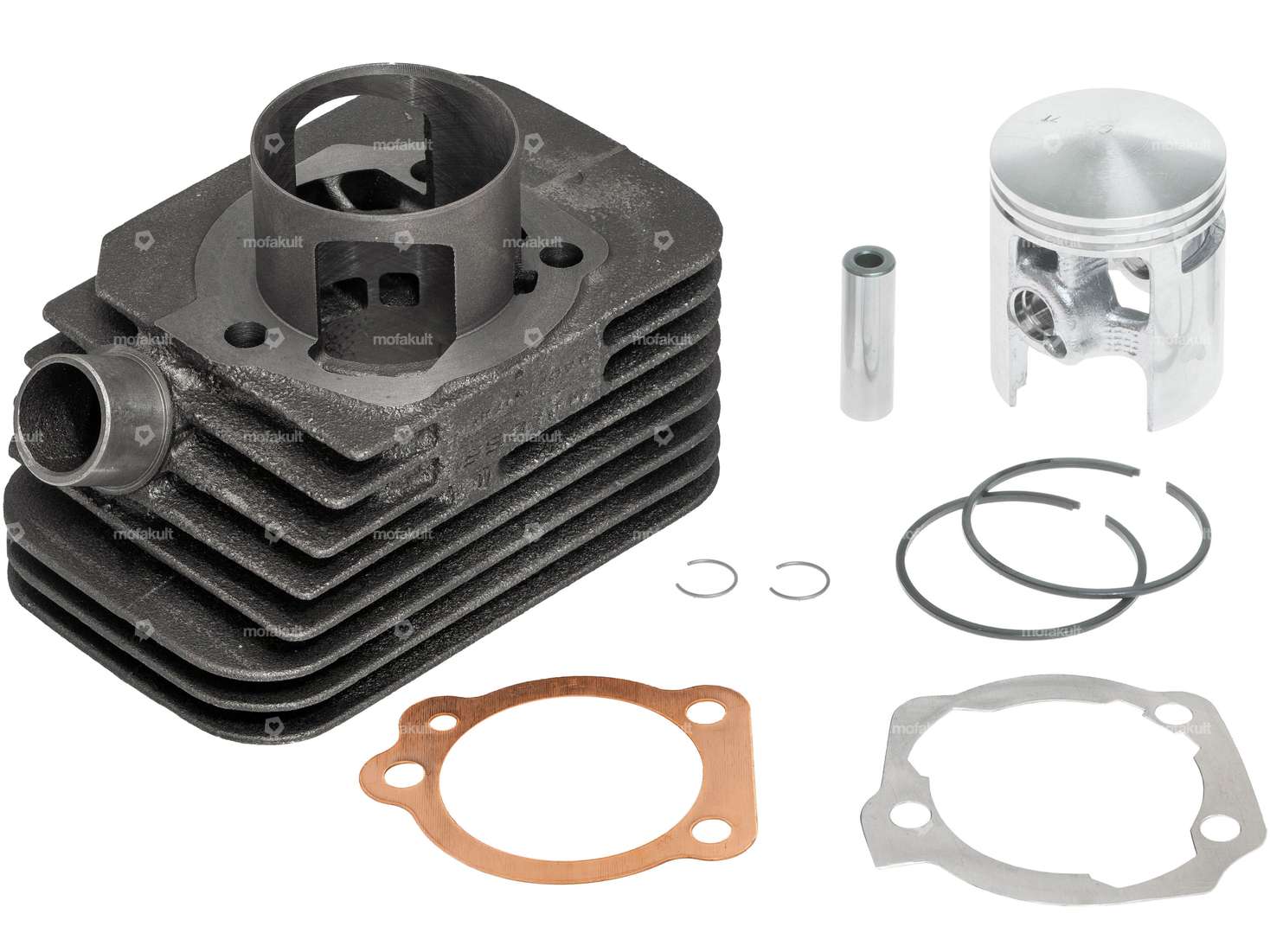

Revised 2021 version of one of the best available cylinder kits for Piaggio mopeds / mopeds.
This is the version with 10 mm piston pin.

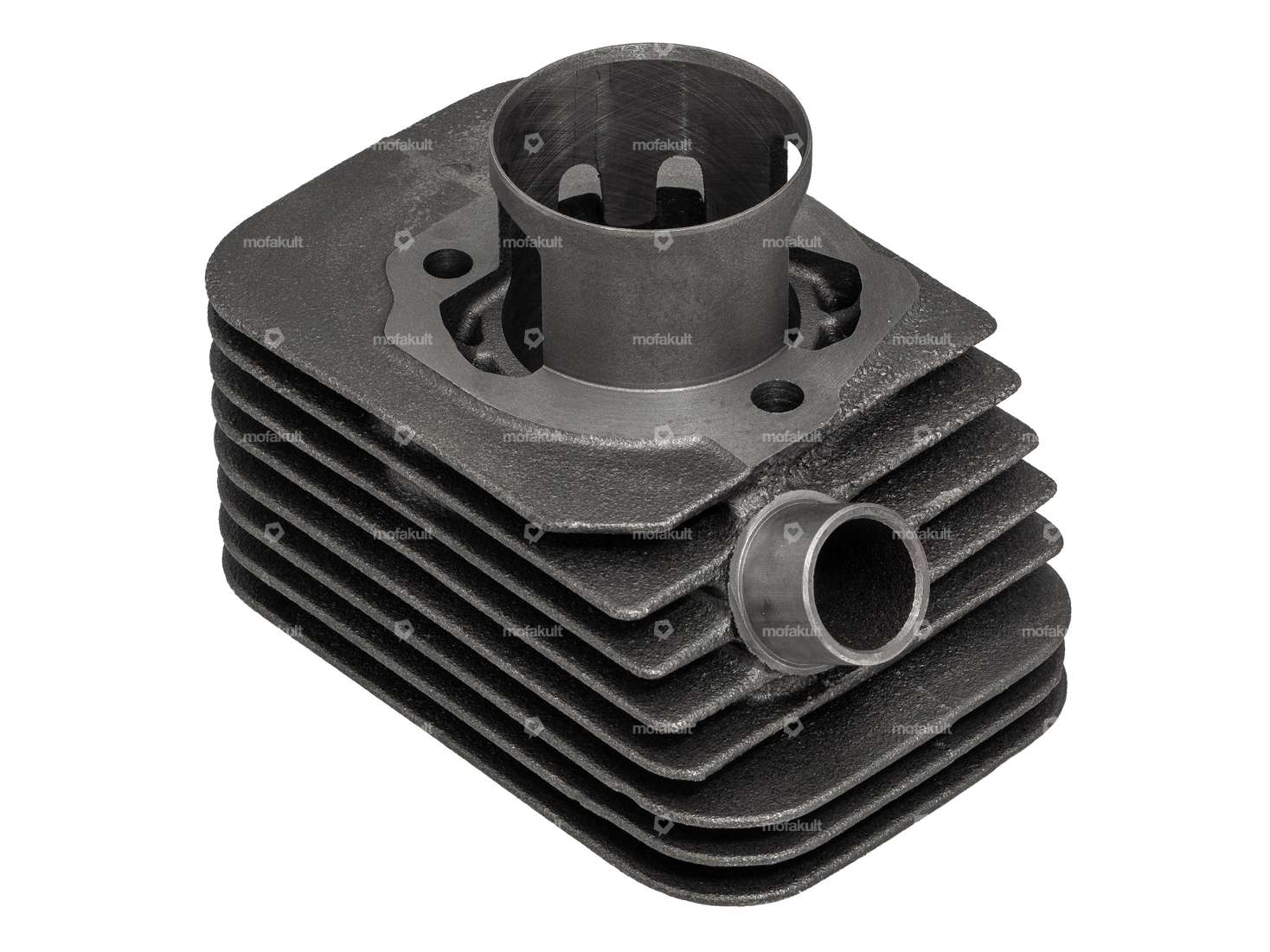

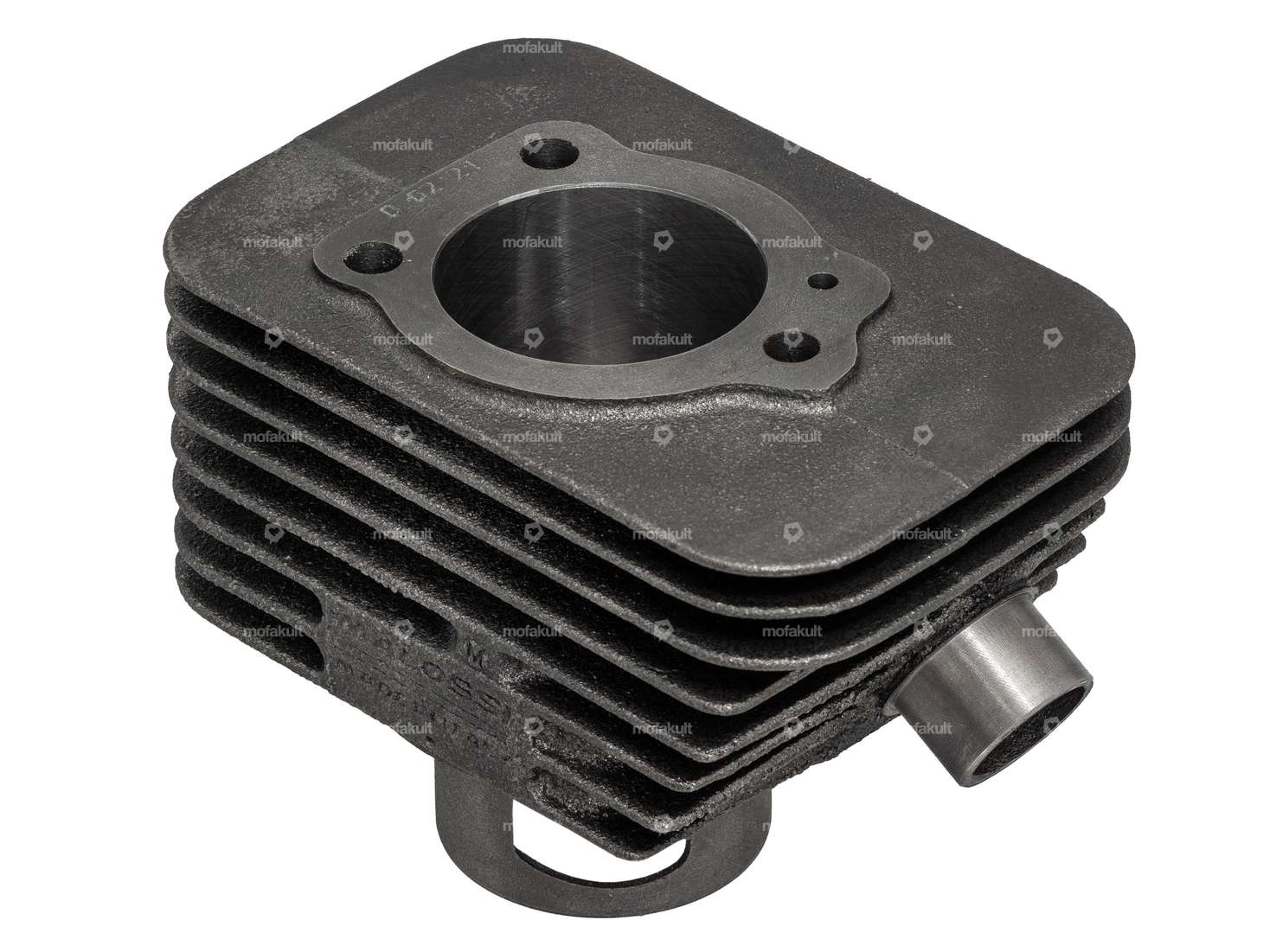

This cast iron cylinder offers a very good increase in performance over the entire speed range and makes it one of the most popular 63 cc racing cylinders for Piaggio.
The workmanship is very clean and the matching of the piston windows to the overflow channels and boost parts is also very good. The webs in the area of the cylinder skirt significantly reduce the risk of piston jamming and make the cylinder extremely durable.
With the reworking, the triangular shape of the transfer ports was adapted to a longitudinal shape. As a result, the cylinder fits much better on racing gear such as the Polini Speed Engine, but less well on the original gear. Fortunately, there is enough sealing surface available so that you can also bring the channels back into a triangular shape on the cylinder if necessary.
In addition to installing a larger cylinder, we always recommend adapting the carburetor and exhaust accordingly. Ideally, you should also modify the intake and the overflow ducts or go straight for a racing case.
Because the combustion chamber is optimally matched to the cylinder, we recommend using the Malossi cylinder head. Alternatively, the cylinder can also be operated with the original head.
Further add-on parts and other versions of the cylinder can be found under accessories.
Quality product from the Italian manufacturer Malossi.
| Manufacturer | Malossi |
| Material | Gray cast iron |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 63 ccm |
| Area of application | Tuning |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 43 mm |
| Ø cylinder neck | 45.6 mm |
| Ø Outlet outside | 22.5 mm |
| Ø outlet inside | 18.3 mm |
| Ø piston pin (B) | 10 mm |
| Outlet type | clamped |
| Number of fixing points | 3 pcs |
| Hole pattern [mm] | 55 x 34 |
| Decompressor | Yes |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
SITO Plus exhaust Ø 24 mm | Piaggio Ciao, Bravo
Color: black · Total length: 690 mm · Manufacturer: SITO · Material: Steel · Surface: varnished · Ø outside: 14 mm · Mounting type: Welded lug · Ø Silencer: 70 mm · Ø Internal connection: 22 mm · Number of fixing points: 1 pcs · Ø Flame tube outside: 24 mm · Exhaust type: Cylindrical · Flame tube attachment: Plug connection clamped
EUR 86.50
Not in stock
SITO Plus exhaust Ø 24 mm | Piaggio SI, Grillo
Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Mounting type: Welded lug · Ø outside: 14 mm · Ø Silencer: 70 mm · Total length: 720 mm · Ø Flame tube outside: 25 mm · Exhaust type: Cylindrical · Number of fixing points: 1 pcs · Ø Internal connection: 22.3 mm · Flame tube attachment: Plug connection clamped
EUR 92.30
Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 - 43 mm · Total length: 122 mm · Area of application: Racing · Candle thread: long · Width: 87 mm · Number of fixing points: 3 pcs · Height: 60 mm · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No
EUR 84.20
Polini Speed Engine engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer
Total length: 215 mm · Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Stock number: 6202 · Color: silver · Crankshaft stroke: 43 mm · Width: 175 mm · Height: 104 mm · Ignition type: Breaker
EUR 242.50
Malossi tuning set 43 mm | Piaggio Ciao, Bravo, Boxer
Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing · Area of application: Tuning · Displacement: 65 ccm · Nominal diameter: 65 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Camouflaged: No
EUR 409.90
Not in stock
Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio SI, Bravo
Manufacturer: Malossi · Total length: 134 mm · Width: 94 mm · Height: 52 mm · Material: Aluminum · Camouflaged: No · Area of application: Racing · Ø cylinder: 41 - 43 mm · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Candle thread: short · Decompressor: Yes
EUR 80.70
Not in stock
Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Thread length: 16 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Area of application: Racing · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Weight: 698 g · Number of gears: 1 pcs
EUR 173.20
Malossi tuning set 43 mm | Piaggio SI, Bravo, Grillo
Nominal diameter: 44 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
EUR 433.10
Dell'Orto 13/13 SHA carburetor & racing air filter set | Piaggio Ciao PX, C24
Manufacturer: Dell'Orto · Manufacturer: Malossi · Total length: 46 mm · Component group Carburetor: Carburetor complete · Area of application: Tuning · Mounting type: Plug connection clamped · Carburetor type: SHA (Piaggio) · Nominal diameter: 13 mm · Width: 60 mm · Ø Internal connection: 16 mm · Height: 96 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66
EUR 77.30
swiing® ingenious stud bolt M7x120 / Ø 7.3 shank (10.9 strength)
Manufacturer: swiing® ingenious parts · Diameter: 7.3 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Thread length: 20 mm · Thread length: 30 mm · Total length: 120 mm · Strength class: 10.9
EUR 5.65

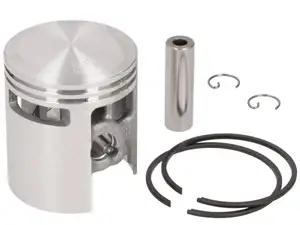

Malossi piston 43 mm (10 mm KoBo) new version | Piaggio Ciao, SI, Bravo, Boxer
