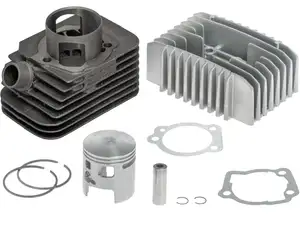

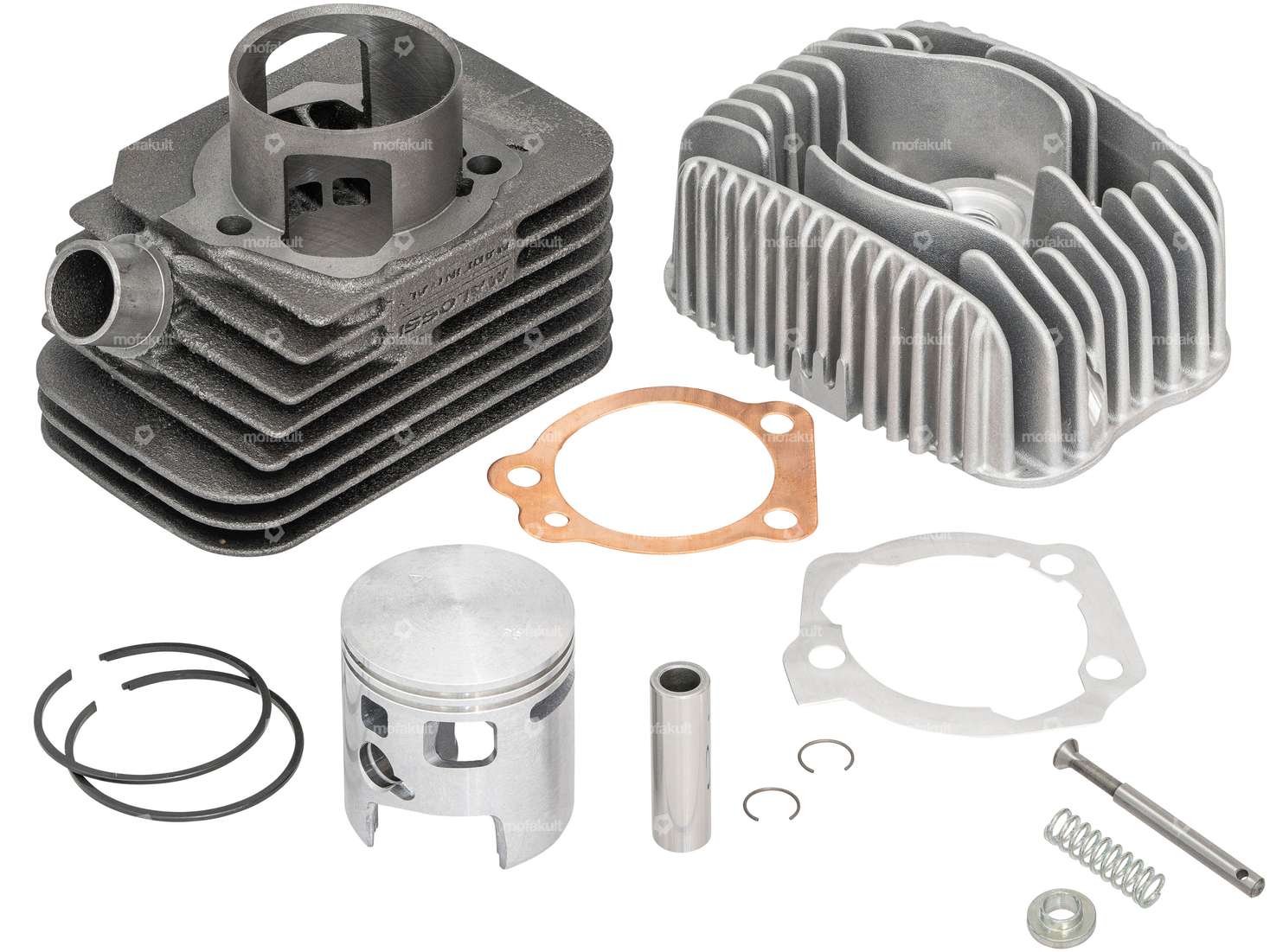

Revised 2021 version of one of the best cylinders available including cylinder head suitable for your Piaggio Ciao, Si, Bravo, Boxer moped / moped with 12 mm piston pin.

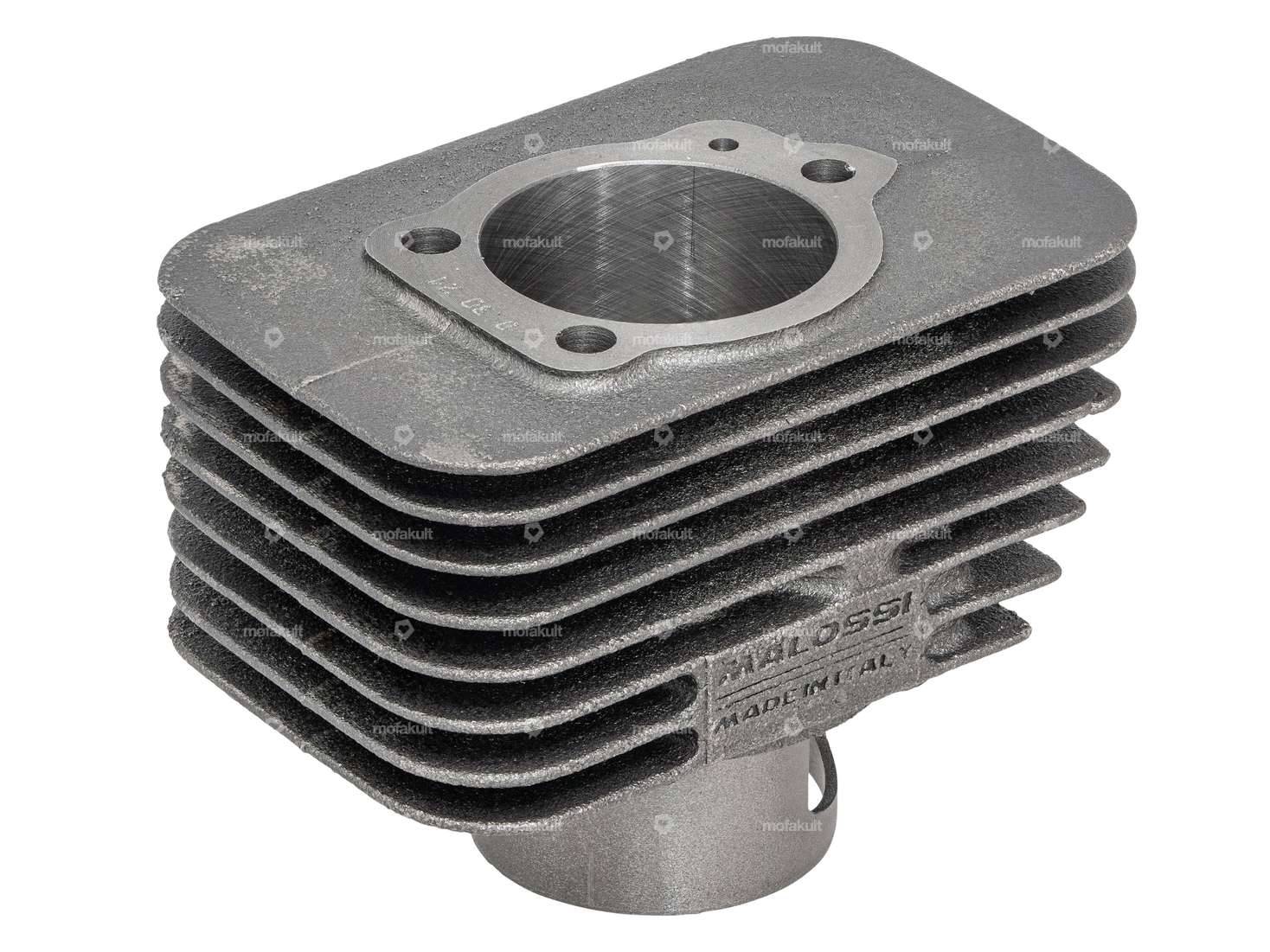

This cast iron cylinder offers a very good increase in performance over the entire speed range and makes it one of the most popular 73.5 cc racing cylinders for Piaggio engines.

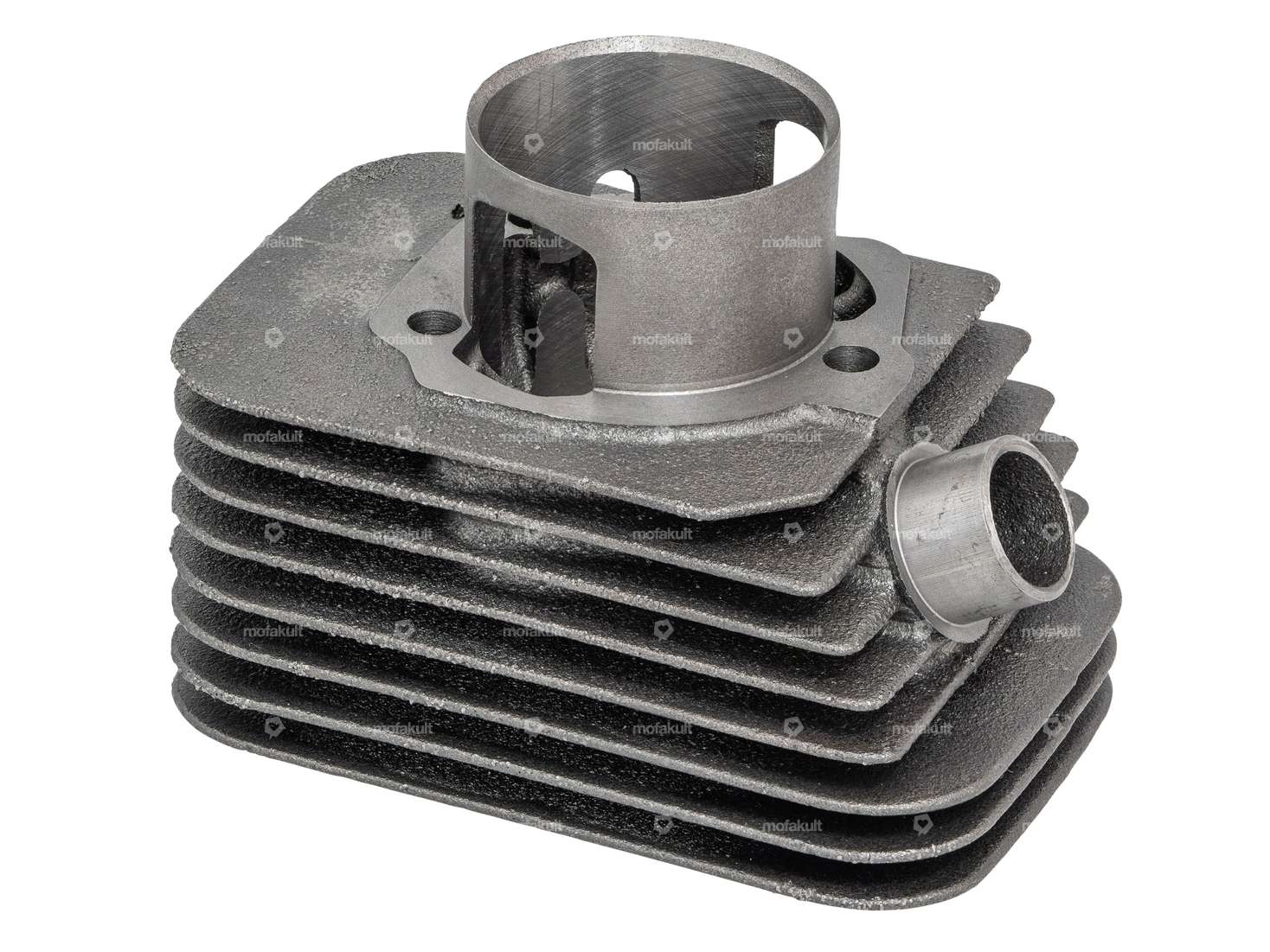

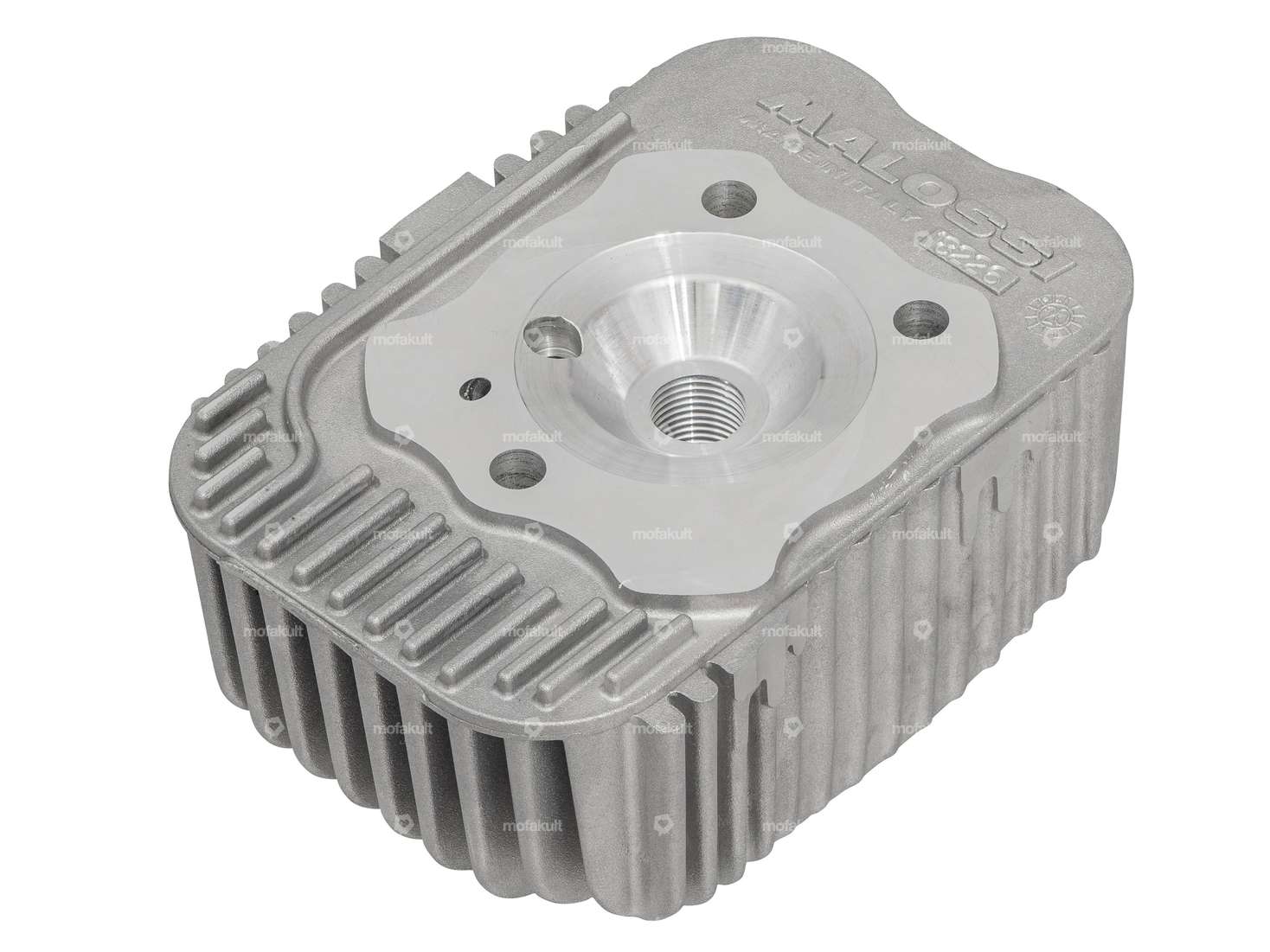

The workmanship is very clean and the alignment of the piston windows with the overflow channels and boost parts is very good. The webs in the area of the cylinder head significantly reduce the risk of piston jamming and make the cylinder extremely durable. The cylinder head with its small combustion chamber and large flat sealing surface ensures good compression. Thanks to the additional cooling fins on the sides, this racing cylinder head can dissipate the resulting heat even better and thus protects the racing set from overheating.
Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 73 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning · Ø cylinder neck: 50 mm · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.1 mm · Hole pattern [mm]: 55 x 34
Hole pattern [mm]: 35 x 55 · Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 44 - 47 mm · Camouflaged: No · Number of fixing points: 3 pcs · Candle thread: long · Decompressor: Yes · Total length: 122 mm · Width: 87 mm · Height: 60 mm · Area of application: Racing
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
Accessories & related products
Dell'Orto 19 mm PHBG CS carburetor hand choke
Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Racing · Area of application: Tuning · Color: black · Carburetor type: PHBG CS · Nominal diameter: 19 mm · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Ø Internal connection: 24 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Total length: 82 mm · Width: 70 mm · Height: 124 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Camouflaged: No · Size of secondary nozzle: 45
EUR 137.60
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Number of components: 7 pcs · Material: Steel · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Surface: burnished · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool · Total length: 130 mm
EUR 22.80

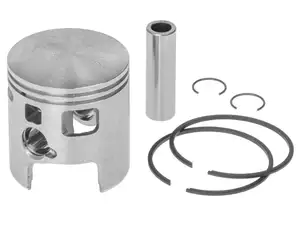

Malossi piston 46.5 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Ø outside piston (A): 46.4 mm · Compression height (C): 25.9 mm · Curvature (D): 2.4 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 46.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 101 g
EUR 100.80
Polini Speed Engine engine housing electronic ignition | Piaggio Ciao, SI, Bravo, Boxer
Stock number: 6202 · Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Color: silver · Crankshaft stroke: 43 mm · Width: 175 mm · Height: 104 mm · Total length: 215 mm · Ignition type: Electronic
EUR 240.80
NGK B7ES spark plug long thread
Manufacturer: NGK · Candle designation: B7ES · Candle thread type: long · Spark plug socket: M4 · Suppressed: No · Spark plug socket: SAE · Thread type: MF14x1.25 (fine pitch thread) · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Width across flats: 21 mm
EUR 7.45
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing type: Needle roller and cage assembly · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Ø outside: 15 mm · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 157 001 · Tomos OEM number: 035548
EUR 13.70

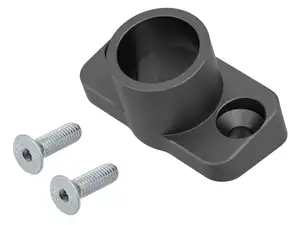

swiing® ingenious 19 mm PHBG intake manifold Speed Engine | Piaggio Ciao, SI, Bravo
