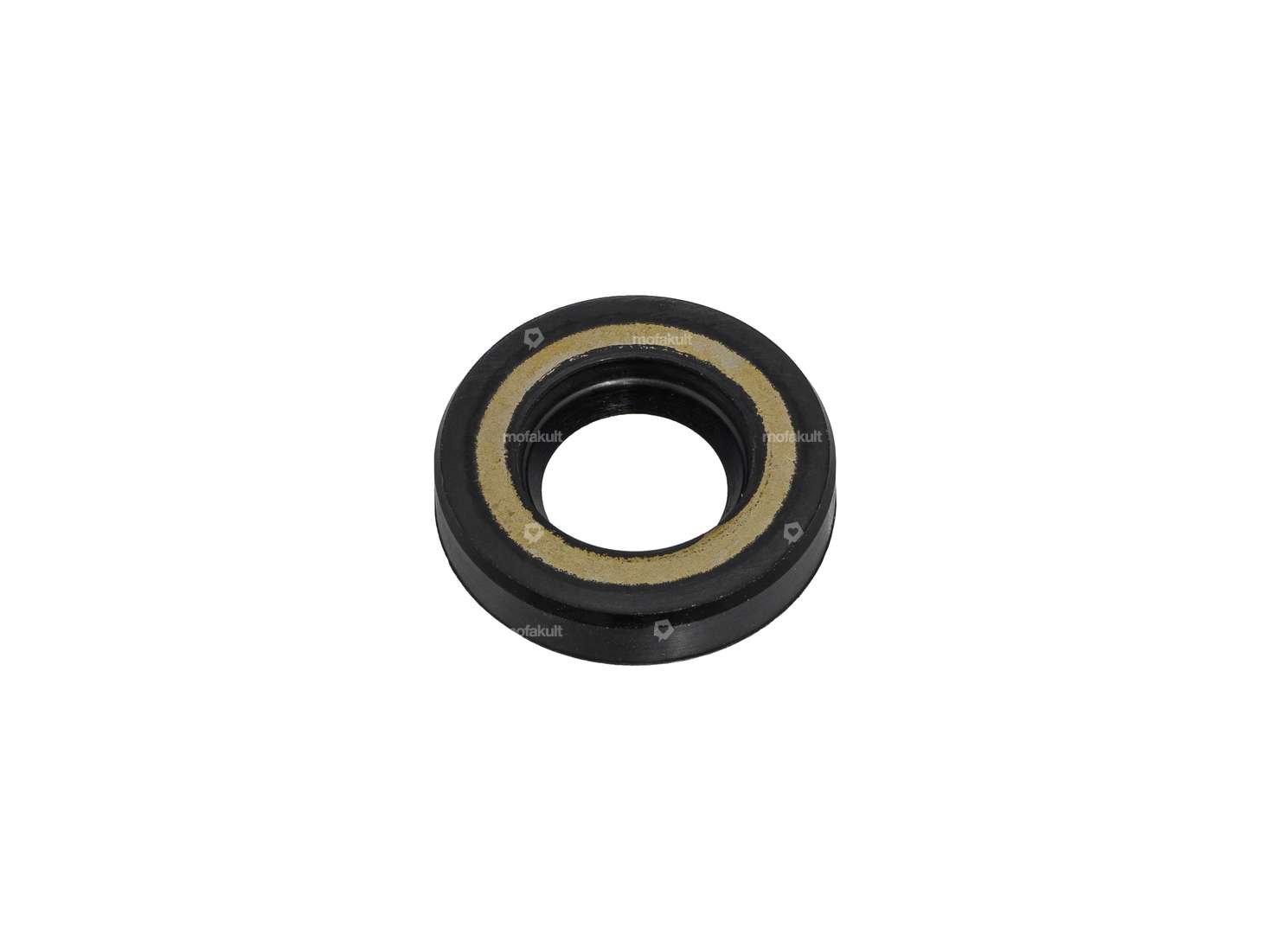

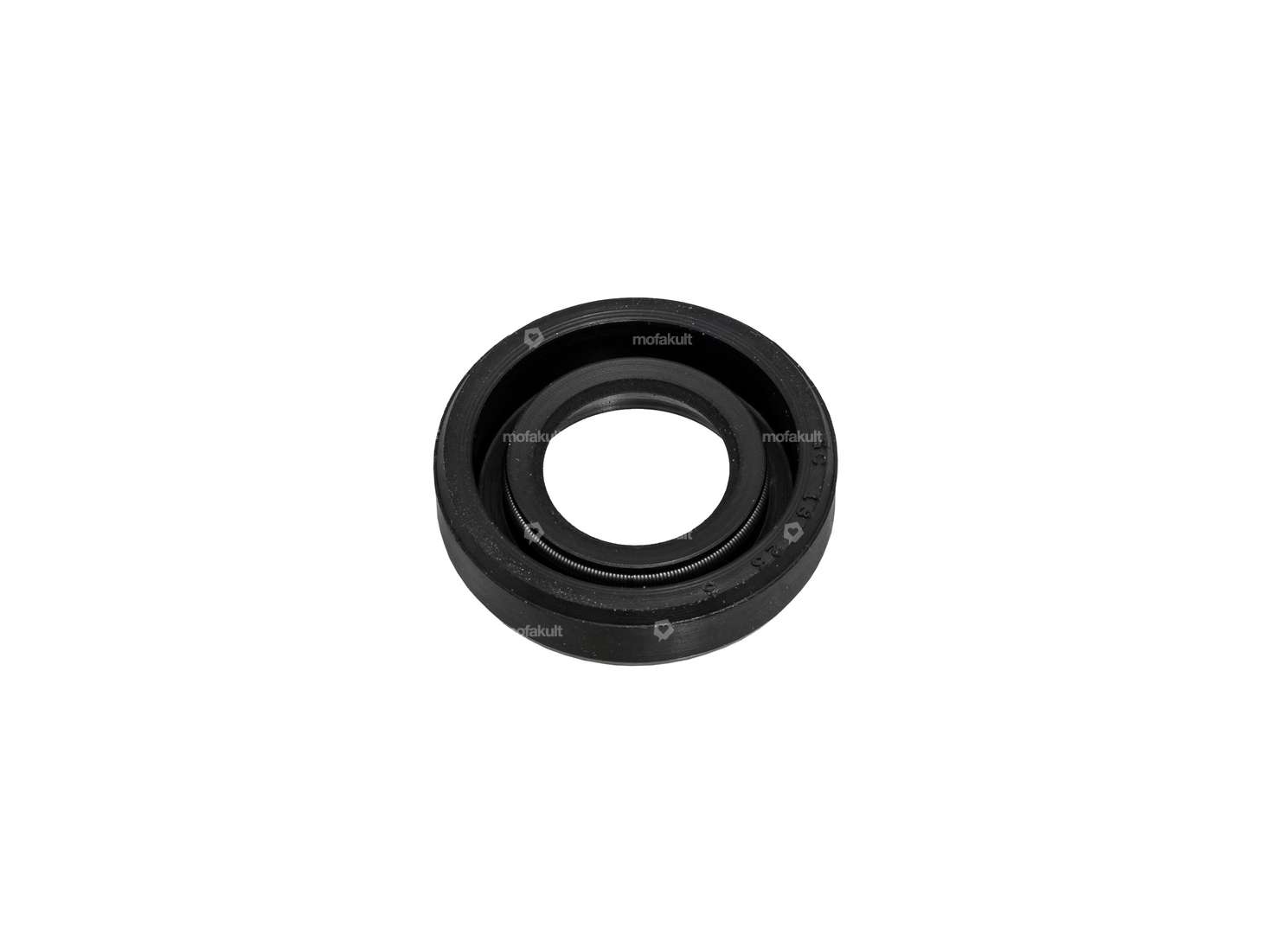

Oil seal NBR 13/25/6 A

Loctite 638 High-strength adhesive 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Temperature resistance (min.): -75 - 150 °C · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m · Area of application: Chemistry

Buzzetti bearing & oil seal assembly tool 40 - 65 mm

Manufacturer: Buzzetti · Area of application: Special tool · Total length: 140 mm

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø inside: 15 mm · Ø outside: 30 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

Motorex High Pressure Grease 3000 850 g

Temperature resistance (min.): -30 - 150 °C · Manufacturer: Motorex · Area of application: Chemistry · Area of application: Fat · Contents [g]: 850 g · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous

Oil seal NBR 15/24/5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: NBR · Surface: rubberized · Ø outside: 24 mm · Ø inside: 15 mm · Width: 5 mm · Temperature resistance (min.): -30 - 100 °C

CRC Grease high temperature 100 ml

Manufacturer: CRC · Contents [ml]: 100 ml · Hazard warning: Causes serious eye irritation · Signal word: Attention · Temperature resistance (min.): -30 - 150 °C · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Area of application: Fat

Oil seal NBR 13/25/5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: NBR · Ø inside: 13 mm · Surface: rubberized · Width: 5 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 25 mm

Dell'Orto 16/16 SHA carburetor hand choke

Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Tuning · Nominal diameter: 16 mm · Carburetor type: SHA · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 16 mm · Ø Internal connection: 19 mm · Ø Output inside: 16 mm · Ø Air filter connection: 56 mm · Ø Air filter connection: 58.5 mm · Total length: 82 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Width: 72 mm · Vacuum connection: No · Height: 111 mm · Color: black · Camouflaged: No · Nozzle size: 82

Oil seal NBR 15/30/7 B AS | Sachs 503, 50/2

Temperature resistance (min.): -30 - 100 °C · Simmering type: B - With sheet metal outer casing / one sealing lip. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø inside: 15 mm · Ø outside: 30 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

NSK E15 shoulder ball bearing 15/35/8 (A1149)

Bearing cage: Brass cage ball-guided · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Groove ring: No · Area of application: Standard · Material: Brass · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 8 mm · Stock number: E15 · Ø inside: 15 mm · Ø outside: 35 mm · Ball bearing closed: No · Pony OEM number: A1149 · Sachs OEM no.: 0232 017 006

Shaft seal NBR 12.96/31.5/3.5 Pinion shaft | Sachs 50/2 (A1137)

Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Manufacturer: Sachs · Material: NBR · Ø inside: 12.96 mm · Ø outside: 31.5 mm · Width: 3.5 mm · Pony OEM number: A1137 · Sachs OEM no.: 0230 014 100

GPO sealing ring 12.8/19/2.4 shift/clutch lever (version 2.0) | Sachs 50/2, 503 A3844

Manufacturer: GPO · Material: NBR · Ø outside: 19 mm · Ø inside: 12.8 mm · Thickness: 2.4 mm · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000

swiing® revival shim set | Sachs 503, 502, 50/2, 50/3

Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 13 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 0.5 mm · Thickness: 1 mm · Ø inside: 12.5 mm · Ø inside: 15.2 mm · Ø outside: 18 mm · Ø outside: 21 mm

Shaft seal NBR 16/24/4 A

Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Material: NBR · Surface: rubberized · Ø inside: 16 mm · Ø outside: 24 mm · Width: 4 mm

Shaft seal NBR 16/24/4 A Pedal start mechanism | Sachs 50/2, 50/3, 50/4

Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 16 mm · Ø outside: 24 mm · Width: 4 mm · Manufacturer: Sachs · Material: NBR · Surface: rubberized

Oil seal NBR 13/25/5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: NBR · Ø inside: 13 mm · Surface: rubberized · Width: 5 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 25 mm

Oil seal NBR 13/25/5 AS 13 mm pinion shaft | Sachs 50

Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 13 mm · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø outside: 25 mm · Width: 5 mm
