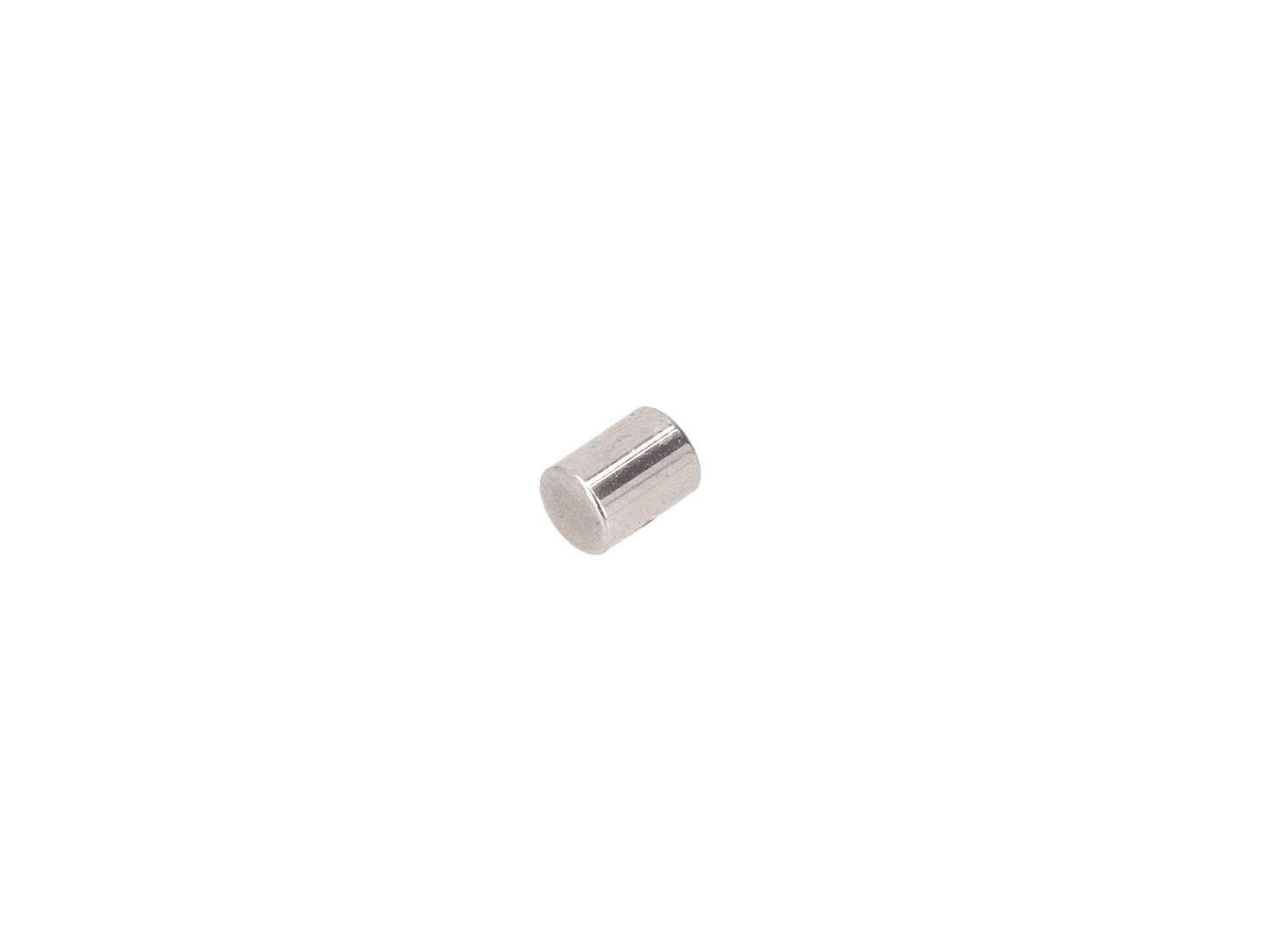

Pin Ø 3 x 4 mm Flywheel Tomos

Crankshaft original | Tomos

Manufacturer: Tomos · Cheek type: standard · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Area of application: Original · Tomos OEM number: 223421

NTN 6203 C3 Ball bearing 17/40/12

Manufacturer: NTN · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Inner ring width: 12 mm · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Ø outside: 40 mm · Ø inside: 17 mm · Stock number: 6203 · Width: 12 mm · Ball bearing closed: No · Area of application: Standard

Airsal 38 mm cylinder kit 12 mm KoBo | Tomos A35

Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Ø piston pin (B): 12 mm · Nominal diameter: 38 mm · Displacement: 50 ccm · Hole spacing inlet: 32 mm · Hole spacing inlet: 35 mm · Hole spacing inlet: 38 mm · Ø cylinder neck: 47 mm · Ø outlet inside: 25 mm · Inlet window: 28 / 24 x 38 · Hole spacing outlet: 42 mm · Thread inlet: M5x0.8 (standard thread) · Decompressor: No · Number of fixing points: 4 pcs · Outlet type: slanted · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Camouflaged: No

Gasket cylinder base Tomos

Place of use: Cylinder base · Tomos OEM number: 233714

GPO oil seal set | Tomos A35

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: GPO · Material: NBR · Surface: rubberized · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm · Width: 7 mm · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm · Temperature resistance (min.): -30 - 100 °C

NTN Bearings & Oil Seals Engine | Tomos A35

Manufacturer: NTN · Number of components: 6 pcs · Area of application: Standard

Engine gasket set | Tomos A35

Number of components: 6 pcs · Area of application: Standard

swiing® ingenious crankshaft "High End" | Tomos Classic, Quadro, Sprint, Fun Sport'R

Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Wide crank webs: 34 mm · Area of application: Racing · Tomos OEM number: 223421

Spring freewheel Tomos

Spring design: Ironing spring · Manufacturer: Tomos · Material: Spring steel · Tomos OEM number: 223121

Spring pedal axle | Tomos

Spring design: Pressure spring · Ø wire: 2 mm · Manufacturer: Tomos · Ø inside: 17 mm · Tomos OEM number: 209099

Spacer washer 16/26/0.5 Pedal axle | Tomos

Ø inside: 16 mm · Nominal diameter inside: 16 mm · Ø outside: 26 mm · Thickness: 0.5 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Tomos OEM number: 200175
