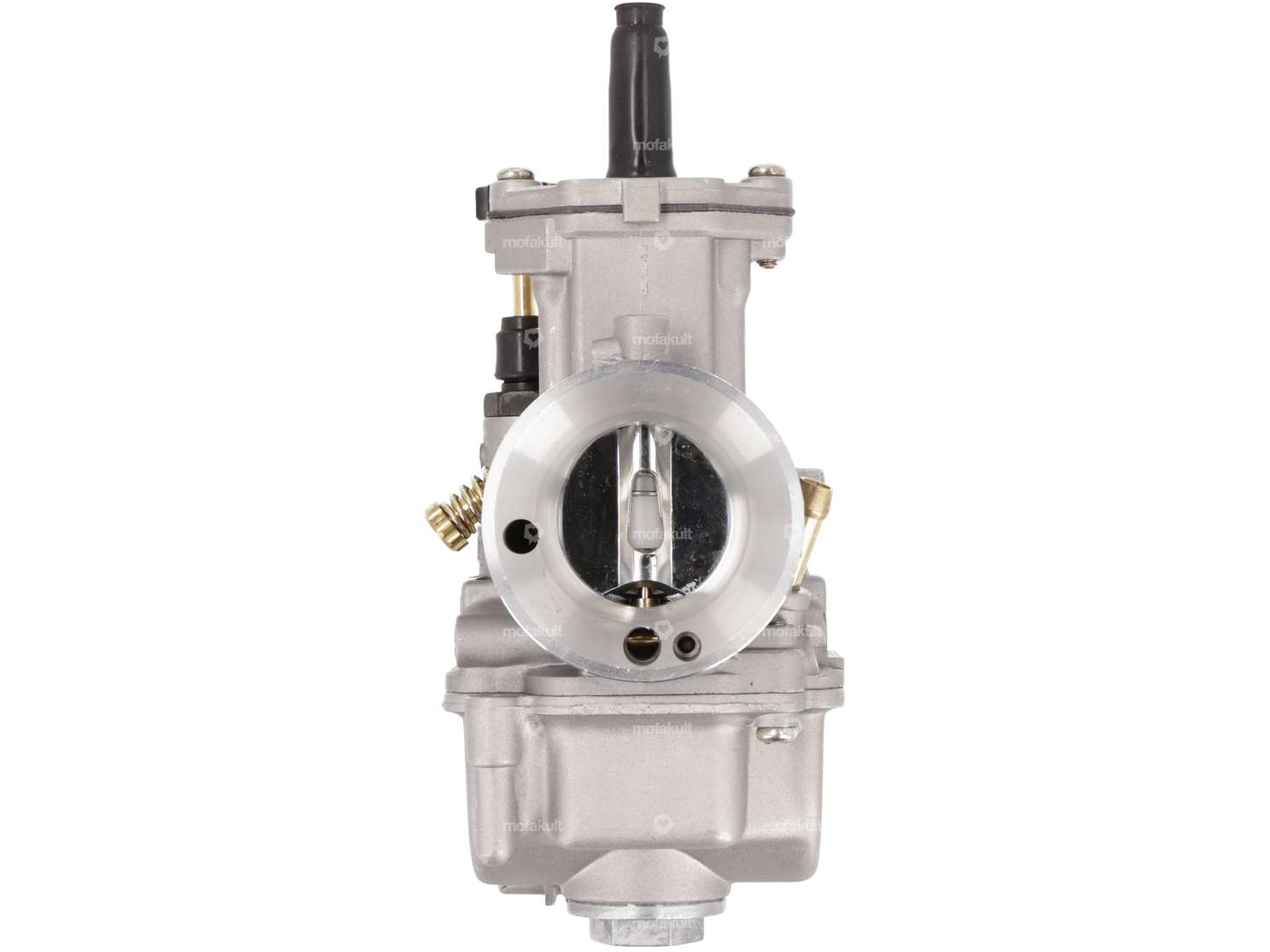

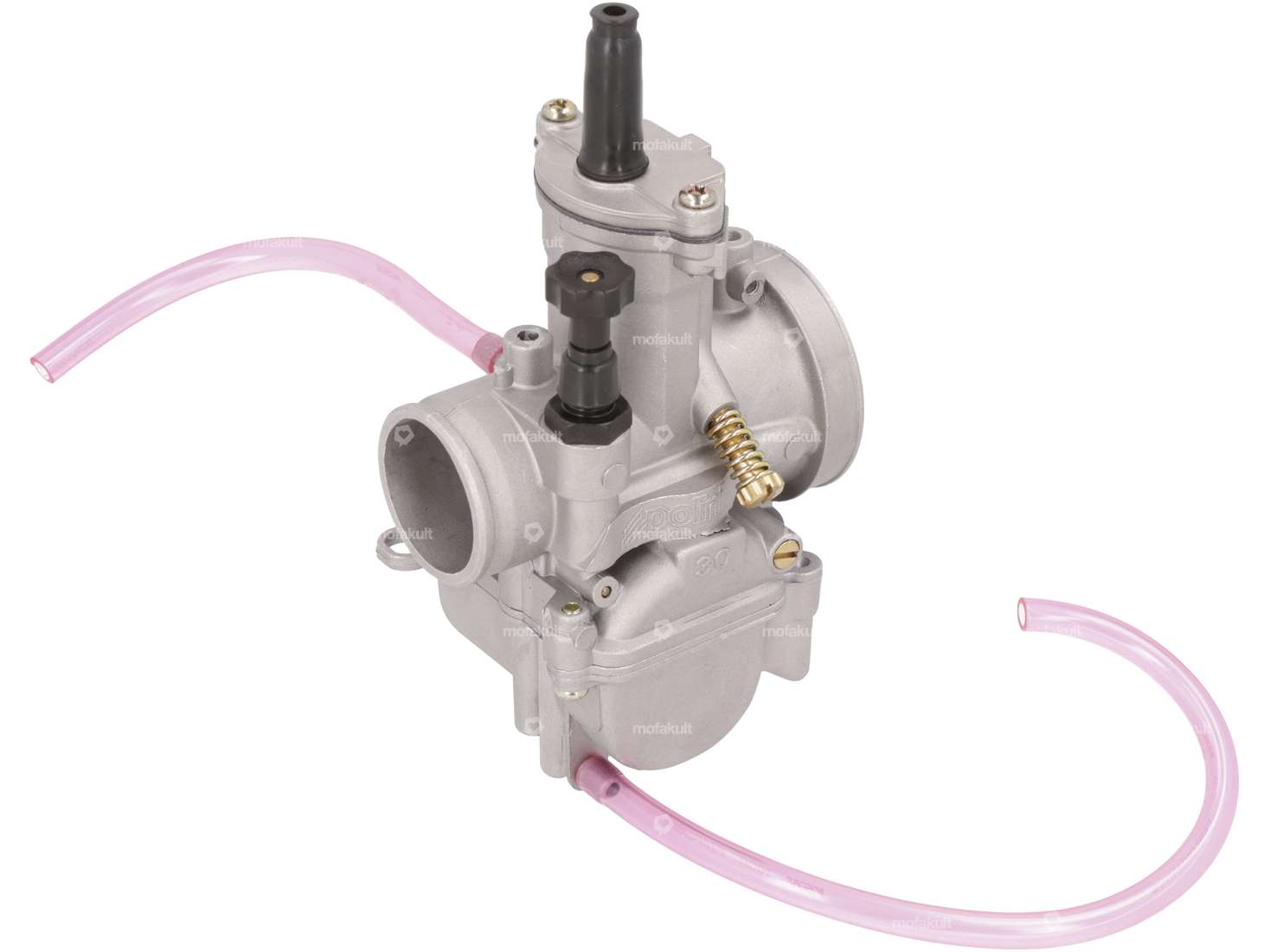

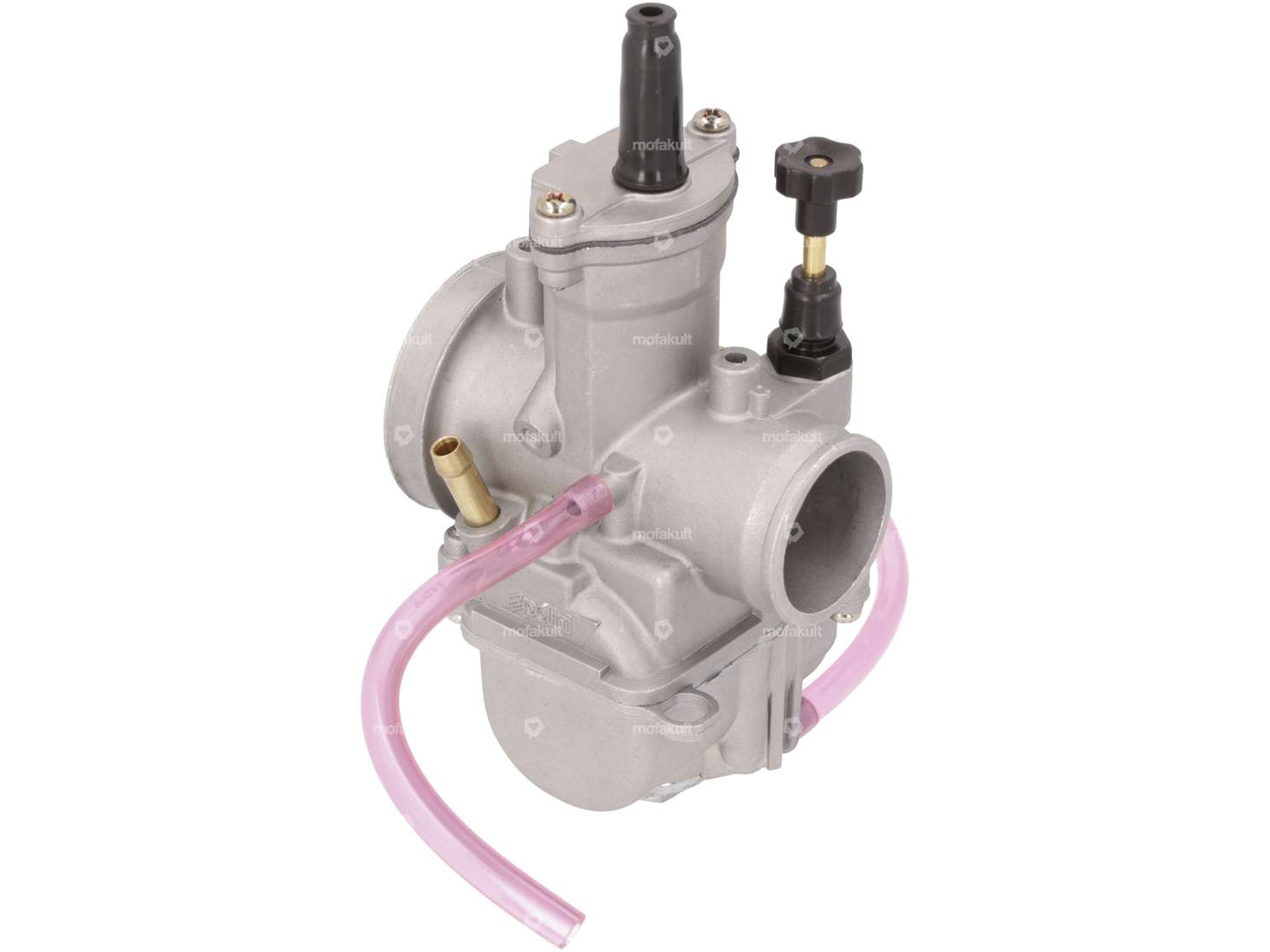

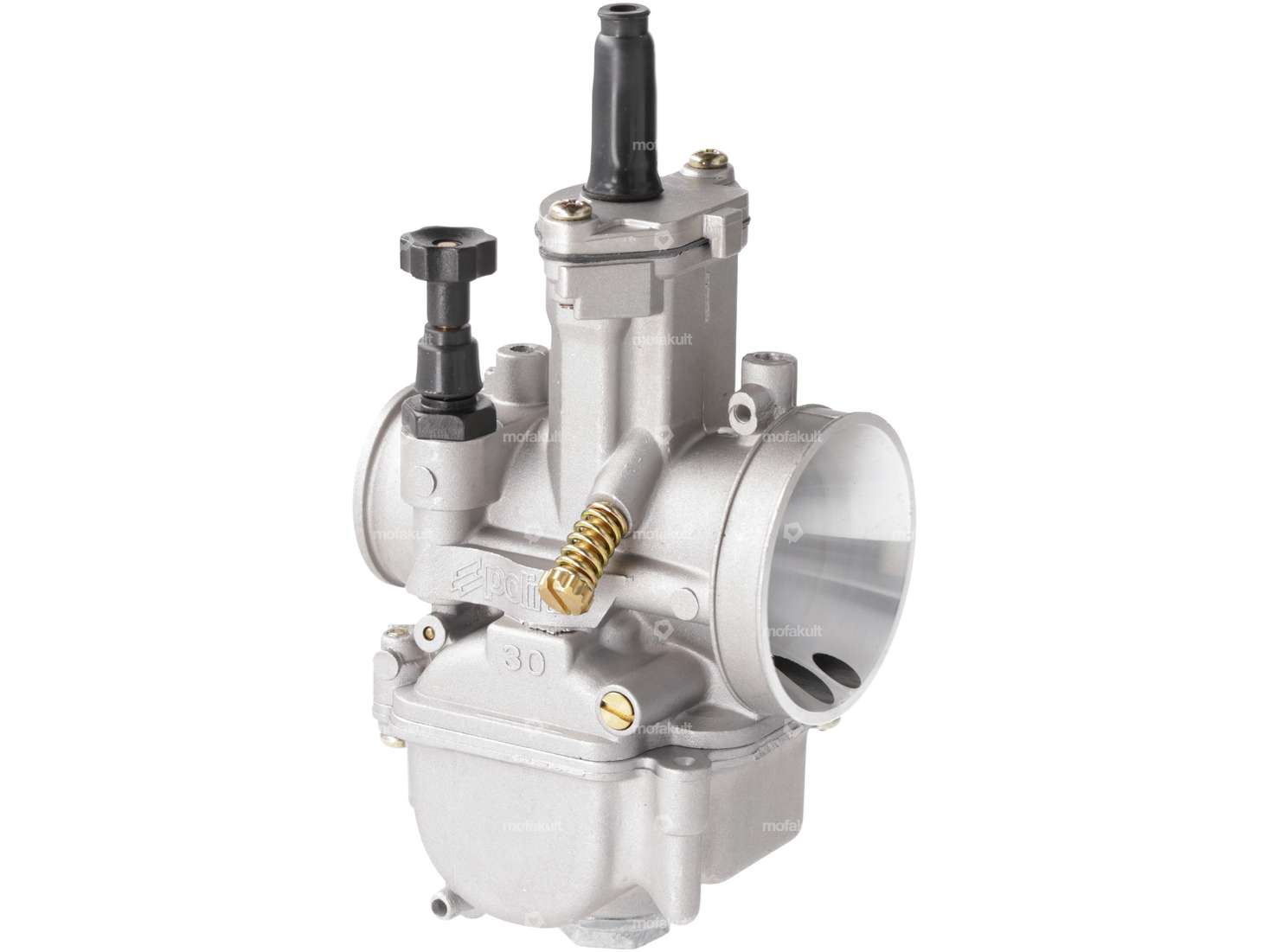

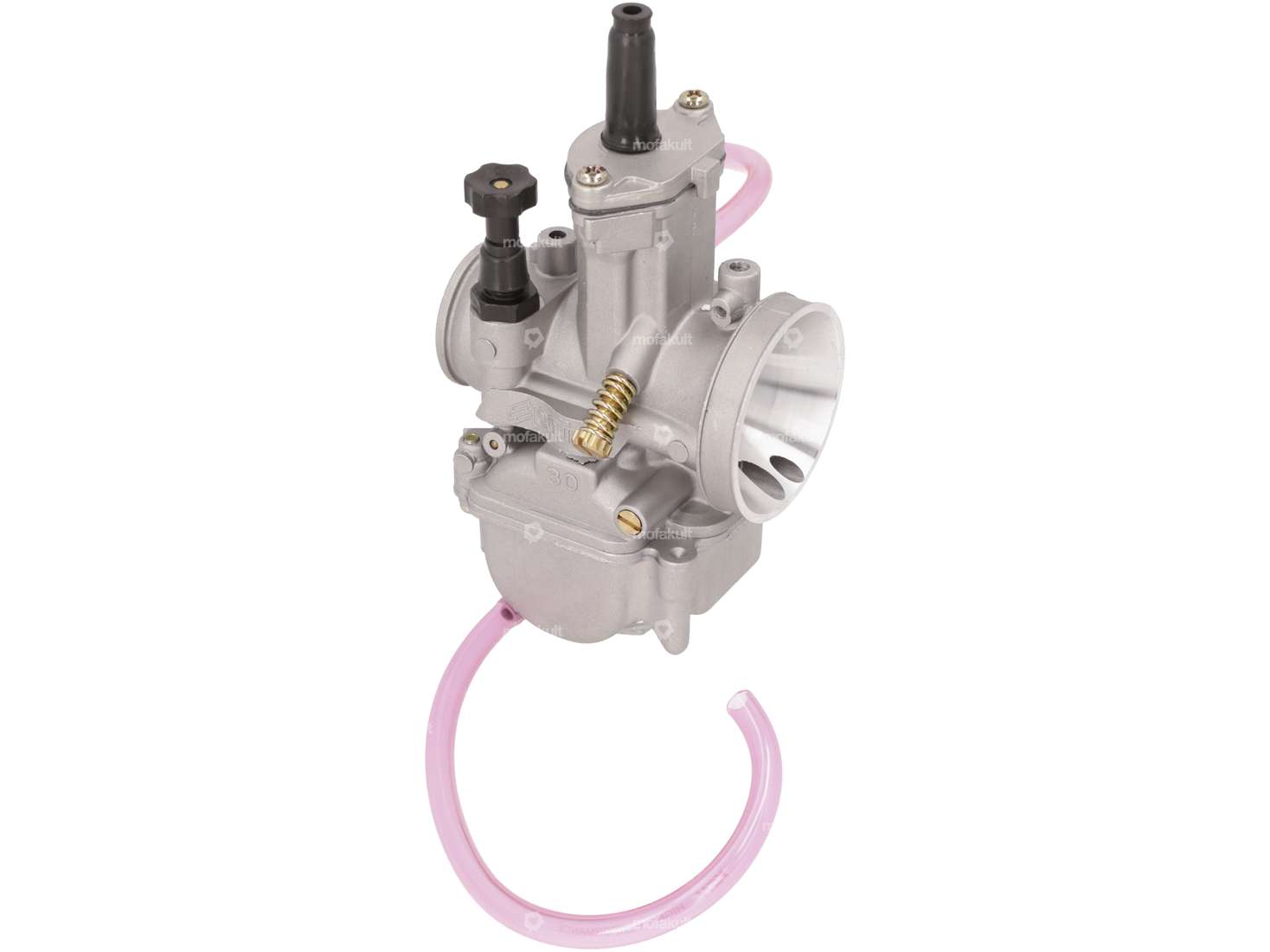

High-quality 30 mm carburetor with PWK technology and vacuum / oil connection for racing use on your moped, moped or small motorcycle.
The choke is located directly on the carburetor and can be operated by hand. Special Polini nozzles must be used.
| Manufacturer | Polini |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Carburetor type | Flat slide valve |
| Nominal diameter | 30 mm |
| Ø Inside entrance | 30 mm |
| Ø Output inside | 30 mm |
| Ø Air filter connection | 49 mm |
| Ø fuel hose connection | 6 mm, 7 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 135 |
| Camouflaged | No |
| Size of secondary nozzle | 45 |
| Total length | 83 mm |
| Width | 65 mm |
| Height | 155 mm |
| Area of application | Tuning, Racing, Performance |
