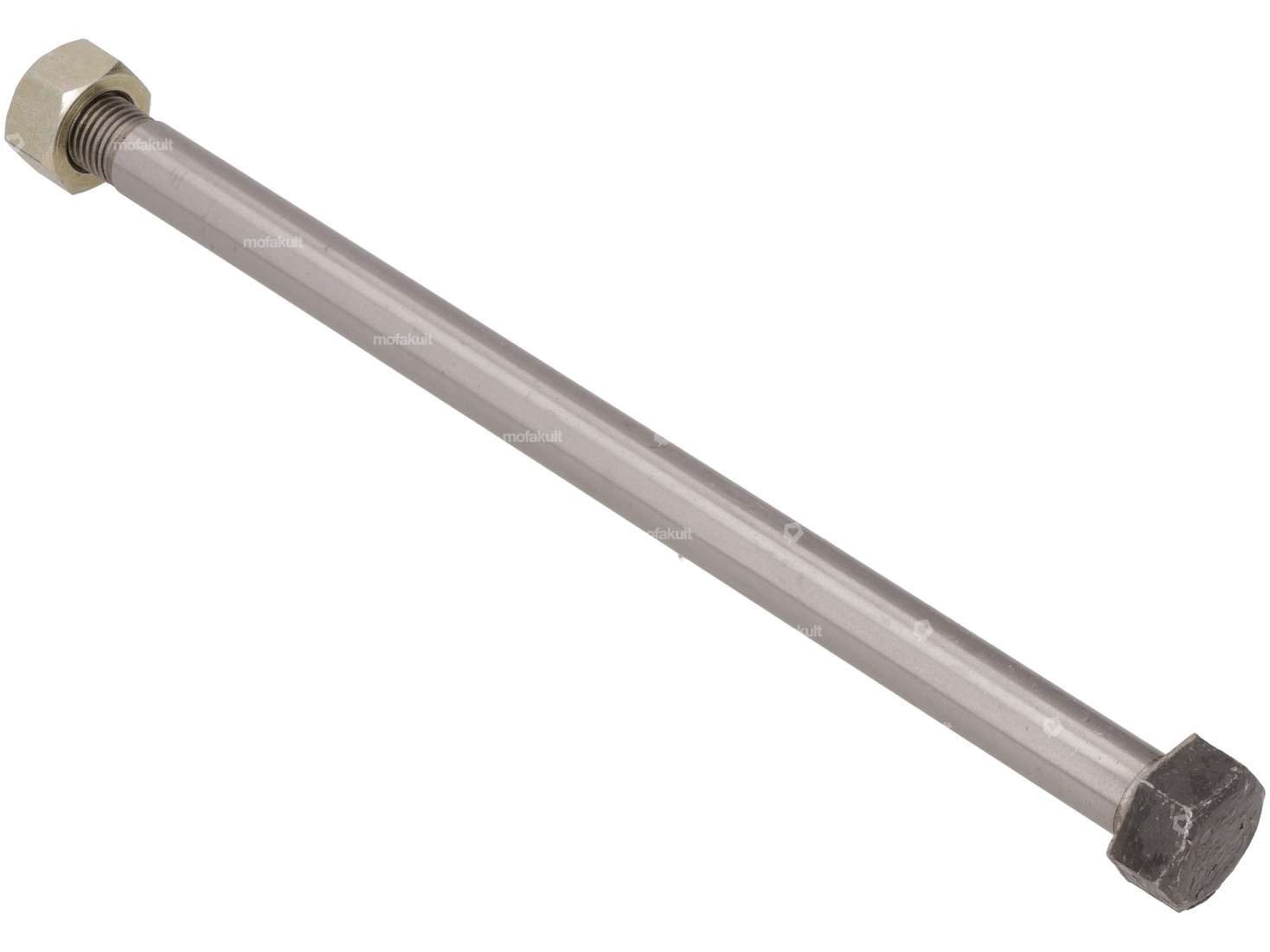

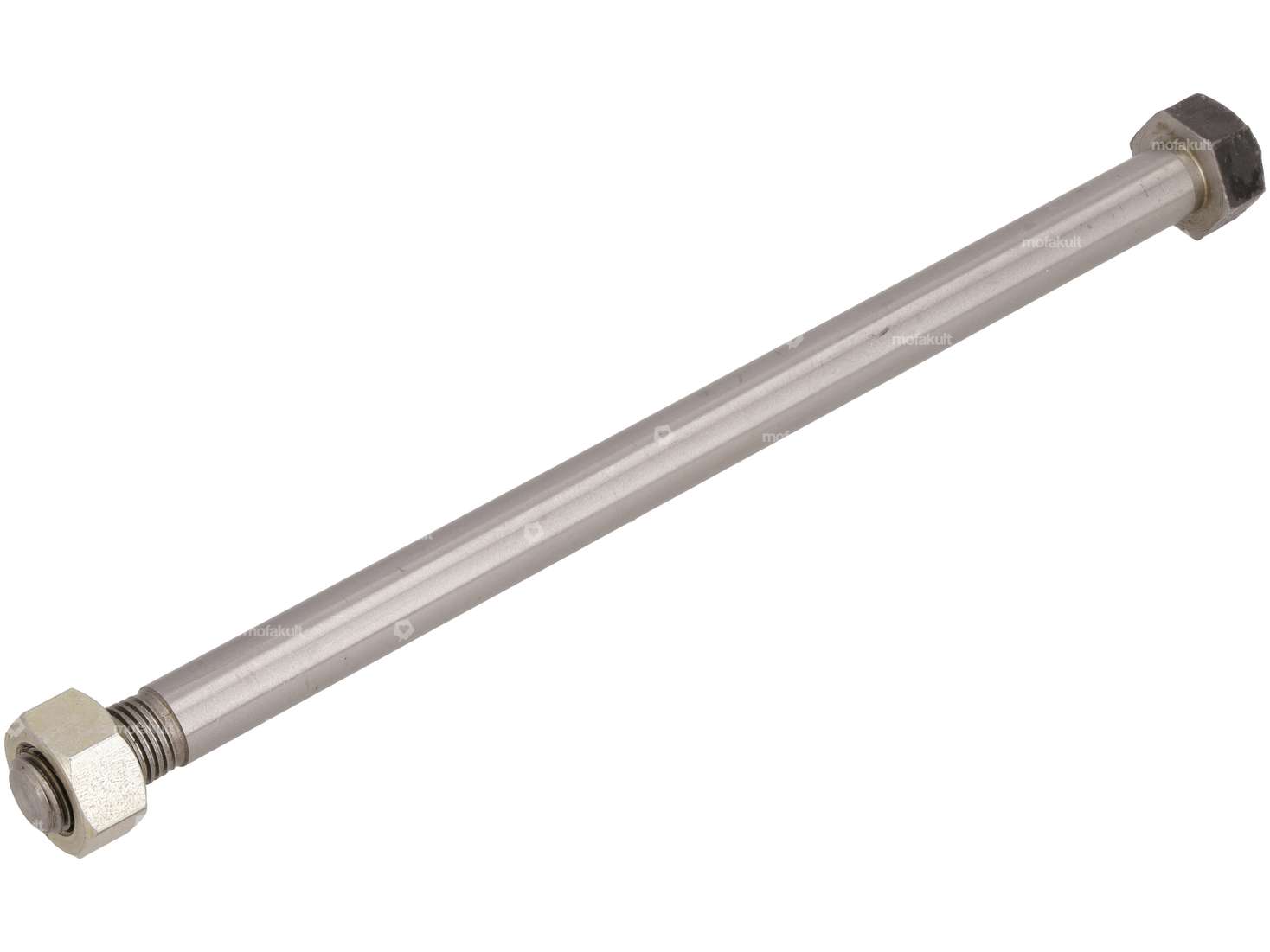

M14 x 240 mm engine bolt including hexagon nut to fit your Vespa Largeframe scooter. You can find a list of the exact models below in the drop-down menu under «suitable for the following models».
The crossbar bolt is used to attach the motor to the frame of your scooter.
Price per piece.
You can find more screws in the accessories section.
| Material | Steel |
| Total length | 251 mm |
| Manufacturer | RMS |
| Ø shaft | 13.85 mm |
| Nominal diameter (thread) | 14 mm |
| Thread type | MF14x1.5 (fine pitch thread) |
| Thread length | 22 mm |
| Drive | External hexagon |
| Shank | Yes |
| Shank length | 218 mm |
| Screw head | Hexagon |
| Width across flats | 22 mm |
| Number of components | 2 pcs |
| Piaggio OEM number | 081803 |
| Vespa | Vespa PX, T5, Cosa - PX80 E Lusso · V8X1T · 1983 - 1993 Lusso / Arcobaleno , PX100E · VIX1T · Indien , P125X · VNX1T · 1977 - 1982 (PX alt) Aussenverschluss , P125X · VNX2T · 1981 - 1984 (PX alt) Innenverschluss , PX125 E · VNX2T · 1982 - 1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993 - 1996 Classic , PX125 · VNX2T · 1997 - 1999 (Disc) , T5 125 · VNX5T · 1985 - 1993 , PX125 · ZAPM471 · 2001 MY Katalysator (Millenium) , P150X · VLX1T · 1978 - 1993 , P150S · VBX1T · 1978 - 1990 , PX150 · ZAPM742 · 2001 MY Katalysator (Millenium) , P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , PX200 · VSX1T · 1997 - 1999 (Disc) , P80X · V8X1T · alt (Zündschloss Lenkkopf) |
