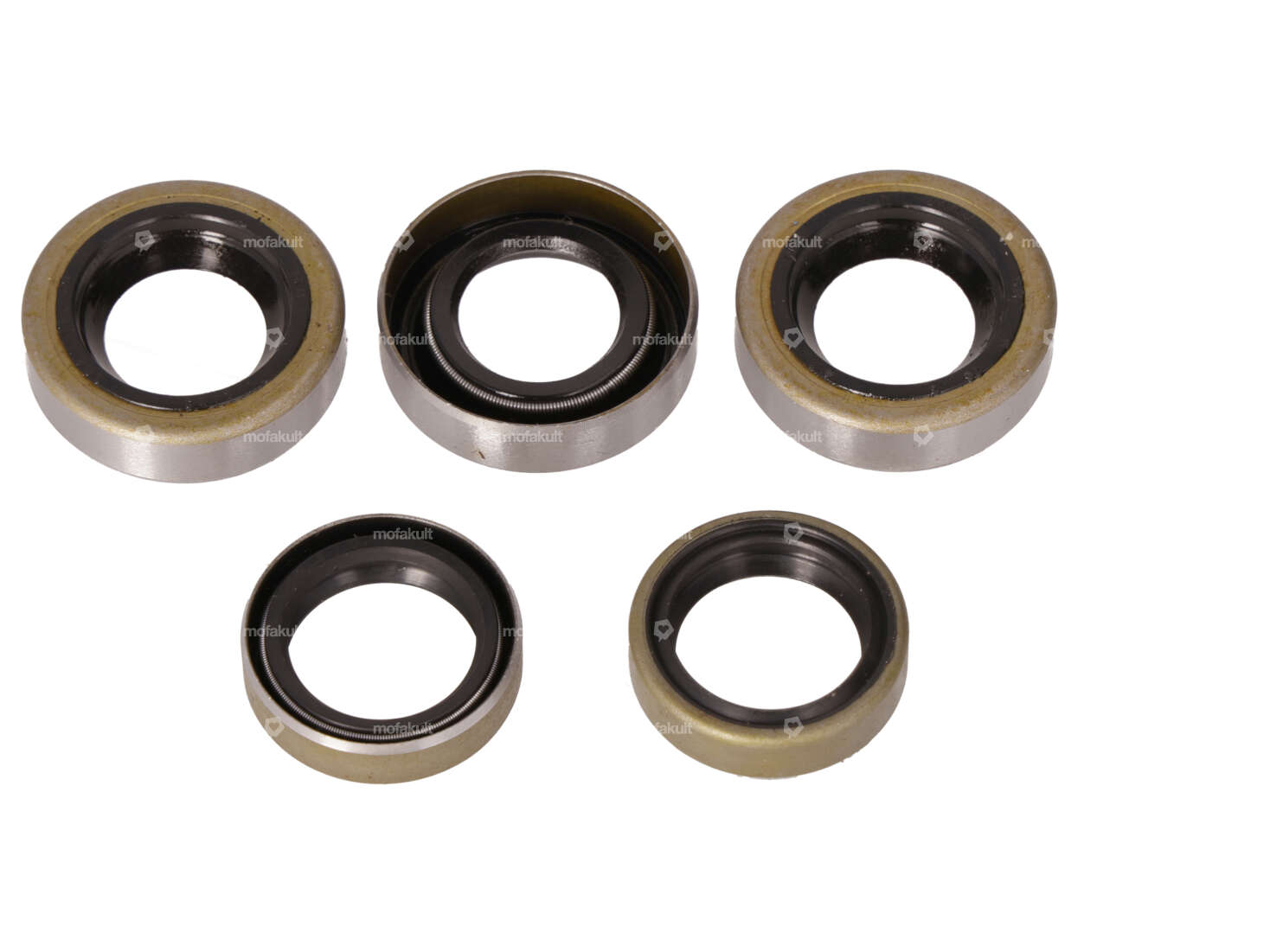

Shaft seal set | Ilo G50

Loctite 638 High-strength adhesive 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Contents [ml]: 10 ml · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Color: green · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -75 - 150 °C · Gap dimension (max.): 0.25 mm · Type of application: 1K · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m

GPO gasket set | ILO Piano G50 / V50

Manufacturer: GPO · Number of components: 5 pcs · Area of application: Standard

Set of clutch plates (4 pcs.) | ILO

Thickness: 2.45 mm · Ø outside: 75.6 mm · Area of application: Standard

Rito crankshaft | ILO

Manufacturer: Rito · Cheek type: Full cheeks · Total length of crankpin on clutch side: 61.5 mm · Area of application: Standard · Total length crankpin ignition side: 61.5 mm · Ø piston pin (B): 10 mm · Wide crank webs: 33.8 mm

Timing belt transmission | ILO

Total length: 350 mm · Number of teeth: 44 pcs · Toothing type: straight toothed

Kickstarter spring | ILO G50 Piano

Ø wire: 2 mm · Ø outside: 30 mm

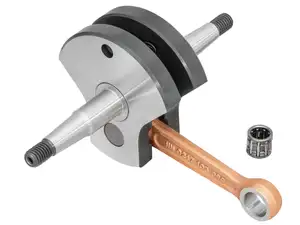

Crankshaft | ILO G50, V50

Dimension needle bearing: 10 / 14 x 12.7 mm (axe 10) · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 62 mm · Area of application: Standard · Total length crankpin ignition side: 62 mm · Ø crank webs: 80 mm · Ø piston pin (B): 10 mm · Thread type: MF10x1.25 (fine pitch thread) · Ø Connecting rod eye: 14 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 34 mm

Oil filler plug with sealing ring | Puch Maxi

Material: Steel · Surface: galvanized (blue) · Total length: 14.6 mm · Drive: Slot · Screw head: Lens head · Ø External head: 14 mm · Thread length: 6 mm · Thread type: M10x1.5 (standard thread) · Number of components: 2 pcs · Puch OEM number: 364.1.10.660.1

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Surface: blank · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 10 mm

Puch sticker X30 Sport NL Tank

Material: Polyvinyl chloride (PVC) · Place of use: Tank (+ frame) · Rear side texture: Adhesive · Consistency: UV-resistant · Consistency: petrol resistant

Inlet gasket 3.2 mm | Puch X30 Velux / Sachs

Place of use: Admission · Thickness: 3.2 mm · Hole spacing inlet: 32 mm

Inlet gasket 1.6 mm | Puch X30 Velux / Sachs

Thickness: 1.6 mm · Place of use: Admission · Hole spacing inlet: 32 mm

GPO sealing ring 12.8/19/2.4 shift/clutch lever (version 2.0) | Sachs 50/2, 503 A3844

Manufacturer: GPO · Material: NBR · Thickness: 2.4 mm · Ø inside: 12.8 mm · Ø outside: 19 mm · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000

Shim 20/28/0.1 Crankshaft E20 Bearing | Puch

Nominal diameter inside: 20 mm · Manufacturer: Puch · Material: Steel · Surface: blank / oiled · Ø inside: 20 mm · Thickness: 0.1 mm · Ø outside: 28 mm

Snap ring gear wheel | Puch E50

Manufacturer: Puch · Puch OEM number: 901.4656

GPO gasket set | ILO Piano G50 / V50

Manufacturer: GPO · Number of components: 5 pcs · Area of application: Standard

Sealing ring for tank cap Ø 30 mm

Nominal diameter: 30 mm · Material: Rubber · Place of use: Tank (+ frame) · Ø outside: 46 mm · Ø inside: 29 mm
