For: Sachs

30340

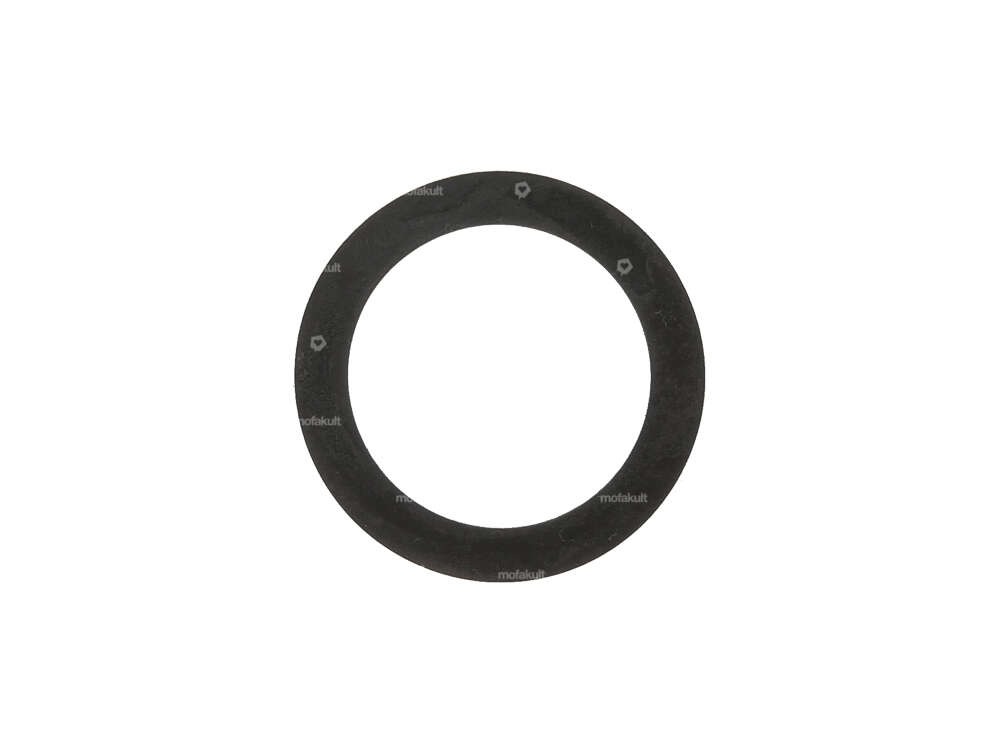

Shim 19/26/0.3 Freewheel 2nd gear | Sachs 503 ABL, AB, AC, ADV (A1197)

EUR 3.30

Incl. 17% VAT.

Description

Spacer 19.1x26x0.3 mm for the countershaft in the gearwheel of the second gear on Sachs mopeds / mopeds with 503 ABL, AB, AC and ADV engines.
The spacer, which is mounted between the freewheel body and the bearing rollers or bearing rings, is made of hardened spring steel.

Ø inner: 19.1 mm
Ø outer: 26 mm
Thickness: 0.3 mm
Tolerance: DIN988 (-0.03 mm permissible for thickness)

Depending on the terminology used, this component is also known as a shim washer, bearing washer or thrust washer.

Original Sachs spare part number: A1197

Spacer washer 19/26/0.3

Universal

Spacer washer 19/26/0.3

25789

Material: Steel · Surface: blank / oiled · Ø inside: 19 mm · Ø outside: 26 mm · Thickness: 0.3 mm · Nominal diameter inside: 19 mm

Sachs

503 - ABL , AB , AC , ADV
