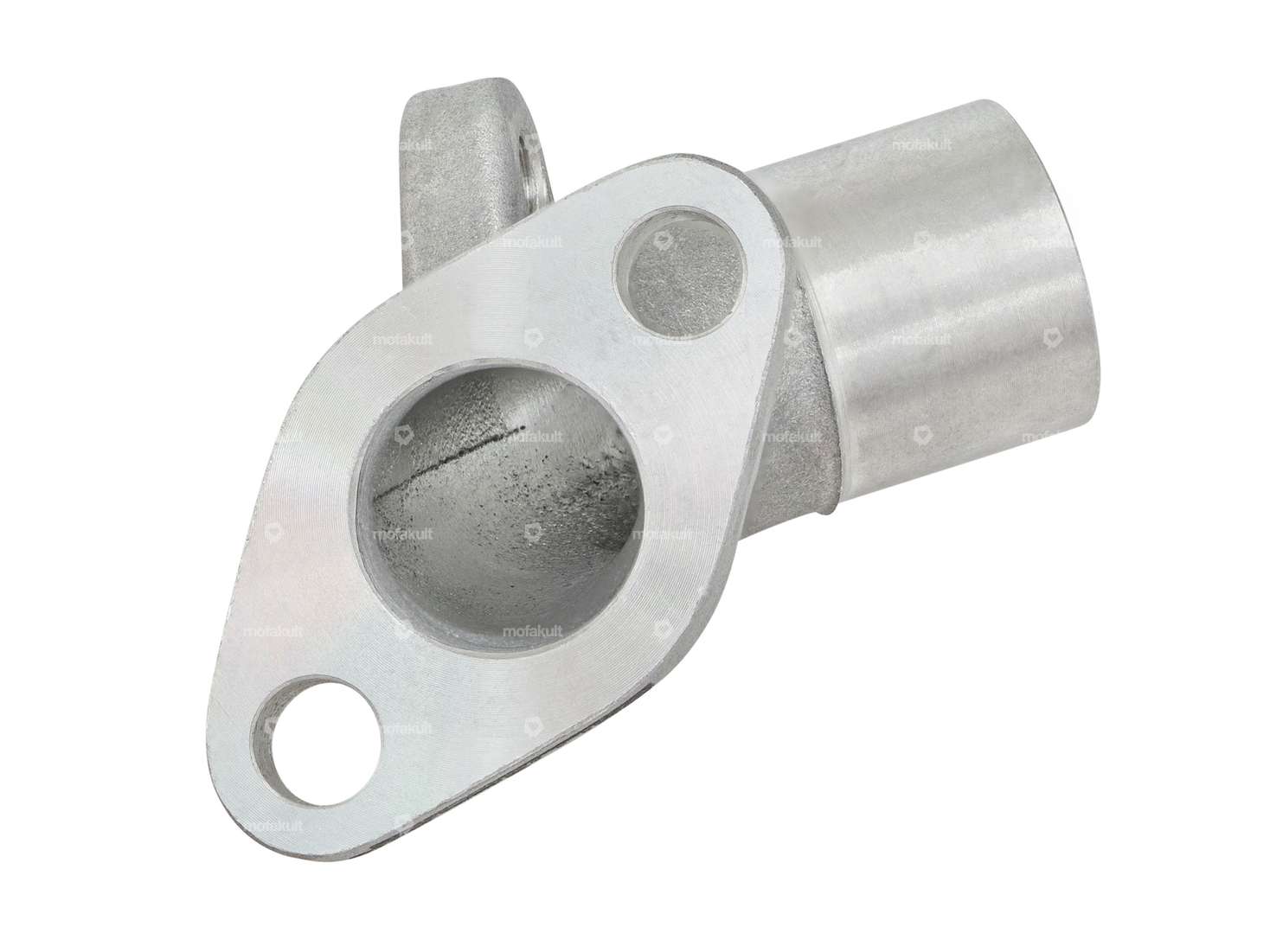

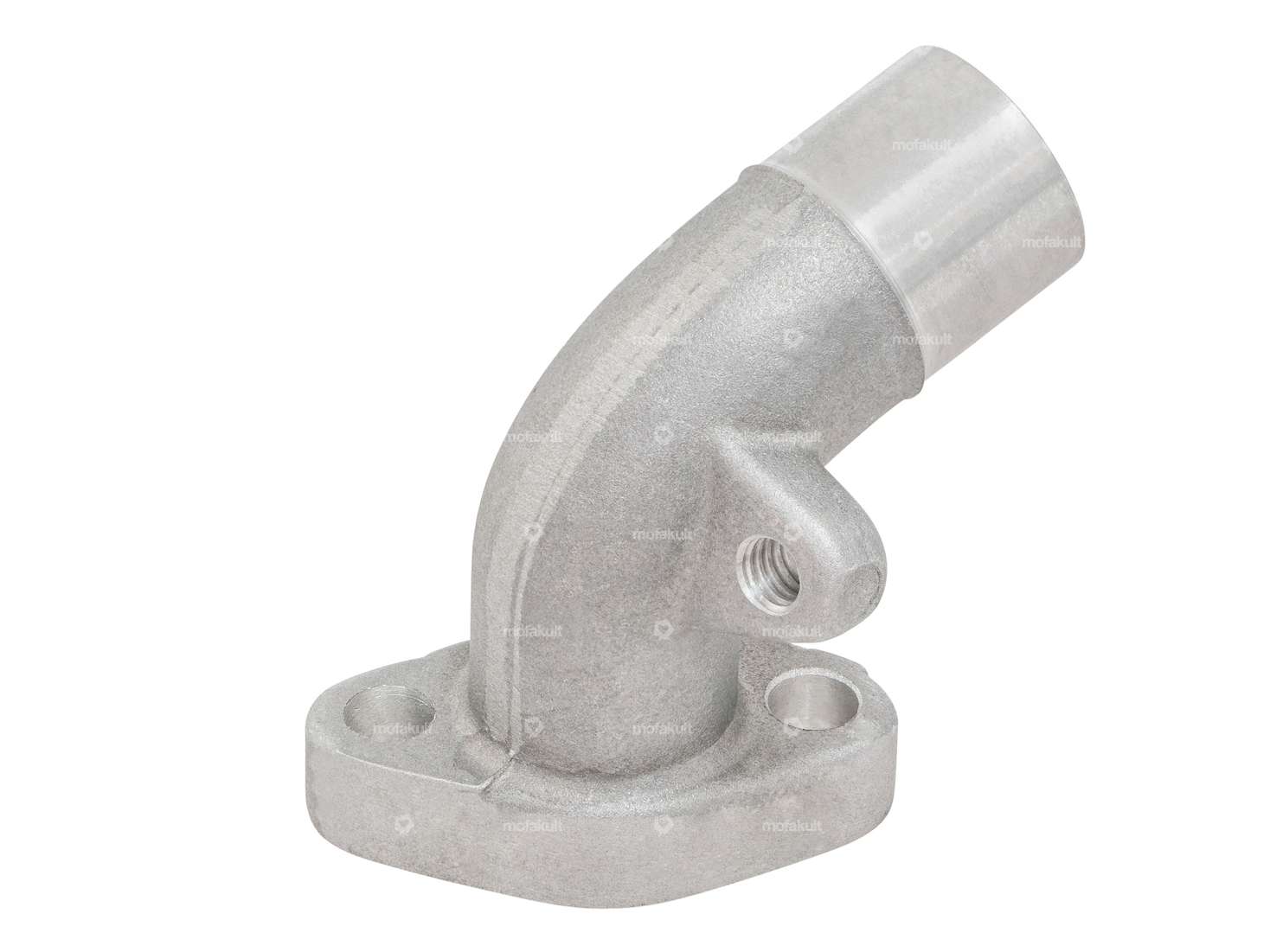

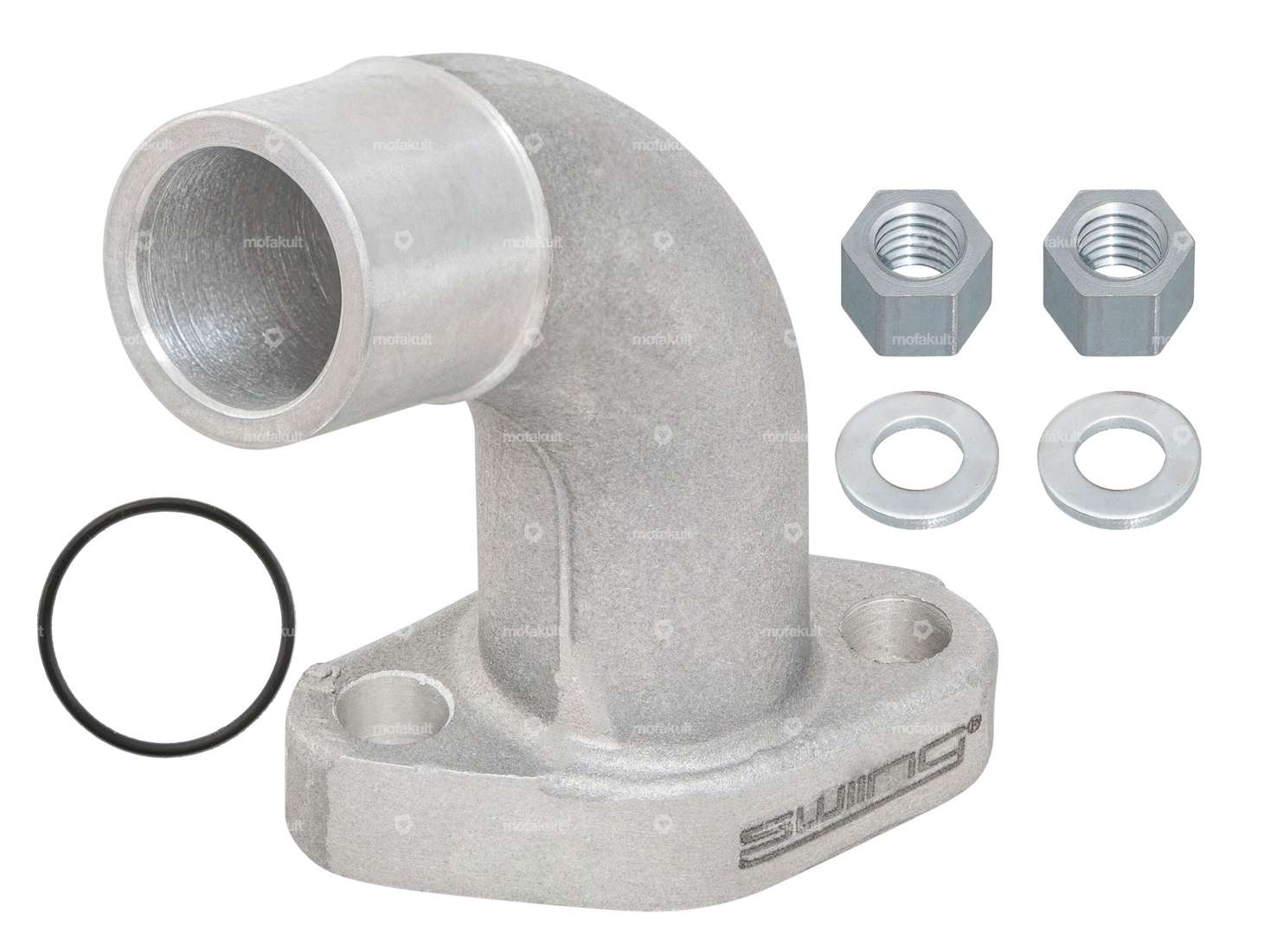

Short (50 mm) intake manifold with 15 mm diameter for mopeds / mopeds with manual Sachs 503 2AL or 2BL engine. The intake manifold also fits some AAL and ABL automatic engines.
Details
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Area of application | Tuning |
| Thread type | M6x1 (standard thread) |
| Total length | 50 mm |
| Number of fixing points | 2 pcs |
| Ø inside | 15 mm |
| Ø External connection | 20 mm |
| Hole spacing inlet | 32 mm |
| Alternative version of the Pony OEM number | A2177 |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
