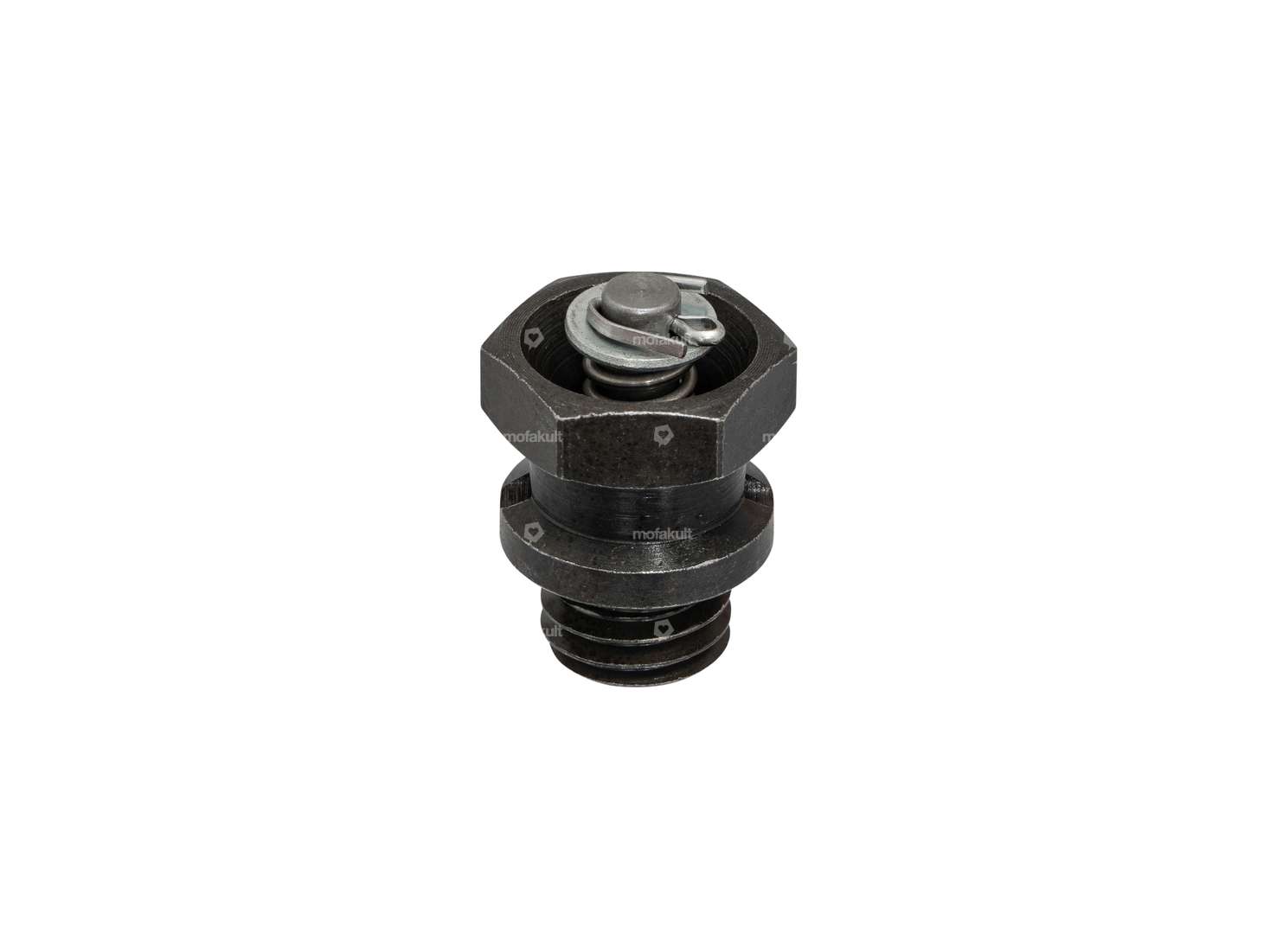

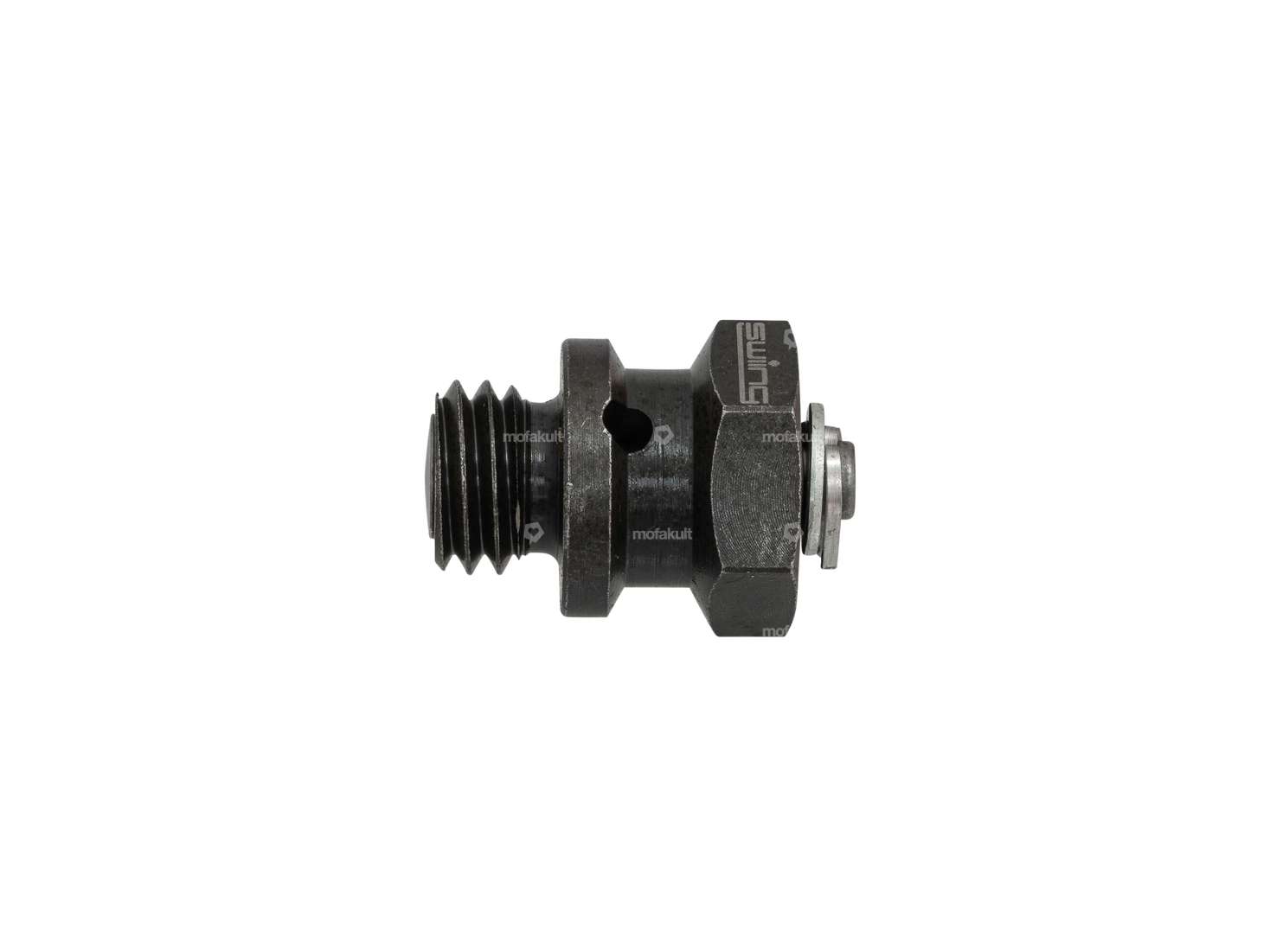

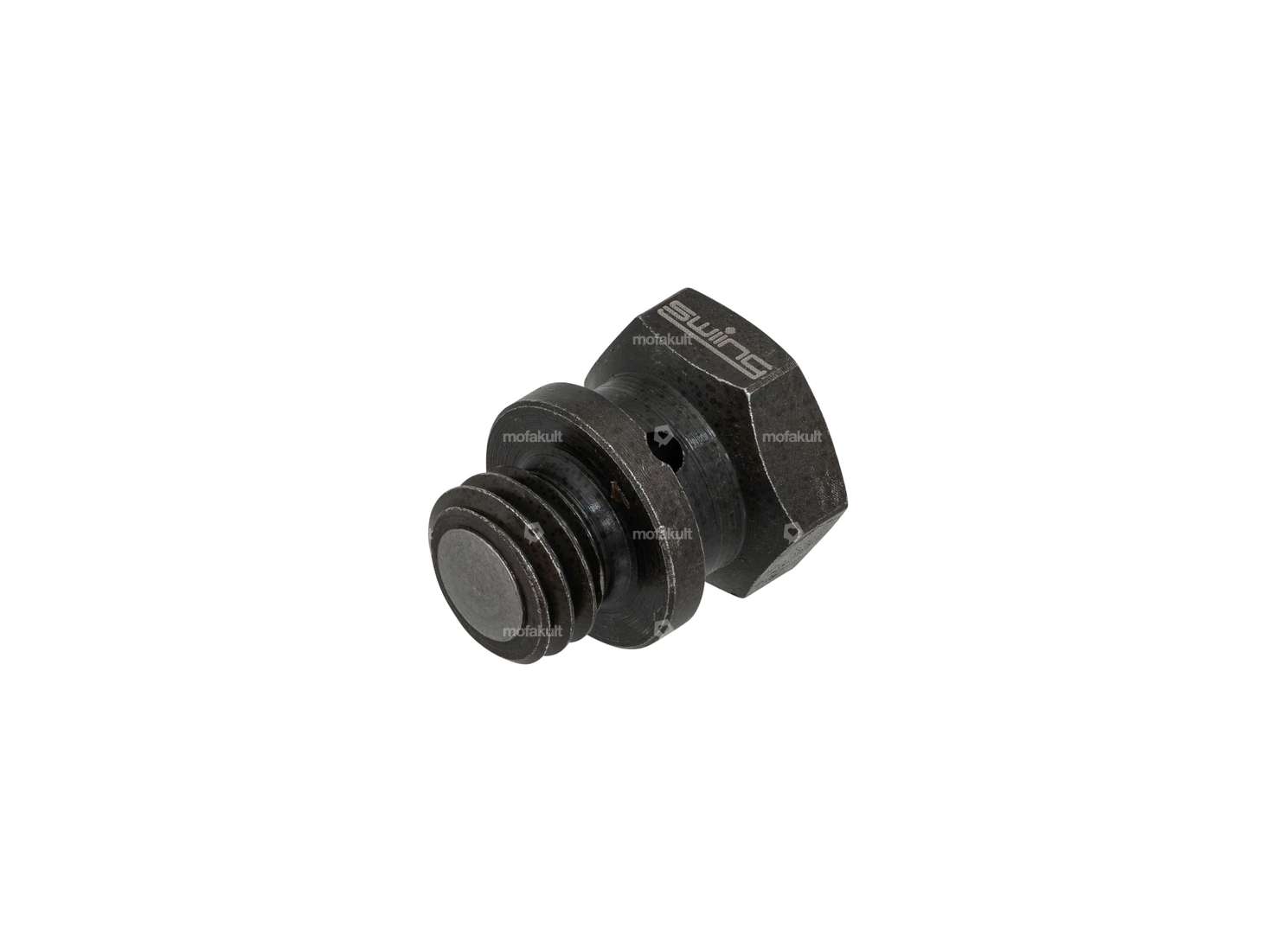

swiing® ingenious decompressor M10x1.5 | Sachs 503

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Color: blue · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Area of application: Chemistry · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

swiing® ingenious lever for decompressor | Sachs 503 (A1782)

Color: silver · Manufacturer: swiing® ingenious parts · Alternative version of the Pony OEM number: A1782 · Alternative version of the Sachs OEM number: 0248 149 000

Dowel pin decompressor cylinder head | Sachs 503 (A1805)

Material: Chrome steel (known as Nirosta®) · Total length: 26 mm · Manufacturer: Sachs · Ø Pin: 4 mm · Pony OEM number: A1805 · Sachs OEM no.: 0249 131 100

M10 copper ring 10.4/13.8/0.8

Material: Copper · Ø inside: 10.4 mm · Ø outside: 13.8 mm · Thickness: 0.8 mm

swiing® revival blind screw M10x1.5 x 18 SW10 decompressor

Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Total length: 18 mm · Manufacturer: swiing® revival parts · Screw head: Hexagon · Thread type: M10x1.5 (standard thread) · Width across flats SW: 10 mm · Thread length: 10 mm

swiing® ingenious tuning cylinder 40 mm | Sachs 503

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 40 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Decompressor: No · Camouflaged: No · Hole spacing inlet: 32 mm · Area of application: Tuning

swiing® ingenious tuning cylinder 38 mm | Sachs 503

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 38 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Decompressor: No · Camouflaged: No · Hole spacing inlet: 32 mm · Area of application: Tuning

Decompressor M12x1 Sachs 503 wide screen NOS

Material: Steel · Surface: galvanized (blue) · Total length: 67 mm · Manufacturer: Sachs · Area of application: Standard · Thread type: MF12x1 (fine pitch thread) · Angle: 90 ° · Thread length: 8.5 mm · Width across flats SW: 15 mm

Starter cable Sachs Ø 1.5 mm x 160 cm (P0925)

Ø nipple: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.5 mm · Cable length: 1600 mm · Nipple shape: Cylinder · Nipple length: 6 mm · Area of application: Standard

GPO decompressor M10x1.5 45°

Material: Steel · Surface: galvanized (blue) · Total length: 64 mm · Manufacturer: GPO · Ø outside: 14 mm · Area of application: Standard · Thread type: M10x1.5 (standard thread) · Angle: 45 ° · Thread length: 9 mm

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Nipple length: 5 mm · Area of application: Standard

Magura cable end sleeve 5 mm (1A quality)

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Color: silver · Ø Cable bushing: 2.5 mm · Ø outside: 5.5 mm · Ø inside: 5 mm · Total length: 12 mm · Area of application: Standard

swiing® revival nozzle set M3.5 (44 - 54) Bing SRE, SRA, SRC, SRF

Drive: Slot · Manufacturer: swiing® revival parts · Total length: 6 mm · Material: Brass · Component group Carburetor: Spraying · Quantity: 6 pcs · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 44 · Nozzle size: 46 · Nozzle size: 48 · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 54

Petrol hose clamp (Ø 8 - 9.3 mm) Standard

Material: Spring steel · Surface: galvanized (blue) · Color: silver · Mounting type: Plug connection clamped · Outer width: 5.3 mm · Ø outside: 9.5 mm · Ø inside: 7.5 mm · Clamping range: 7.6 - 9.3 mm

swiing® ingenious lever for decompressor | Sachs 503 (A1782)

Color: silver · Manufacturer: swiing® ingenious parts · Alternative version of the Pony OEM number: A1782 · Alternative version of the Sachs OEM number: 0248 149 000

Dowel pin decompressor cylinder head | Sachs 503 (A1805)

Material: Chrome steel (known as Nirosta®) · Total length: 26 mm · Manufacturer: Sachs · Ø Pin: 4 mm · Pony OEM number: A1805 · Sachs OEM no.: 0249 131 100

M10 copper ring 10.4/13.8/0.8

Material: Copper · Ø inside: 10.4 mm · Ø outside: 13.8 mm · Thickness: 0.8 mm

Copper ring 10.4/13.8/0.8 decompressor

Material: Copper · Ø inside: 10.4 mm · Ø outside: 13.8 mm · Thickness: 0.8 mm · Pony OEM number: A1138 · Sachs OEM no.: 0230 015 000

swiing® ingenious decompressor set | Sachs 503

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Chrome steel (known as Nirosta®) · Material: Copper · Material: Steel · Thread type: M10x1.5 (standard thread) · Ø outside: 14 mm · Width across flats SW: 14 mm · Area of application: Standard · Total length: 21.5 mm · Thread length: 14 mm · Sachs OEM no.: 0291 013 300
