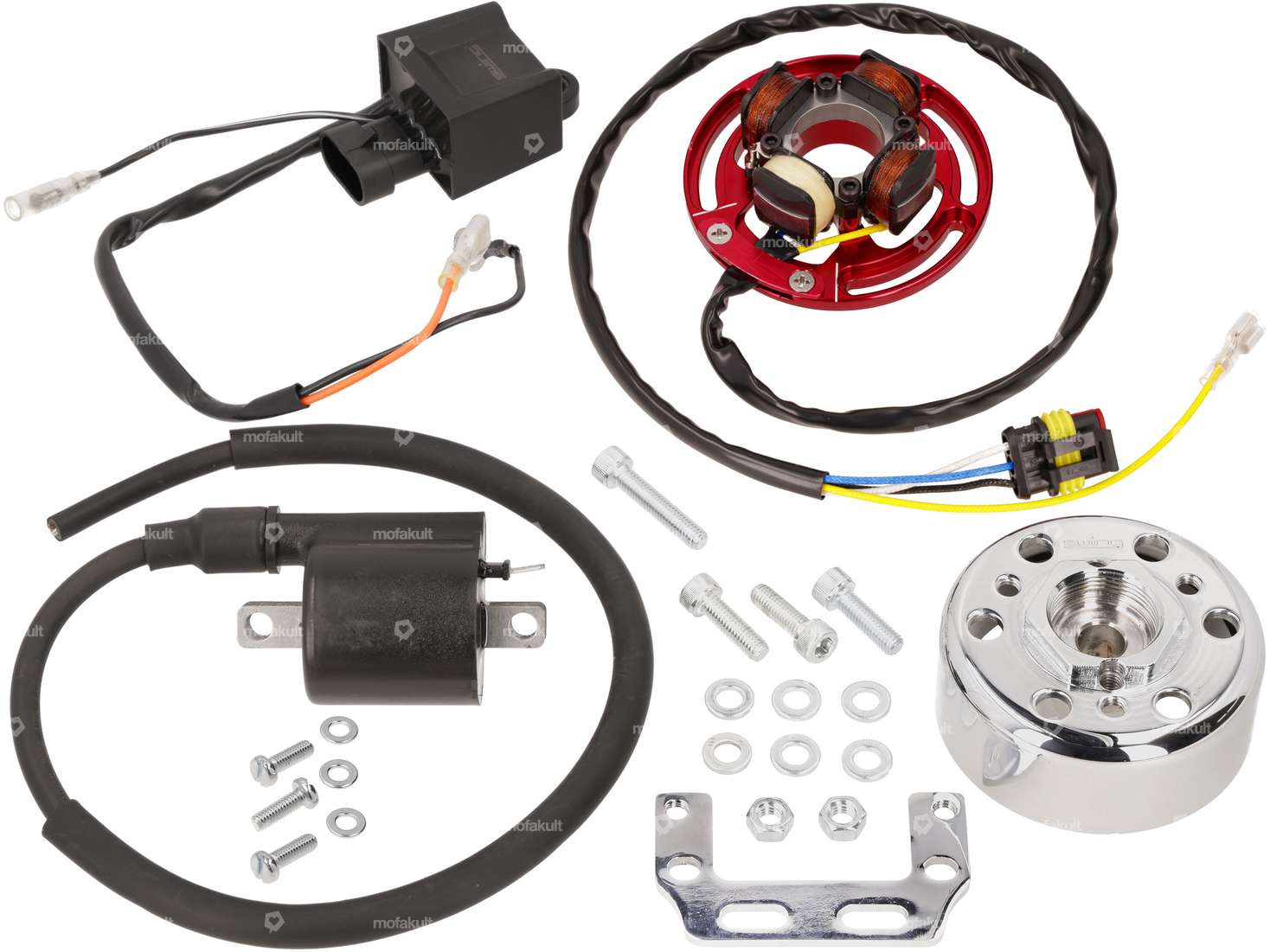

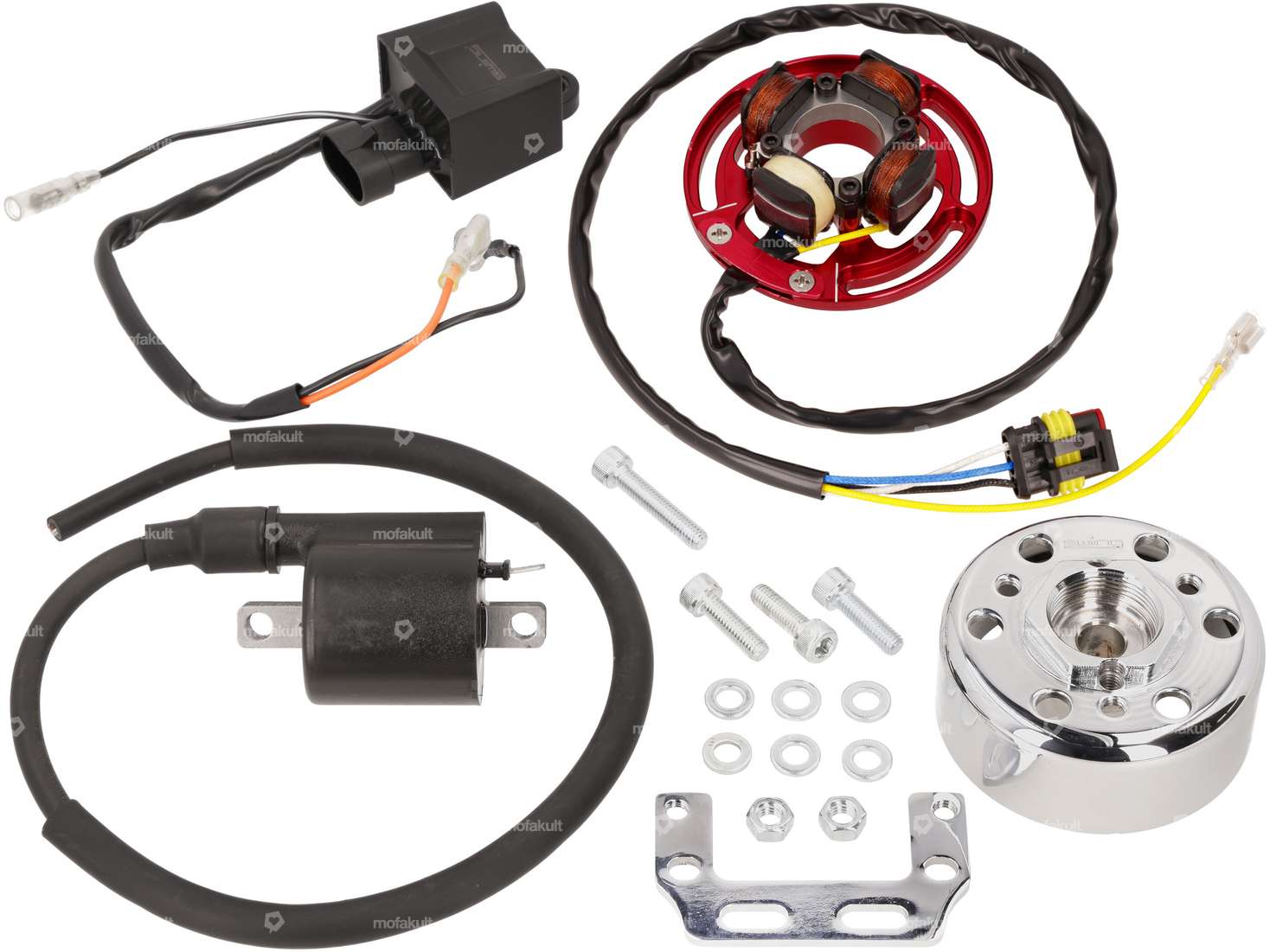

The swiing® ingenious EVO racing ignition with light (12 Volt & 60 Watt) is suitable for left- and right-turning engines with 1:5 flywheel cone & 90 mm center plates.
The following special features characterize this ignition:

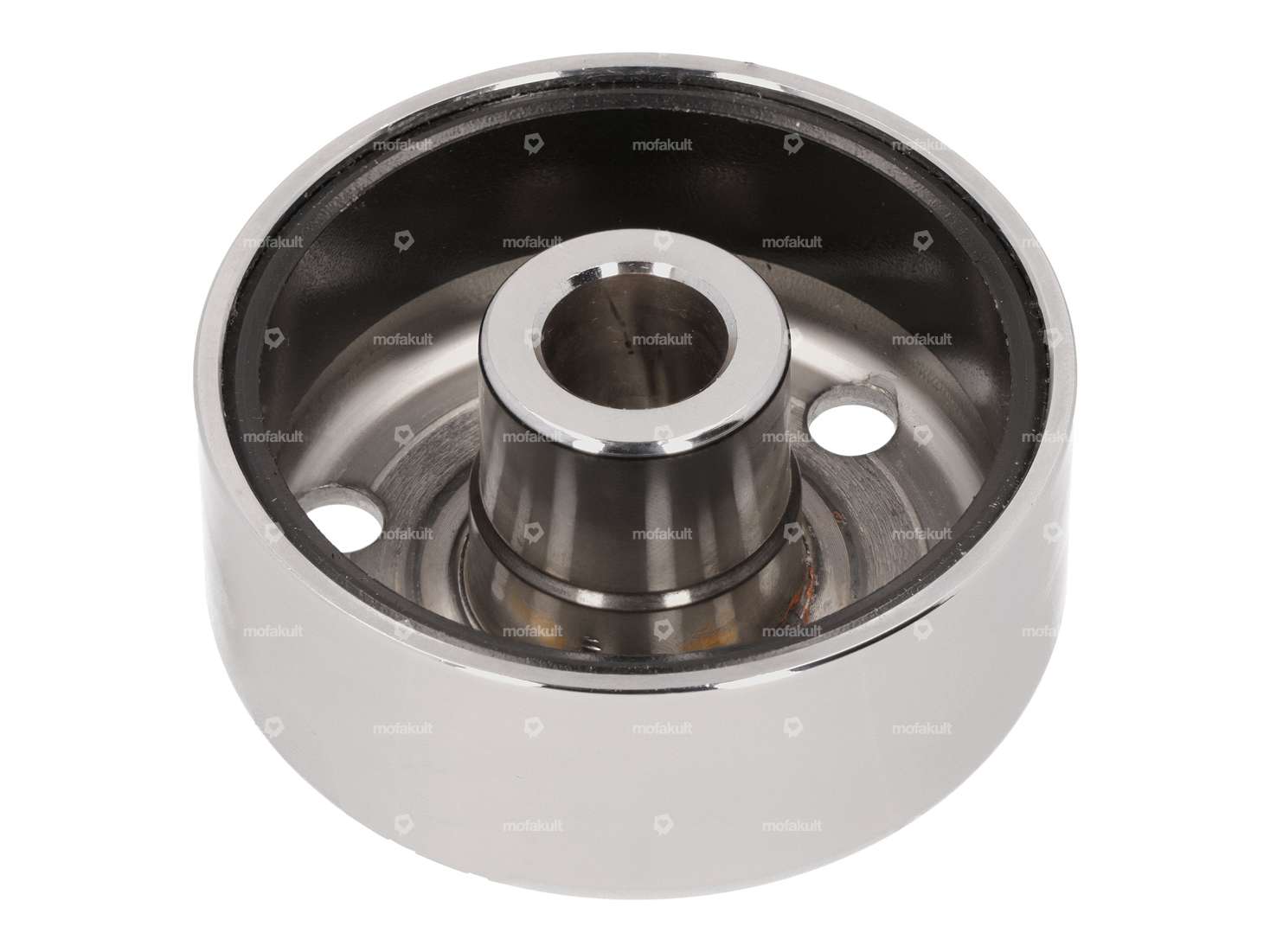

- From the factory more flywheel mass than HPI ignitions, thus smoother engine idling (382 grams)
- Finely balanced flywheel for less vibration
- Trigger thread with normal M26x1.5 mm pitch, so normal Bosch/Ducati flywheel pullers can be used
- Easy adjustment of the ignition timing

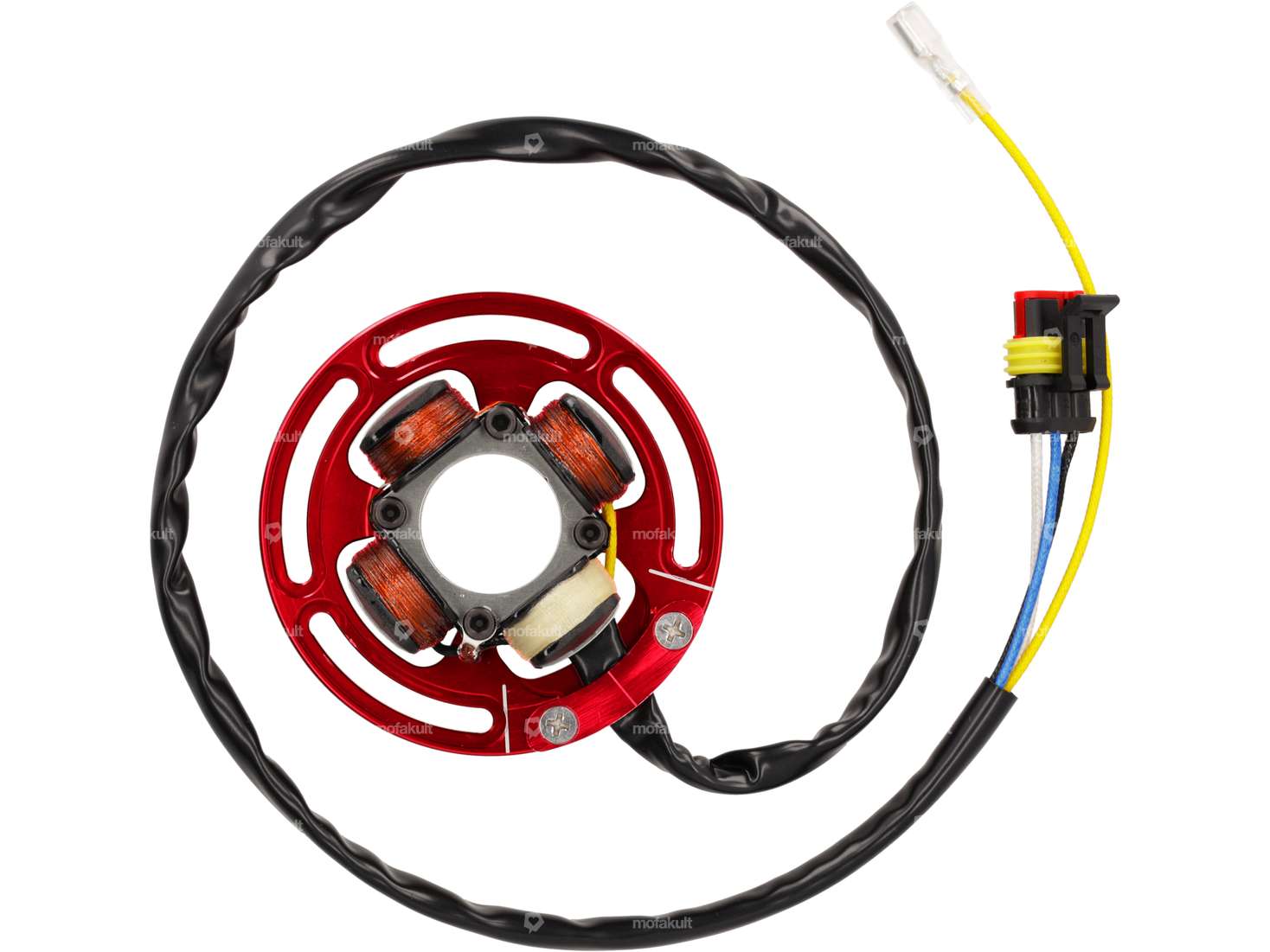

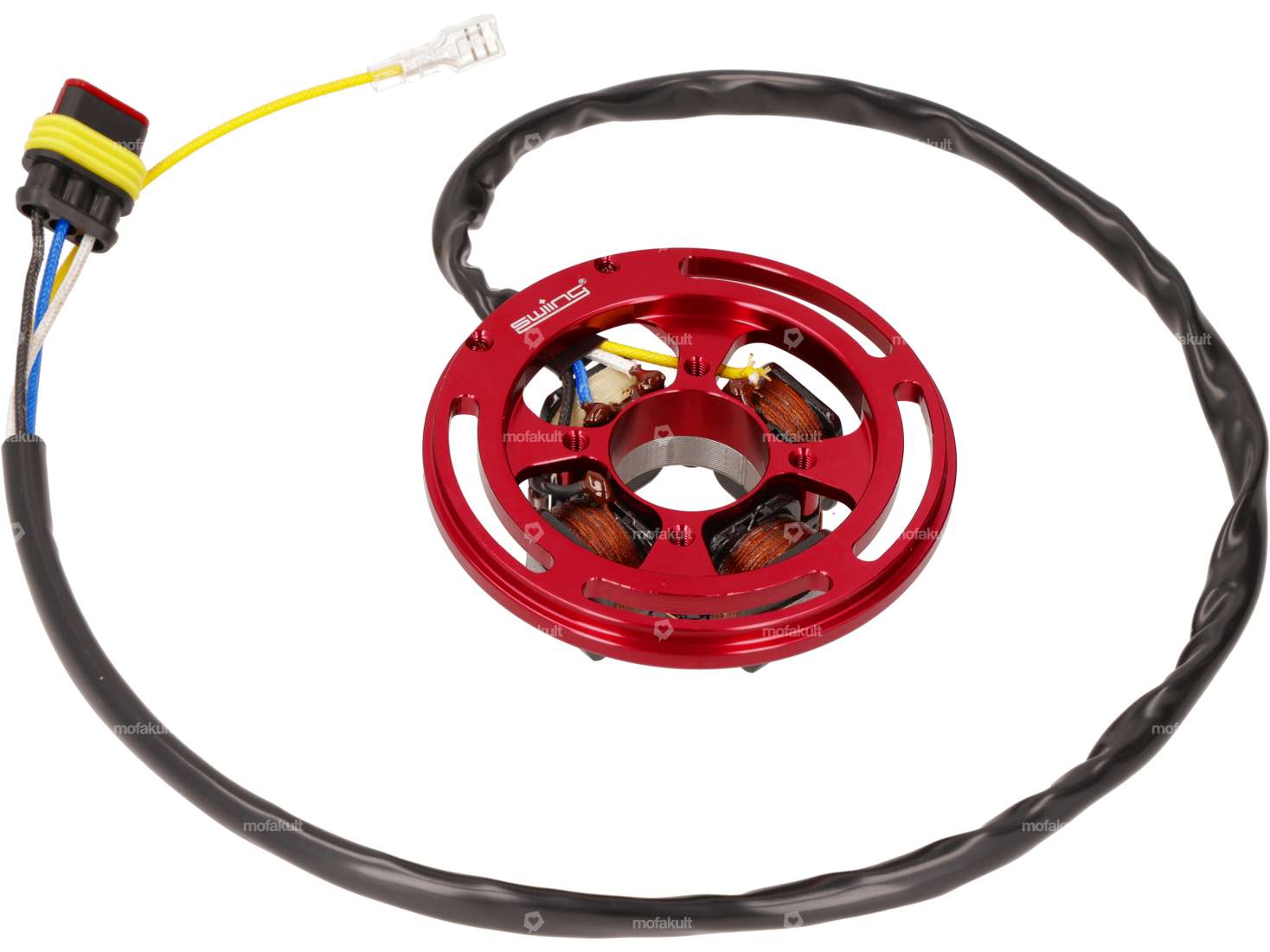

- The stator was designed for high heat loads;designed for high heat loads, no more failures due to overheating
- Optimized ignition curve (adjustment 12° - 14°)
- Light voltage: 12 Volt
- Light output: 60 Watt
- Ø outer flywheel: 75 mm
- Flywheel cone: ratio 1:5 (standard for Puch & Sachs crankshafts)
- Ø outer stator plate: 90 mm
The ignition is compatible with cable starters and fan gears which also fit the HPI, you can find these in the accessories section.
Installation instructions:
- Right-turning engines: Set the piston to TDC, the marking on the base plate at 11 o'clock (left of the swiing logo) must match the marking on the flywheel, this achieves a timing of 2 mm before TDC.
- Left-turning engines: Set the piston to TDC, the marking on the base plate at 13 o'clock (to the right of the swiing logo) must match the marking on the flywheel; this achieves a timing point of 2 mm before TDC.
- Flywheel tightening torque: 37 - 39 Nm (no keyway available)

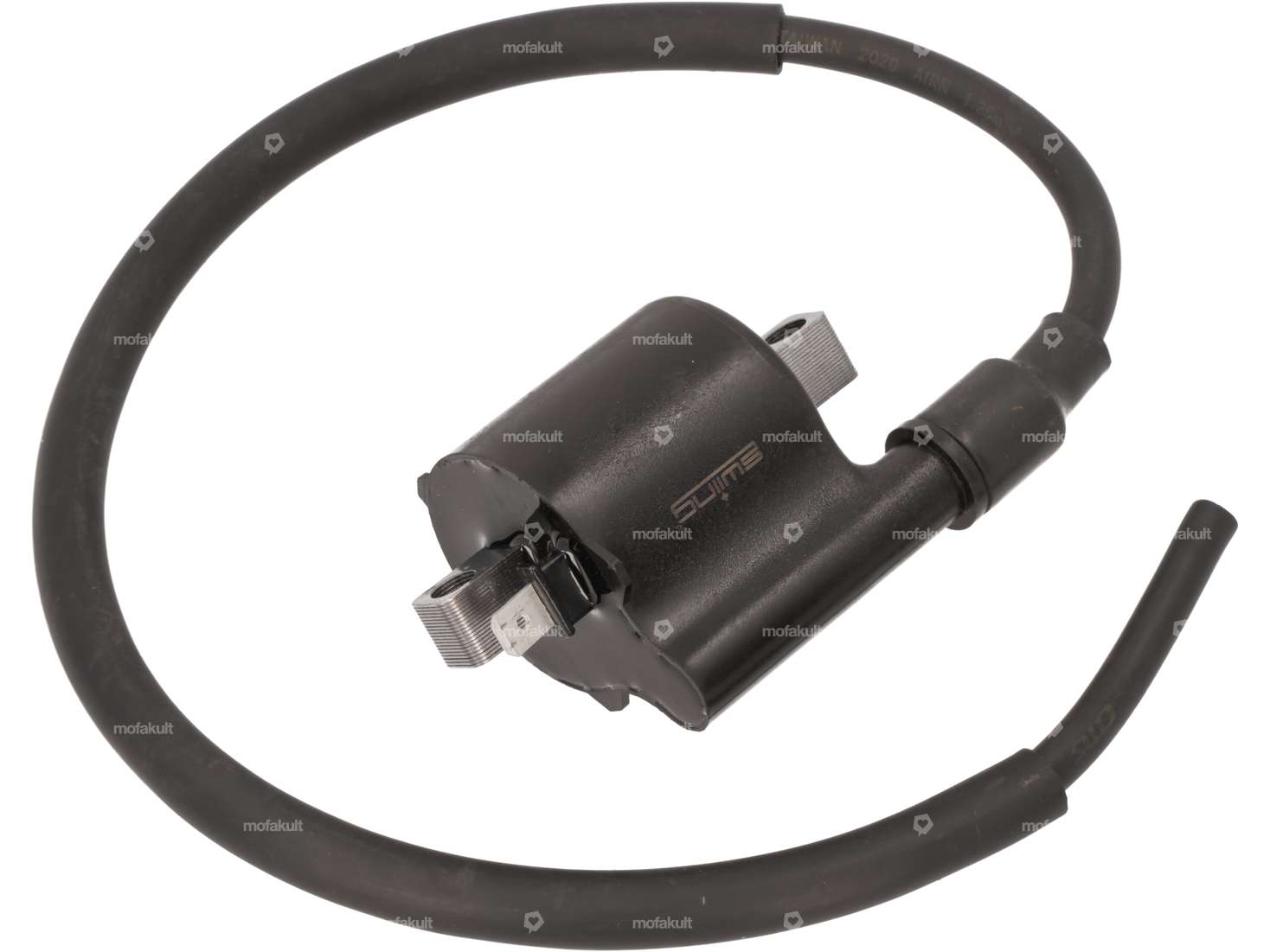

- The CDI and ignition coil must be supplied with a good earth (grounding), otherwise they can be damaged within a short time.
- The lighting system should also be equipped with a 12 V voltage regulator.
Correct pinning of the Superseal connector:
- 1 = black
- 2 = blue
- 3 = white
Attention: The ignition components stator, rotor, CDI and ignition coil are not compatible with parts of the HPI ignition!
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
Suitable for the following models
| Puch | |
| Sachs | |
| Zündapp Belmondo |
